Product Description

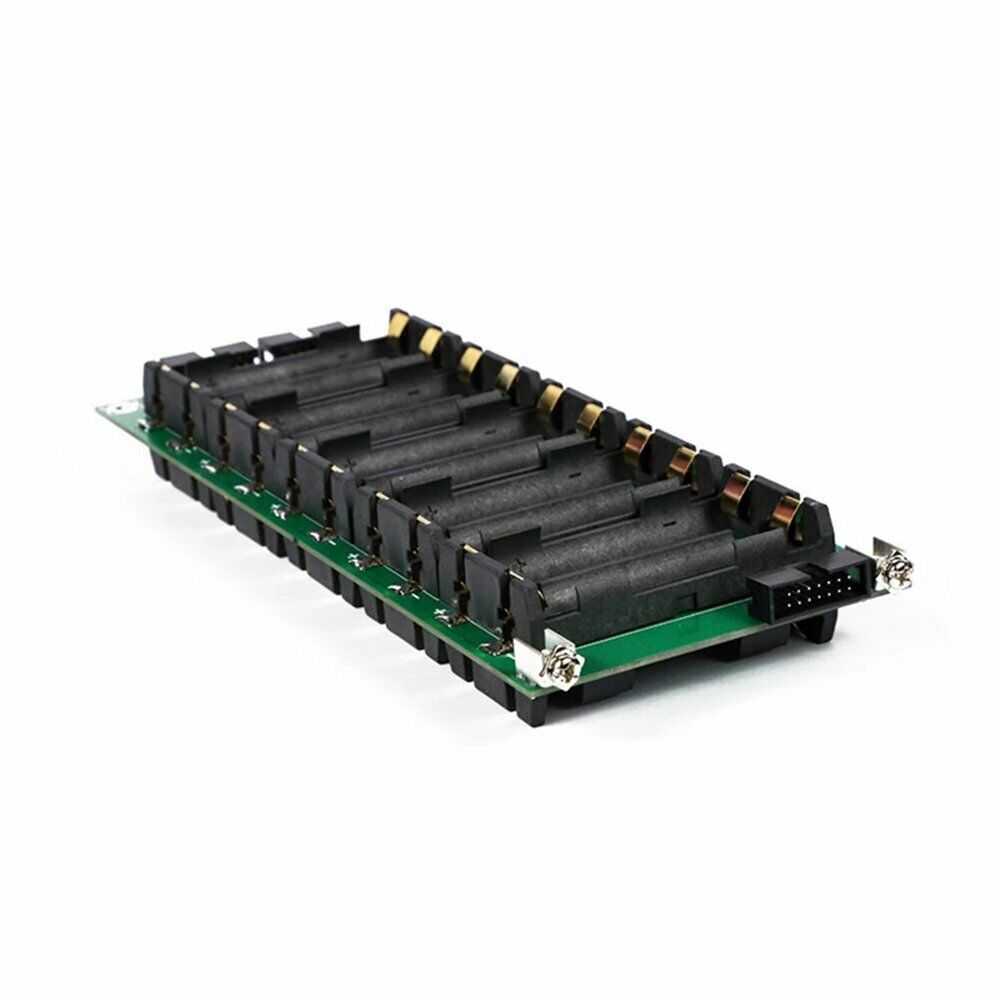

20S 74V 18650 DIY Battery Pack Power Wall Li-ion Holder BMS PCB For E-Bike AUS

Features:

The installation is simple, only the battery is required, no welding is required.

Excellent structure, helps to dissipate heat during battery use.

Comes with insurance design, safe to use.

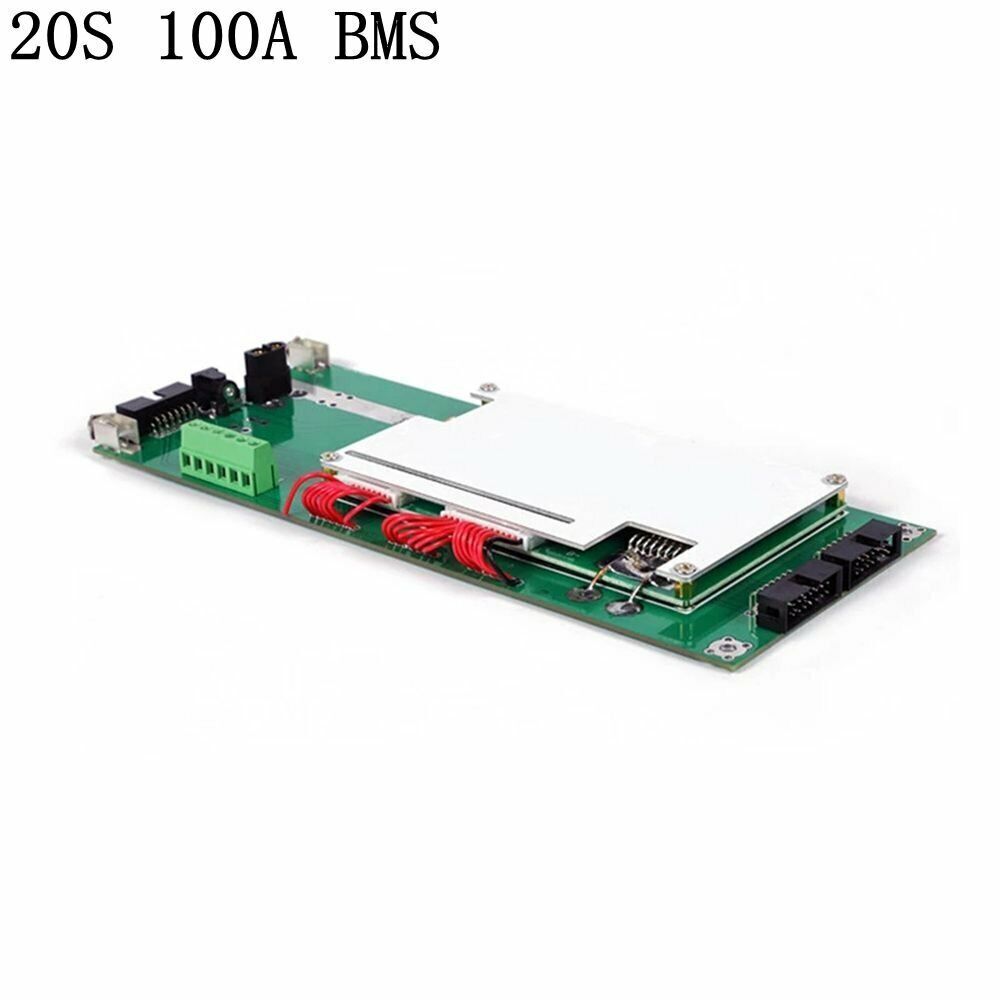

The protection board is powerful, reducing worries, flushing the same mouth.

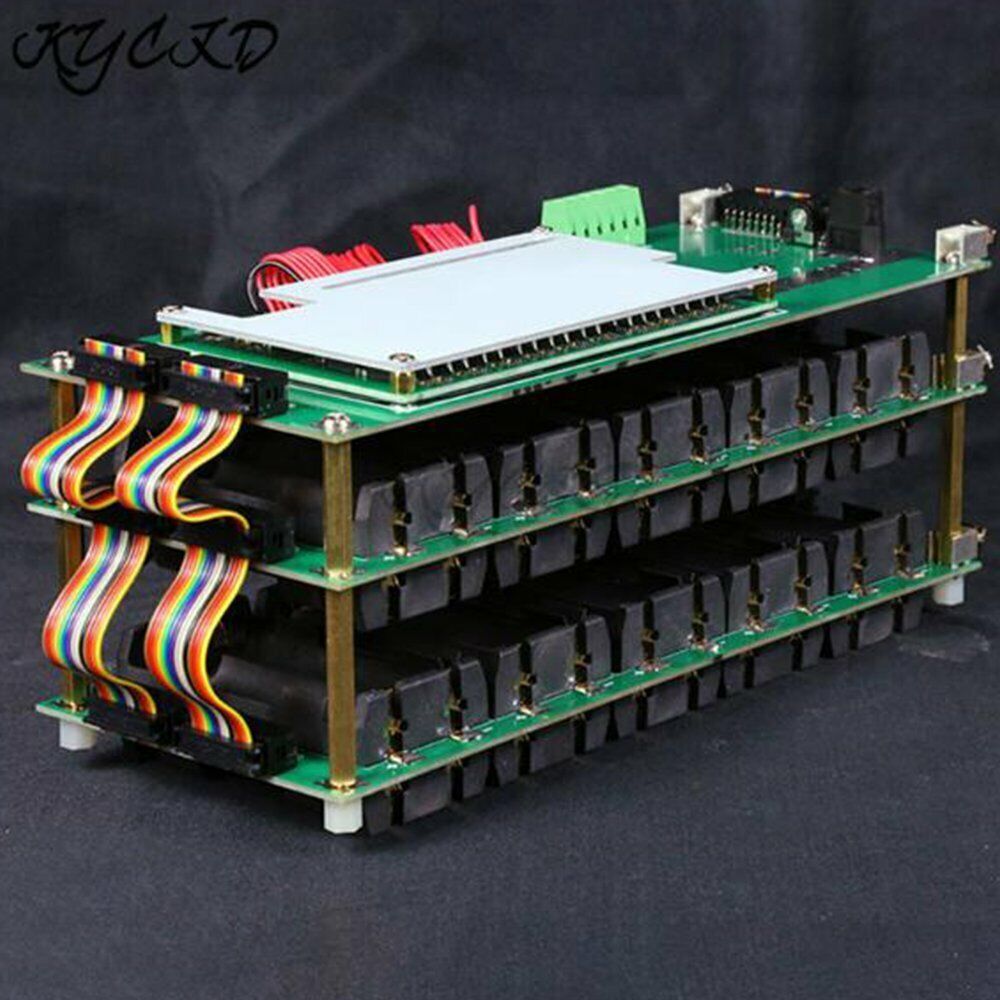

Can be stacked in multiple layers.

M4 copper pillar conductive.

Simple and fast assembly, no welding required.



Size：

6S1P：17.4*8.8*2.5cm    92g

6S2P：17.4*8.8*4.5cm    136g


6S1P 40A：17.4*8.8*2.5cm    103g


Capacity:Take the 5000mah 21700 battery as an example, 1P=5AH, 2P=10AH, 3P=15AH, 4P:20AH.


Voltage :

1s full 4.2v, after discharge 2.9v.

3s full 12.6v, after discharge 8.7v.

4s full 16.8v, after discharge 11.6v.

5s fully charged with 21v, discharged at 14.5v.

6s fully charged 25.2v, discharged 17.4v.

7s fully charged 29.4v, discharged 20.3v.

13s fully charged 54.6v, discharged 37.7v.

14s fully charged 71.4v, discharged 49.3v.


Current:

The average instantaneous maximum of each layer is 20a, and it is recommended to be less than 10a for a long time (the actual current is determined by the battery performance)

Electrical parameters and precautions:

It is best to choose the protection board when placing the order to avoid overcharge, over discharge and voltage imbalance during use. It is best to choose our dedicated charger. If other chargers are used, you need to choose a DC connector. , It is recommended that each layer does not exceed 1a charging current.


Instructions：

You can install the battery directly after receiving it. The direction and polarity of the battery installation are subject to the symbols on the circuit board

After installing the battery, the direction of the notch is the same, and then screw on the copper pillar,

After the copper pillar is installed, confirm that there is no problem, you can install the cable, and you can use it after the cable is connected.


Note:

If there is no protection board layer, the output terminal will have no voltage, because the protection board is connected in series in the circuit. If there is no protection board, the output is open.
