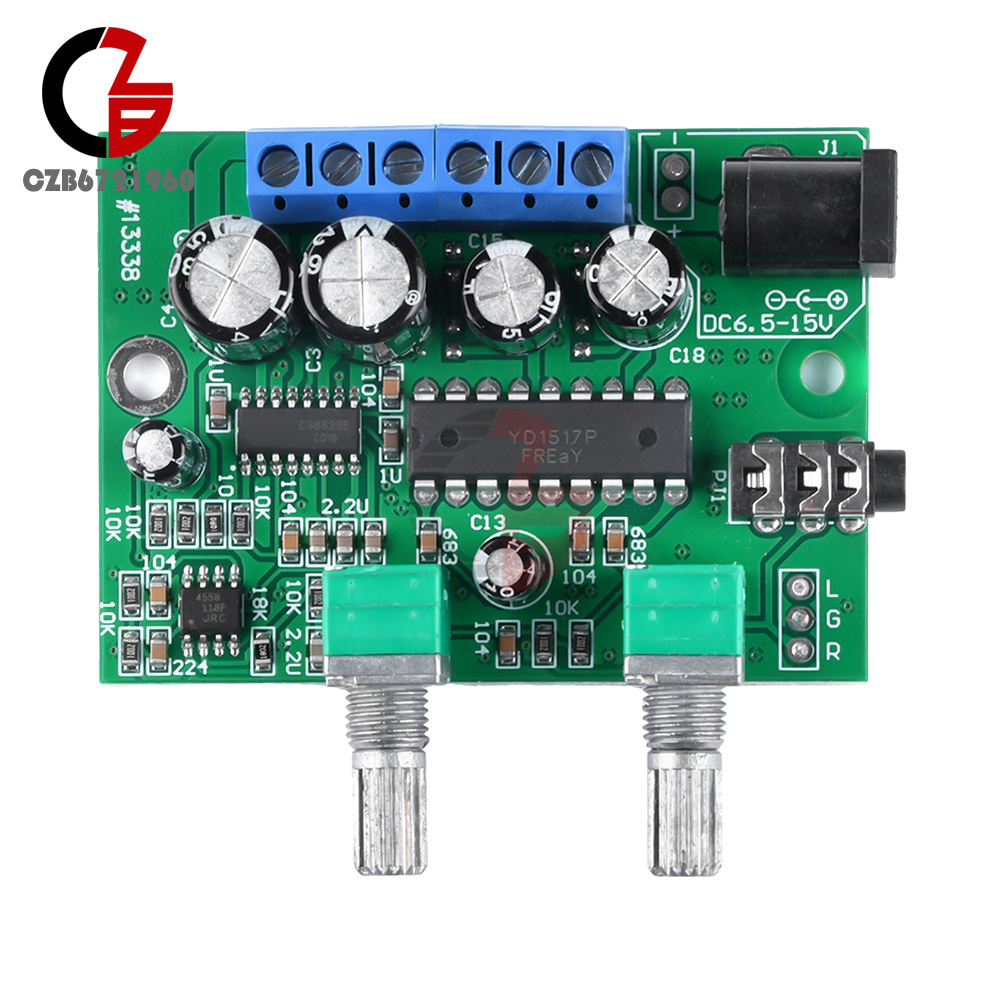

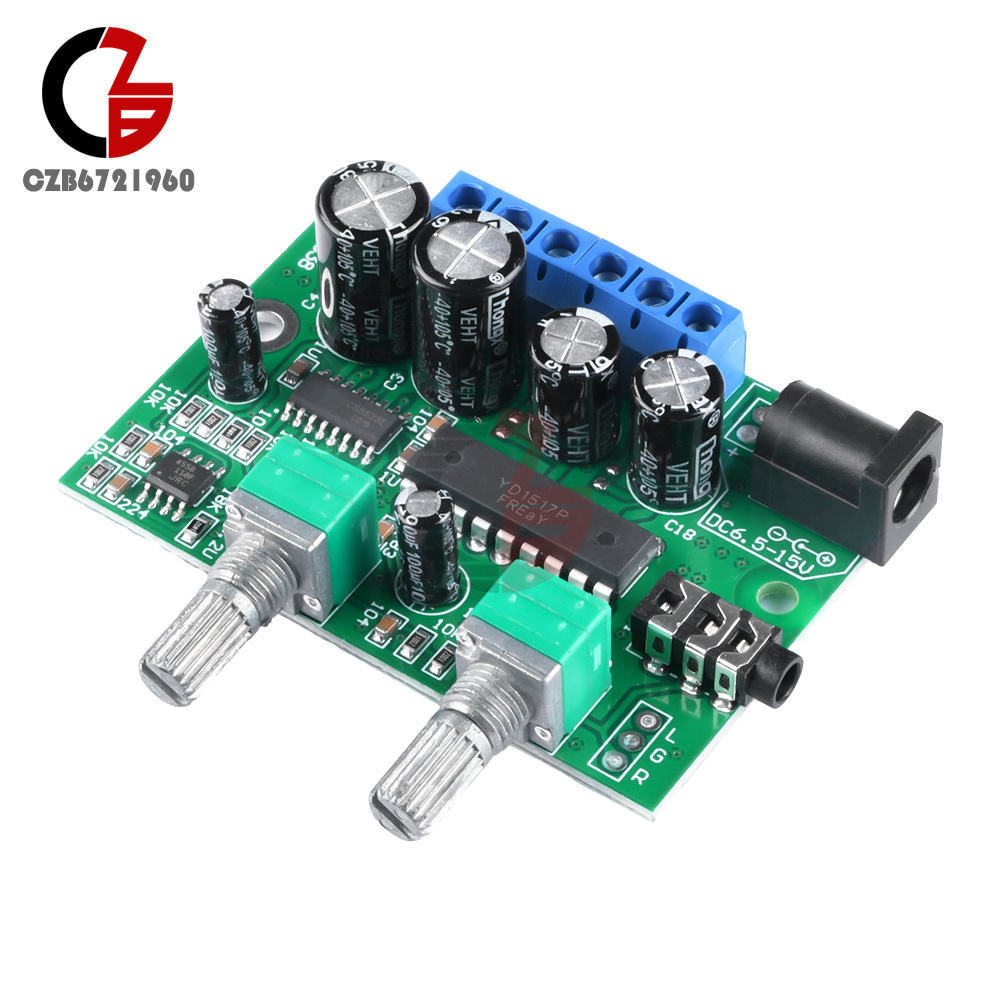

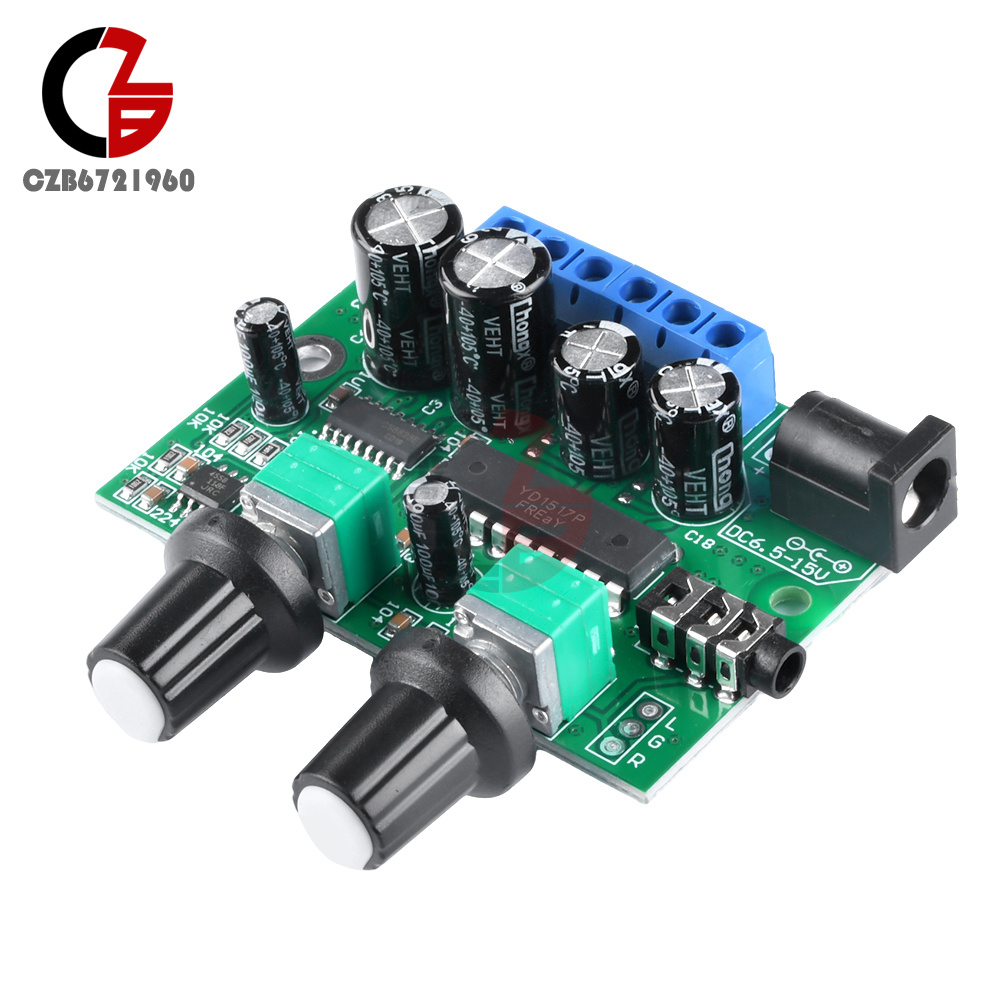

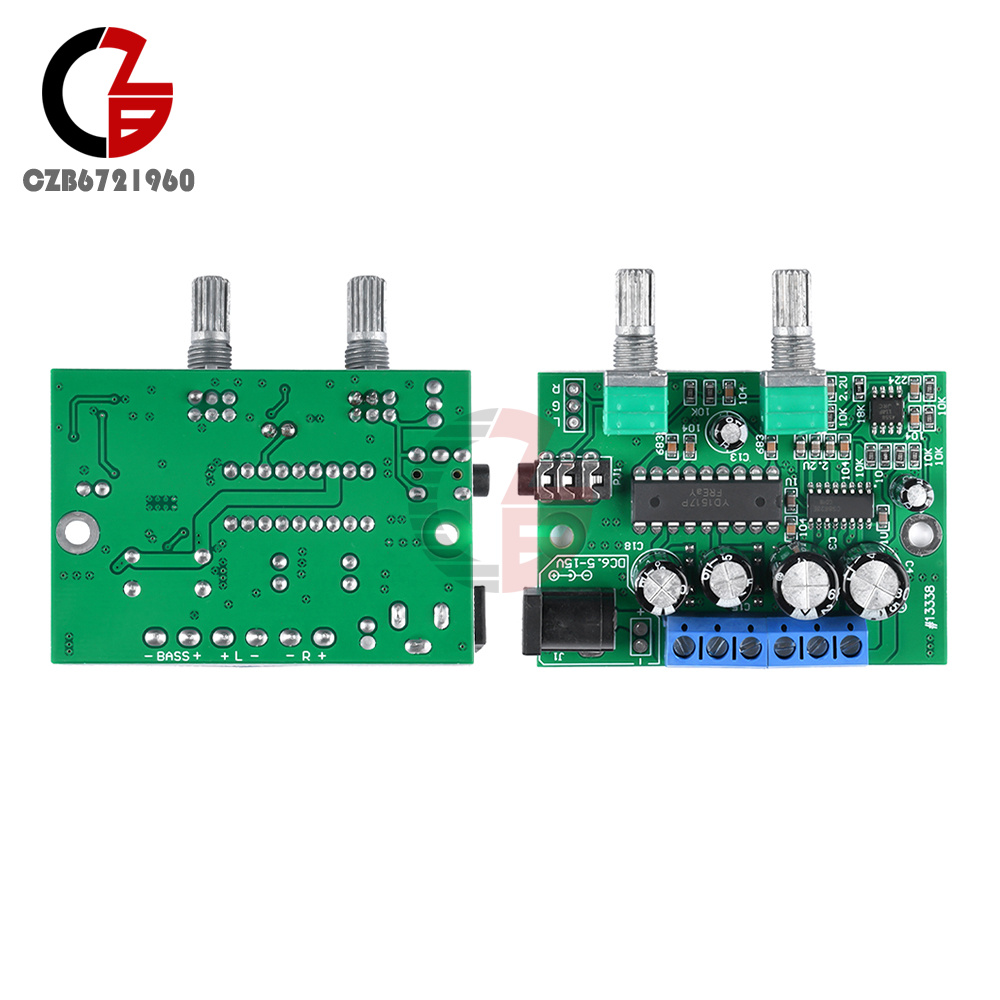

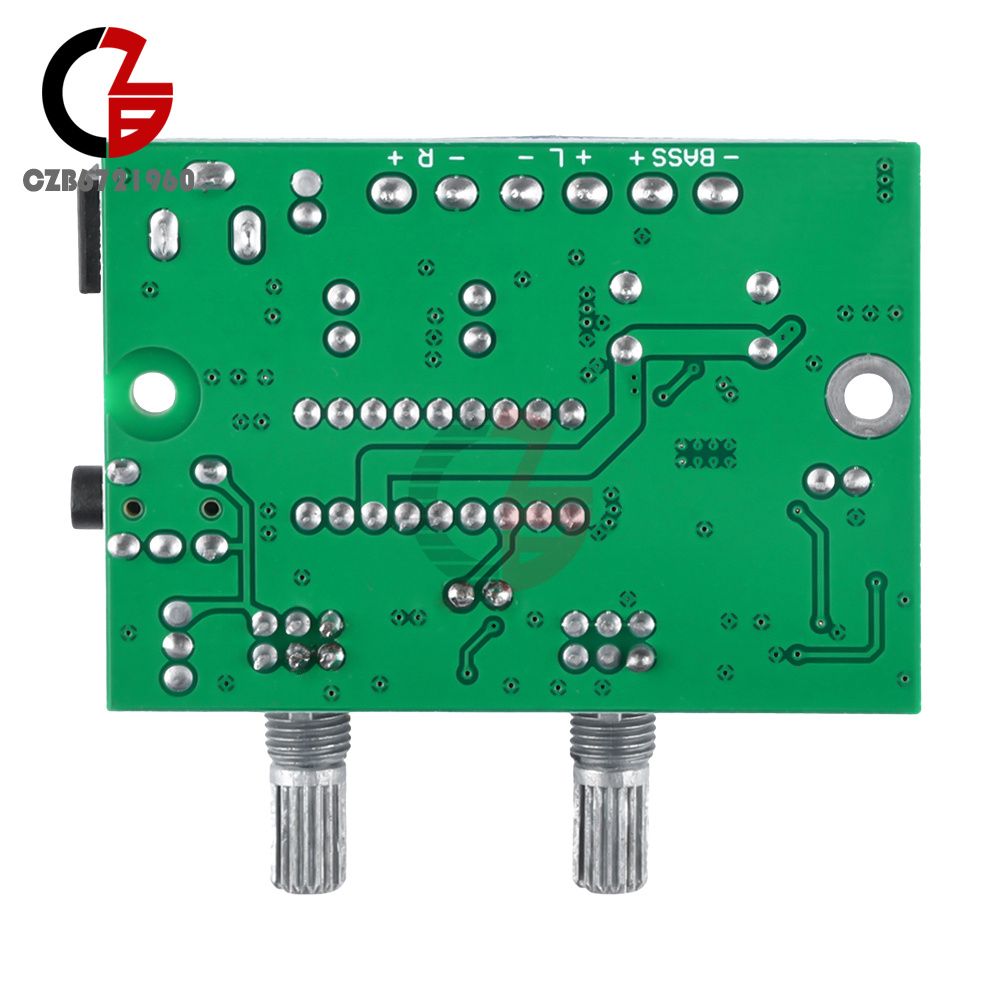

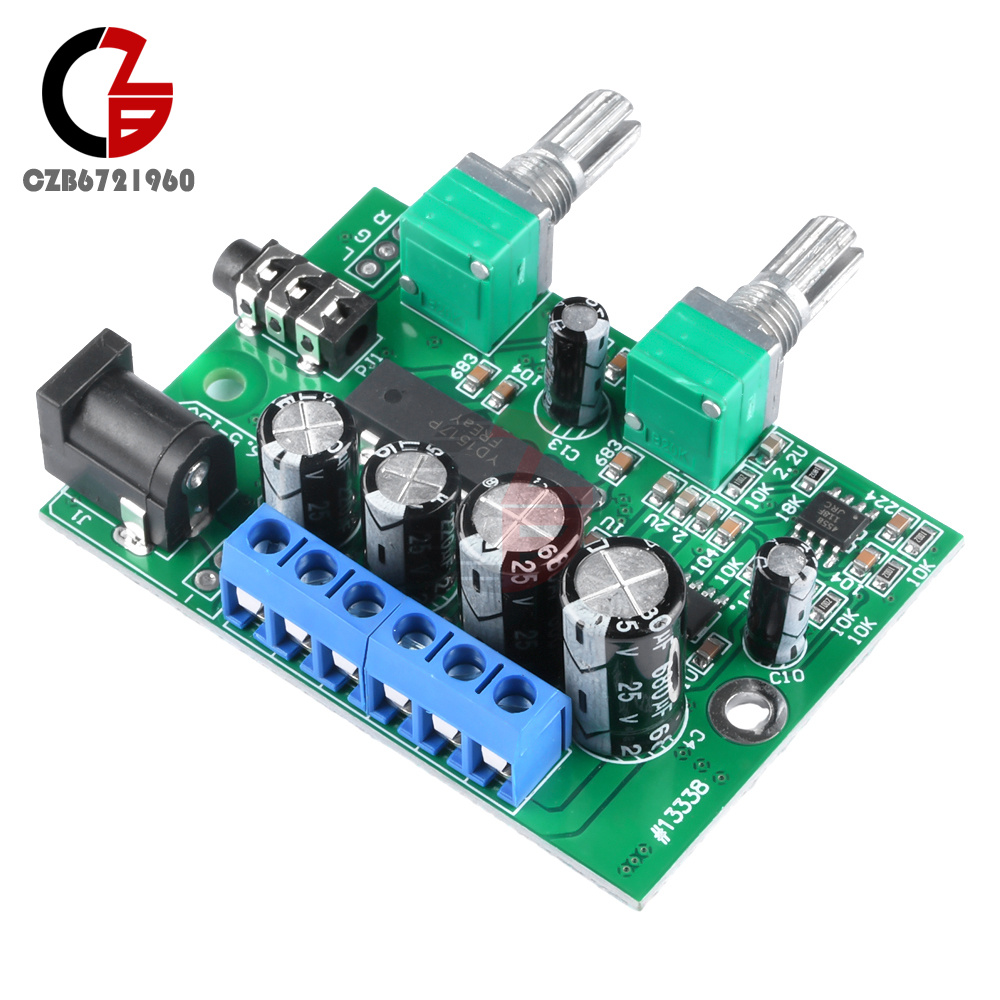

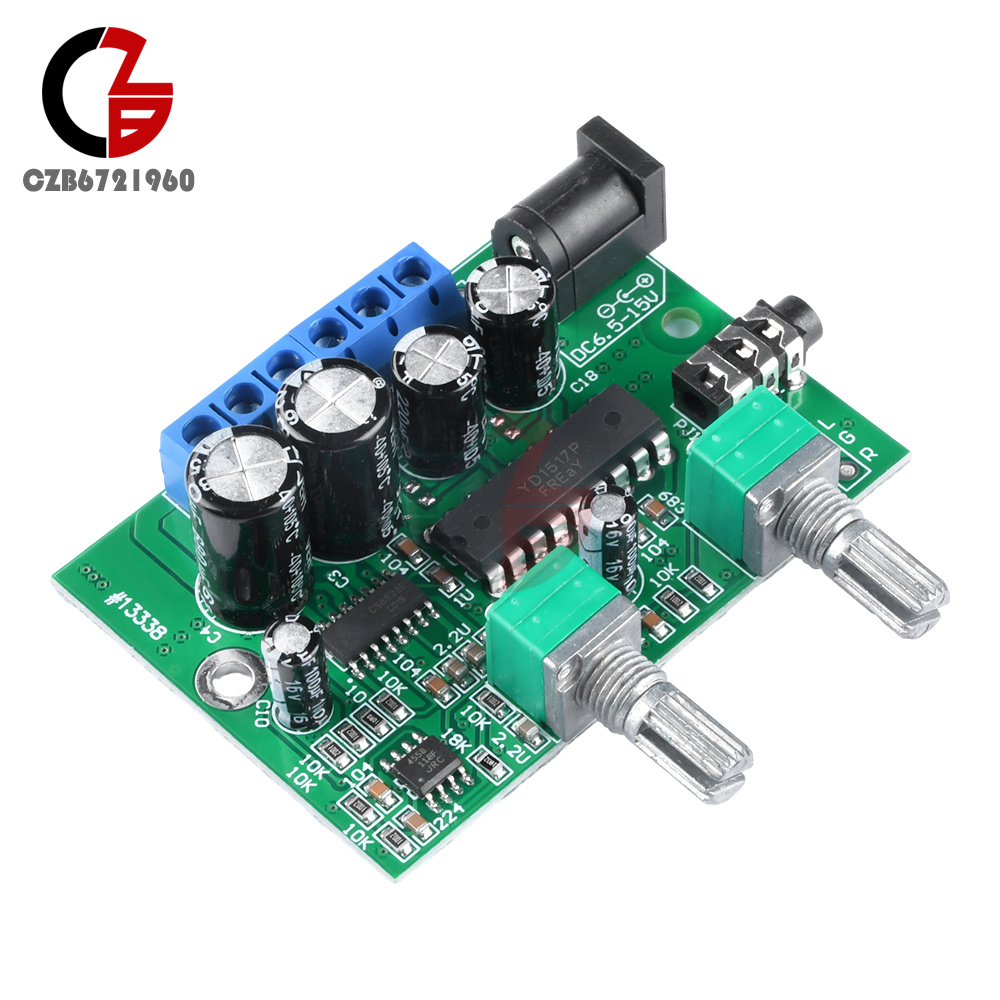

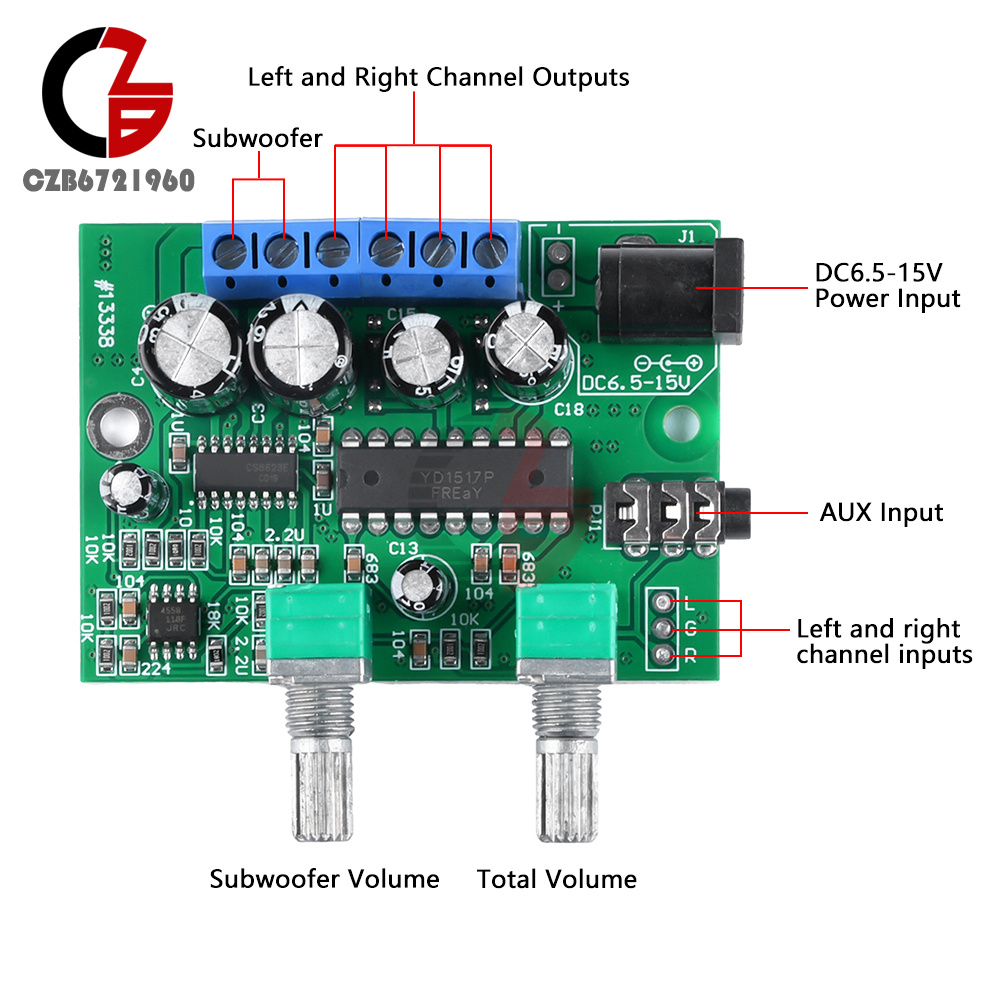

Digital Amplifier Module 2.1 3-channel Class D Subwoofer Amplifier Board 6+6+25W

Popular

    Product Introduction

    Features
    1. Use of high quality materials, quality is guaranteed
    2.PCB circuit board size reduction, component layout is more reasonable, increase product service life
    3. The left and right channels use a low-power audiophile-grade audio special chip TDA1517P for the output stage, which really provides a high-quality effect

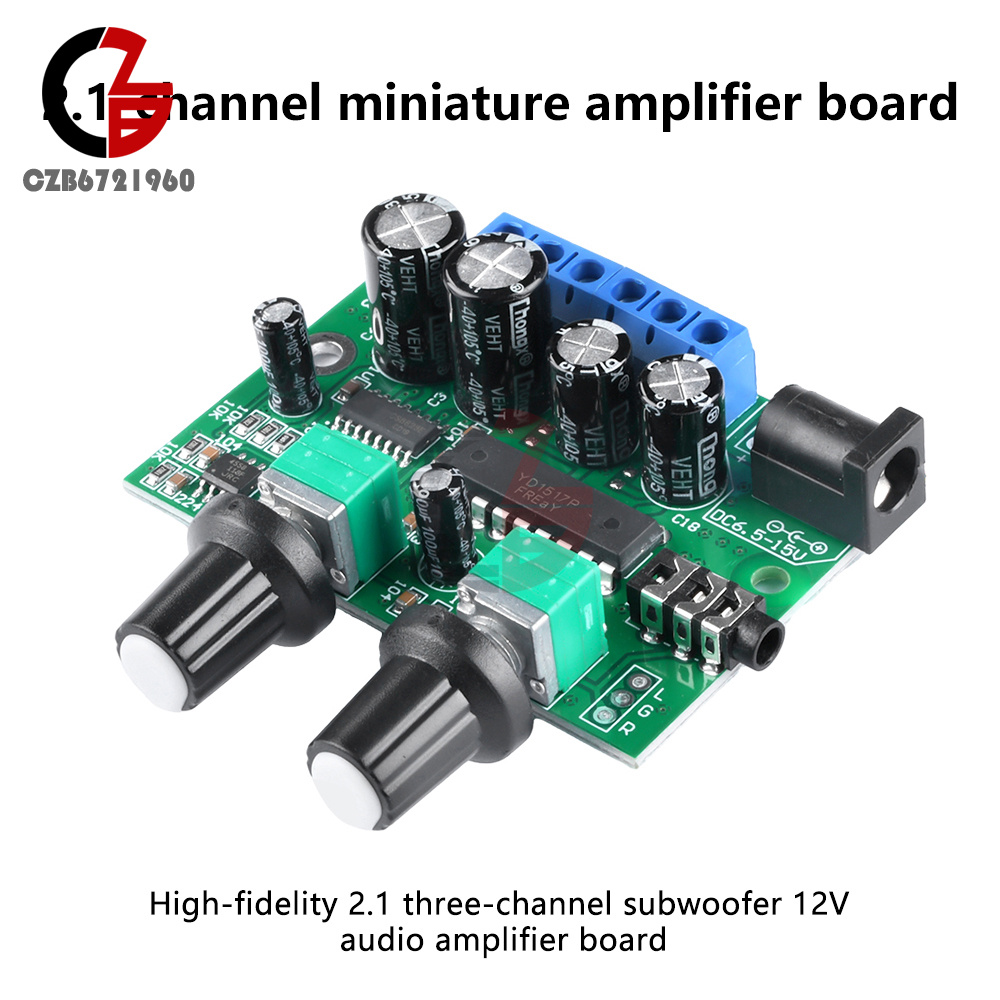

    4. Stable performance, high-fidelity 2.1 three-channel subwoofer 12V audio amplifier board
    5. Wide range of applications, small size can be easily embedded in a variety of occasions

    Specification
    Power supply: DC6.5-15V (depending on the required output power), power adapter, switching power supply, battery can be recommended to use the current in the 3A or more!
    Bass output power: maximum 25W, recommended 4-6 inch, 4-6 Europe 20-50W subwoofer
    Left and right channel output power: 6W + 6W, it is recommended to use 2-4 inch, 4-8 Europe 3-25W full-range speakers
    The above power requirements of the power supply 13.5V or so
    PCB material: FR-4 glass fiber board, thickness: 1.6mm
    Potentiometer axis distance: 24mm Potentiometer mounting hole diameter should be 7mm.
    Input connector: 3.5mm socket

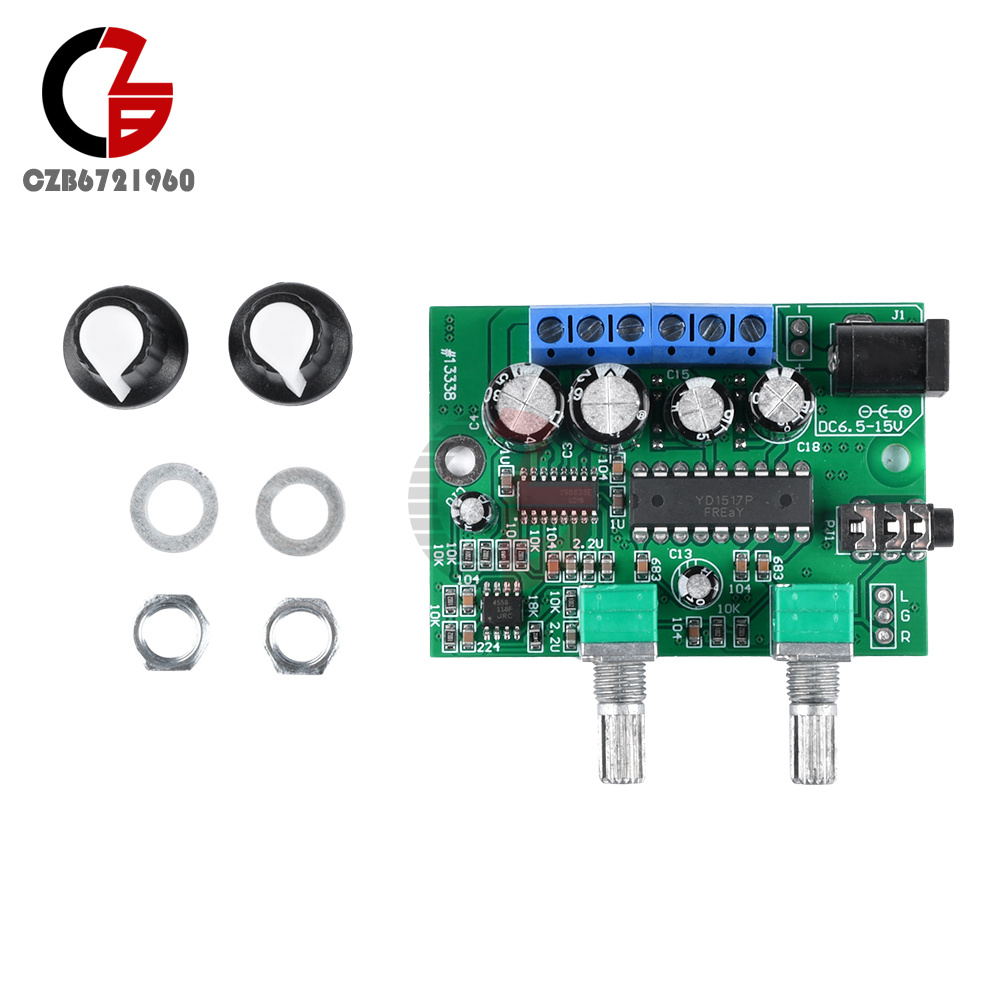

    List
    1 x Amplifier board
    1 x Accessories
