The ultimate studio centerpiece for connecting an entire synth studio, complex live-audio routing, and advanced DAW recording, the Arturia AudioFuse 16Rig is a 32-in / 28-out USB-C audio / MIDI interface that lets you leave everything connected, route anything to anything, and be more creative with your projects. Either rackmounted or on a desktop, the interface provides extensive rear I/O connections for your equipment while leaving the front panel open for additional microphones, instruments, music players, or USB devices. Featuring premium 24-bit / 192 kHz AD/DA converters and Wordclock I/O, AudioFuse 16Rig lets you record synths, guitars, vocals, or a combination of inputs with high-quality audio, and monitor your sound accurately—all perfectly in sync.

Equipped with two, low-latency internal MIDI-controllable DSP mixers, AudioFuse 16Rig can function as a standalone mixer, allowing for DAWless recording, live mixing, and intricate audio routing without the need for a computer. The included AudioFuse Control Center software provides a powerful matrix for quick and flexible configuration of any type of connection to suit any need, including multiple sends/returns, A/B speaker monitoring, and more. Save your configurations and mix settings as presets, control modular synths with DC-coupled outputs, use the Reamp feature for versatile guitar tracking, and connect multiple USB devices with class-compliant connections.

The Ins and Outs

• 16 x 1/4" TRS analog inputs (inputs 3 and 4 also available as 3.5mm stereo input on front panel).
• 2 x XLR/1/4" combo mic / line / Hi-Z preamps.
• 8 x DC-coupled 1/4" TRS line outputs.
• 2 x 1/4" front-panel outputs for reamping, dual-headphones.
• 2 x ADAT in, 2 x ADAT out.
• Wordclock and clock I/O.
• 1 x 5-pin DIN MIDI in, 2 x 5-pin DIN MIDI out/thru.
• 1 x USB-C host connection, 3 x USB-A hub connections.

Two Standalone Mixers—No Computer Needed

• For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works.
• Fire up its two low-latency internal mixers for sessions away from the studio, process audio and MIDI without a computer connection, and save your configurations for instant recall and quick setup switching. The Main mixer controllable via MIDI.

Intricate Audio Routing

• Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more.
• The included AudioFuse Control Center even features a matrix configuration to quickly connect anything and everything.

Quantity, Meet Quality

• Give every recording the shine, clarity, and projection it deserves with two, high-performance digitally controlled and recallable preamps, and 24-bit / 192 kHz AD/DA converters from ESS and Cirrus Logic.
• Whether it’s red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect high-quality sound across the board.

Choose Your Workflow

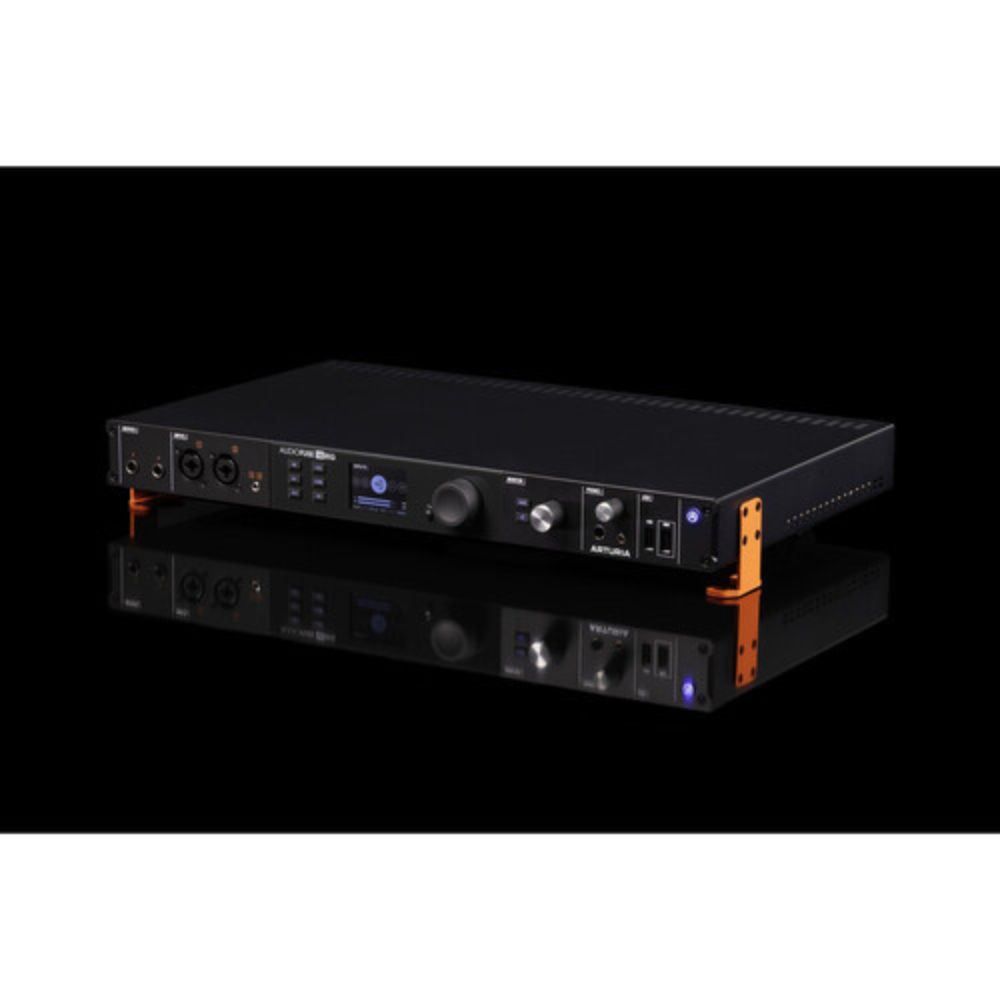

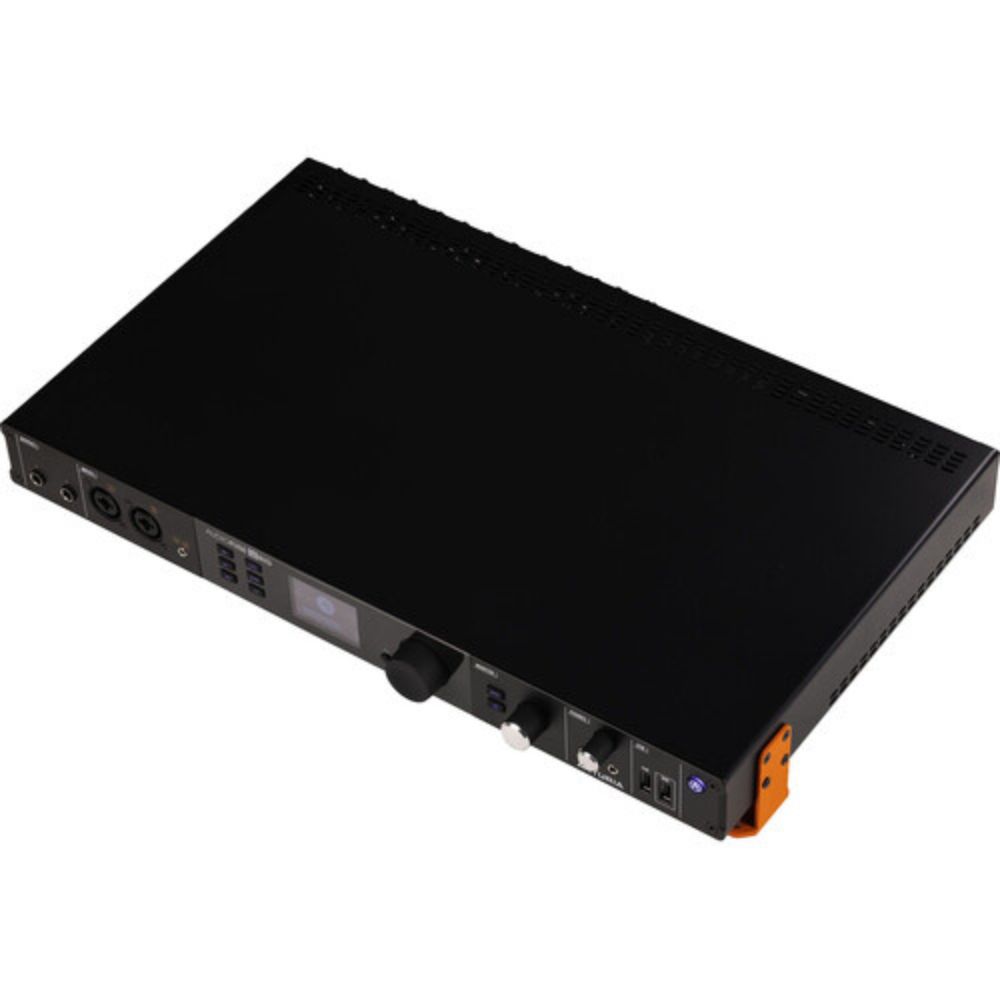

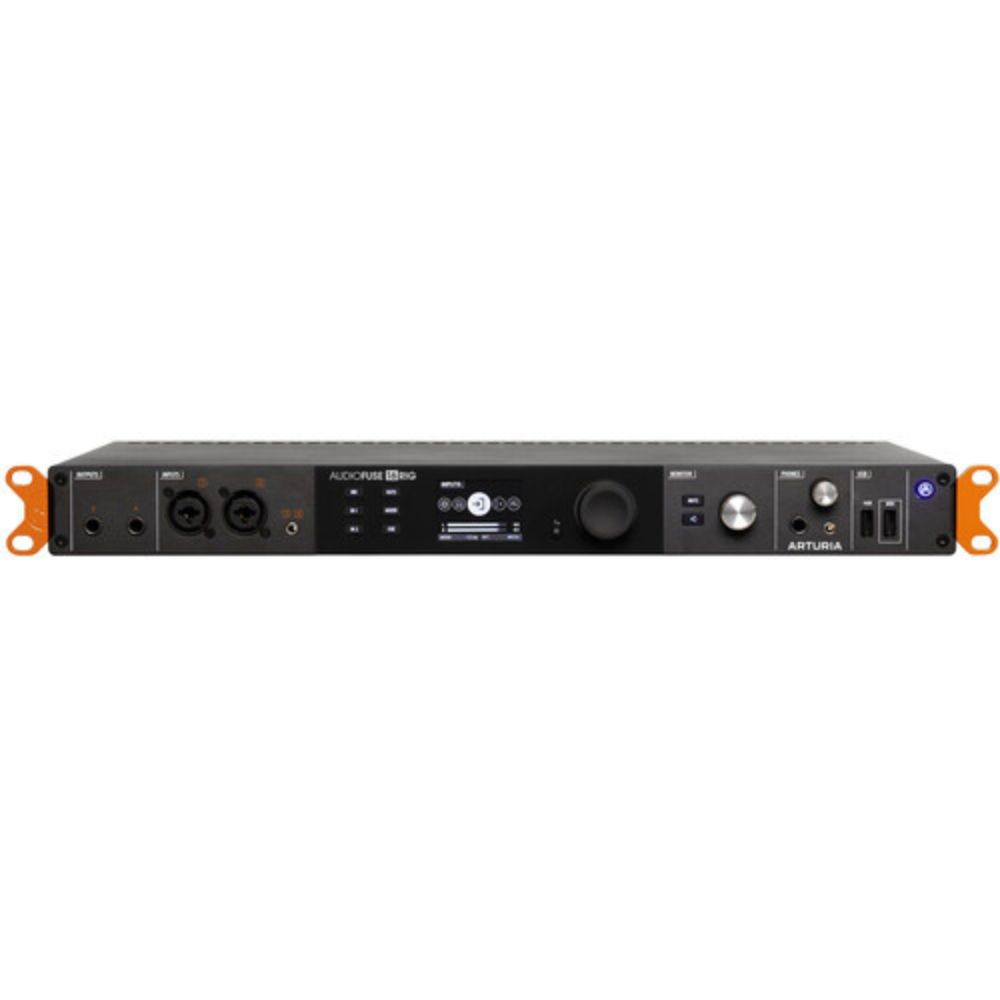

• Control AudioFuse 16Rig’s settings via the display or the included software, configure it for desktop or 1 RU rackmount operation.
• See how your mix is behaving in real-time with the full-color display, showing levels, channels, vital settings, and more.
• Essential info, settings, and visual feedback on your project is only ever a click away with accessible buttons next to the display.
• Tweak and automate certain settings in your mix with CC assignments that can be controlled by MIDI gear.
• Use the DC-coupled outputs to send signals to synth modules and connect your high-impedance headphones.

Hooking Up a Synth Rig

• For synth lovers, analog enthusiasts, hands-on beat makers, and beyond, AudioFuse 16Rig is purpose-built to handle hardware—and lots of it. Connect up to 16 mono inputs and configure stereo channels for maximum polysynth width.
• Hook up the interface to ADAT-compatible expanders and even send CV signals to your modular setup from its DC-coupled outputs.

Different Monitor Mixes

• AudioFuse 16Rig’s Cue Mixer lets you create an entirely separate mix, with different channels, levels, and panning that can be sent to a separate headphone or speaker output.
• Great for recording drums with guide tracks, keeping lead and backing vocals in harmony, or creating sub-mixes for on-the-fly processing.

Connections Ready for Any Session

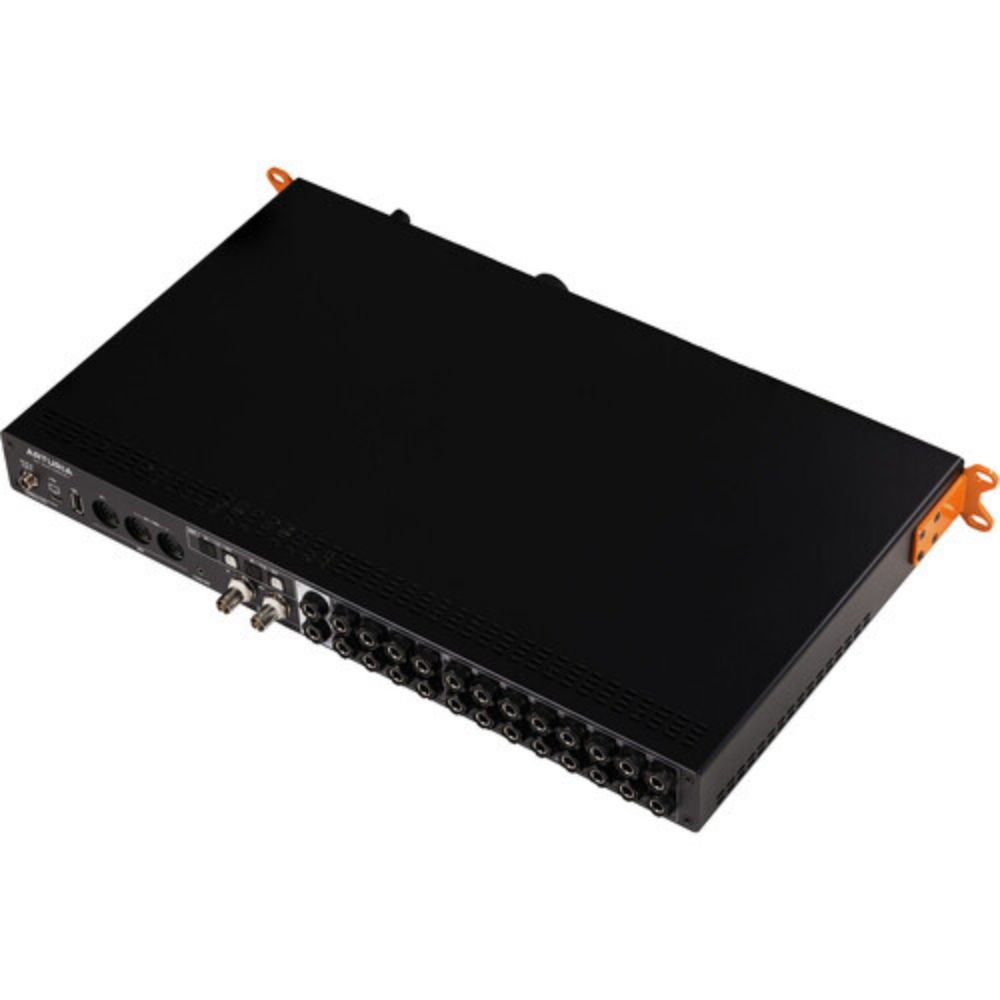

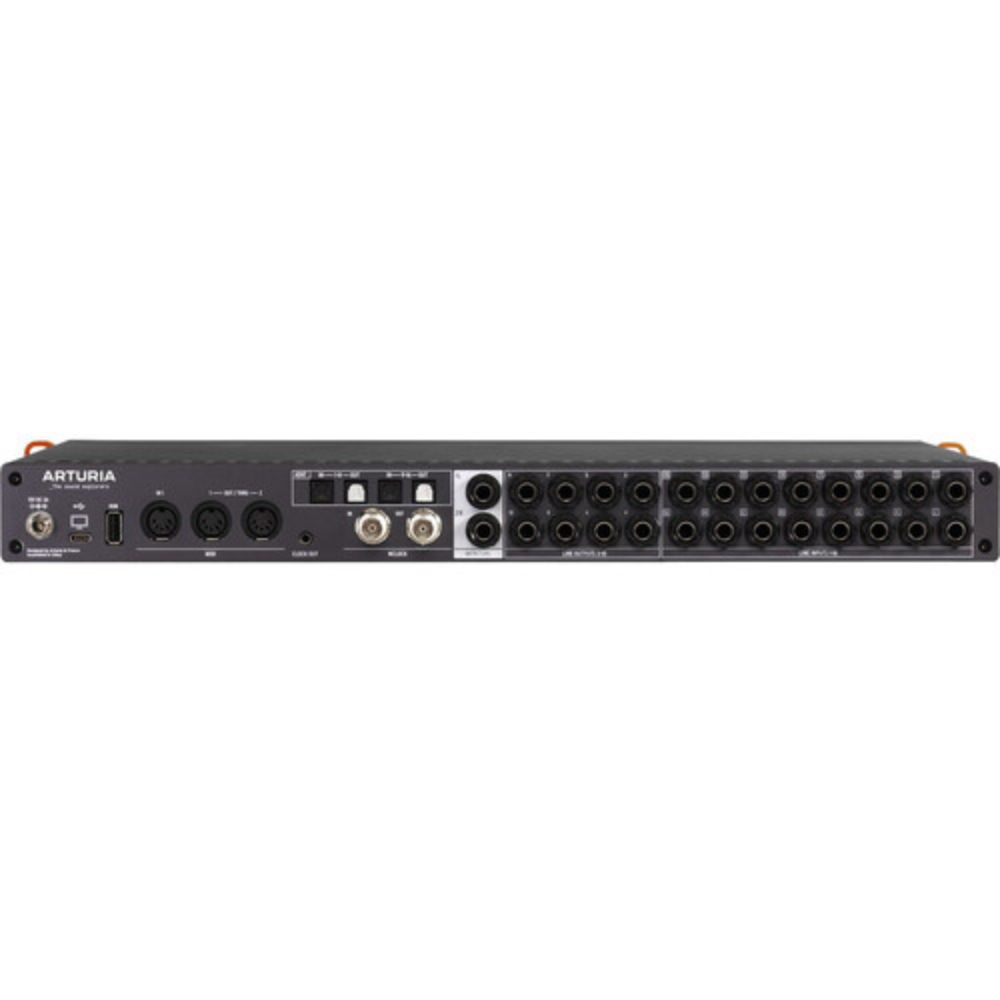

• Keep your staple instruments and devices connected to AudioFuse 16Rig’s rear I/Os, while still having plenty of options at the front.
• Great for unexpected additions like when someone brings a different guitar, their own mic, a tape recorder, or a new sample recorded on their phone.

Multiple Effects Chains

• Map out multiple send/return chains in visual detail and create custom effects chains with the help of AudioFuse Control Center’s matrix.
• You might want reverb and compression on your vocals, distortion and chorus on your synths, and a dubby sprinkling of Delay TAPE-201 on your drum bus—no sweat.

Save Configurations for Instant Recall

• Great for when you are working on different songs or different mixes that have the same connections.
• Save your settings as a preset, so you can quickly recall or switch between them; saving you time in sessions or giving you instant flexibility for live performance.

Control Your Modular via DC-Coupled Outputs

• Create a bridge between the flexibility of your DAW and the tactility of your synth hardware with CV control.
• Using the right software, you can send control voltages from AudioFuse 16Rig’s DC-coupled outputs to compatible gear like Eurorack modules or CV-ready desktop synths for sequencing, modulating, and composing.

Reamping andHigh-Impedance Headphones

• Send your dry guitar stems straight to external effects or amps without needing a DI box thanks to front panel outputs with true analog zero-latency passthrough.
• Not only can these outputs (3-4) send line- or instrument-level signals; you can also configure them to connect high-impedance headphones for that extra boost when needed.

All The USB Connections You'll Need

• Computer connections can come at a premium; AudioFuse 16Rig’s three USB-A hub slots are primed for connecting bus-powered MIDI controllers, external drives or USB sticks, and USB MIDI devices using class-compliant connectivity.

AudioFuse Control Center App

• AudioFuse Control Center (AFCC) app controls the mixer, selection of inputs, routing, monitoring, and additional functions such as sampling rate, Clock Source, Pad, Cue, and more.
• Another useful touch is that AudioFuse will remember the latest AFCC settings for standalone use until the next time you connect and change them.

Premium FX Included
AudioFuse Creative Suite:

Analog Lab Intro

Comp DIODE-609, Comp FET-76

Pre 1973, Pre V76, Pre TridA

Filter MINI

Chorus JUN-6

Delay TAPE-201

Rev PLATE-140

Phaser BI-TRON

Box Contains

Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface

• 1 x USB-C to USB-C Cable
• 1 x USB-C to USB-A
• 1 x Power Supply
• 1 x Rack/Stand Ears and Rear Supports with Screws

Box Contains

Arturia AudioFuse 16Rig USB-C Audio/MIDI Interface

• 1 x USB-C to USB-C Cable
• 1 x USB-C to USB-A
• 1 x Power Supply
• 1 x Rack/Stand Ears and Rear Supports with Screws

Brand	Arturia
Model	Arturia 831001
MPN	AR831001
Type	Audio/MIDI Interface
Channels of I/O	32 Inputs / 28 Outputs
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	2
Analog Audio I/O	16 x 1/4 TRS Balanced Line Input 2 x Combo XLR-1/4 TRS Balanced Mic/Line/Hi-Z Input (Front Panel)
Digital Audio I/O	2 x TOSLINK Optical ADAT Input 2 x TOSLINK Optical ADAT Output
Host Connection	1 x USB-C (Class-Compliant)
Built-In DSP	Yes
Built-In Microphone	No
Input Level Adjustment	Knob
Expansion Slots	No
Pad	Mic: -20 dB (Switchable per Channel) Line: -12 dB (Switchable per Channel) Line: -10 dB (Switchable
Solo/Mute	Solo, Mute per Master
Phantom Power	48 V, Selectable On/Off
Host Connection Protocol	USB 2.0
USB (Non-Host)	3 x USB-A (External Storage, MIDI I/O)
Sync I/O	1 x BNC Word Clock Input 1 x BNC Word Clock Output 1 x 1/8 / 3.5 mm Clock Output
Network I/O	No
MIDI I/O	1 x DIN 5-Pin Input 2 x DIN 5-Pin Output/Thru
Wireless	No
Frequency Response	Line Inputs: 20 Hz to 20 kHz ±0.06 dB Hi-Z Inputs: 20 Hz to 20 kHz ±0.1 dB Mic Inputs: 20 Hz to 20 k
Maximum Input Level	Line: +24 dBu (Rear) +22 dBu (Front) Hi-Z: 20 dBu Mic: 22 dBu
Maximum Output Level	Monitor: 20 dBu Line: 24 dBu Headphone: 14.4 dBu
Headphone Output Power	271 mW into 33 Ohms
Impedance	Line Inputs: 20 Kilohm Hi-Z Inputs: 1.1 Megohm Mic Inputs: 2.7 Kilohms Monitor Outputs: 240 Ohms (Ba
Dynamic Range	Line Inputs: 118 dBA Hi-Z Inputs: 114 dBA Mic Inputs: 117 dBA Monitor Outputs: 126 dBA Line Outputs:
THD+N	Line Inputs: -113 dBA Hi-Z Inputs: -105 dBA Mic Inputs: -110 dBA Speaker Outputs: -114 dBA Line Outp
EIN	-129.5 dBu A-Weighted
Sample Rates	44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Bit Depths	24-Bit
Sync Sources	ADAT, Internal, Word Clock
Media/Memory Card Slot	No
OS Compatibility	macOS 10.13 or Later Windows 10 or Later *As of October, 2023: Check with manufacturer for the most
Included Software	No
Processor Requirement	Mac: Intel Core i5 Apple M1
RAM Requirements	4 GB
Storage Requirements	4 GB
Mobile App Compatible	No *As of October, 2023: Check with manufacturer for the most up-to-date compatibility
Power Requirements	AC/DC Power Adapter (Included)
AC/DC Power Adapter	Included
Rackmount Size	1 RU (with Included Hardware)
Dimensions	17.3 x 11.6 x 1.7 / 43.9 x 29.5 x 4.3 cm
