Feature

• Using high quality aerospace aluminum;
• Designed to move the wheel further out from the hub;
• Gives your car a more aggressive stance & allows for better handling characteristics;
• Fitment, Quality, & Durability tested;
• Eliminate wheel/tire rubbing instantly;
• Mount larger wheel or tires;
• Increase driving stability;
• Aggresive stance.No special tools required;
• Extremely fast and easy;
• Easy as changing a tire;
• All needed is a lug wrench and jack;
• Same as changing a tire.



Specifications(Please Make Sure You Take The Proper Measurements Before Purchasing)

• Thickness:                 Each Spacer would be 2'' Wide
• Color:                         Silver
• Hub Bore Size:          70.5mm
• Vehicle Bolt Pattern:  5x4.75’’ or 5x120.65mm
• Wheel Bolt Pattern:   5x4.75’’ or 5x120.65mm
• Thread Pitch:            12x1.5 or 12mmx1.5 or M12x1.5



Compatibility(The compatibility information is just for reference)

    For buick

• 1979-1985  Riviera

    Cadillac

• 1979-1985  Eldorado
• 2003-2009  XLR

    For chevrolet

• 1982-2002  Camaro (May not fit on front hub due to hub height issue. Please email us for more information)
• 1977-1987  Impala
• 1987-2005  Blazer
• 1977-1987  Caprice
• 1984-2013  Corvette
• 1982-2004  S10 (does not fit front hub of 2-wheel drive)
• 1982-2004  S10 Blazer (does not fit front hub of 2-wheel drive)

   For gmc

• 1982-1991  S15
• 1990-2005  Jimmy
• 1990-2004  Sonoma (does not fit front hub of 2-wheel drive)

    Pontiac

• 1982-2002  Firebird (May not fit on front hub due to hub height issue. Please email us for more information)
• 1964-1987  GTO
• 1980-1985  Phoenix
• 1984-1997  Trans Am
• 1990-1997  Trans Sport



Package Included

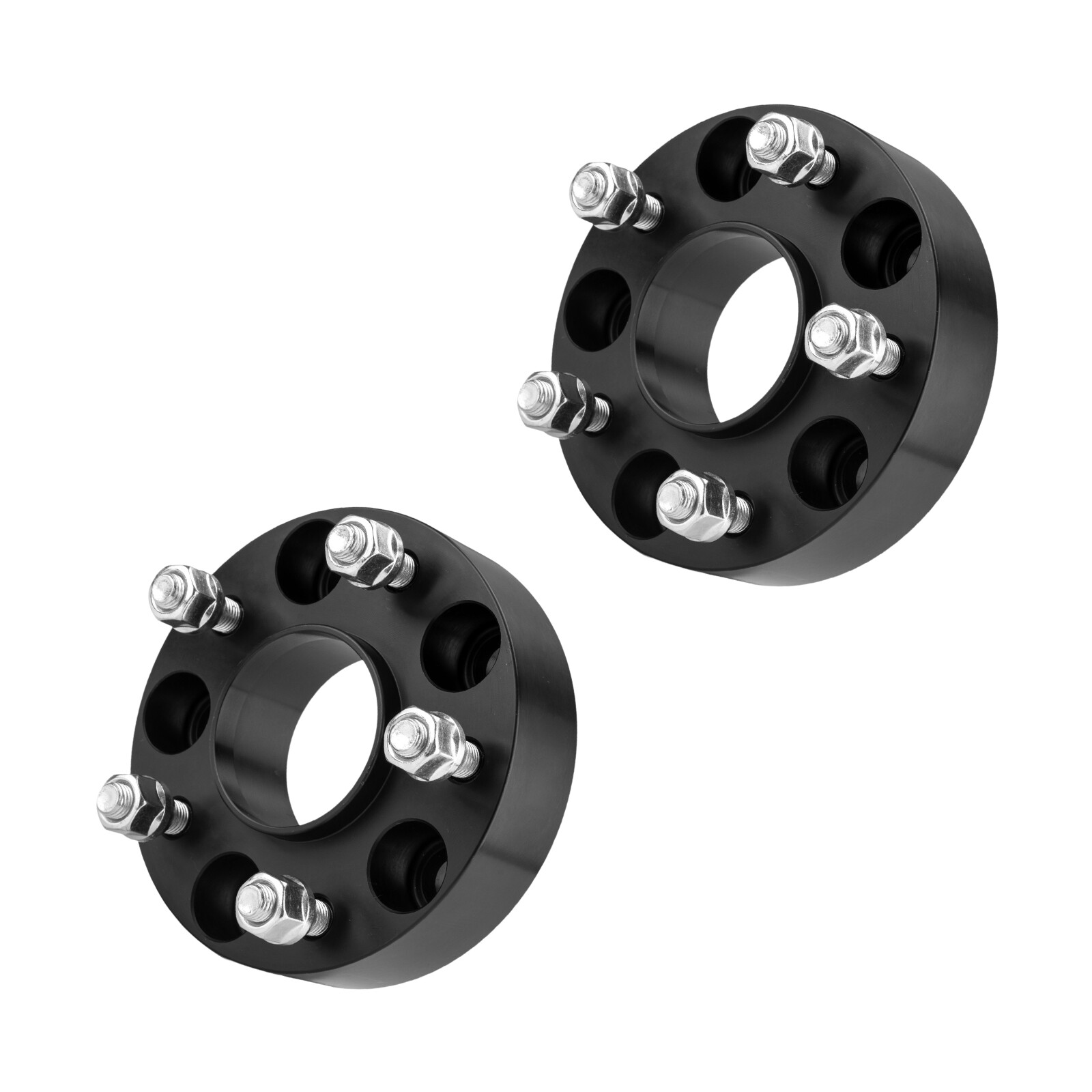

• 2pcs x Wheel Spacers



How to choose the correct wheel spacers:

STEP. Check 3 specifications
The following is the easy and simple way to check the bolt pattern/PCD, center/hub bore and thread pitch. If you donot sure, please just message us with the year, make and model of vehicle.

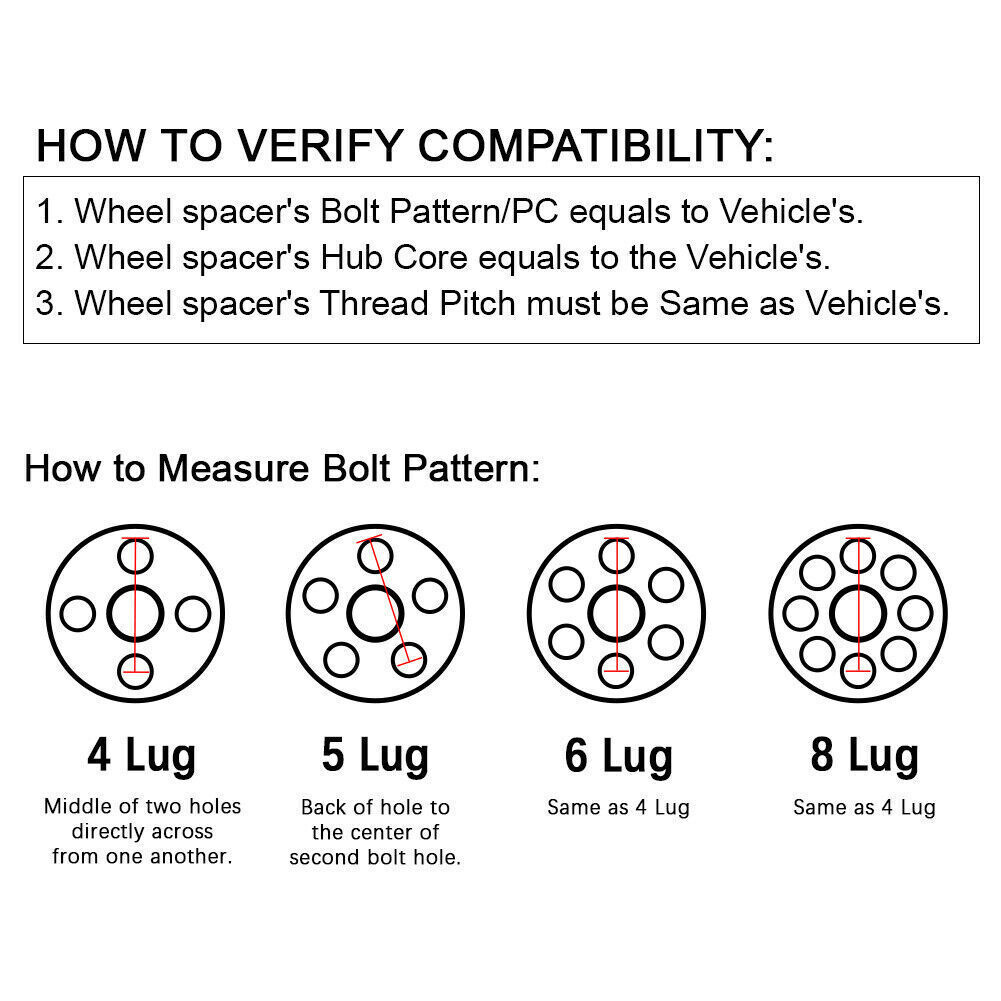

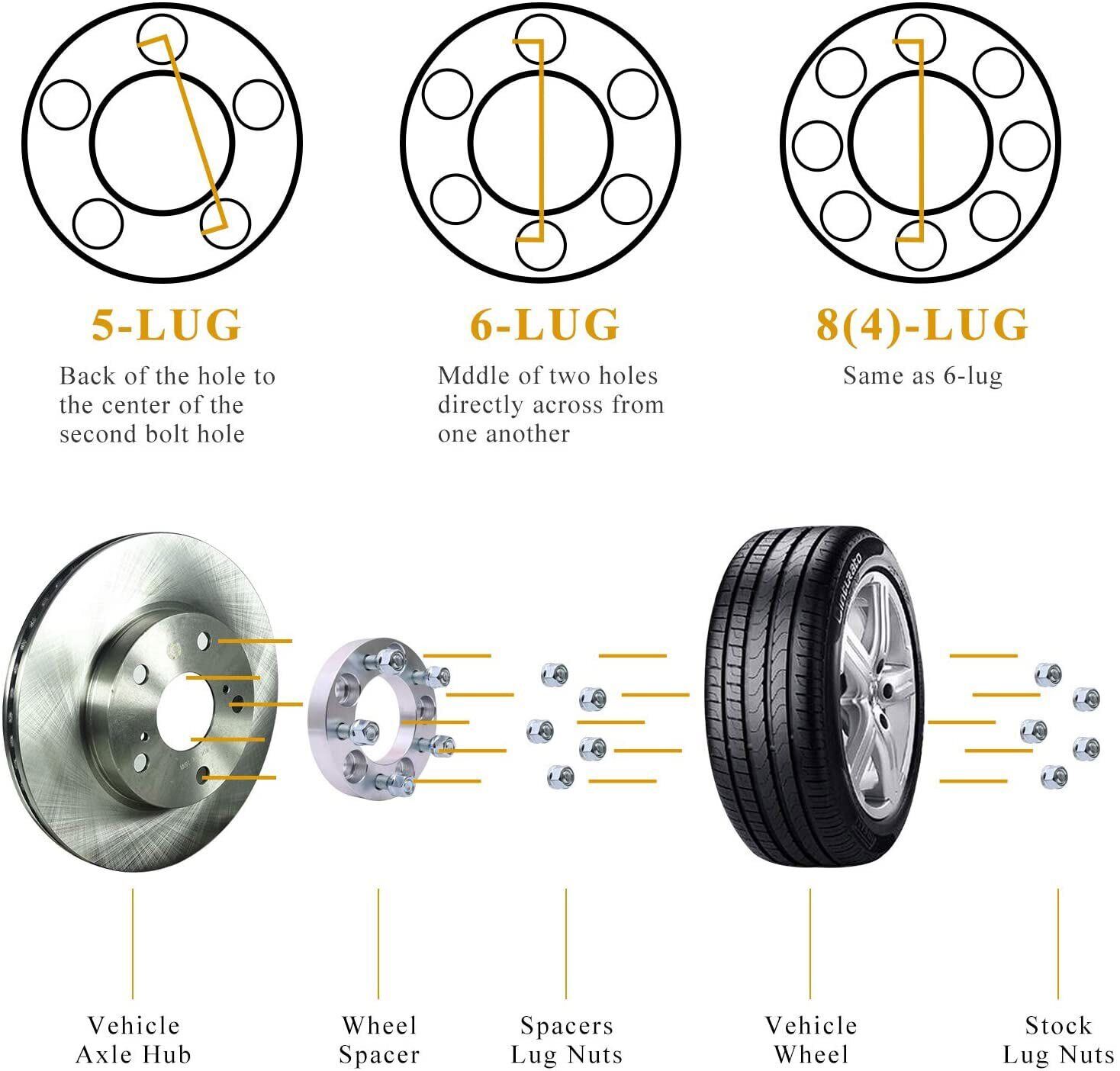

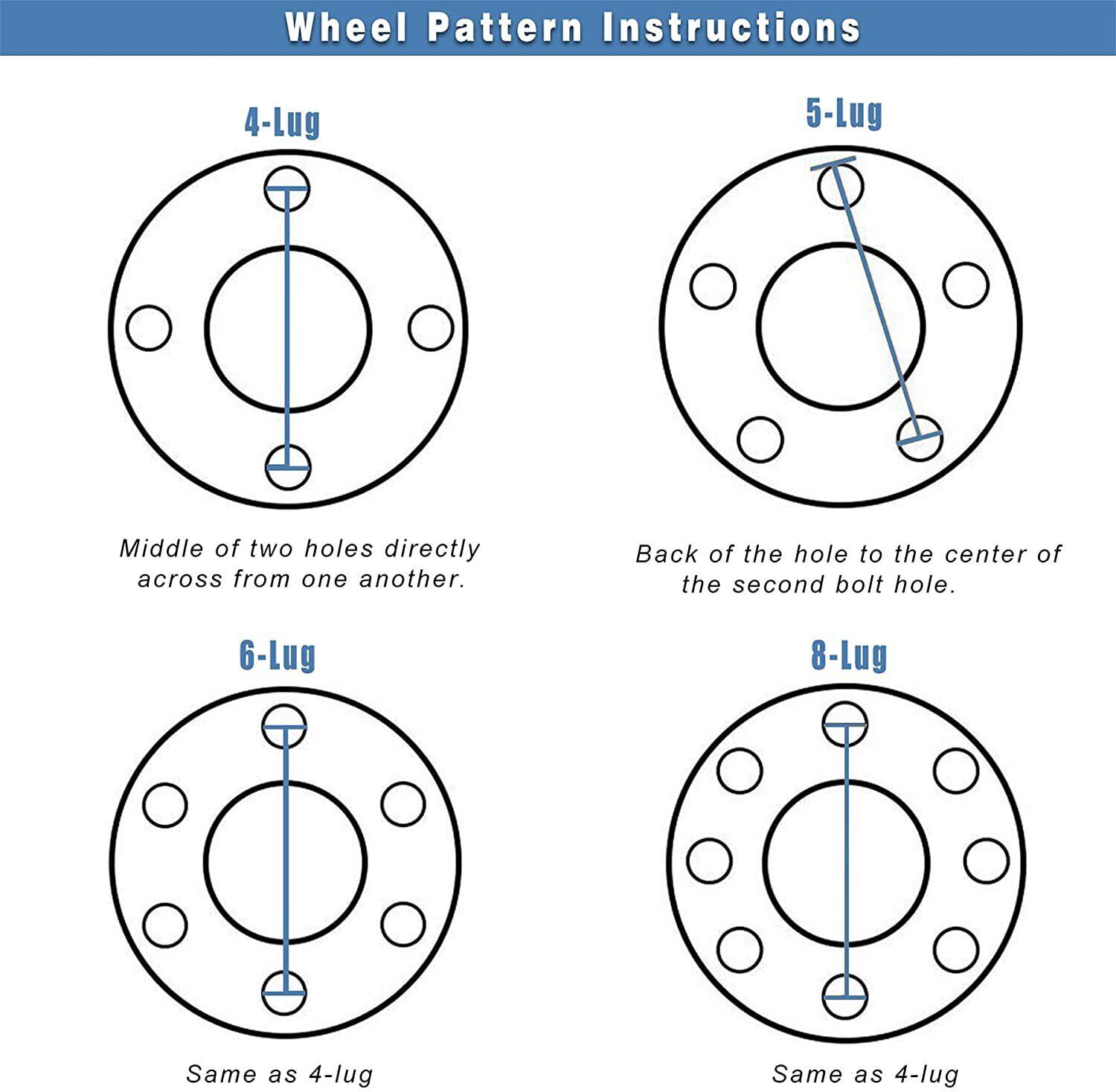

1). Check Vehicle Bolt Pattern/PCD For 4-lug, 6-lug, 8-lug, measure the segment from the CENTER of a bolt hole TO the CENTER of another hole. 5 lug is different, you need to measure the back of the hole to the center of the second bolt hole (not center point).(See Bolt Pattern Diagram below)



2). Check Vehicle Hub/Center Bore Size Measure the diam of the center bore on hub, make sure the spacer's diam is equal to or bigger than the axle diameter.

3). Check Vehicle Thread Pitch There are different types of studs, such as M12x1.25, M14x1.5, M12x1.5, 1/2"x20, 9/16"x18, please make sure the studs of wheel spacers is the same as the vehicle's, otherwise the spacer will not fit.

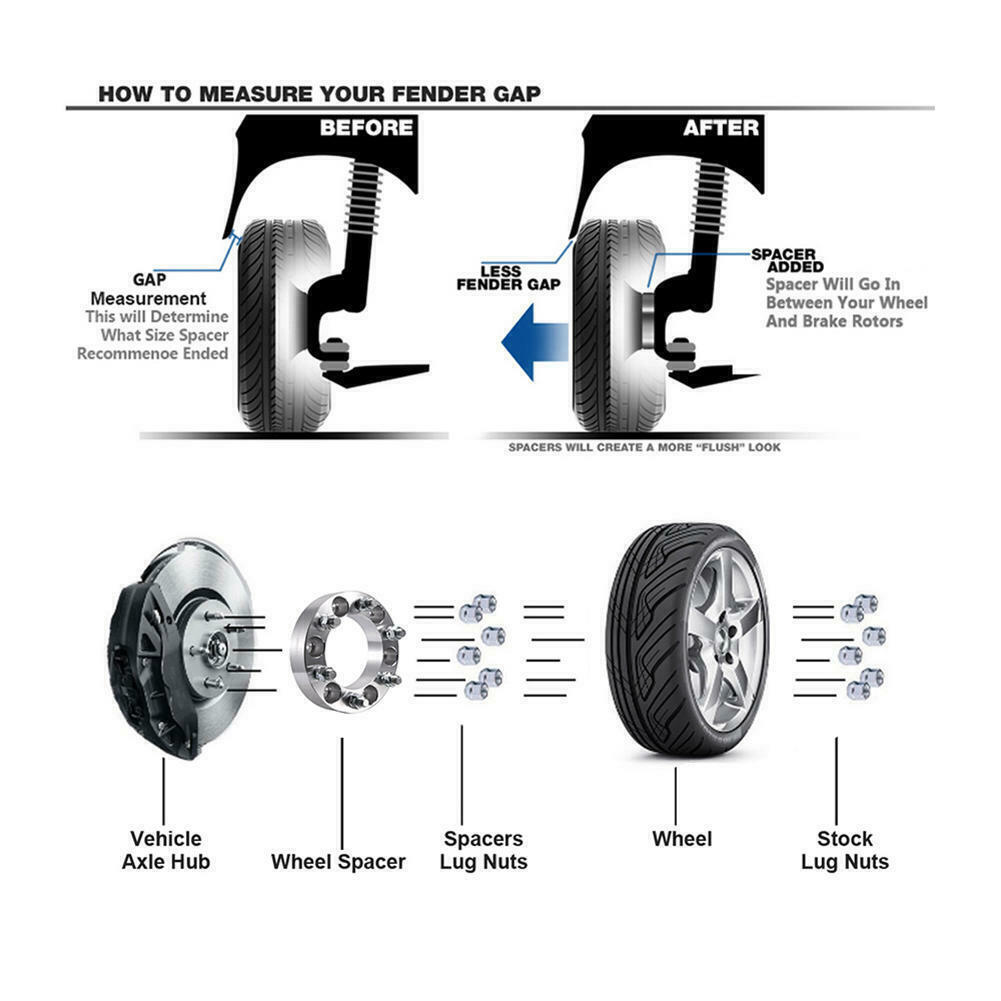

How to install the wheel spacers:



1). IMPORTANT - ADAPTER OR SPACER MUST SIT FLUSH AGAINST VEHICLE HUB, AND WHEEL MUST SIT FLUSH AGAINST ADAPTER OR SPACER! Stock studs must be trimmed down (shortened) if they protrude past the surface of the adapter or spacer. If not, vibration or other problems can occur. Some wheels have pockets that may allow for no stud trimming. If not, studs MUST be trimmed.

2). Make sure the mounting surface (vehicle hub) is clean and For flat, and remove all retaining clips.

3). Install the adapter to the vehicle, with the proper lug nuts, and torque to manufacturer’s wheel torque specs.

4). Install the wheel to the adapter by torquing to the vehicle manufacturer’s wheel torque specifications (again, max 140 ft-lbs). Please assure the proper thread engagement (6 to 8 full turns) on lug nuts or bolts.

5). Drive the vehicle. If no problems (noise, vibration, anything out of the ordinary), drive about 5 miles, then re-torque the lug nuts attaching the spacer or adapter to the hub.


Important Notes:
Please make sure that these are the correct application for your vehicle. And confirm the PCD parameters of wheel spacers are consistent with the item parameters.We do not guarantee any fitment onto any vehicle,we only guarantee that you will receive the item described as the above. Returns are only accepted if unused and not installed.(Returns ARE NOT ACCEPTED IF SPACERS-ADAPTERS HAVE BEEN INSTALLED TO YOUR VEHICLE)



Installation by a trained professional is highly recommended.
Please verify this is the correct application for your vehicle before ordering, we only guarantee you receive what is described above.
Some vehicles may require modifications to make this type of adapter work properly.
Be aware that the studs on the vehicle cannot stick out past the face of the back adapter plate, you may need to modify them by grinding/cutting/trimming.
We make no promise or guarantee that this item is compatible with your vehicle and/or wheels.
Vehicle compatibility, if listed, is used to match the vehicle bolt pattern with the adapter only.
The adapters must be installed correctly, Lug Nut Guys or the manufacturer cannot be held responsible for improper installation causing failure.
Please ask if you have any questions, we're here to help!
