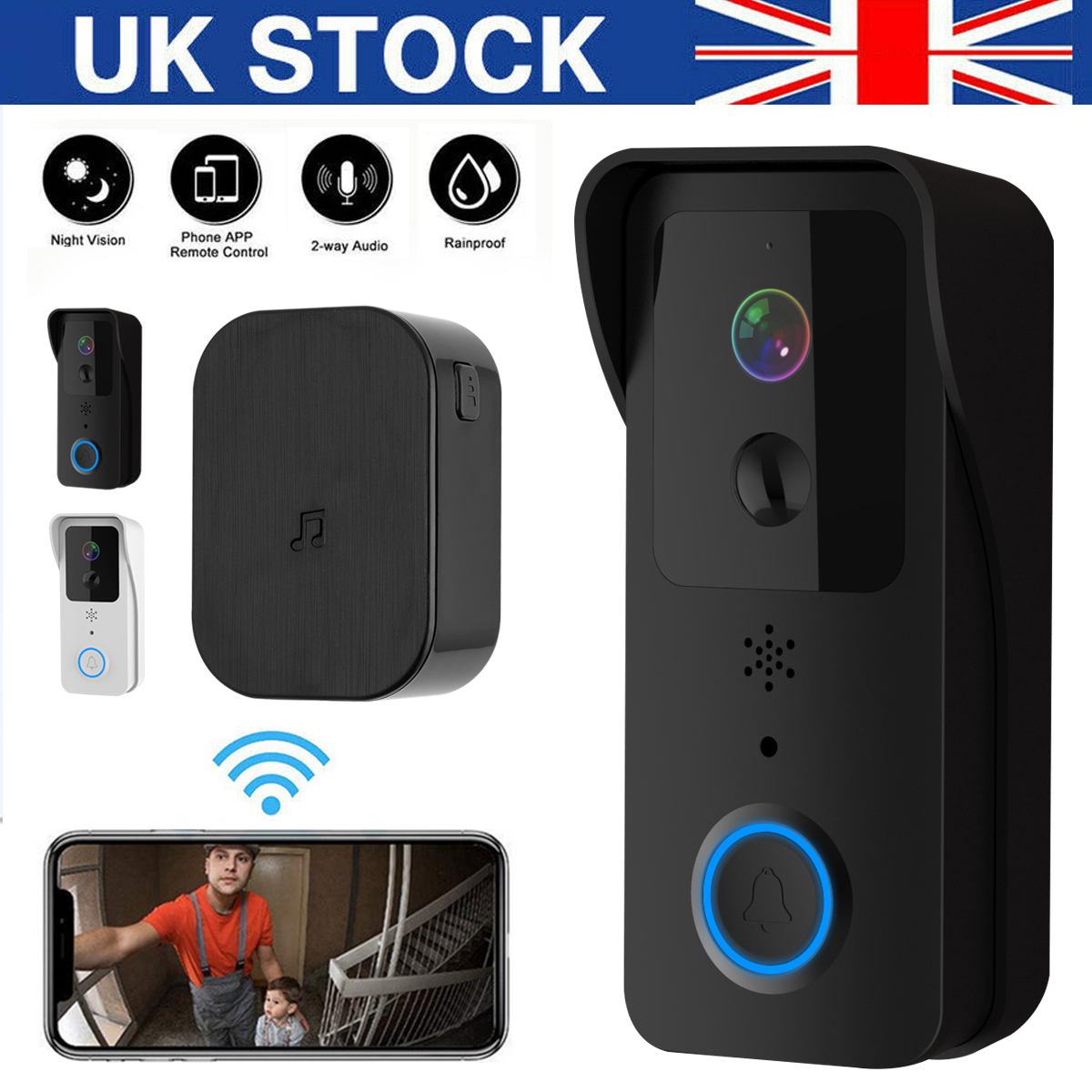

Features:

1.The product is a dual-frequency design, 2.4G & 5G, unrestricted installation on the network, convenient and simple.

2.The product is WIFI graffiti models of APP, free cloud storage, effective protection of your rights and interests

3. Can also be used at the same time TF card, the maximum support 128G capacity [not included].

4. With mobile monitoring, with night vision infrared function

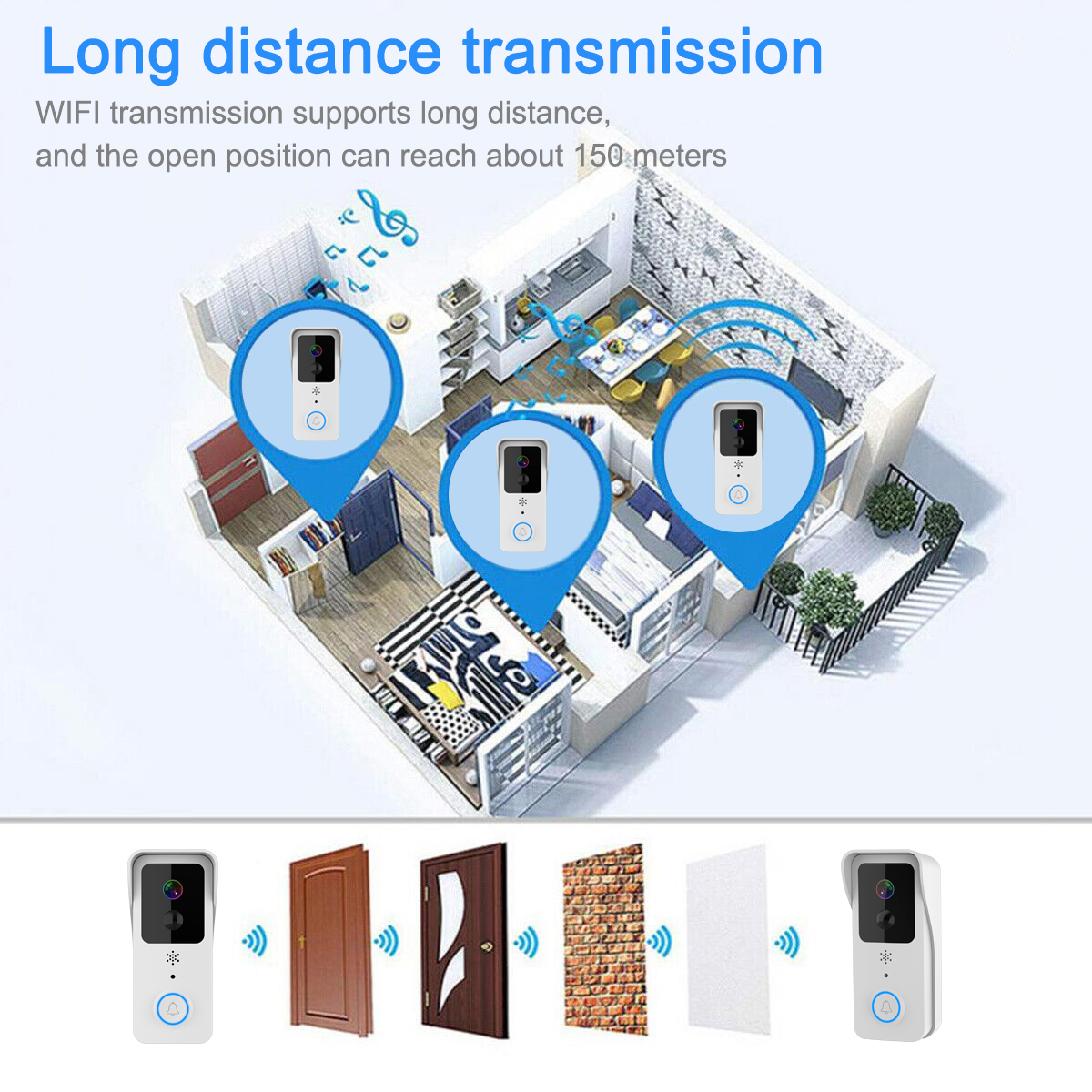

5.WIFI transmission support long distance, open position up to about 150 metres

6. Large battery capacity, full battery life of up to 2-3 months or more, depending on the use of the situation

-- Speaker: built-in 8Ω/1W

--Maximum support: 128G

--Battery Capacity:2600mAh*2

--Battery Meter Accuracy:More than 5%

--Standby endurance:Approx. 60 days (based on 10 wake-ups a day)

--Maximum transmission rate:40Mbps

--Transmission distance:Maximum 150 metres in a straight line in open space

--Standard:IEEE 802.11 b/g/n/ac

--Power input:DC 5V 1A

--Charging current:1A

--Static power consumption:2.2mW

--Running power consumption:1.1W

--Echo cancellation: Support

--Dual talk: Support

--Compression:G.711a

--Video Format:H.264 coding format

--Video Stream:20fps

Resolution:1080P

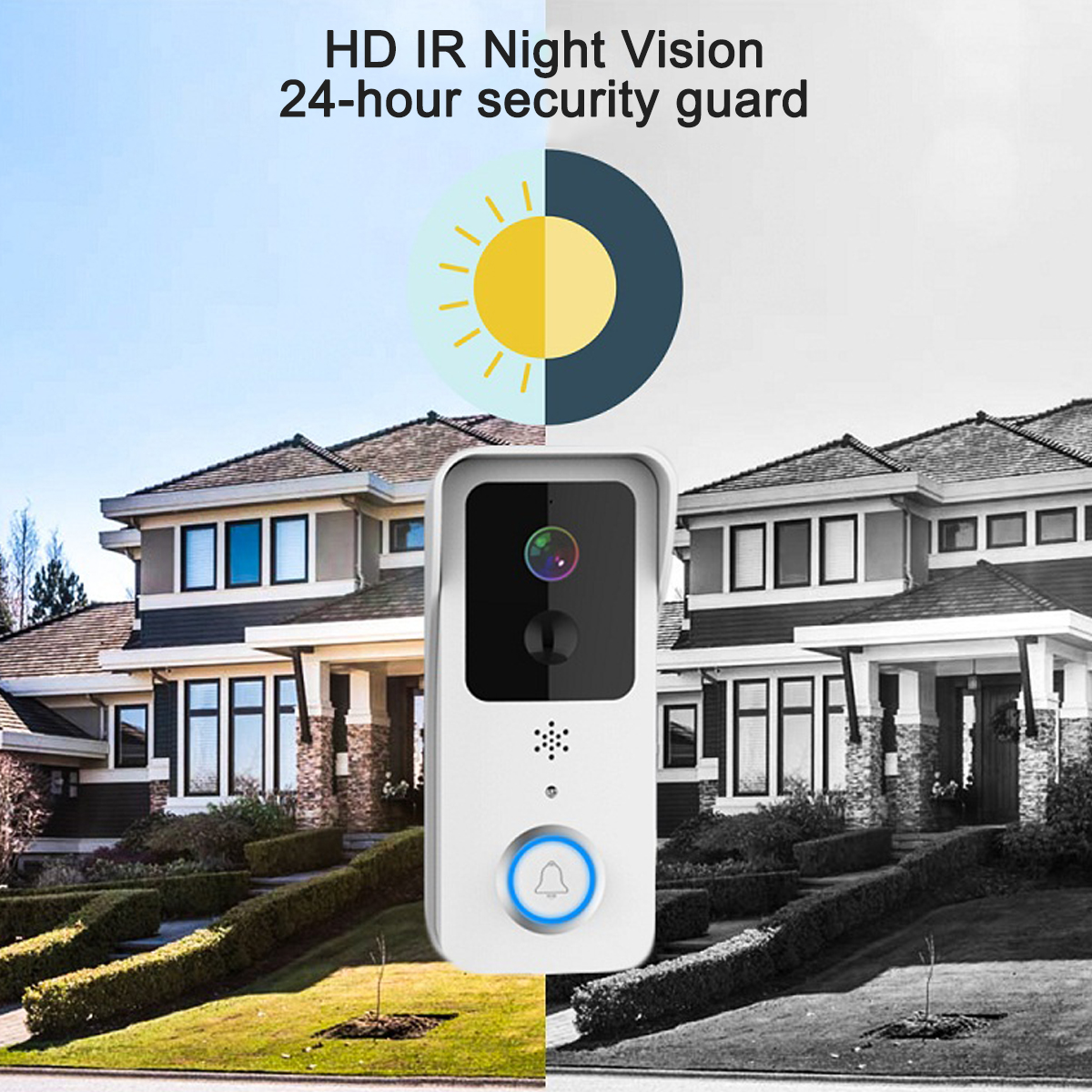

--Turn on IR light:Enable night vision view, infrared, ICR auto-detection

--Andorid:Andorid 4.3 or above

--IOS:IOS 9.X-10.X or above

--APP Application Platform:Doodle Intelligence

--Cloud Platform:Doodle

--Language:Chinese/English

--Mobile APP: Support configuration / real-time browsing / playback / call / audio adjustment / video adjustment / recording / format SD card

--Communication protocol: WIFI, MQTT

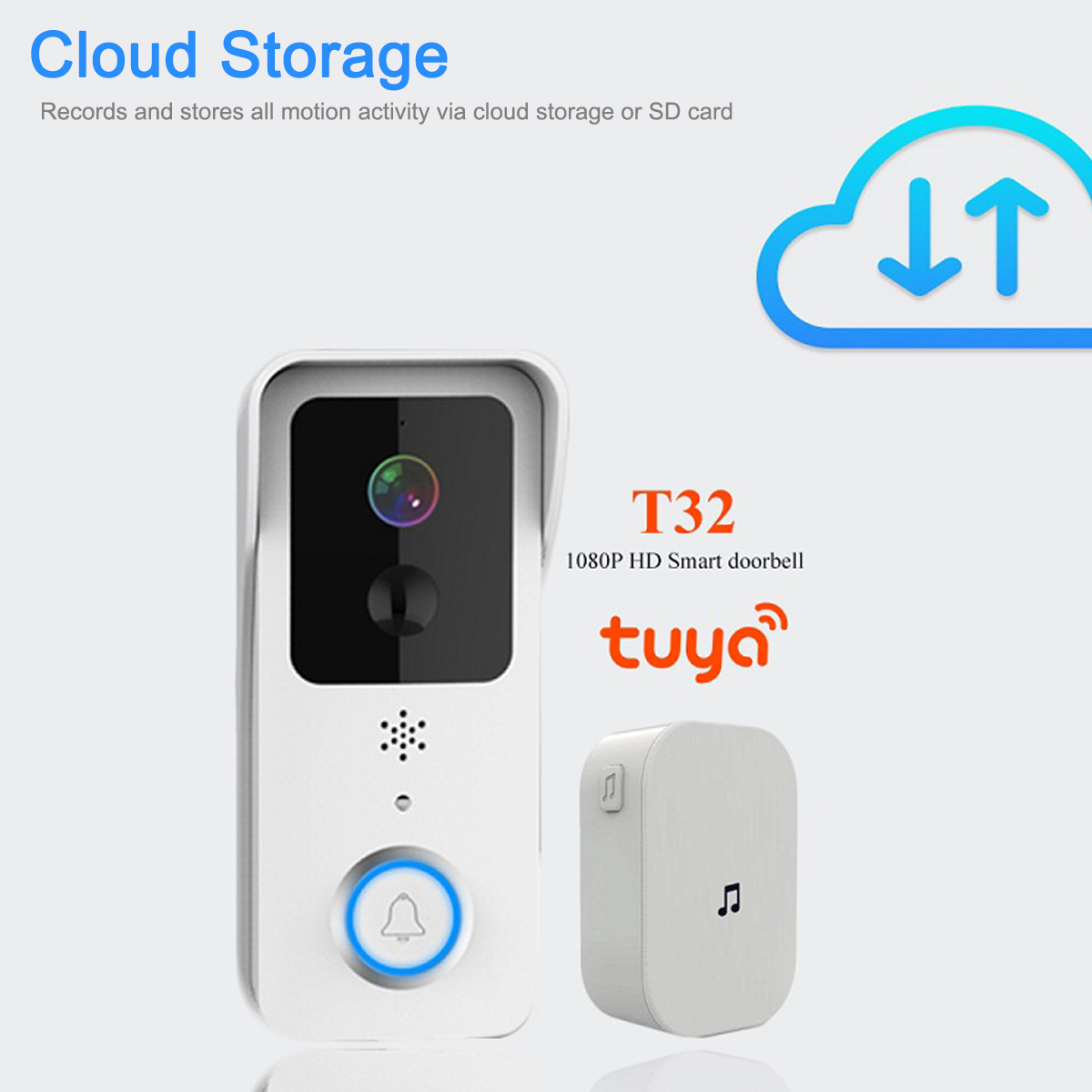

--Cloud record storage:FREE

--Support for simultaneous online visitors: maximum 5 people online at the same time

--Remote monitoring: Support

--Power failure memory: Support

--Pairing method: Scanning QR Code

--Maximum Recording Time: Depends on the space of the data.

--Cloud Upgrade: Support

--Storage Management: Cover the earliest video recordings

--Live view: Open the mobile app and activate the camera.

--AC adapter: DC 5V 1A

--Working temperature: -20~50℃, Humidity <95%.

Note:

The product battery has an insulating patch made, please tear off the insulating piece before use, and then install it back to use.

Binding installation instructions:

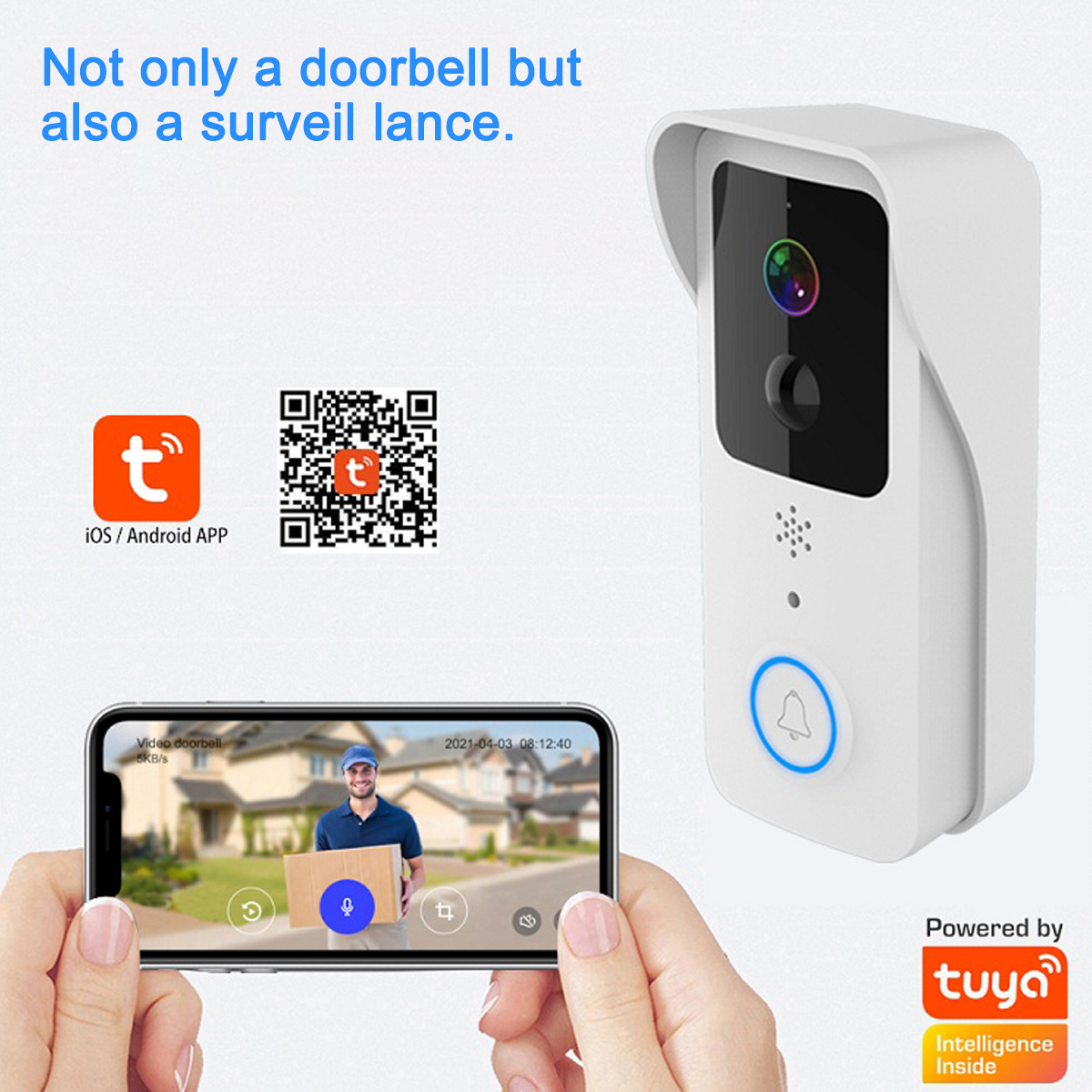

First: first mobile phone scanning code to download APP

Second: open the mobile phone bluetooth, and then enter the downloaded APP, click to add the device, according to the prompts until the binding success and can be

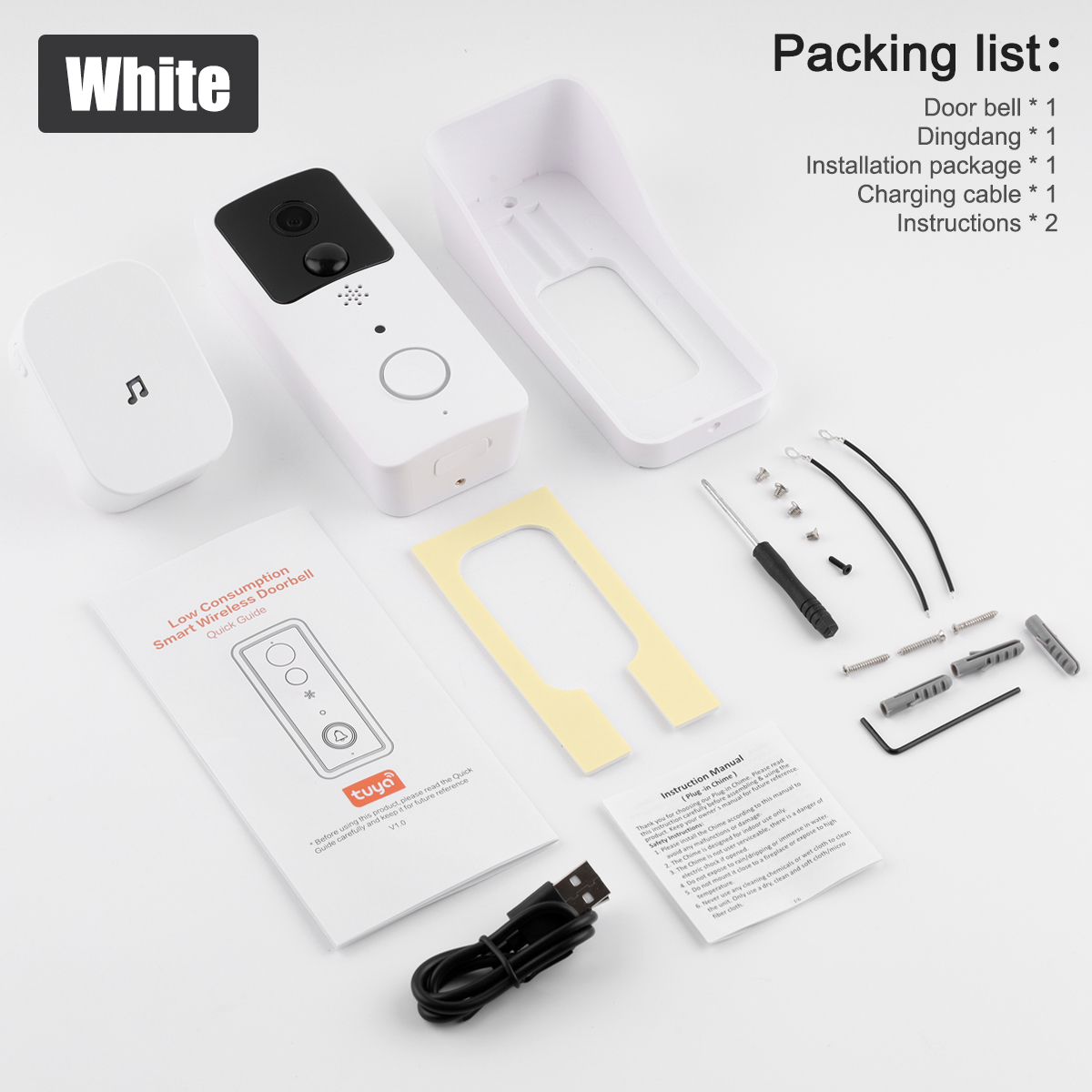

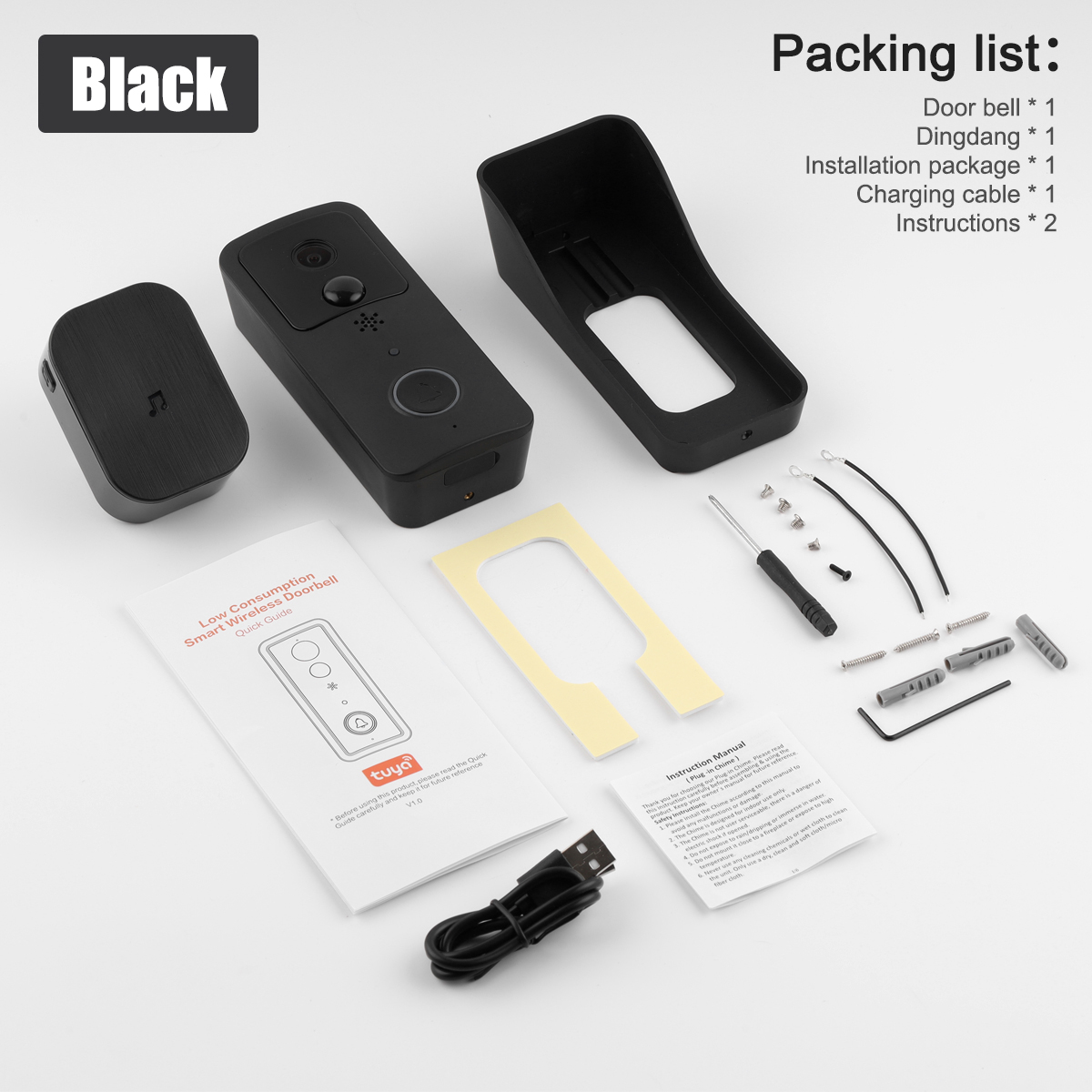

Product list:

Doorbell*1

Tinker Bell*1

Installation kit *1

Charging cable*1

Instruction manual *2
