3316872.900 Circuit Board Kit Replacement for RV Refrigerator Control Panel DM2672 DM2872
Product Description
- [OEM Part Number]:3316872.900.
- [Fitment]:Circuit Board fit RV Refrigerator DM2672 DM2872
- [Function]:The control board enhances the mechanical operation of the RV refrigerator, achieving efficient energy control and cooling performance of the refrigerator.
- [Note]:Before installing the product, please unplug the main power plug of the refrigerator and safely store any food that may spoil when the power is turned off. Wear work gloves and pay attention to electrical safety.
- [Package Includes]:1*Control Panel.
Install:
Easy to install, can directly replace damaged old control boards.
OEM Part Number:
3316872.900
Fitment:
Circuit Board fit RV Refrigerator DM2672 DM2872
Function:
The control board enhances the mechanical operation of the RV refrigerator, achieving efficient energy control and cooling performance of the refrigerator.
Note:
Before installing the product, please unplug the main power plug of the refrigerator and safely store any food that may spoil when the power is turned off. Wear work gloves and pay attention to electrical safety.

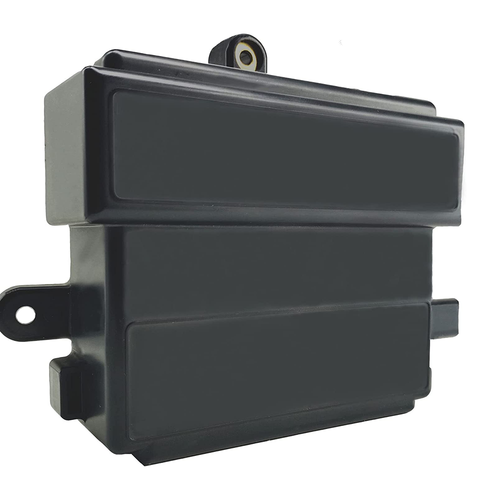

3316348.900 3316348900 RV Refrigerator/Fridge Power Module Board, Replacement 3316348.000 Power Module Board,Circuit/Control Board.Compatible with Dometic DM2652 RM2652 NDR1062 RM2551
Product Description
- Broad Compatibility: Our 3316348.900Rv Refrigerator power module board/Control Board is compatible with most Dometic models: DM2652; DM2662; DM2663; DM2852; DM2862; DM3862; NDM1062; NDR1062; RM2351; RM2354; RM2451; RM2454. RM2551; RM2554; RM2620; RM2652; RM2662; RM2820; RM2852; RM2862.
- Replacement part number: Our 3316348.900Rv Fridge power module board replaces the previous board models: 3316348900, 3316348.000, 3316348000, 0713814221829. Our power supply module board is made of high quality material, excellent moisture resistance, stable performance and durable.
- Product Description: Our 3316348.900 power module/Circuit board with an integrated propane function igniter. This is a replacement lower control board for gas absorption refrigerators. The lower control board is the main circuit board on the refrigerator and controls the ignition and operation of the propane, as well as power to the AC components.
- Details: Our 3316348.900Rv Refrigerator power module board /Control Board with power supplies of: 120V, 3.5A,60Hz and 12VDC, 1.9A. Fuse back cover description: P1: connected to upper control board, P2: thermistor, P3: connected to gas valve, J2: connected to indoor lighting/climate control, J4: positive 12V DC from terminal block, J5: AC line voltage (black), J6: AC neutral (white), J7: AC neutral output to AC heater, J8: AC line output to AC heater switch side, J10: negative to chassis ground.
If your RV refrigerator is not working, our products will give your refrigerator a new look and refrigerate your food when the hot summer days come!
Our power supply module board is made of high quality material, excellent moisture resistance, stable performance and durabl.
Please disconnect 120VAC and 12V DC beforereplacement.
Replacing 3316348.900 Power Module Board Instructions:
TOOLS: flat blade screwerdriver
Step1 a.remove the top mounting screw and discard.
b.remove the cover using a flat blade screwerdriver. Follow the instructions for removal that are molded the cover.
Step2 c.disconnecte the module wiring by referring to the wiring diagram on the back of the refrigerator.
d.remove the bottom mounting screw and discard . Then carefully remove the unit from the refrigerator
Step3
a.Secure the unit base to the refrigerator using the provided mounting screw.
b.reinstall the wiring according to the wiring diagram on the back of the refrigerator.
c.Snap the power/control module cover to the base.
