Frame Synchronization
There is a Free Running, Input Lock, and Genlock mode to synchronize your video signal. The Genlock system ensures proper synchronizing of the signals when aligning the source with an external signal.
Box Contains
-

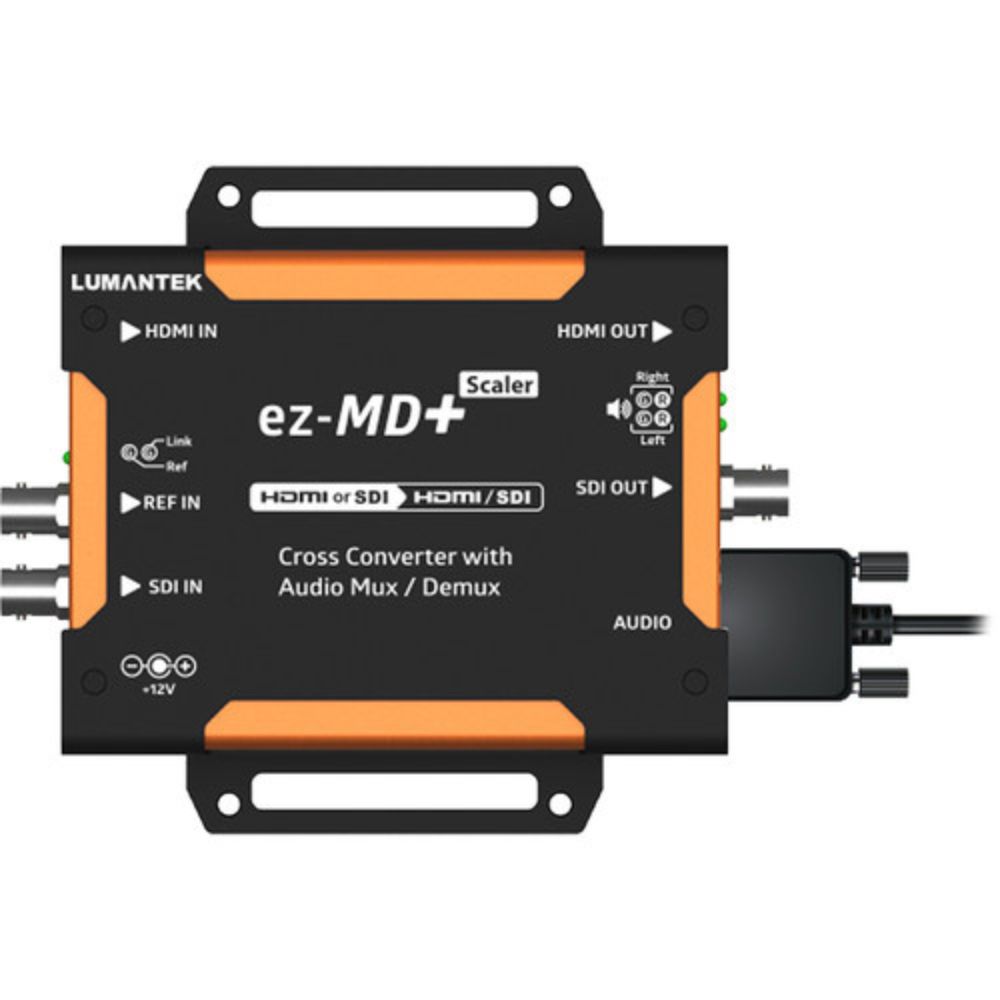

Lumantek HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler
- 1 x 9-Pin to XLR Breakout Cable
- 1 x 12 VDC, 1 A Power Adapter
-
Lumantek HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler
- 1 x 9-Pin to XLR Breakout Cable
- 1 x 12 VDC, 1 A Power Adapter
| Brand | Lumantek |
| Model | Lumantek LUM-ez-MD+ |
| MPN | LUM-ez-MD+ |
| Type | Converter |
| Video Inputs | 1 x BNC (3G-SDI) 1 x HDMI |
| Video Outputs | 1 x BNC (3G-SDI) 1 x HDMI |
| Other I/O | 1 x DE-9/DB-9 Input/Output 1 x BNC Reference Input 1 x Micro-USB |
| Input Video Format | SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / |
| Output Video Format | SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / |
| Power I/O | 1 x Barrel (11 to 13 VDC) Input |
| Power Consumption | Power Supply: 100 to 240 VAC at 1 A (8 W) |
| Operating Temperature | 32 to 77°F / 0 to 45°C |
| Dimensions | 5.12 x 3.95 x 1.06 / 130 x 100.4 x 26.9 mm |
| Weight | 14.11 oz / 400 g |
