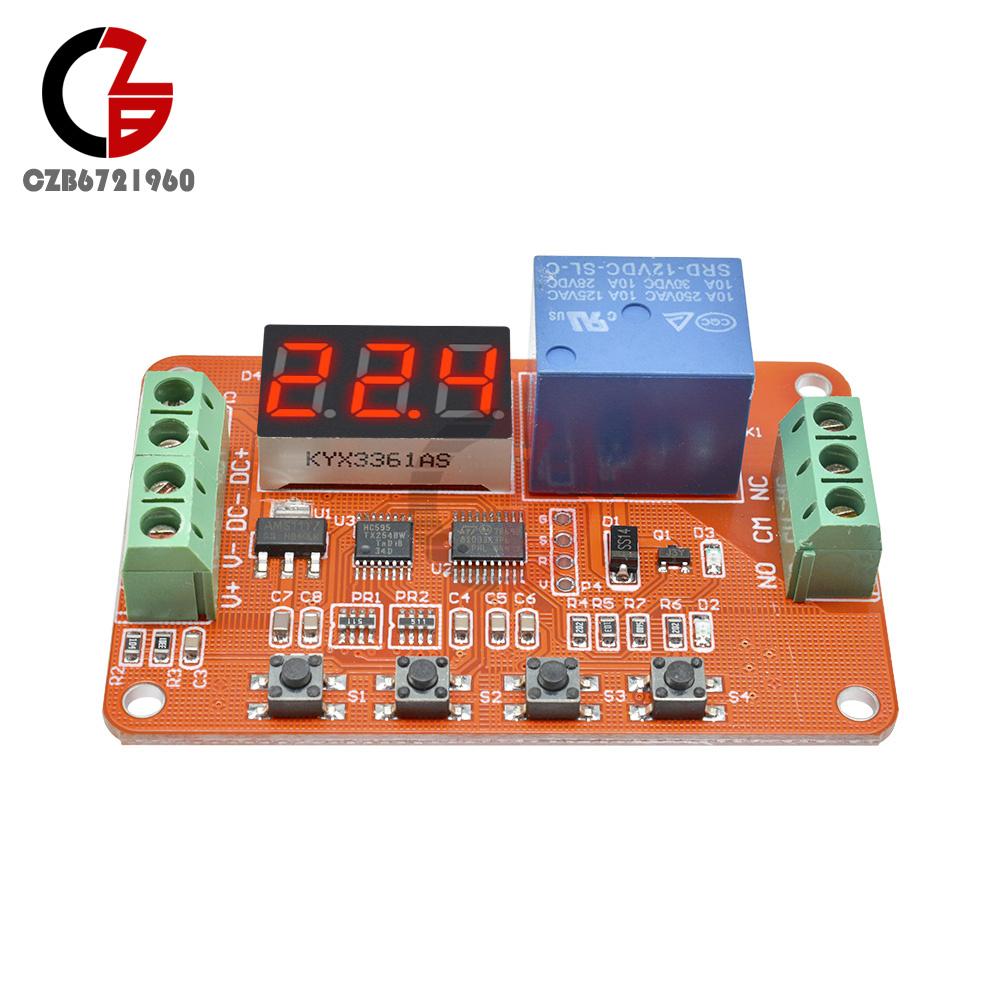

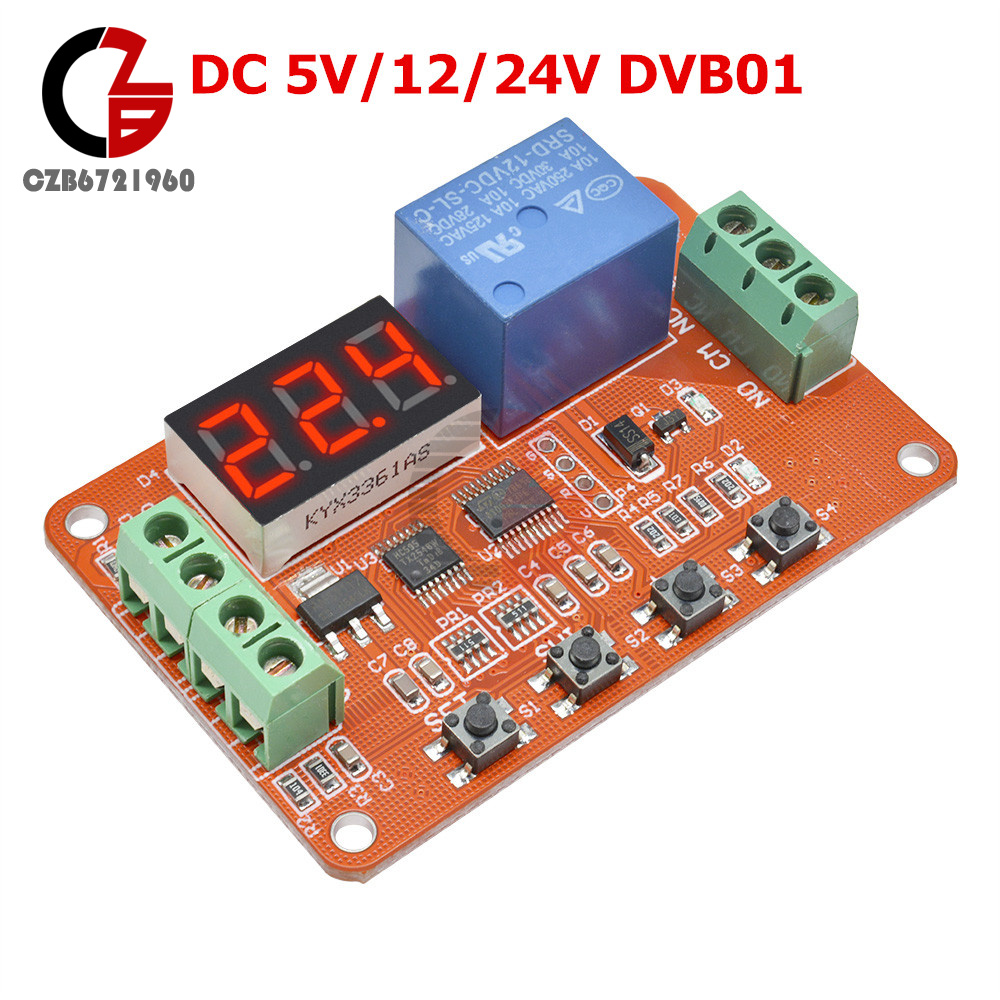

Product Introduction
Provide 5 functions for users to choose, to meet more application needs.
The user can set the upper voltage limit and the lower voltage limit.
Measurement range is 0-100V DC, measurement accuracy +/-0.1V.
Increase the automatic power saving function, the user can set it autonomously.
All setting parameters can be saved automatically, and the setting contents will not be lost when power is off.
Added 0-99.9 seconds delay pull and 0-99.9 seconds delay off function.
Functions:
Voltage measurement: select this function, the relay will not operate, and the digital tube displays the current measured voltage.
Charging monitoring: when the measured voltage is lower than the lower limit voltage, the relay pulls in, the upper limit voltage is higher, and the relay is disconnected.
Discharge monitoring: when the measured voltage is higher than the upper limit voltage, the relay pulls in, lower than the lower limit voltage, and the relay is disconnected.
Interval in the interval: when the measured voltage is between the upper limit and the lower limit, the relay is closed, and the relay is disconnected in other cases.
Interval outer pull-in: when the measured voltage is lower than the lower limit voltage, or the measured voltage is higher than the upper limit voltage, the relay pulls in, in other cases, the relay is disconnected.
Type:
Work Voltage: DC 5V/12/24V (Do Not Exceed +/-10% of The Nominal Voltage)
Working Current:
> 90mA at 5V (> 12mA When Relay Not Operate, > 3mA When The Display Off)
> 50mA at 12V (> 12mA When Relay Not Operate, > 3mA When The Display Off)
> 35mA at 24V (> 12mA When Relay Not Operate, > 3mA When The Display Off)
Working Temperature: Recommended -20 - 60 Degree Celsius
Limit Working Temperature:-30 - 70 Degree Celsius
Measuring Range: 0-99.9V
Relay Normally Open Port Maximum Load Capacity: DC 0-30V/10A, AC 0-250V/10A
Relay Normally Closed Port Maximum Load Capacity: DC 0-28V/10A, AC 0-125V/10A

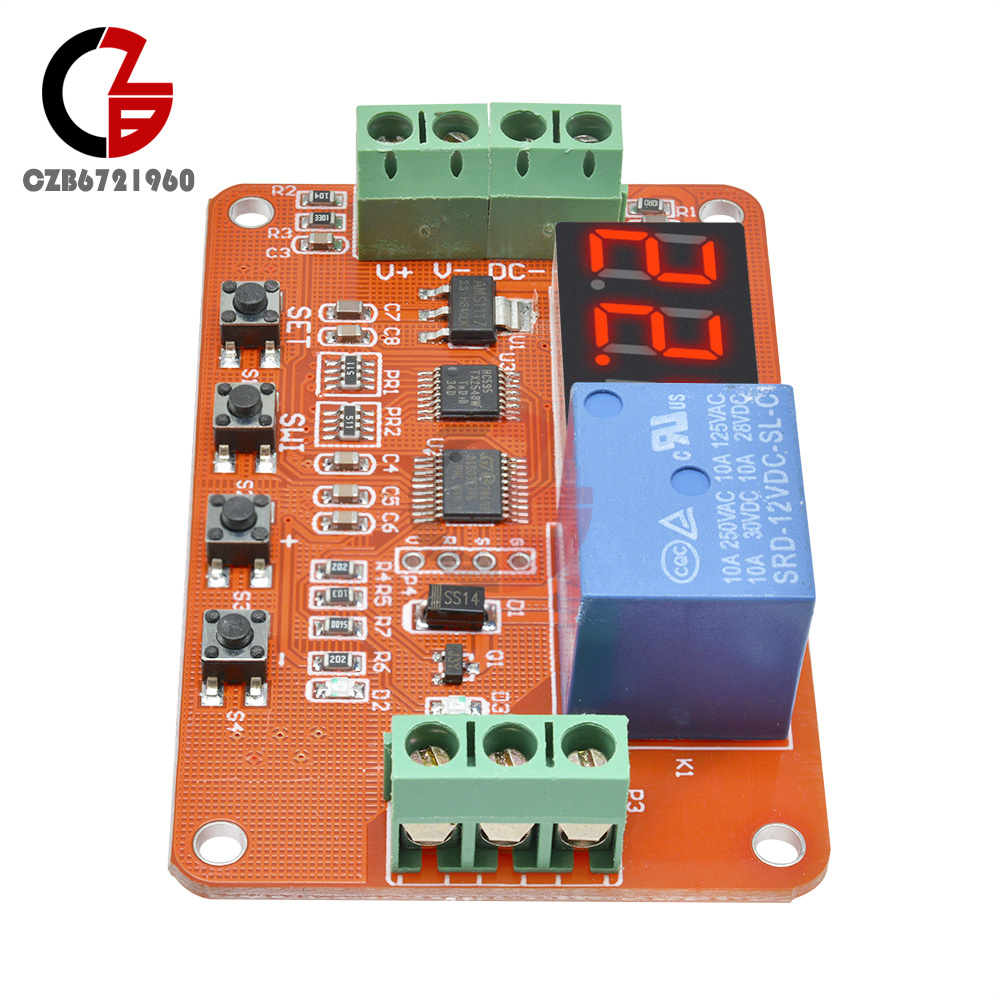

Module Voltage Input: 4-Wire Interface
DC+: DC Power Supply Positive
DC-: DC Power Supply Negative
V+: Measuring Voltage Positive
V-: Measuring Voltage Negative
Relay Load Output: 3-Wire Interface
NO: Relay Normally Open Interface, Relay Suspended Before The Suction, After The Suction is Shorted with COM
COM: Relay Common Interface
NC: Relay Normally Closed Interface, Short-Circuit with COM Before The Pull-in of The Relay, and Float After The Suction
Features: Digital Display, Voltage Measurement, Charge/Discharge Protection
Dimensions: 67mm x 44mm x 20mm/2.64" x 1.73" x 0.79" (Approx.)
Instructions:
P-0 (function setting): parameter values F-01 to F-05, corresponding to function 1 to function 5;
P-1 (V1 voltage setting): parameter value 0.0V to 99.9V;
P-2 (V2 voltage setting): parameter value 0.0V to 99.9V;
P-3 (voltage correction): The digital tube flashes together to display the current measured voltage value. Press + or - to correct the voltage value.
P-4 (sinking delay time T1): 0.1-99.9 seconds; the relay will only pick up when the suction condition is detected in continuous T1 time;
P-5 (off delay time T2): 0.1-99.9 seconds; the relay will be disconnected when the pull-in condition is detected for continuous T2 time;
Note:
According to different functions, the controller will automatically determine which of the preset voltages V1 and V2 is the upper limit voltage, which is the lower limit voltage, and the user does not need to entangle the person who is small and who is the first.
Due to the light and screen setting difference, the color of item may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Included:

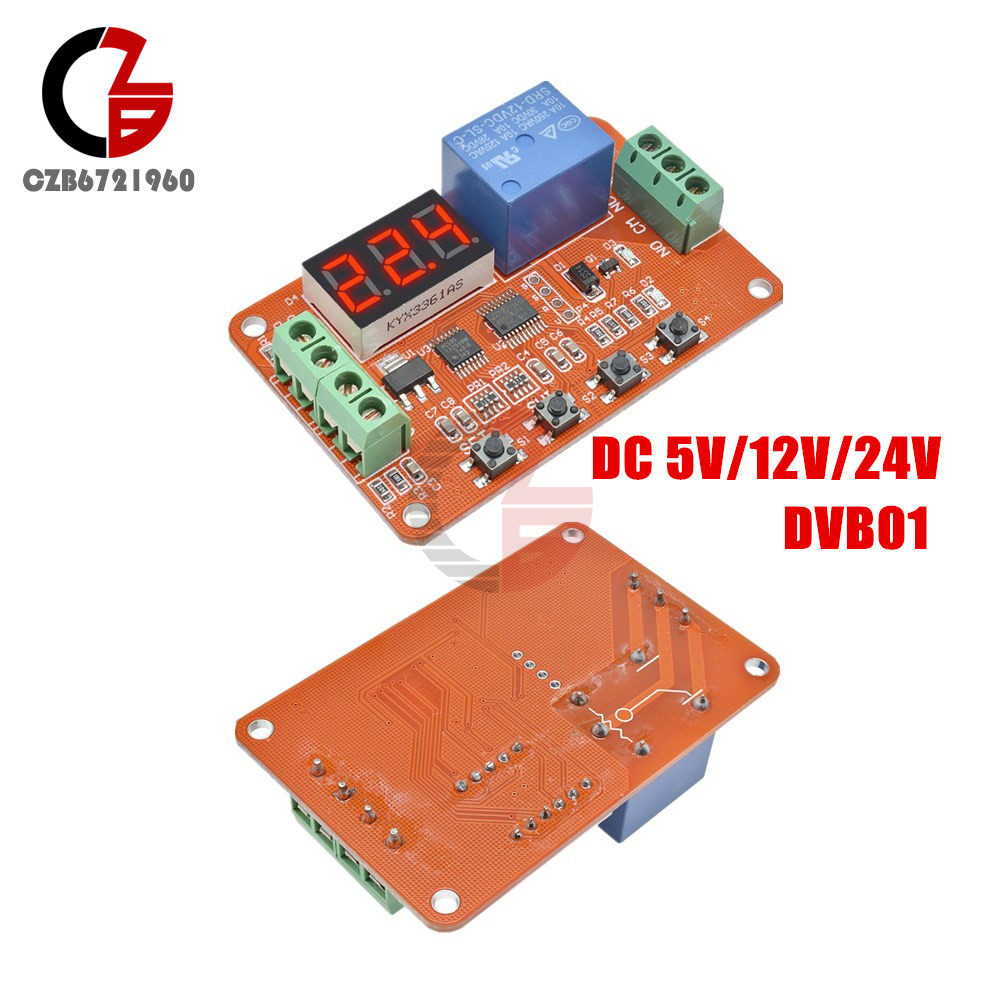

1PCxDC 5V/12/24V Voltage Comparator
