5um Magnetic Scale Magnet Linear Encoder Sensor Tape with Aluminum Profile for Woodworker Lathe Grinder

Order include:
Magnetic sensor x 1pc
Aluminum profile x 1pc
Install screws x 1 bag

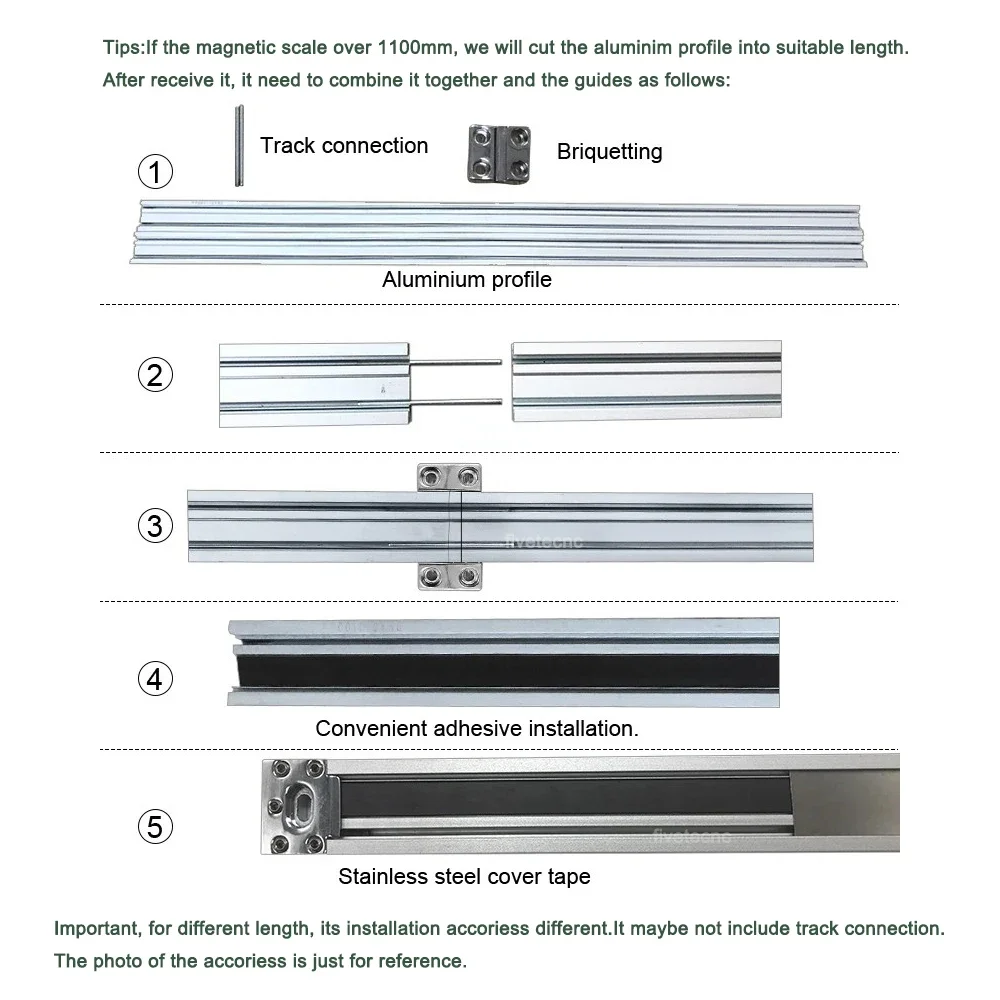

Tips: It can cut the magnetic scale to any length as your request by yourself after receive it.



The drawing of the magnetic scale:







9DB Pin TTL Signal(default):

Pin	1	2	3	4	5	6	7	8	9
		0V				A	5V	B

Pin	1	2	3	4	5	6	7	8	9
	A-	0V	B-	Z-		A	5V	B	Z

We send TTL signal by default, if need RS422 signal, please leave a note when order it, or please send a message to seller before order. thank you
