STM32F407VGT6 APM32F407VGT6 STM32F407VET6 Core Development Board DIY Type-C

Popular

    Product Introduction

    Features
    1.Good quality of high quality materials, fine workmanship, fast computing, stable performance

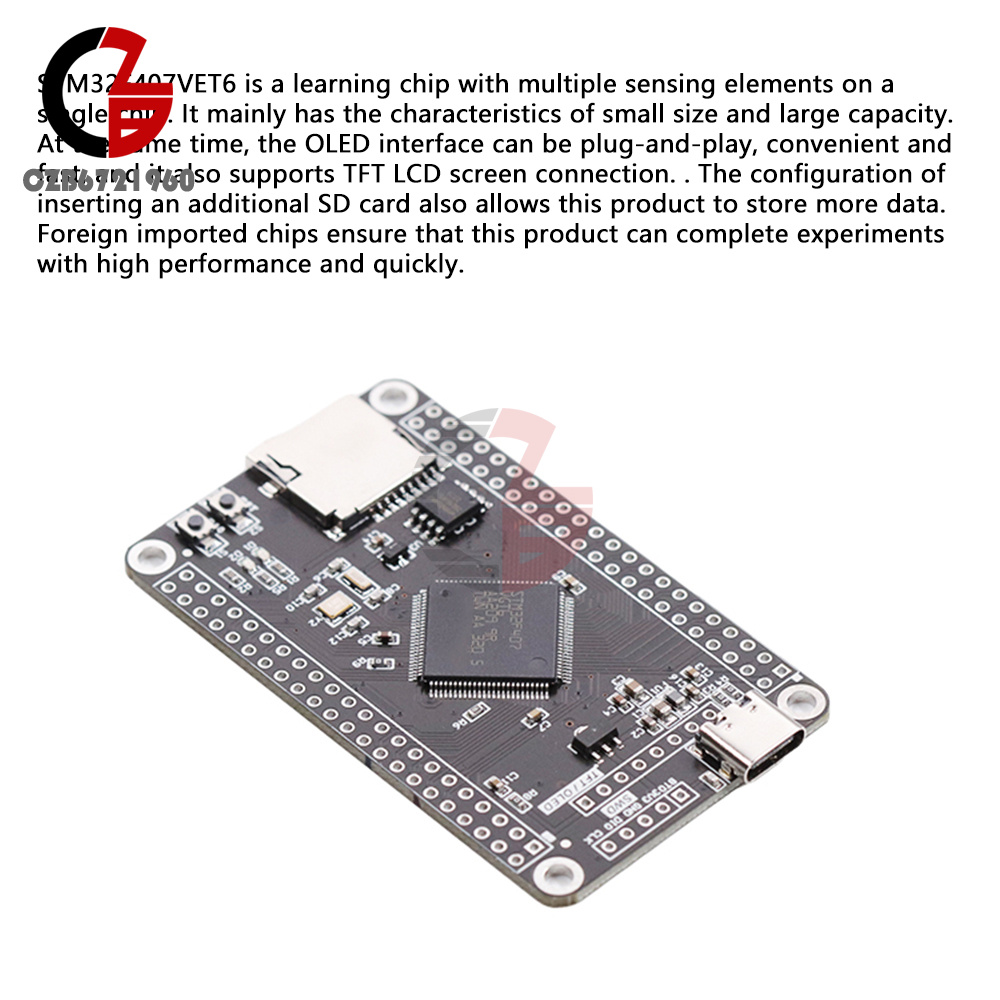

    2.STM32F407VET6 is a learning chip with multiple sensing elements on a single chip.
    3. Mainly characterized by small body size and large capacity.

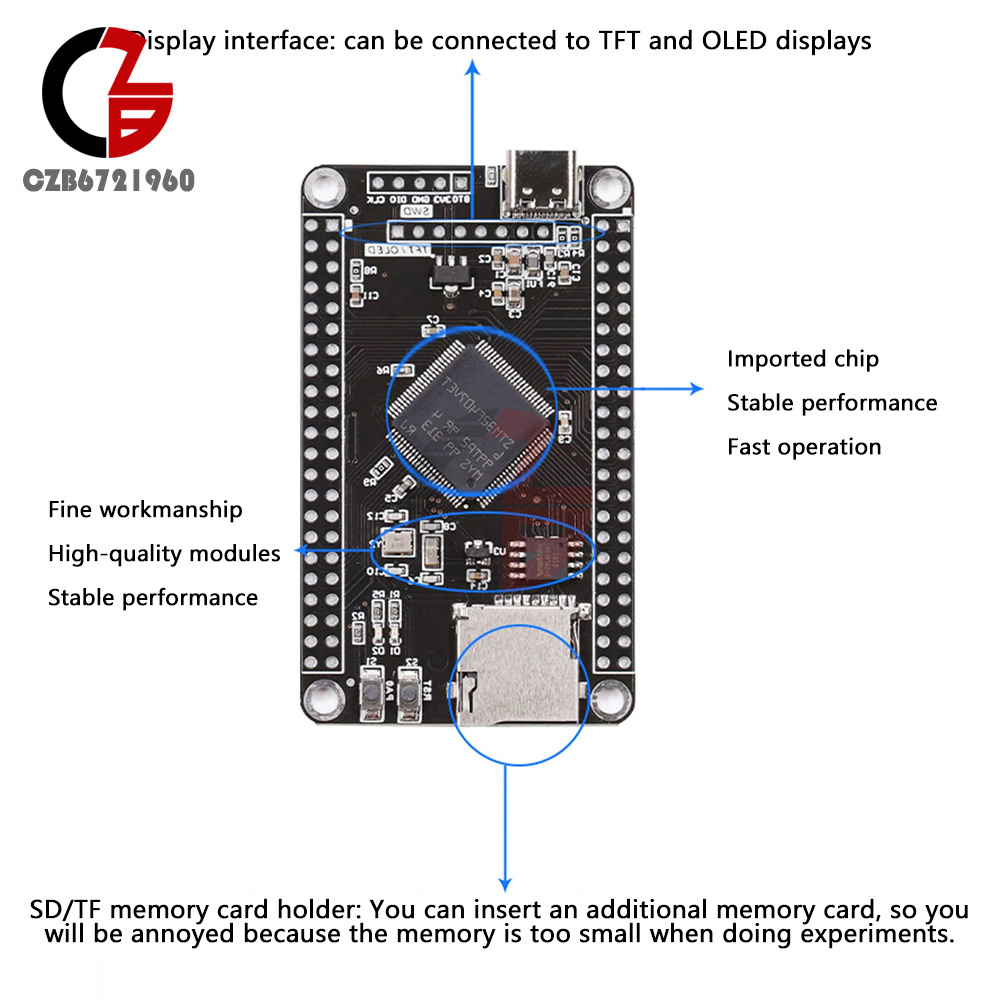

    4. At the same time the OLED interface can be plug and play, convenient and fast, also supports TFT LCD screen connection.
    5. Can be inserted into the SD card configuration, but also allows this product can store more data, imported chips to ensure that this product can be high-performance and rapid completion of the experiment.

    Specification
    1. Type-C interface power supply
    2.OLED interface - plug and play, support 0.96 inch OLED
    3.TFT LCD interface: connect 1.44-inch full-color LCD, 1.8-inch full-color LCD
    4. Data storage: W25Q16
    5. High-speed crystal oscillator: 8MHZ
    6. Low-frequency crystal: 32.768K
    7. Power + programmable LED lights, user and reset buttons
    8. All CPU-IO all lead out, 2.54mm integer times the pins
    9.SD/TF memory card holder: you can insert an additional memory card, so that you can do experiments to avoid the memory is too small and chagrined

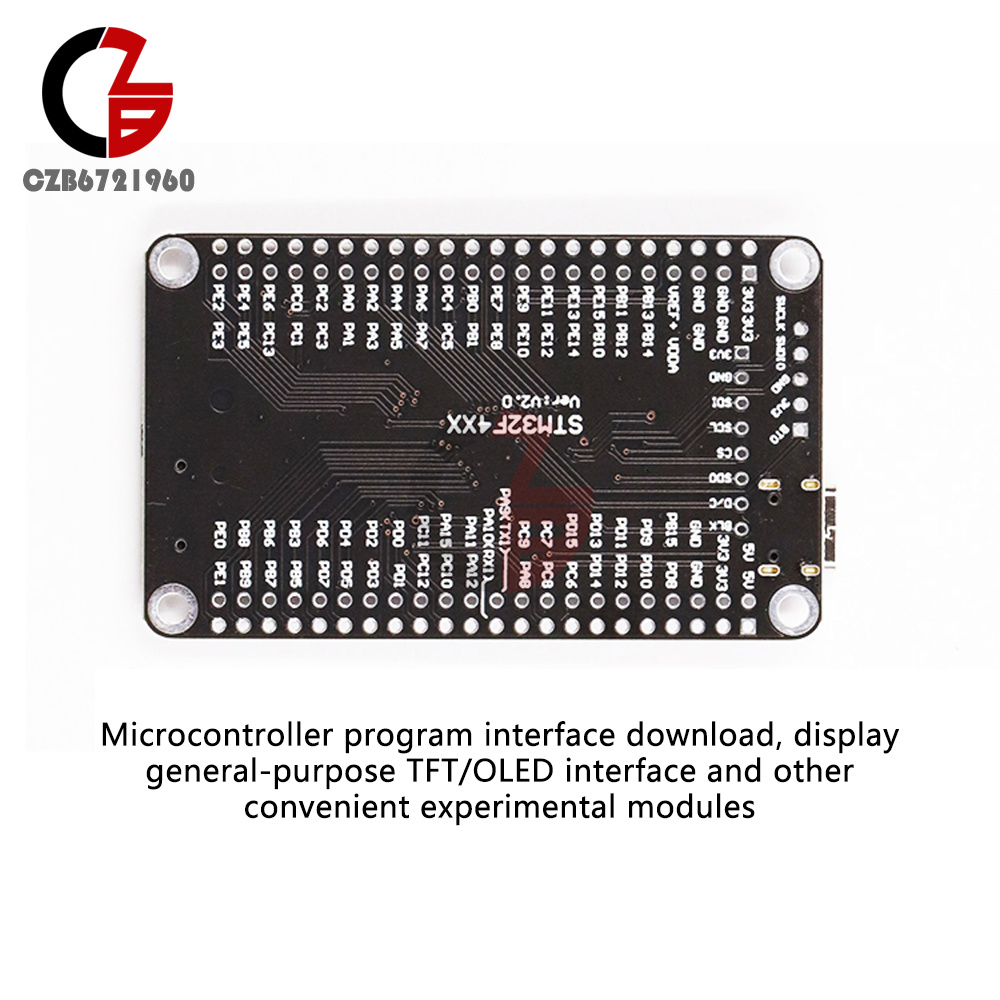

    10. Microcontroller program interface to download, display general TFT / OLED interface to facilitate the experimental module

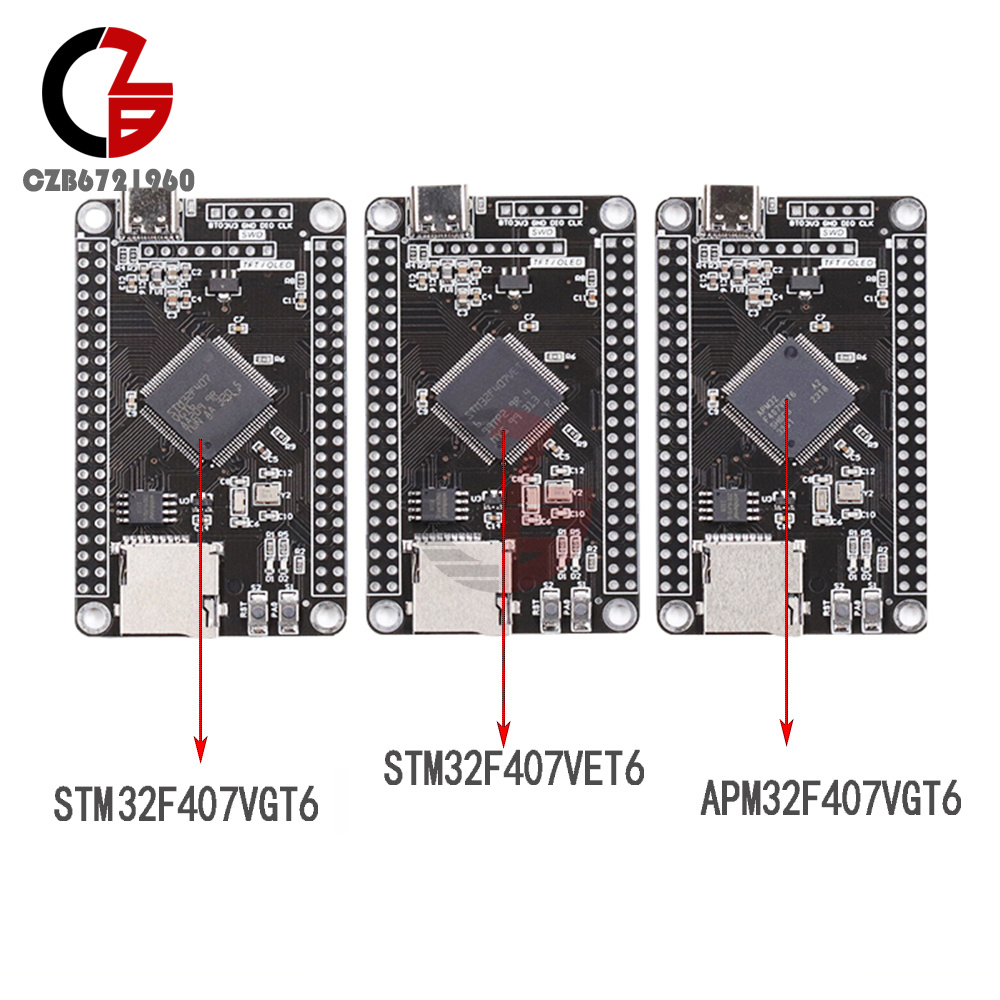

    11. Chip Model: STM32F407VET6 /APM32F407VGT6/ STM32F407VGT6
    12. Core: Cortex-M4 32-bit RISC
    13. Features: Single-cycle DSP instructions
    14.CPU core: ARM Cortex-M4
    15.Interface:CANbus, DCMI, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG
    16.Operating Frequency:168MHz
    17.Memory RAM Capacity:192x8KB
    18.210 DMIPS/1.25 DMIPS/MHz
    19.Operating Voltage:1.8V～3.6V

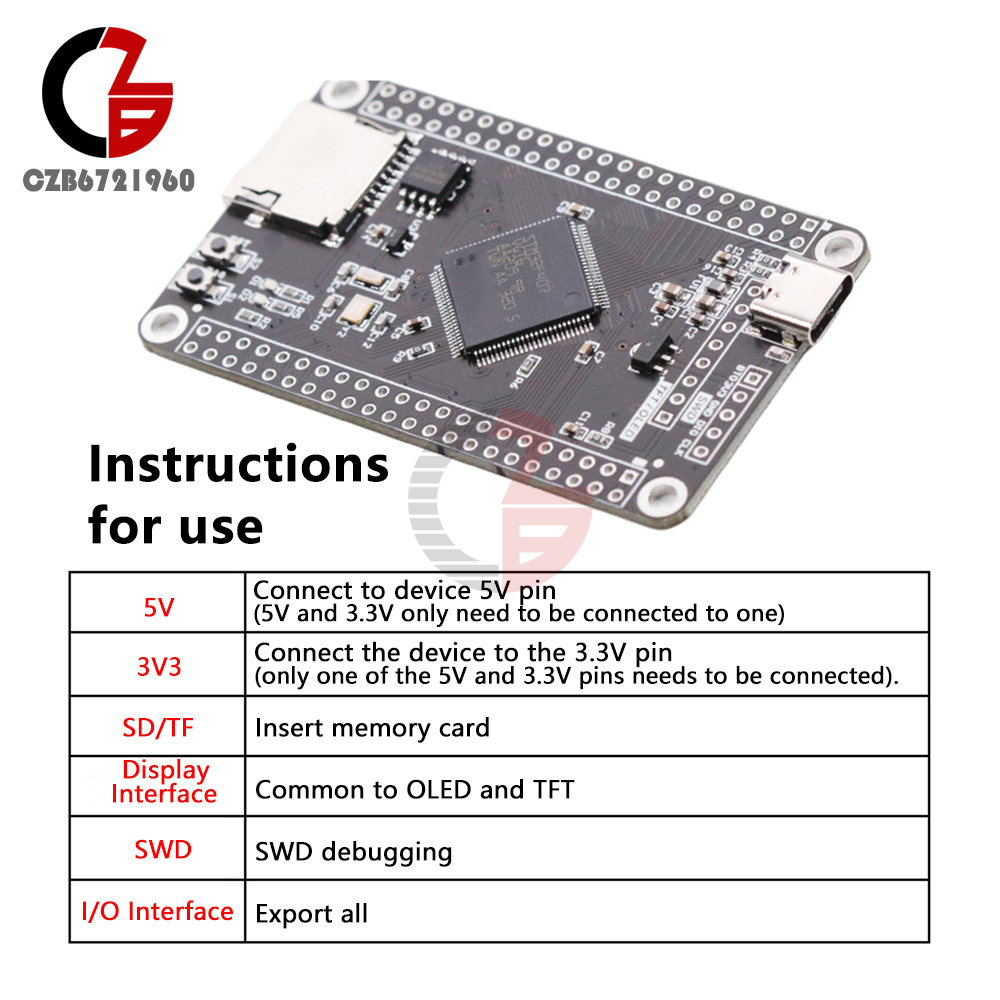

    Instructions for use:
    5V: connect to the device 5V pin (5V and 3.3V only need to connect one)
    3V3: connect to the device 3.3V pin (5V and 3.3V only need to connect a)
    SD/TF: insert memory card
    Display interface: OLED and TFT common

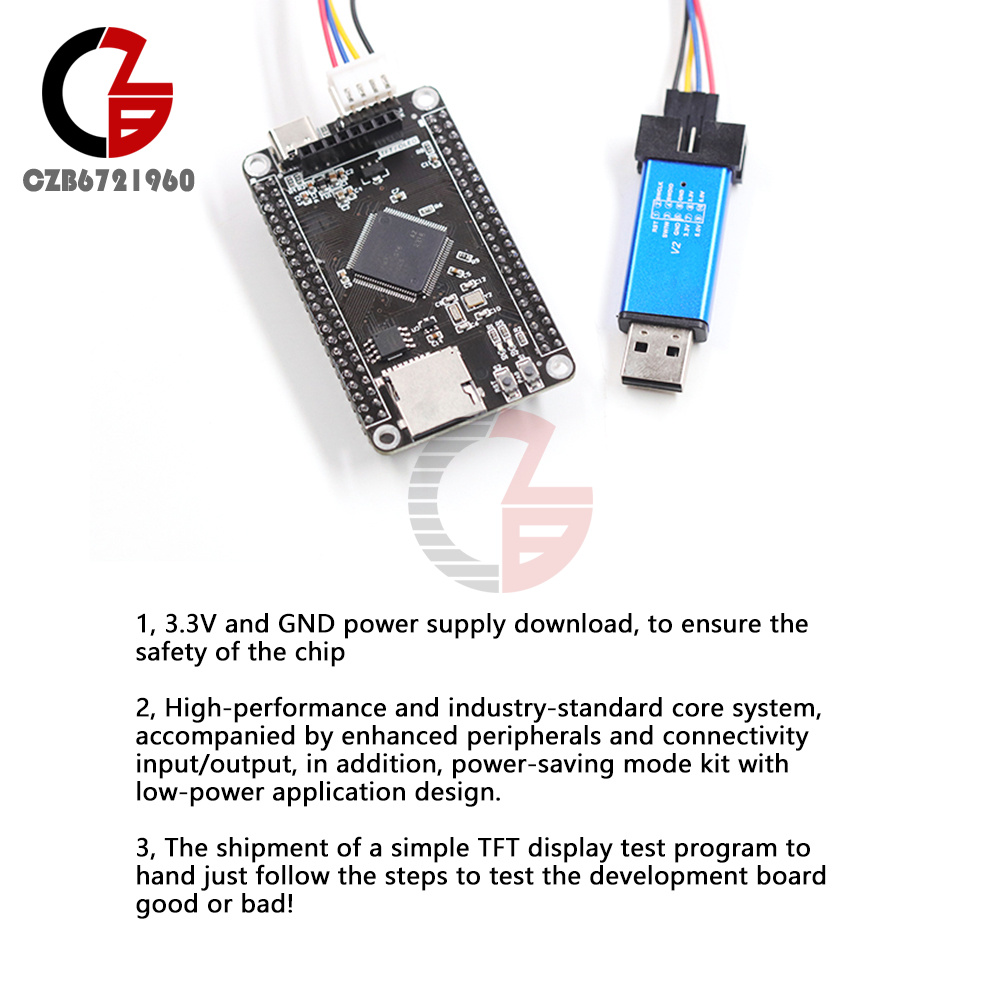

    SWD: SWD debugging
    I/O interface: all pins

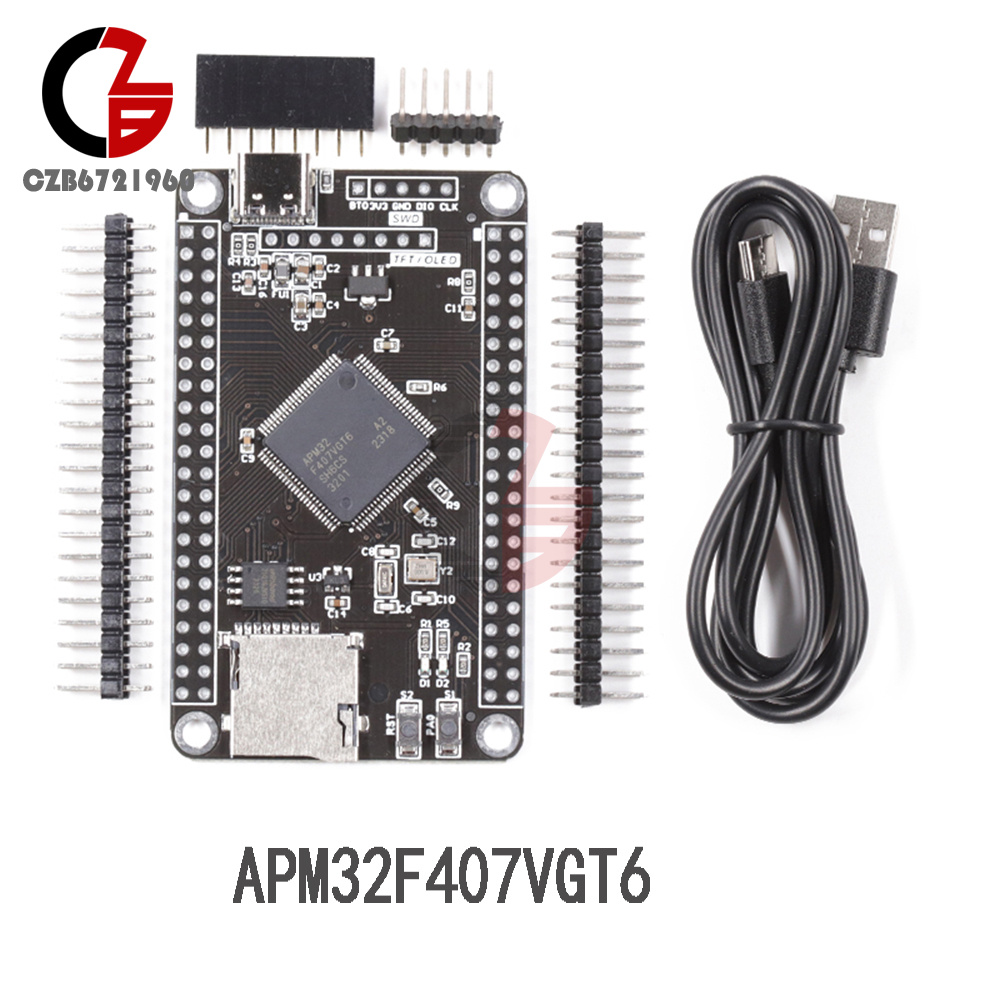

    List

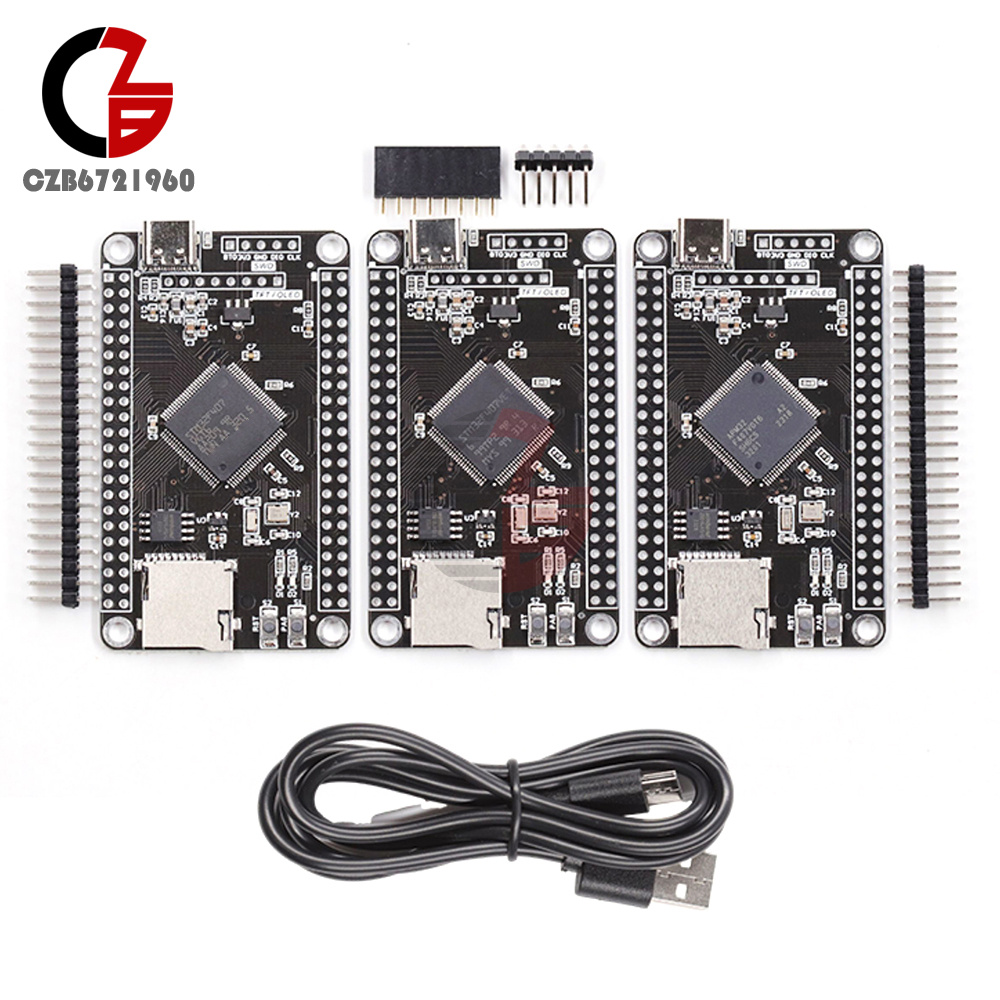

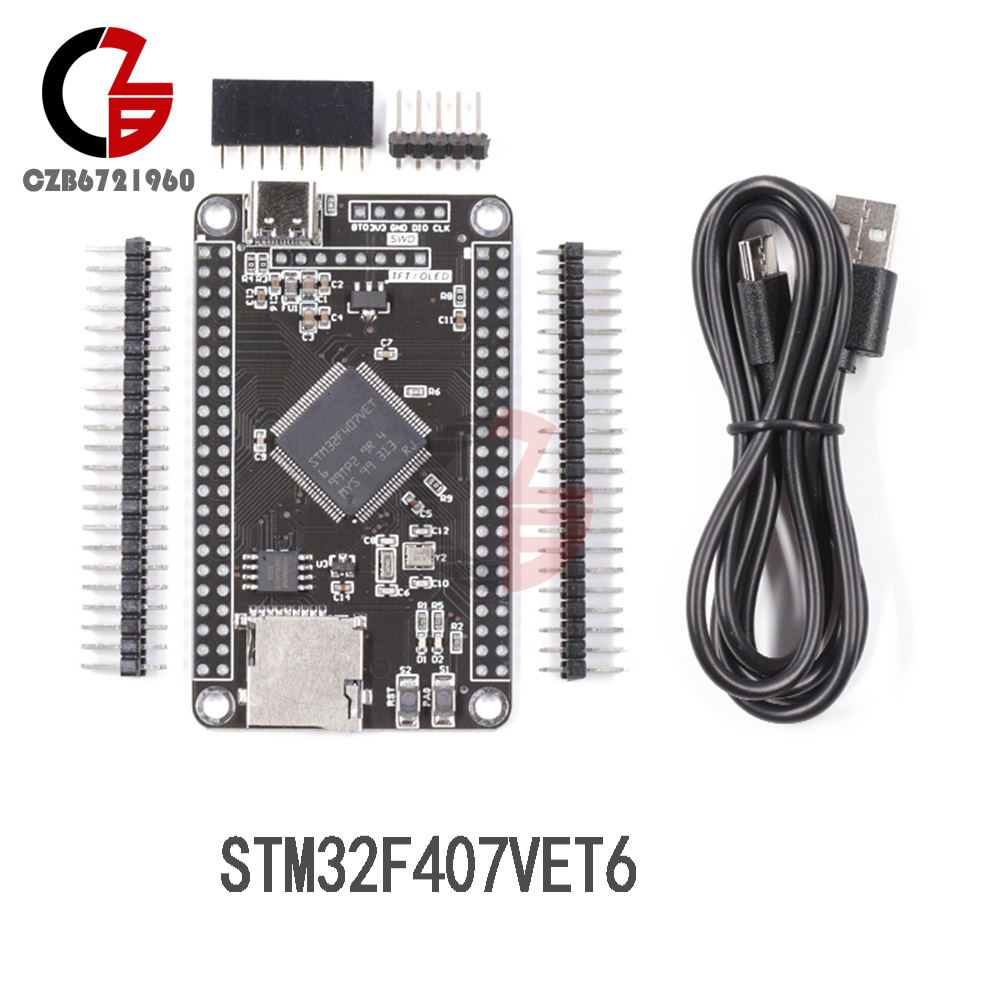

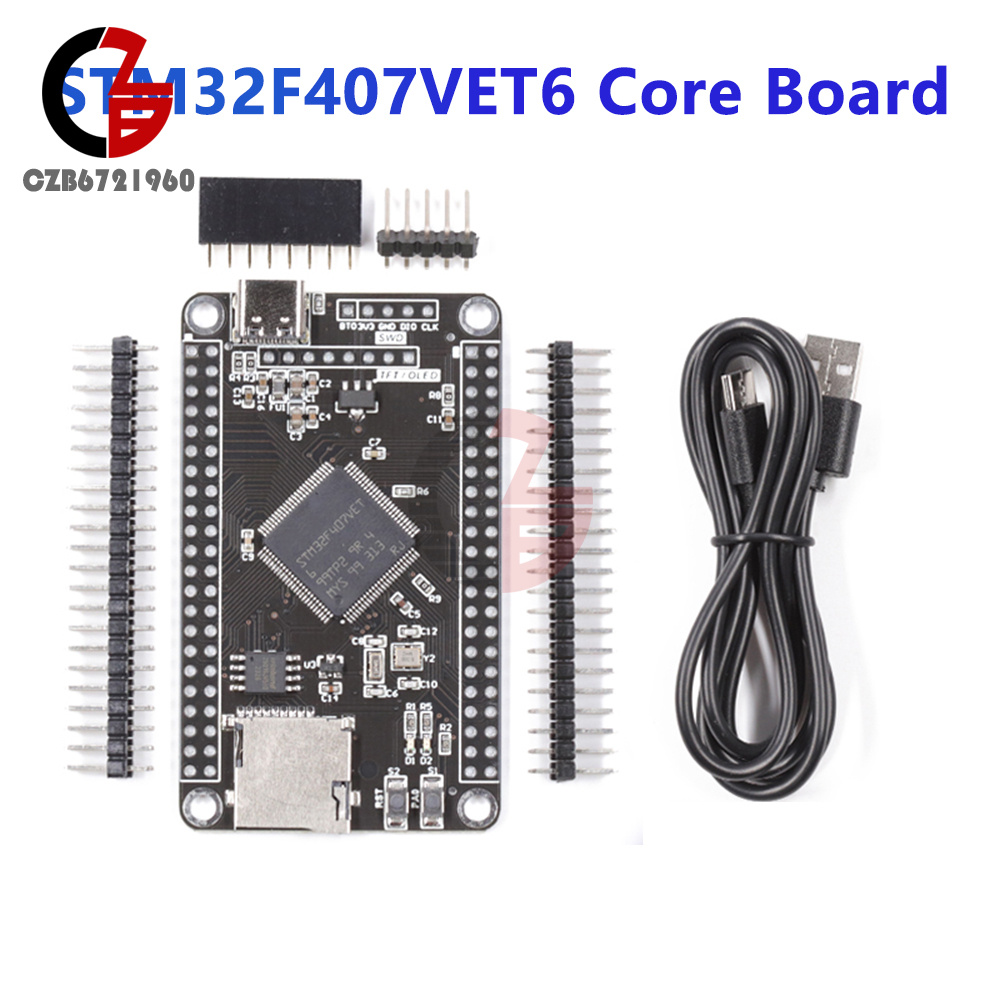

    1 x Development Board
    4 x Pinout
    1 x Power Cable
