Wireless Electronic Motorised Window Opener Winder
One complete set window opener include the accessory:window opener housing, chain, motor, bracket, screws, receiver,remote control,the details included in the following picture.
How To Choose The Most Suitable Home Window Automatic Window Actuator
1. Our electric window opening mechanisms is suitable for the below window types.
2. Please refer to the following technical specification to choose the suitable electric window opening mechanisms
Technical Parameters For Several Models
CSD300 Technical Parameter
The push and pull force:300N
Travel distance:11-4/5''(300mm)
Speed:10mm/s
Working current:0.8A
Size:420(L)X52(W)X40(H)mm Operating power:DC24V
Degree of protection:42IP
Operating ambient Temp,:-10℃-+70℃
Material:Housing and chain are made of aluminum alloy
CSD400 Technical Parameter
The push and pull force:300N
Travel distance:15-3/4''(400mm)
Speed:10mm/s
Working current:0.9A
Size:470(L)X52(W)X40(H)mm Operating power:DC24V
Degree of protection:42IP
Operating ambient Temp,:-10℃-+70℃
Material:Housing and chain are made of aluminum alloy
CSD500 Technical Parameter
The push and pull force:300N
Travel distance:19-3/5''(500mm)
Speed:7mm/s
Working current:1A
Size:520(L)X52(W)X40(H)mm Operating power:DC24V
Degree of protection:42IP
Operating ambient Temp,:-10℃-+70℃
Material:Housing and chain are made of aluminum alloy
CSD600 Technical Parameter
The push and pull force:300N
Travel distance:300mm-600mm
Speed:7mm/s
Working current:1.2A
Size:570(L)X52(W)X40(H)mm Operating power:DC24V
Degree of protection:42IP
Operating ambient Temp,:-10℃-+70℃
Material:Housing and chain are made of aluminum alloy
Home Window Automatic Window Actuator Features
1. The automatic window opener can work with input voltage AC100-AC240V,there is transformer which convert input voltage AC100-AC240V to working voltage DC24V.

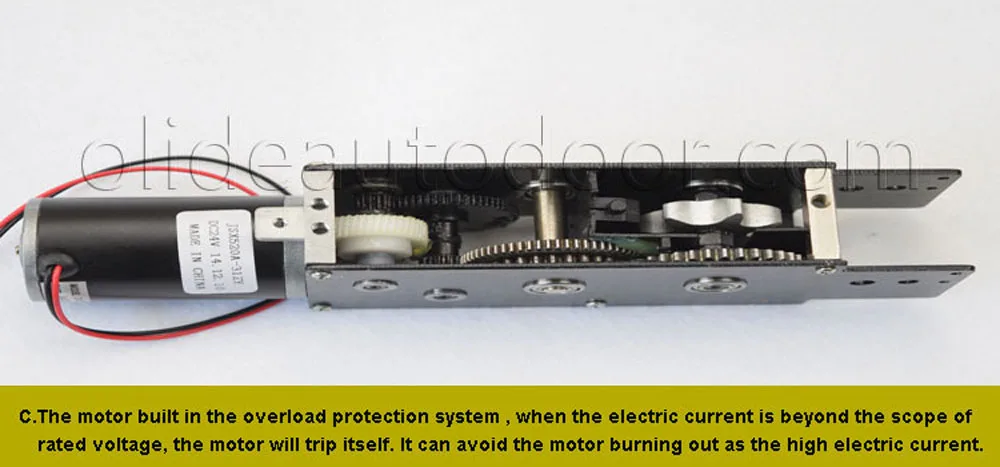

2.Intelligent protection, high-quality materials, customizable stroke distance.

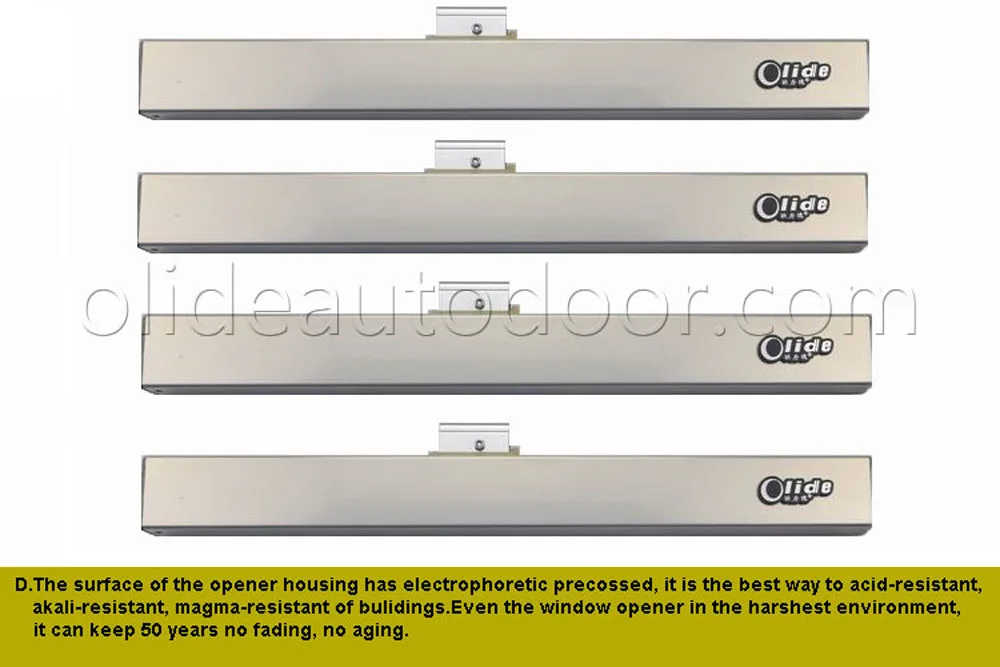

3.Adopt carbon fiber and metal chain, low noise design, double layer chain, single direction bending. Housing is made of aluminum alloy, also stainless steel can be customized, Chain is made of stainless steel. The bracket can be rotated to support a variety of mounting modes.
4.Diversified installation methods -- It can be used for horizontal pushing, upper hanging, middle hanging, lower hanging, skylight type.
5.Compact size, beautiful appearance, a strong sense of modernity, low installation space requirements, When closed, the chain is hidden in the window opener.
6.High quality design life load open and close over 10000 times,low noise when turned on.
7.The travel distance is fixed 11.81inch(300mm) which can not be adjusted,once press open button,it will open to the end without stop.
8.The use of electric window opener will be more secure and convenient,also can get better air circulation.

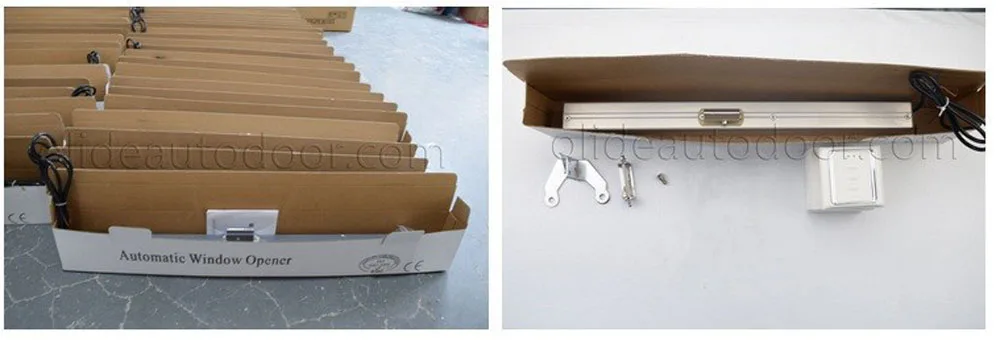

Home Window Automatic Window Actuator Packing Details

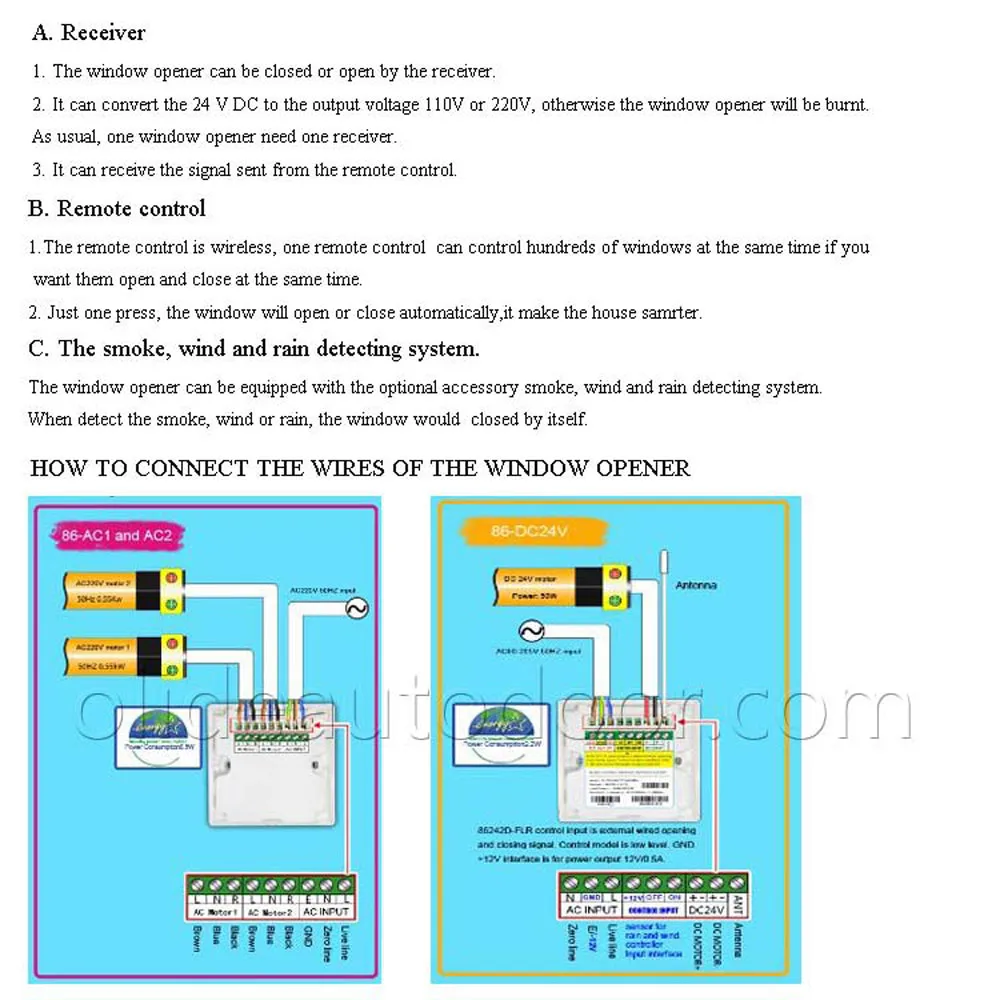

Function Introduction Of Optional Accessory
