Description

DS18 8" Elite Series 900 Watts Dual Voice Coil 4 Ohm Subwoofer ZR8.4D


This listing includes:



  • (1) Elite-Z 8 Inch 1000W Dual 4 Ohm Voice Coil Car Audio Subwoofer


Introducing the DS18 ZR8.4D, an 8" Subwoofer designed to redefine your car audio experience. With a robust 900W MAX and 450W RMS power handling, this powerhouse delivers mind-blowing bass and precision performance. The 2-inch high-strength aluminum voice coil ensures every note is delivered with clarity, taking your audio system to new heights. The 4+4 ohm dual voice coil configuration allows optimal impedance matching, maximizing power transfer and efficiency. Beyond performance, the ZR8.4D features a stamped basket, show-quality DS18 logos, and a matte black finish, adding an element of elegance to your car audio setup.


Features:



  • 900W MAX / 450W RMS Power Handling

  • 2-inch High-Strength Aluminum Voice Coil for Precision

  • Dual 4+4 ohm Voice Coil Configuration

  • Stamped Basket with DS18 Logos for Structural Integrity

  • Matte Black Finish for Visual Elegance


SPECIFICATIONS:



  • Nominal Diameter: 8" / 203.3mm

  • Nominal Impedance: 4 + 4 Ohm

  • RMS Power Handling: 450W

  • Maximum Power Handling: 900W

  • Sensitivity (1w/1m): 82 dB

  • Frequency Response: 33-200Hz

  • Recommended Lo Pass Crossover: 120Hz

  • Voice Coil Diameter: 2" / 50.8mm

  • Voice Coil Former Material: Aluminum

  • Winding Material: Copper

  • Cone Material: Non-Pressed Paper

  • Dust Cap Material: PPI

  • Surround Material: Foam

  • Basket Material: Steel

  • Basket Color/Finish: Black Matte

  • Magnet Material: Ferrite

  • Magnet Weight: 55 Oz

  • Displacement Volume: 0.03 ft3

  • Equivalent Volume Vas: 5.33 L

  • Excursion (one way) Xmax: 18mm

  • Free Air Resonance Fs: 45Hz

  • Mechanical Factor Qms: 4.7

  • Electrical Factor Qes: 0.745

  • Total Factor Qts: 0.643

  • Moving Mass Mms: 97g

  • Compliance Cms: 97.58? m/N

  • Bl Factor BI: 9.48

  • Voice Coil Inductance Le: 551.18m mH

  • Diaphragm Area Sd: 196 Cm2

  • DC Resistance Re: 3.4 + 3.4 Ohm

  • Efficiency Bandwidth Product EBP: 60.4

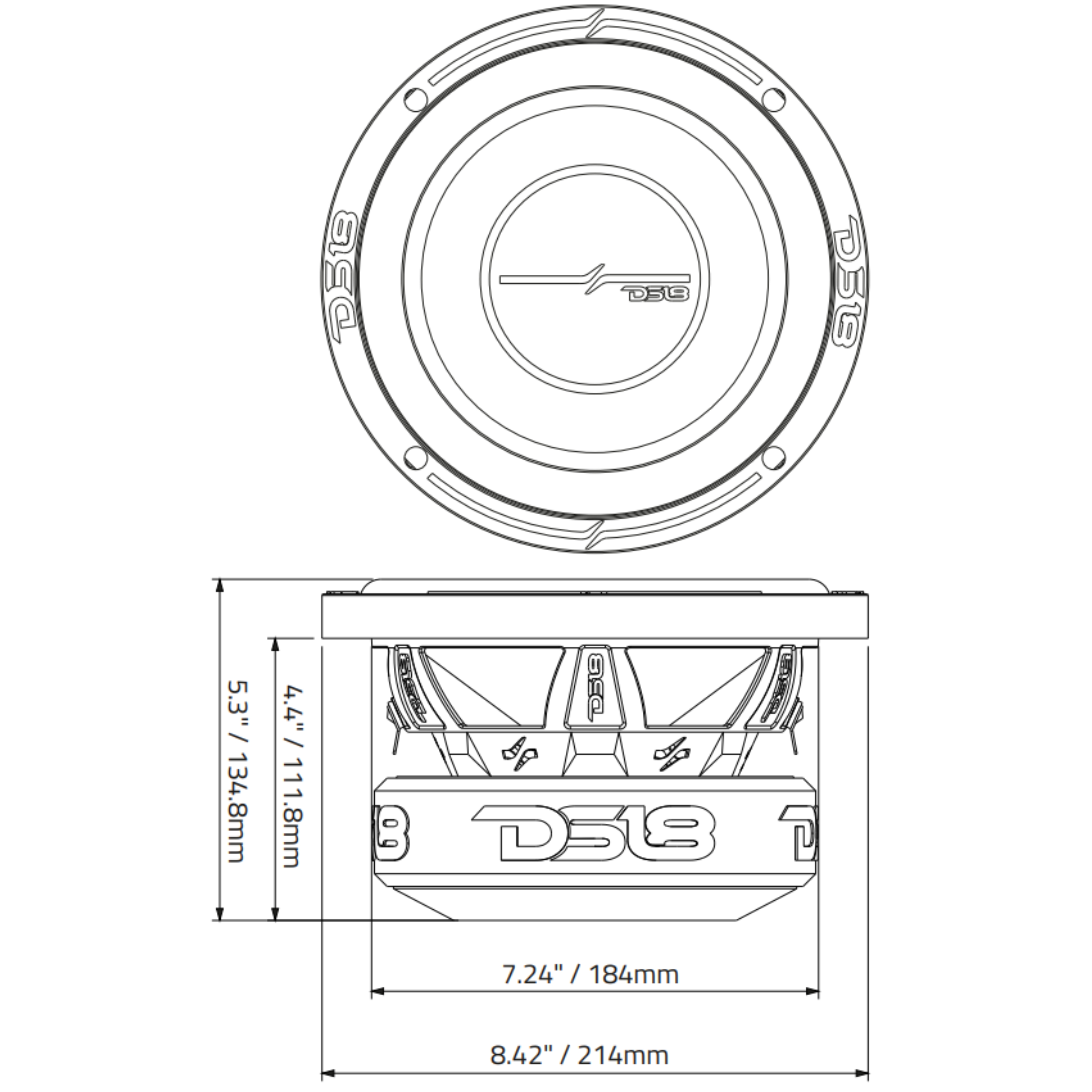

DIMENSIONS:



  • Overall Diameter: 8.42"

  • Overall Depth: 5.3"

  • Front Mount Baffle Cutout: 7.24"

  • Mounting Depth: 4.4"
