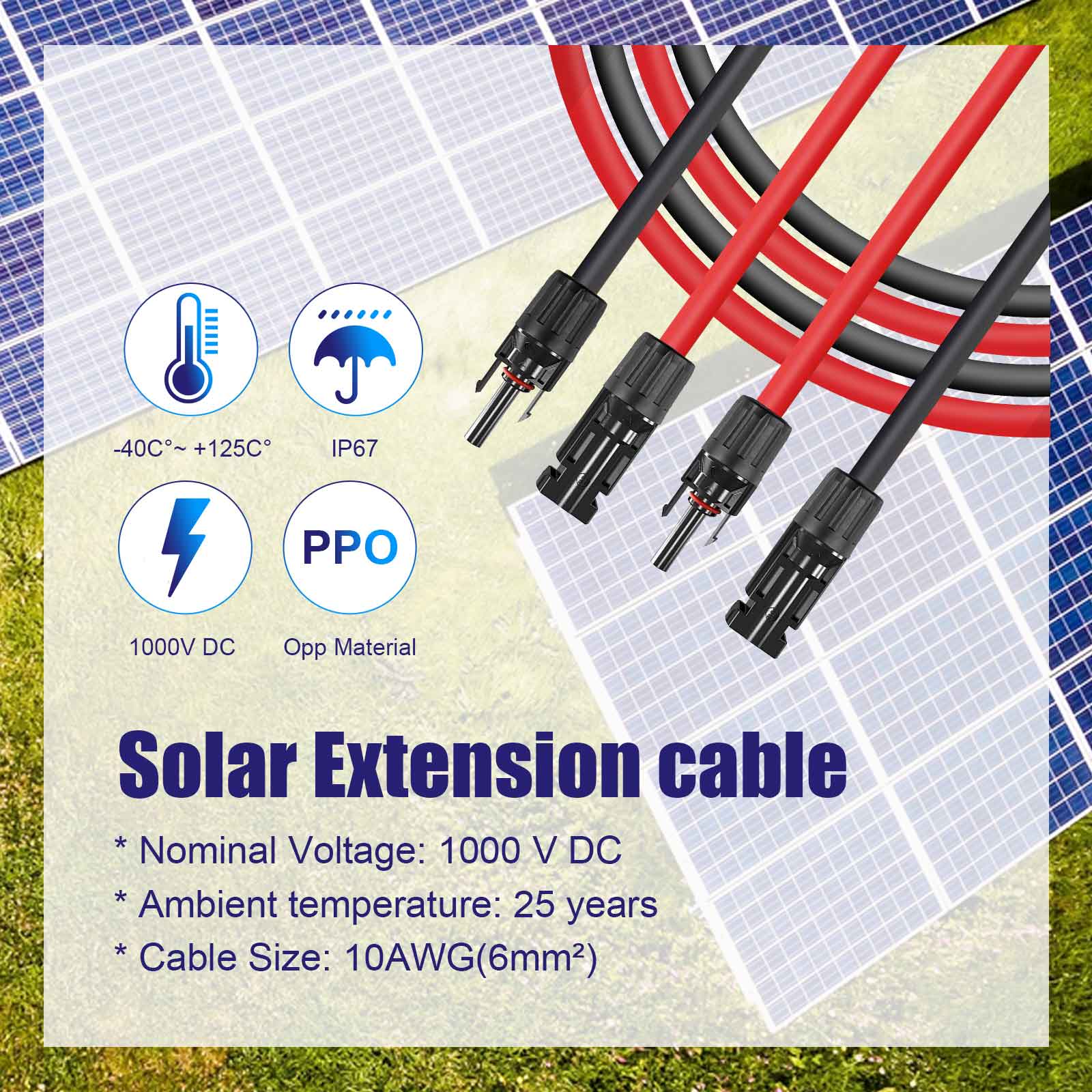

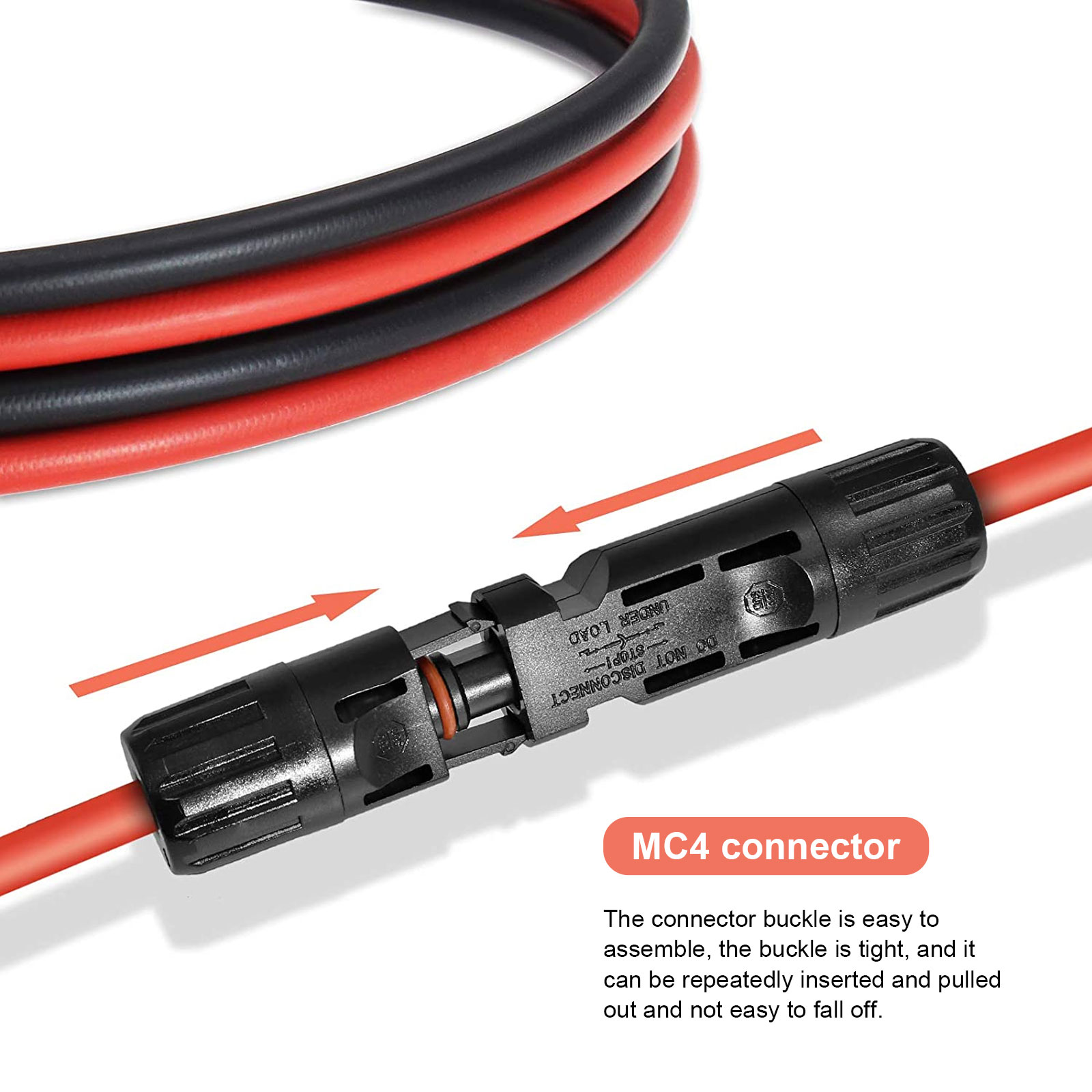

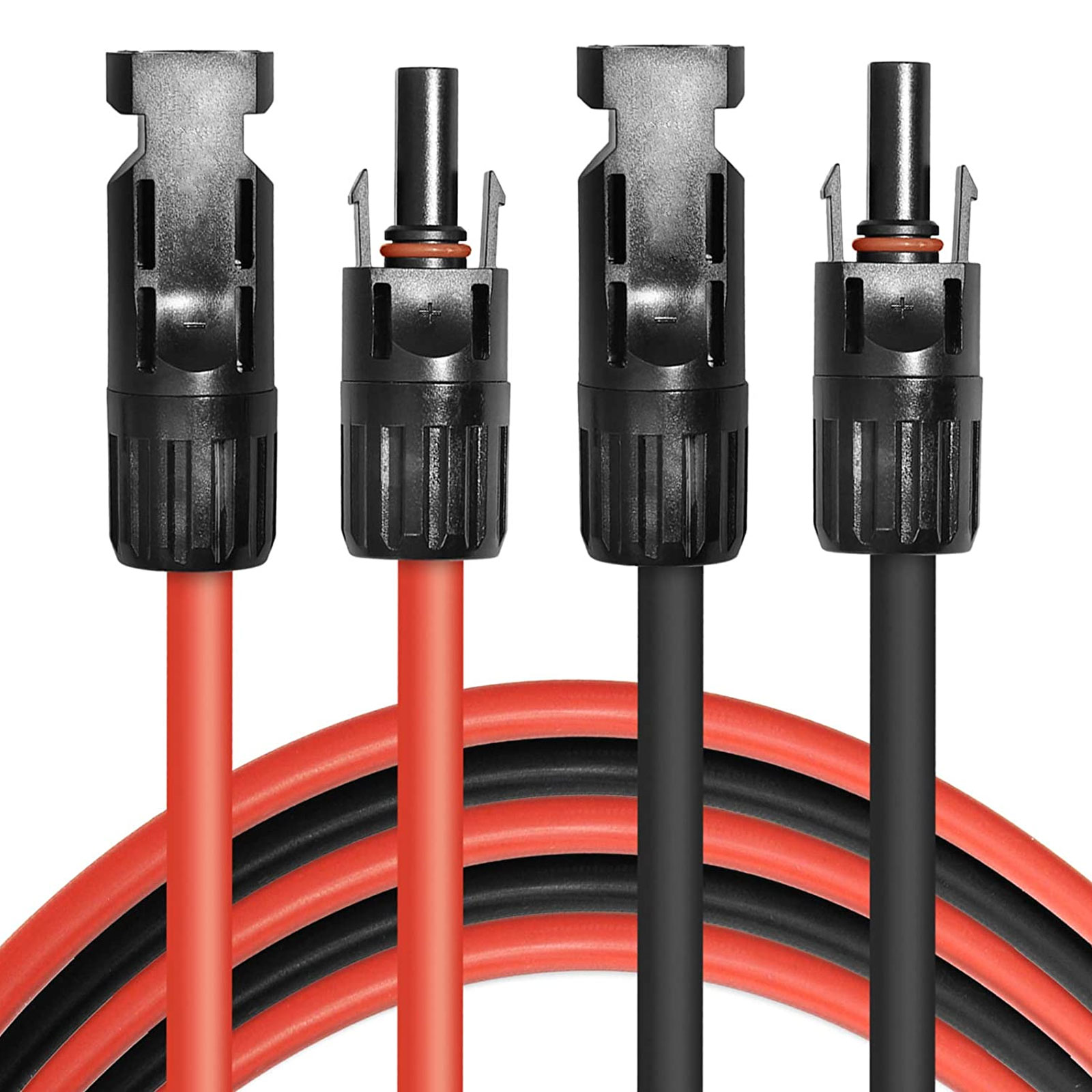

6mm² Solar Panel Extension Cable Wire Connector Black & Red Set for Solar Panels

【Product Descriptions】

1. Cable Model: 6 mm²(10 AWG)

2. Product Standard: TÜV 2PfG 1169/08.2007 PV1-F

3. Voltage Rating: AC 600V/1000V, DC 1000V

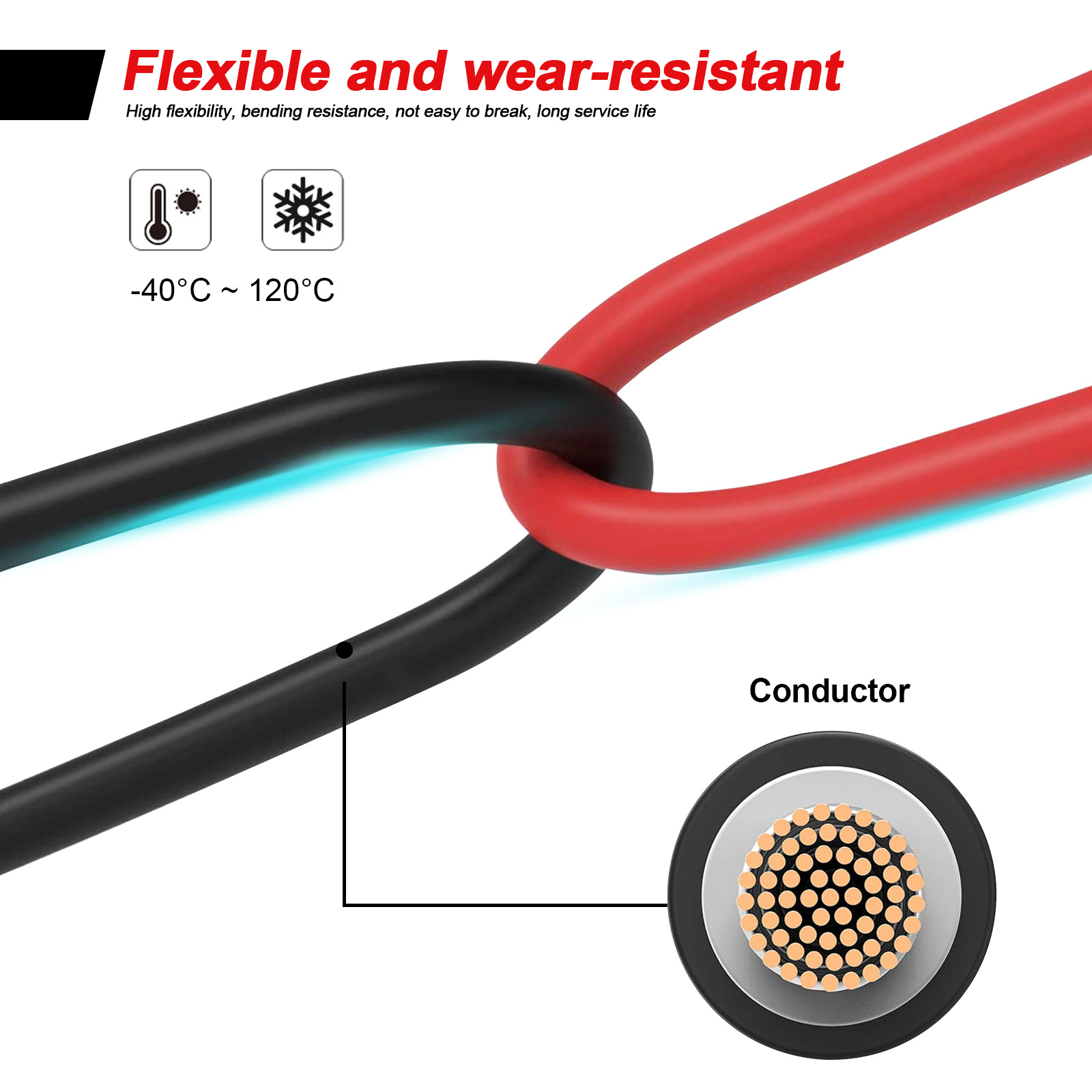

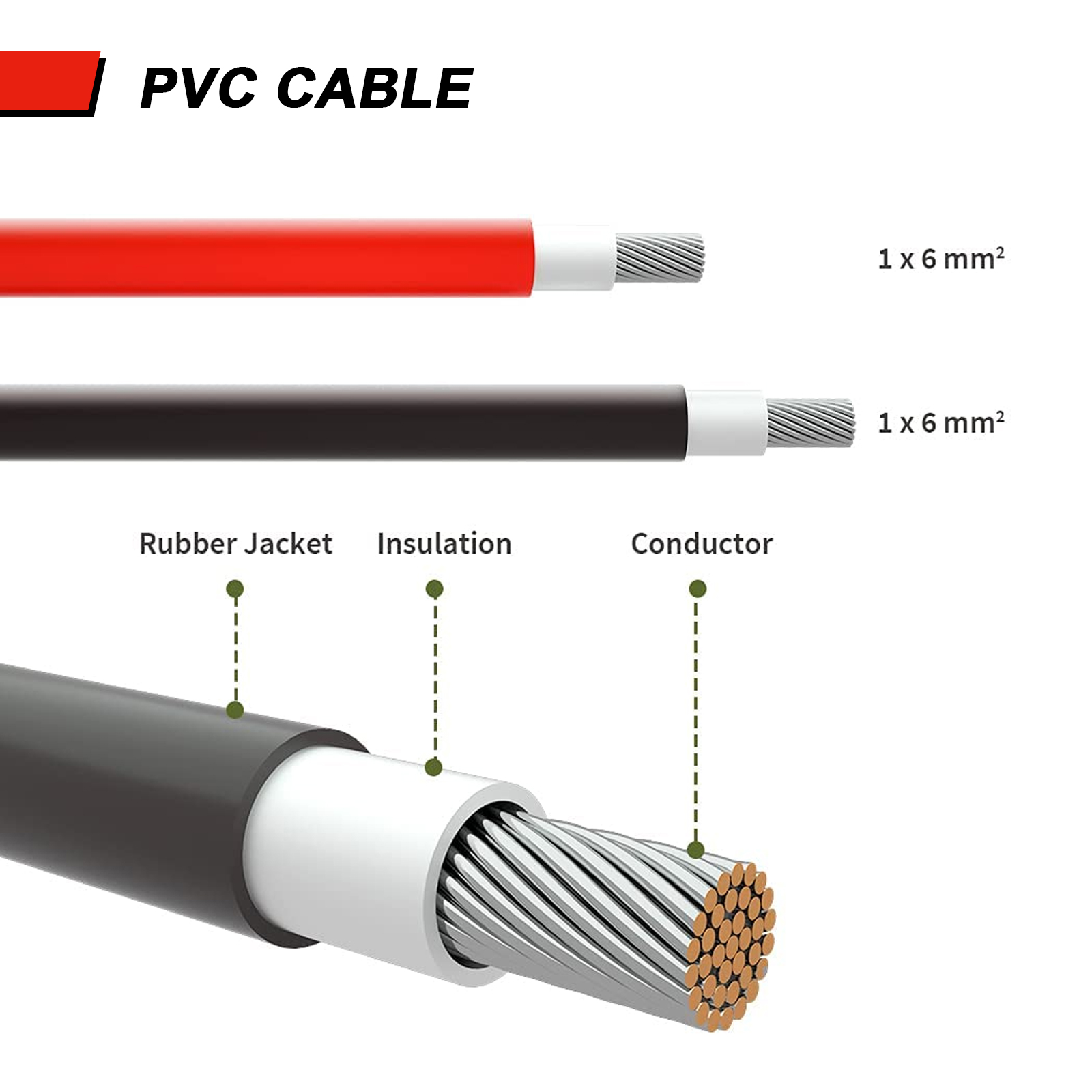

4. Conductor: Tinned copper wire, in compliance with EN 60228, IEC 60228 Class 5

5. Insulation: halogen-free low smoke flame retardant irradiation cross-linked polyvinyl, white

6. Jacket: Halogen-free low smoke flame retardant irradiation cross-linked polyvinyl, black/red



【Product Features & Advantages】

1. Cable oxidation resistance, Halogen-free, flame retardant, low toxicity

2. The Jacket is UV, ozone and hydrolysis resistant. High resistance against UV, Ozone, heat, fire, cold, oil, abrasion,

 fluids, salt etc.

3. Service Life: 25 years.

4. Bending Class: 5D

5. Low smoke and halogen-free insulation and Jacket, in compliance with ROHS environmental performance.

6. Fire-resistance performance: IEC 60332-1

7. Current carrying capacity: 40A

8. Outer Diameter: 6.1mm

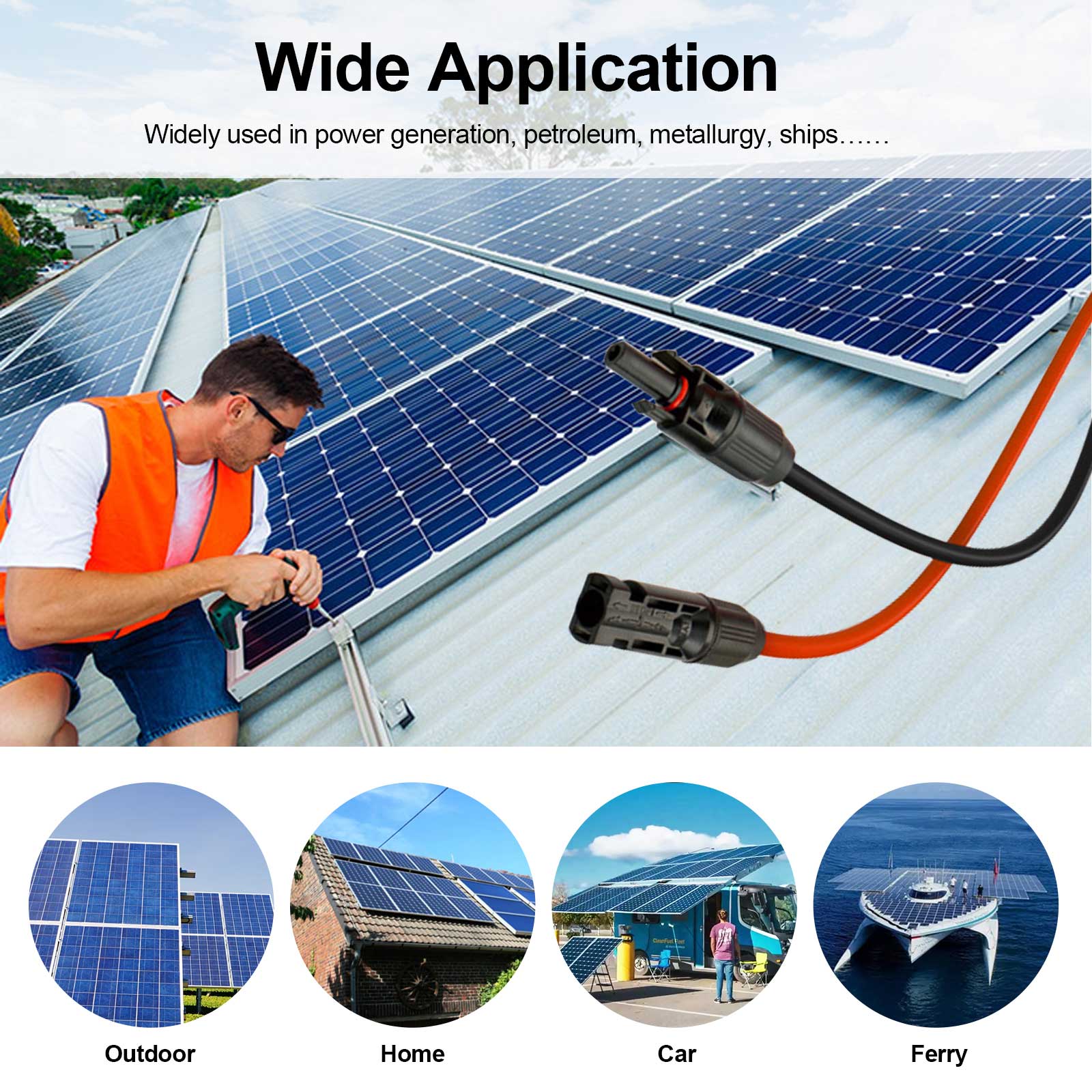

【Applications】

Double insulation, electron-beam cross-linked cables for photovoltaic power station.

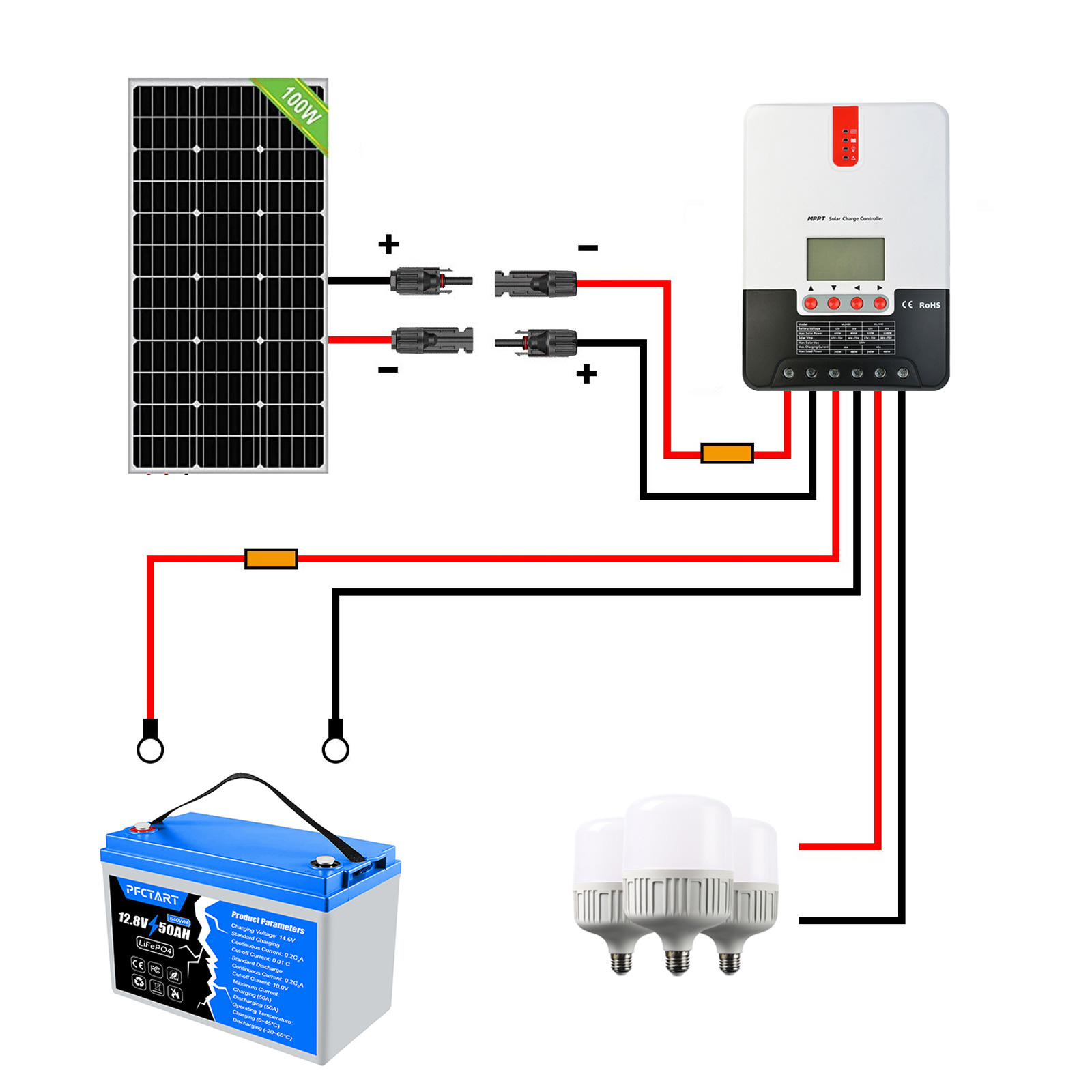

Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and adapt to dry and wet indoor working environment.
