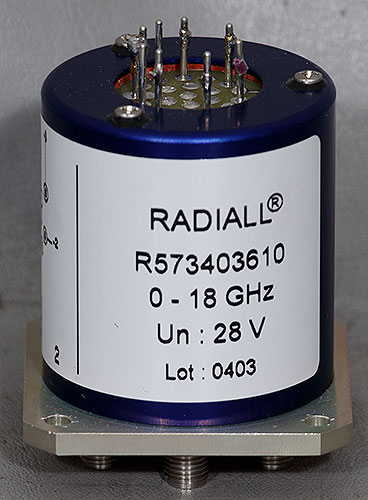

Radiall R573.403.610 RF Coaxial Switch
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Radiall and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
These units are pulls from equipment that was scrapped due to contractual obligations. They are guaranteed to work!

RF Specifications:
Number of Ways: 6
Frequency Range: 0 - 18 GHz
Impedance: 50 Ohms

Frequency (GHz):
DC - 3:
3 - 8:
8 - 12.4:
12.4 - 18:
VSWR Max:
1.20
1.30
1.40
1.50
Insertion Loss, Max.:
0.20 dB
0.30 dB
0.40 dB
0.50 dB
Isolation, Min.:
80 dB
70 dB
60 dB
60 dB
Average Power1:
240 W
150 W
120 W
100 W

Electrical Specifications:
Actuator: Normally Open
Nominal Current2: 102 mA
Actuator Voltage (Vcc): 28 V (24 to 30 V) / Positive Common
Terminals: Solder pins (250°C max. / 30 sec.)

Mechanical Specifications:
Connecotrs: SMA female per MIL-C 39012
Life: 5 million cycles per position
Switching Time3: < 15 ms
Construction: Splashproof
Weight: < 180 g

Environmental Specifications:
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +85°C

Notes:
1: average power at 25°C per RF path
2: At 25°C ±10%
3: Nominal voltage; 25°C

For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $0.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination.

Prior to shipment I will need to know the following information (filled out on a form that I will send you) for International Customers or Packages/Freight being Forwarded internationally. International customers may also be subject to a freight forwarder form if applicable.:

(1) Are you the end-user of this item?

(2) If you are not the ultimate end-user of the item, please state the ultimate end user's name.

(3) What is the ultimate country destination?
