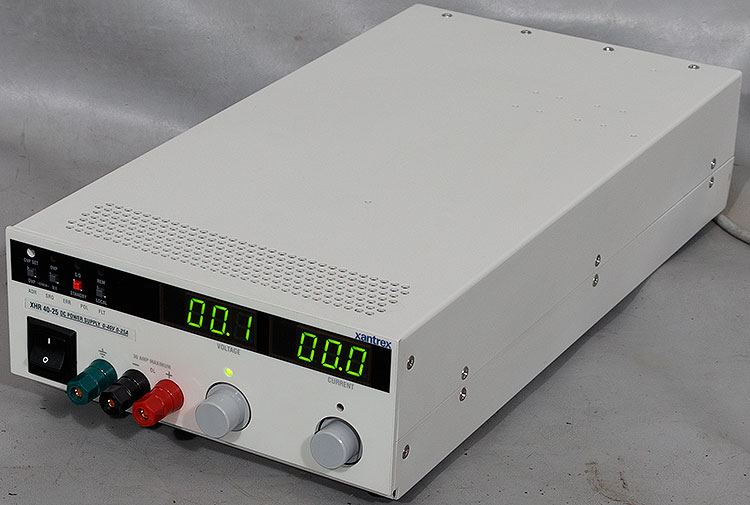

Ametek/Xantrex XHR40-25 0-40 VDC 0-25A 1 kW Programmable DC Power Supply
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Ametek/Xantrex and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This unit has been tested and is guaranteed to work for 30-days, parts and labor, excluding freight. It is in like new condition with a few scratches/scuffs.
The Unit's Serial Number Tag Reads:
Model Number: XHR40-25
Serial Number: Multiple Available!
Input Power Requirements: 100/120/200/240 VAC, 50/60 Hz, 1300 VA
Output Power: 0-40 VDC, 0-25 A, 1000 W
CE Marked: Yes
Key Features:
Description:
XHR provides 1000 watts of programmable DC power in a compact half-rack package. Its unique features and size make XHR ideal for OEM applications where high power and wide adjustment of output voltage or current is required, and a compact half-rack configuration is advantageous.
It is stackable with a small foot print, front panel binding post connectors and a low current requirement that allows it to be plugged into a standard 120 VAC, 15 A circuit. State-of-the-art zero voltage or "soft" switching technology virtually eliminates switching transients for high efficiency, low noise and high reliability. XHR is also power-factor-corrected for low current draw (only 11 A at 120 VAC for 1000 watts) and reduced generation of input current harmonics.
The half-rack XHR is ideal as a "companion" for another half-rack instrument in a test system equipment console, eliminating the need for a blank panel while preserving vertical rack space. With a choice of rear and/or front panel connectors, XHR offers added system flexibility.
General Specifications:
Switching Frequency: Nominal 125 kHz (250 kHz output ripple)
Time Delay: 4 sec maximum from power on until output stable
Voltage Mode Transient Response Time: 1 ms for output voltage to recover within 0.5% of its previous level after a step change in load current of up to 50% of rated output
Maximum Voltage Differential: ±600 VDC from output to safety ground
Remote Analog Programming: Voltage and current programming inputs (source must be isolated): 0-5 k, 0-10 k; 0-5 V (default), 0-10 V voltage sources
Remote Analog Monitoring: Voltage and current monitor ouputs 0-5 V (default, 0-10 V ranges for 0-100% of output
Remote Programming & Monitoring Accuracy: 1% zero to full scale output for the default range
Front Panel Voltage and Current Control: 10-turn voltage and current potentiometers
Front Panel Voltage Control Resolution: 0.02% of maximum voltage
Main Output Connector: Nickel-plated copper bus bars
Protection Features: Over-voltage protection and Over-temperature protection
Approvals: CE-Marked units meet: EN61010-1, EN61000-6-2 and EN61000-6-4; CSA C/US certified to UL61010-1B and CSA C22.2 No 1010.1; Meets USA EMC standard: FCC, part 15B, Class A; Meets Canadian EMC standard: ICES-001, Class A.
Environmental:
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 85°C
Humidity Range: Up to 80% RH, non-condensing
Physical:
Dimensions: 8.5" W x 3.4" H x 18.6" D (216 mm x 86.4 mm x 472.2 mm)
Weight: Approx. 14 lbs. (6.4 kg)
Input:
Voltage Ranges: 85-250 VAC, 47-63 Hz, power factor corrected. Derate maximum output power to 900 W for AC input less than 95 V
Power Factor: 0.99 minimum for full load and 120 VAC input
Current: 13 A maximum at 100 VAC; 11 A maximum at 120 VAC; 6 A maximum at 220 VAC
AC Input Connector Type: IEC 320 connector
Output Specifications:
Voltage: 0-40 VDC
Current: 0-25 ADC
Power: 1000 W
Output At Front Panel Binding Posts:
Output Ratings:
Voltage: 0-40 VDC
Current: 0-25 ADC
Line Regulation2:
Voltage: 8 mV
Current: 3.5 mA
Load Regulation3:
Voltage: 6 mV
Current: 14 mA
Meter Accuracy:
Voltage: 0.5 V (0.5% to 1% of Vmax + 1 count)
Current: 0.35 A (0.5% of Imax + 1 count)
Output Noise (0-20 MHz) Voltage: 75 mV p-p
Output Ripple (rms) Voltage: 7.5 mV
Drift (8 Hours)4:
Voltage: 20 mV (0.05% of Vmax)
Current: 25 mA (0.1% of Imax)
Temperature Coefficient5:
Voltage: 8 mV (0.02% of Vmax/°C)
Current: 7.5 mA (0.03% of Imax/°C)
Maximum Remote Sense - Line Drop Compensation6: 5 V / line
OVP Adjustment Range: 2 - 44 V (5% to 110% of Vmax)
Efficiency7: 83%
Notes:
1: Specifications indicate typical performance at 25°C &plusm;5°C, nominal line input of 120 VAC.
3: For 0-100% load variation, with consant nominal line voltage. Measured at the rear panel output connector unless stated otherwise.
4: Maximum drift over 8 hours with constant line, load, and temperature, after 30-minute warm-up.
5: Change in output per °C change in ambient temperature, with constant line and load.
6: Line drop is subtracted from total voltage available at supply output.
7: Typical efficiency at 115 VAC input and rated output power.
