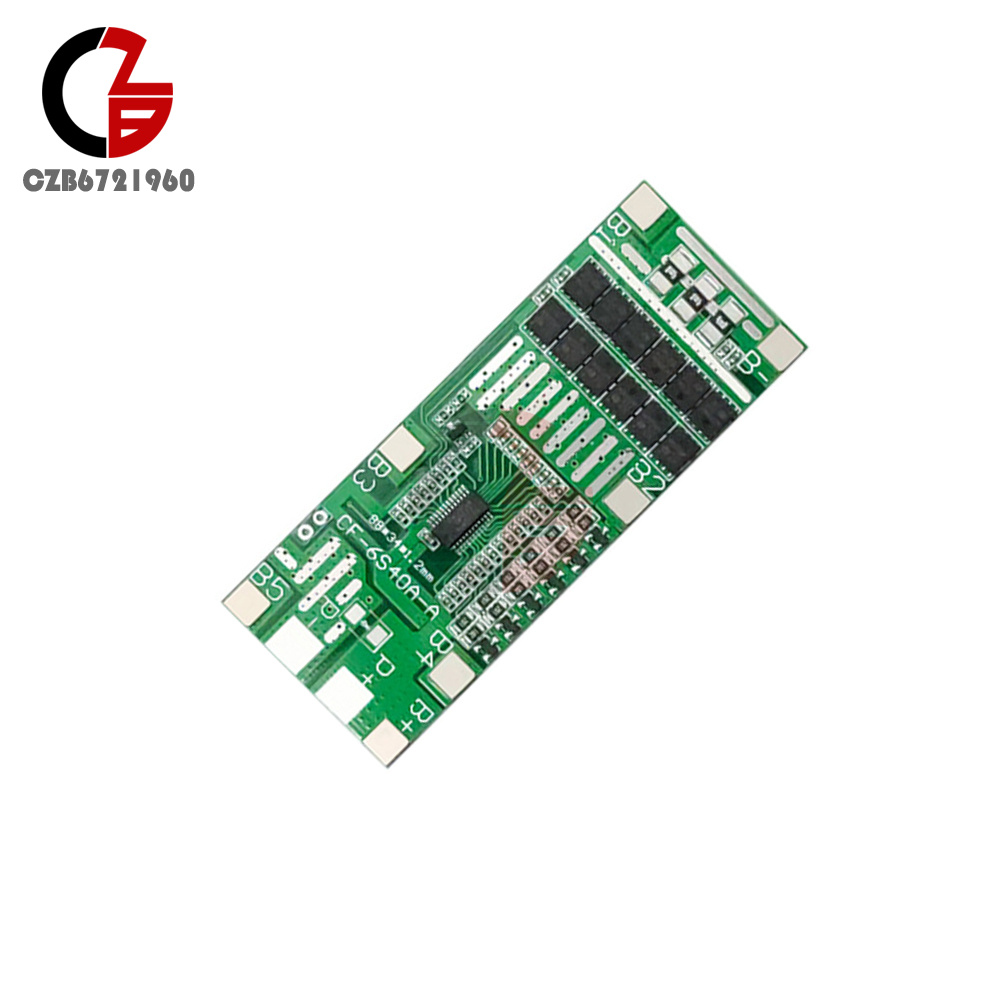

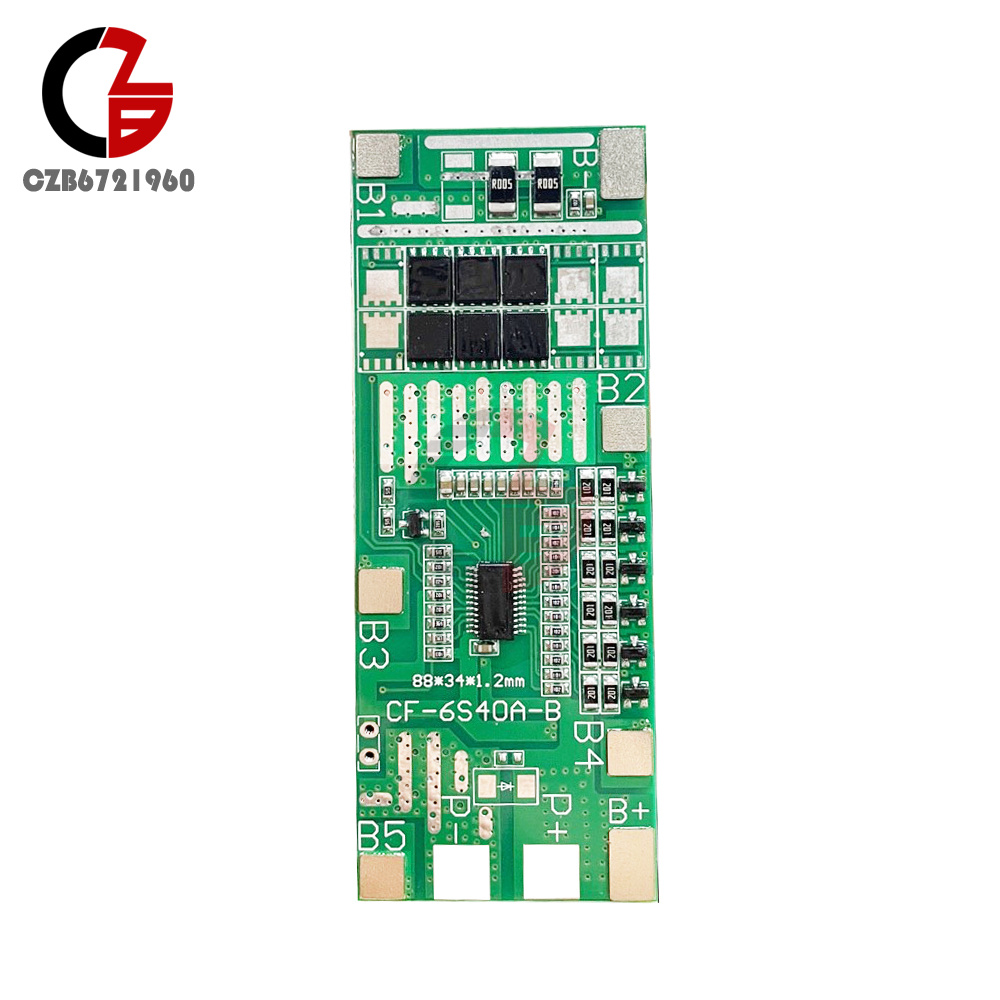

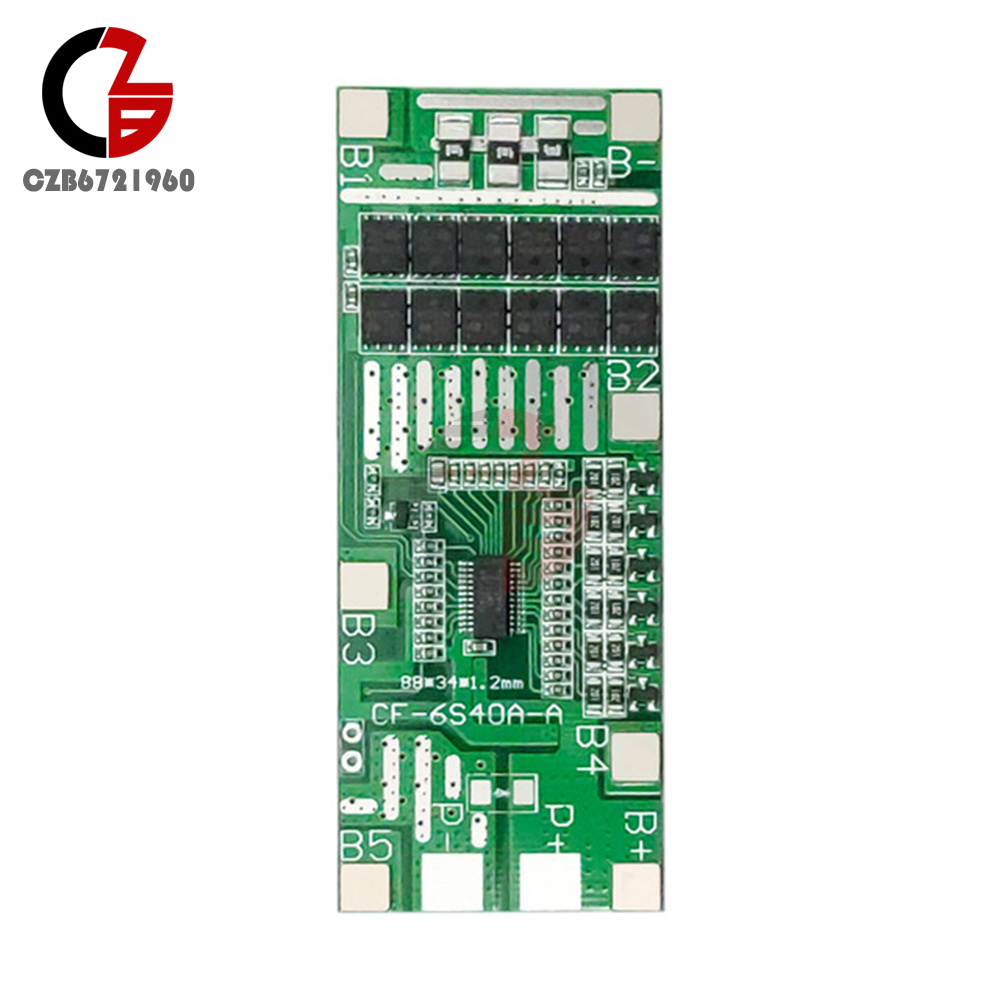

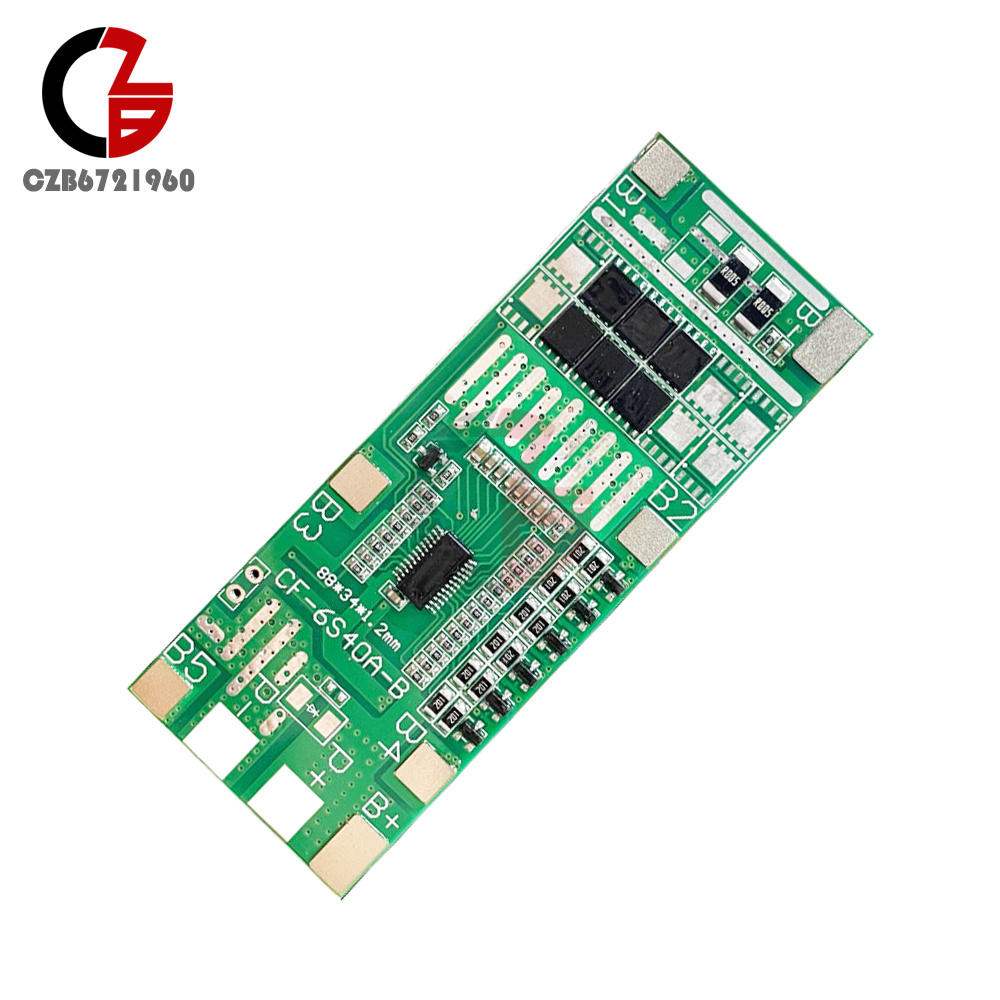

6S 20A/40A 24V BMS Battery Protection Board W/Balance For Li-ion Lithium Battery

Popular

    Product Introduction

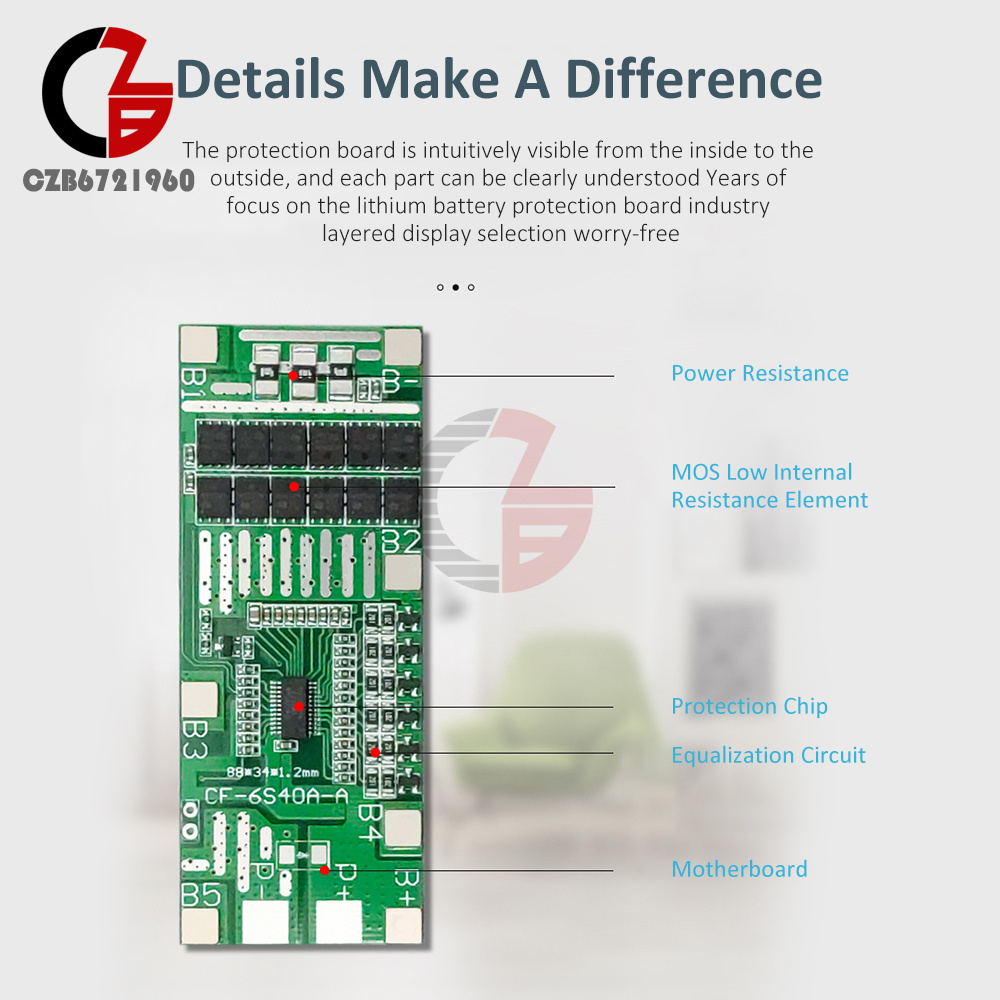

    Feature:
    1: Wide range of applications
    2: Small size
    3: Charging and discharging safety
    4: High quality mos tube
    5: with equalization

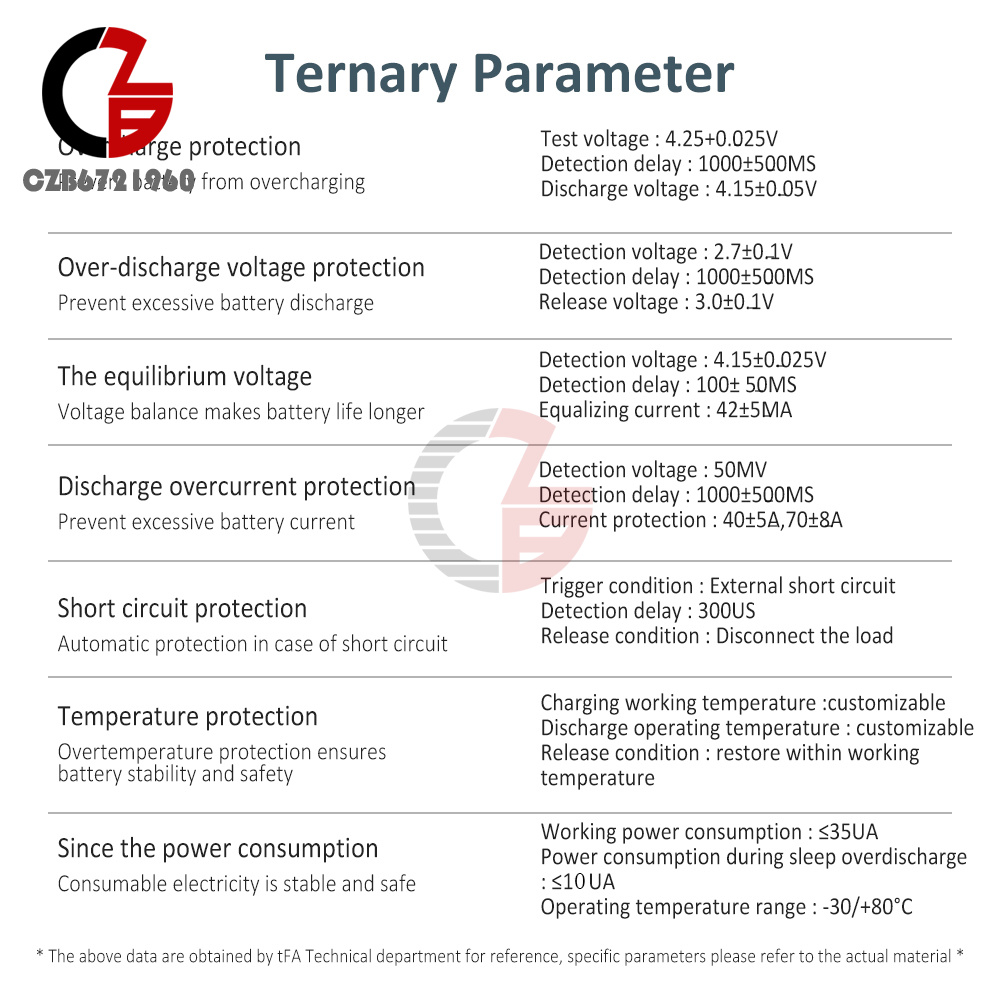

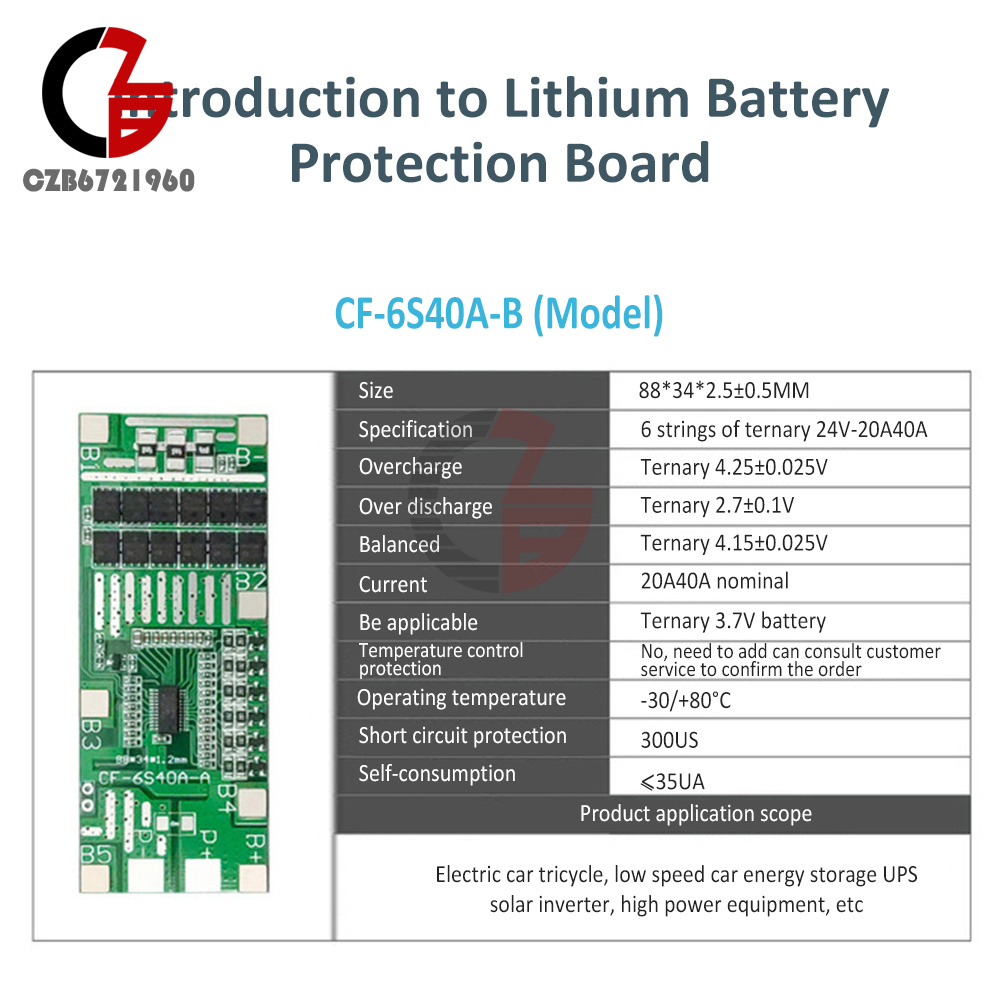

    Specification:

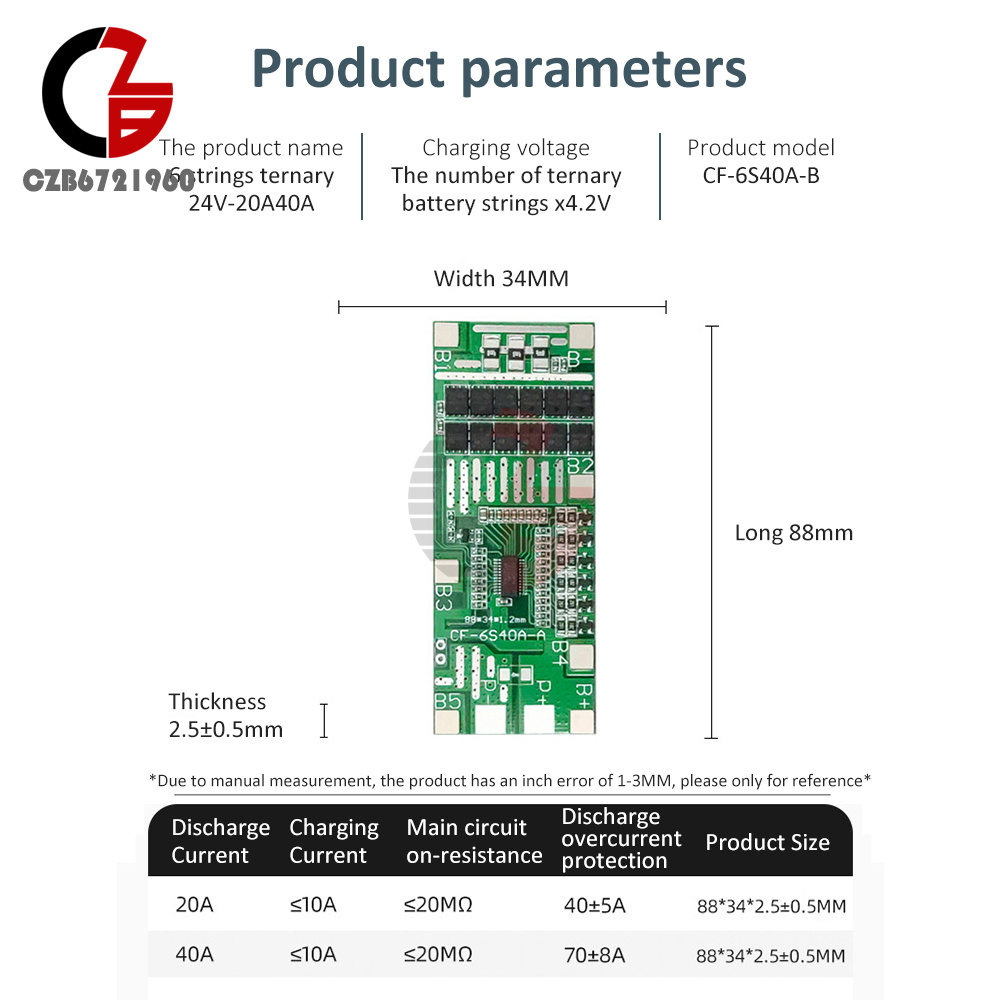

    Size: 88*34*2.5±0.5MM
    Specifications: 6 strings of ternary 24V-20A40A
    Overcharge: ternary 4.25±0.025V
    Over discharge: ternary 2.7±0.1V
    Balance: ternary 4.15±0.025V

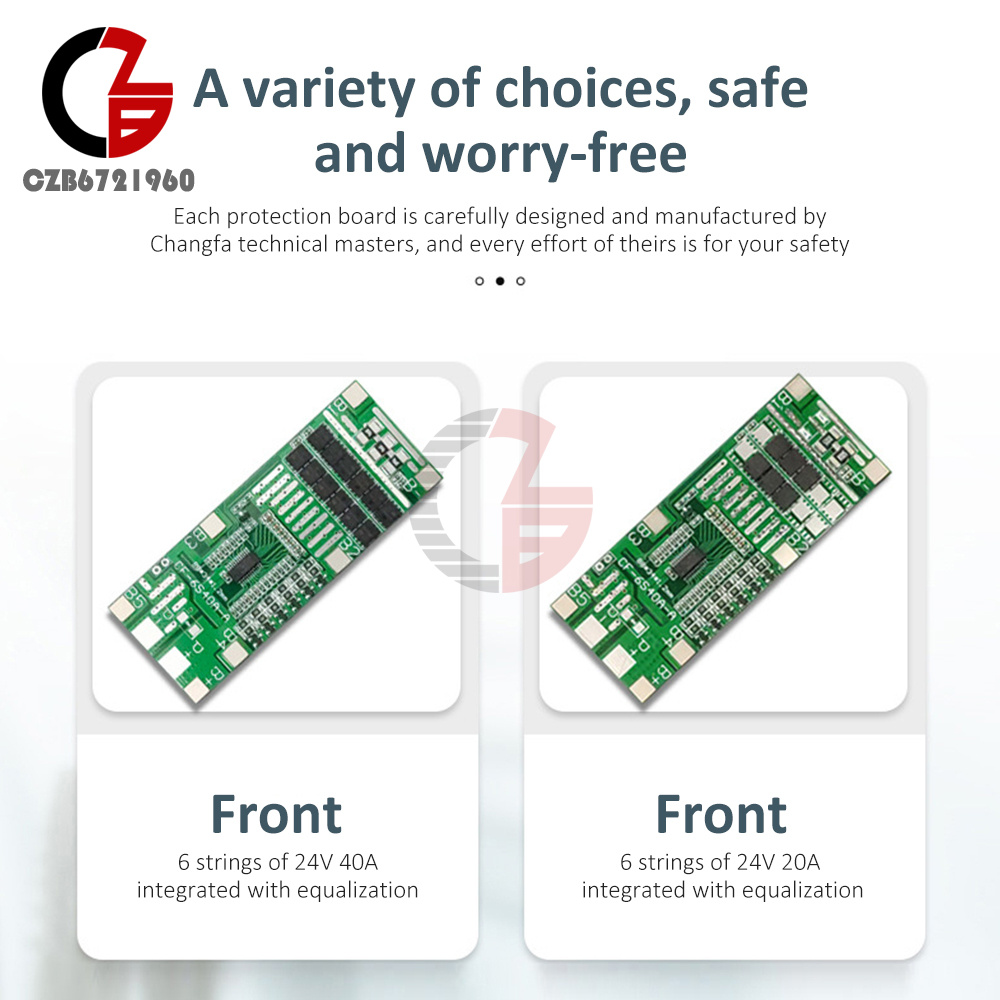

    Current: 20A40A
    Applicable: Nominal ternary 3.7V battery
    Working temperature: -30/+80℃
    Short circuit protection: 300US
    Self-consumption: ≤35UA
    Product application range
    Electric vehicles, tricycles, low-speed vehicles, energy storage, UPS,
    Solar inverter, high-power equipment, etc.
    Package:
    1* Lithium battery protection board (20A / 40A optional)
