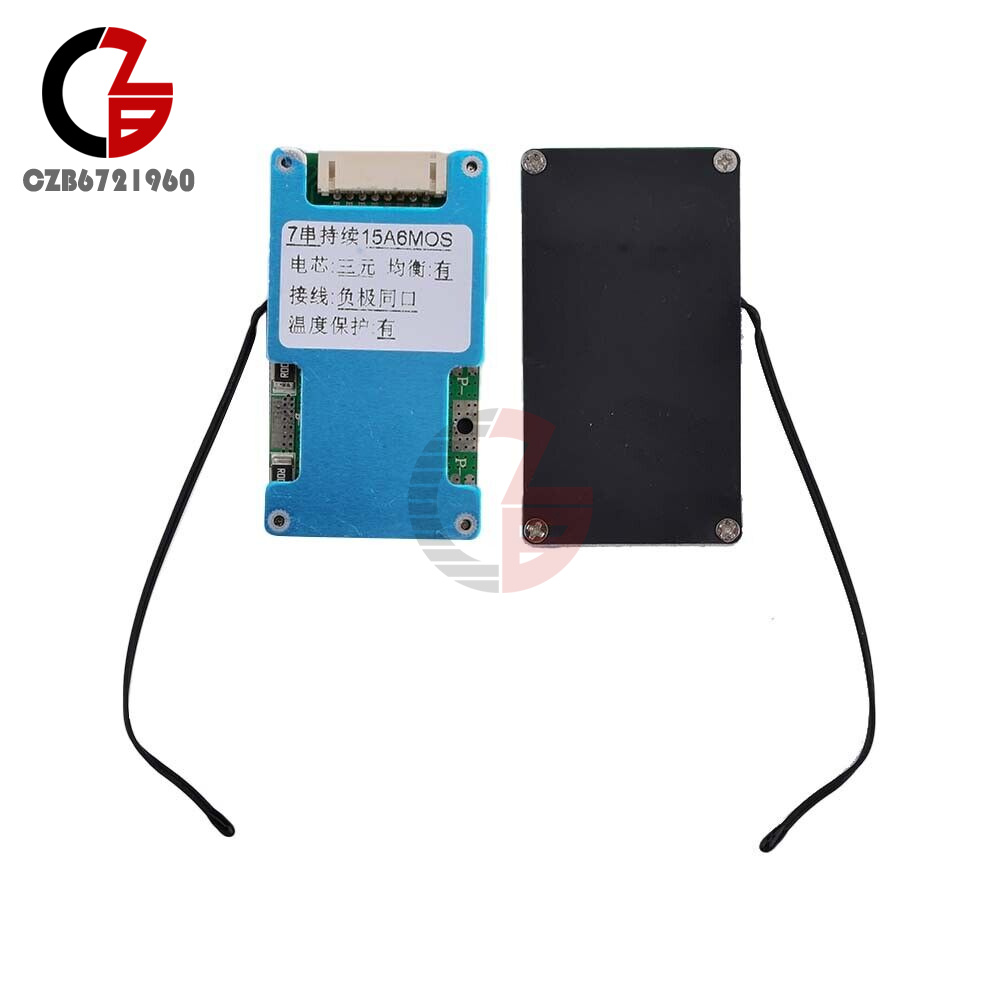

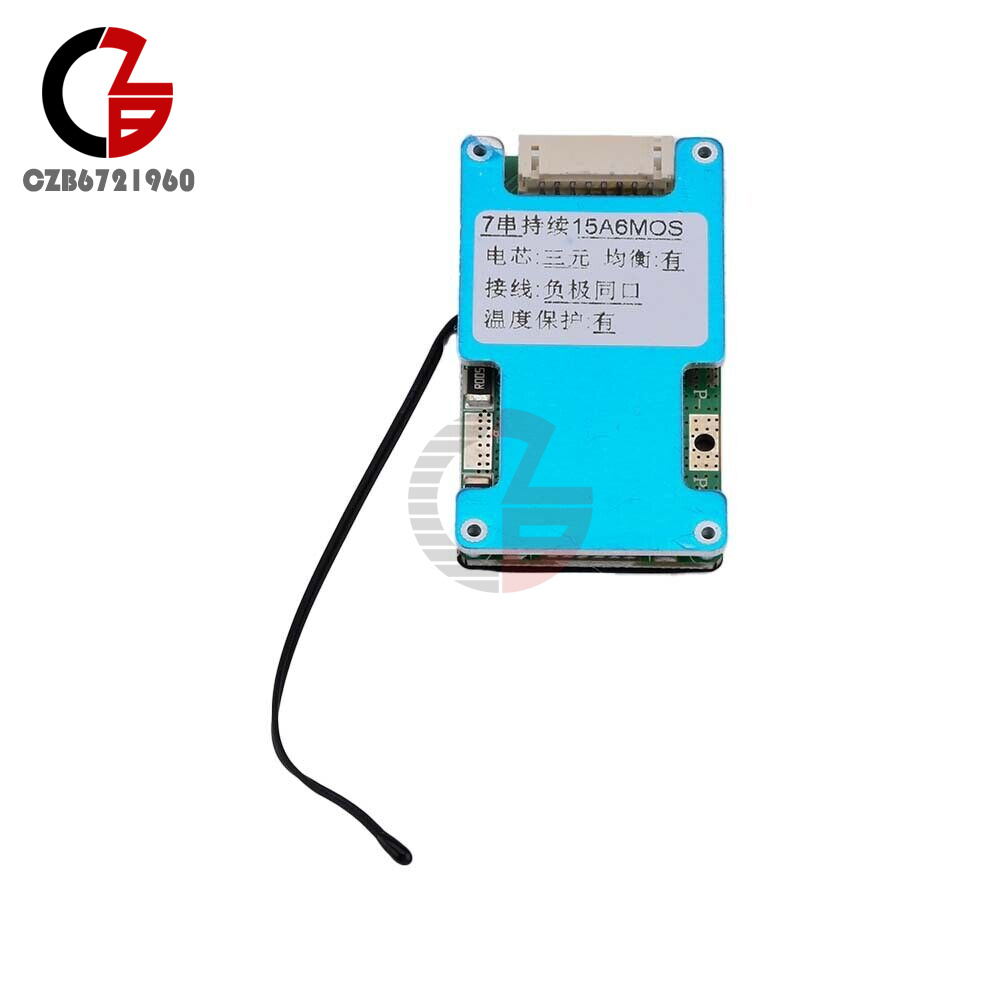

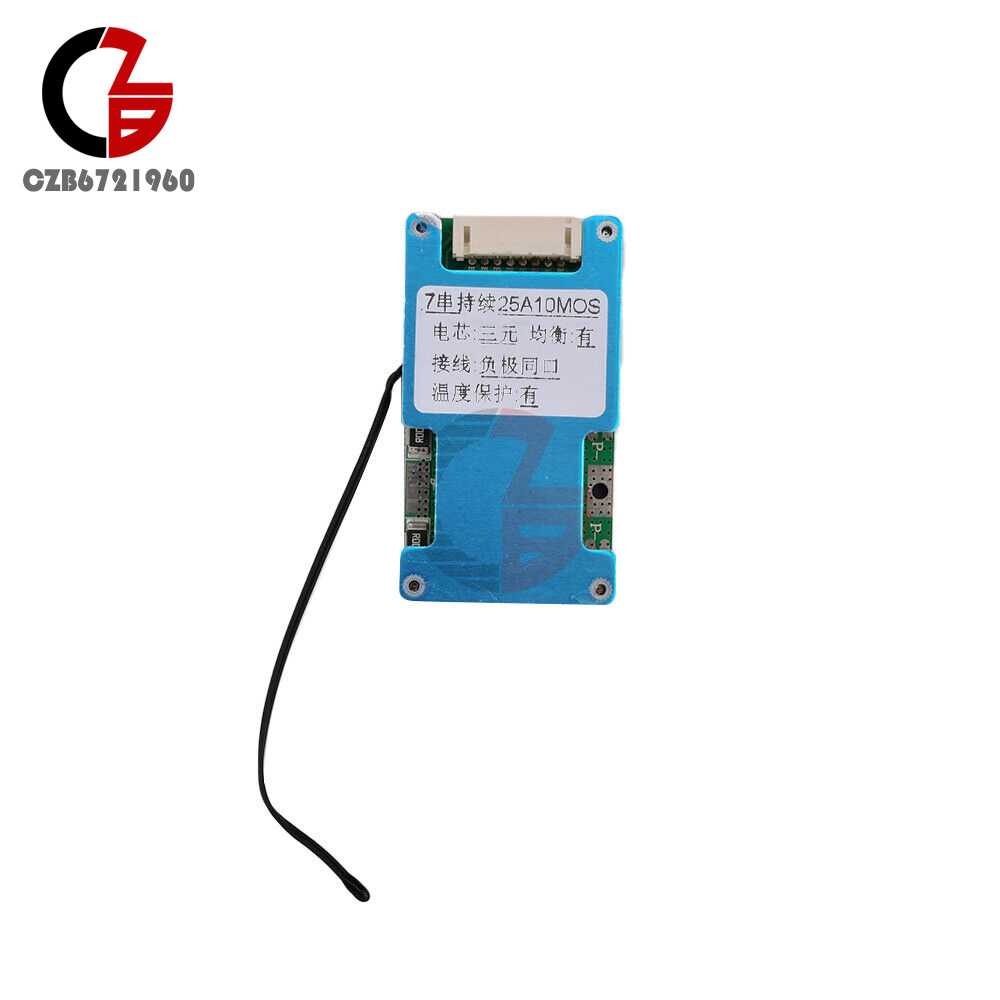

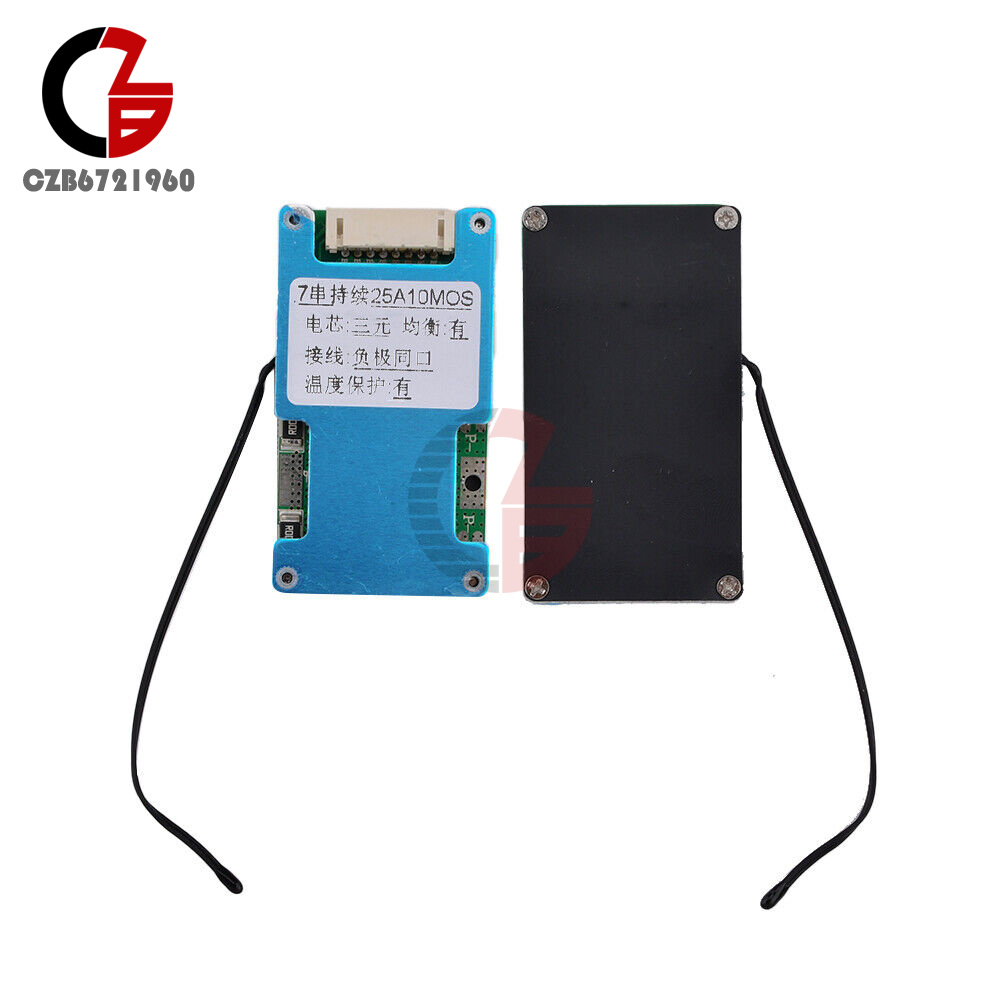

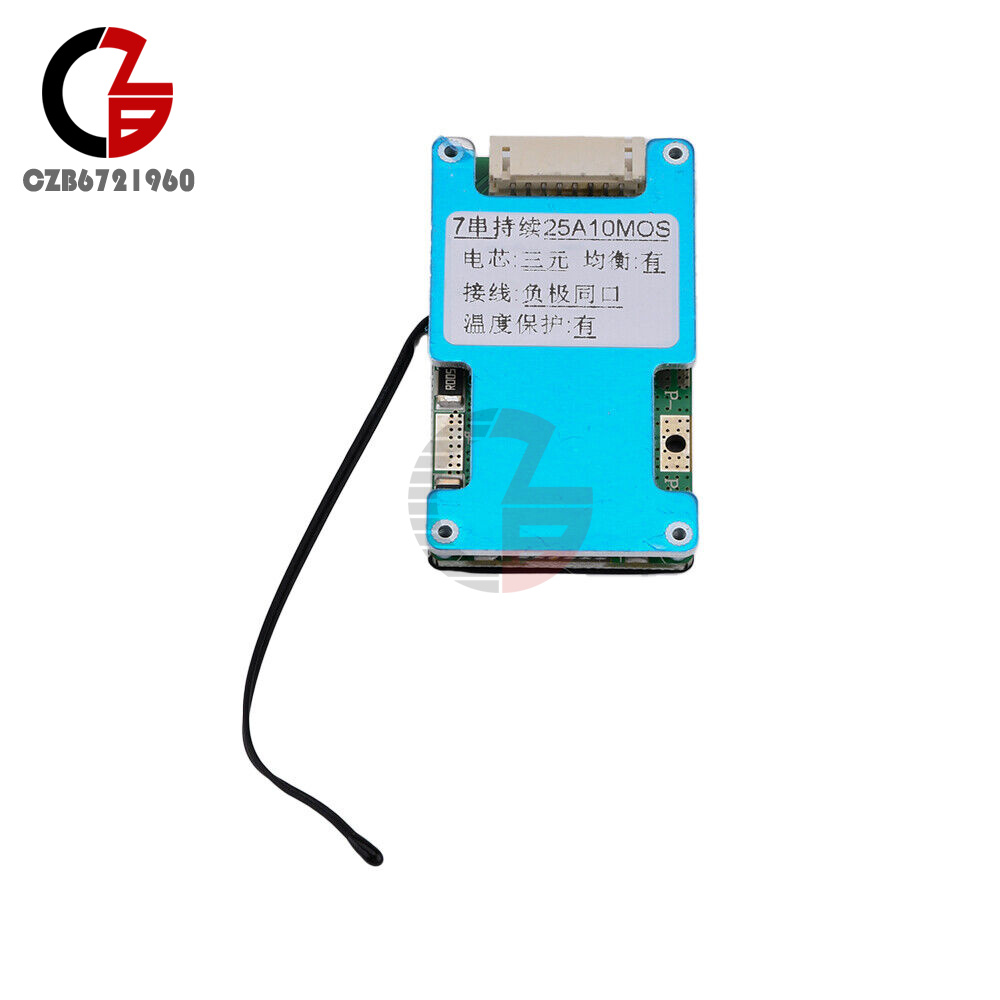

7S 24V 25A/20A/15A Battery Protection Board w/ Equalization For Lthium Battery

Popular

    Product Introduction

    Features：

    Exquisite craftsmanship Heat dissipation stability
    Over-voltage protection Over-discharge protection
    Charge protection Short circuit protection
    Over-current protection Over-temperature protection
    Charging balance Disconnection protection

    parameters：
    Type: Ternary/7S/24V

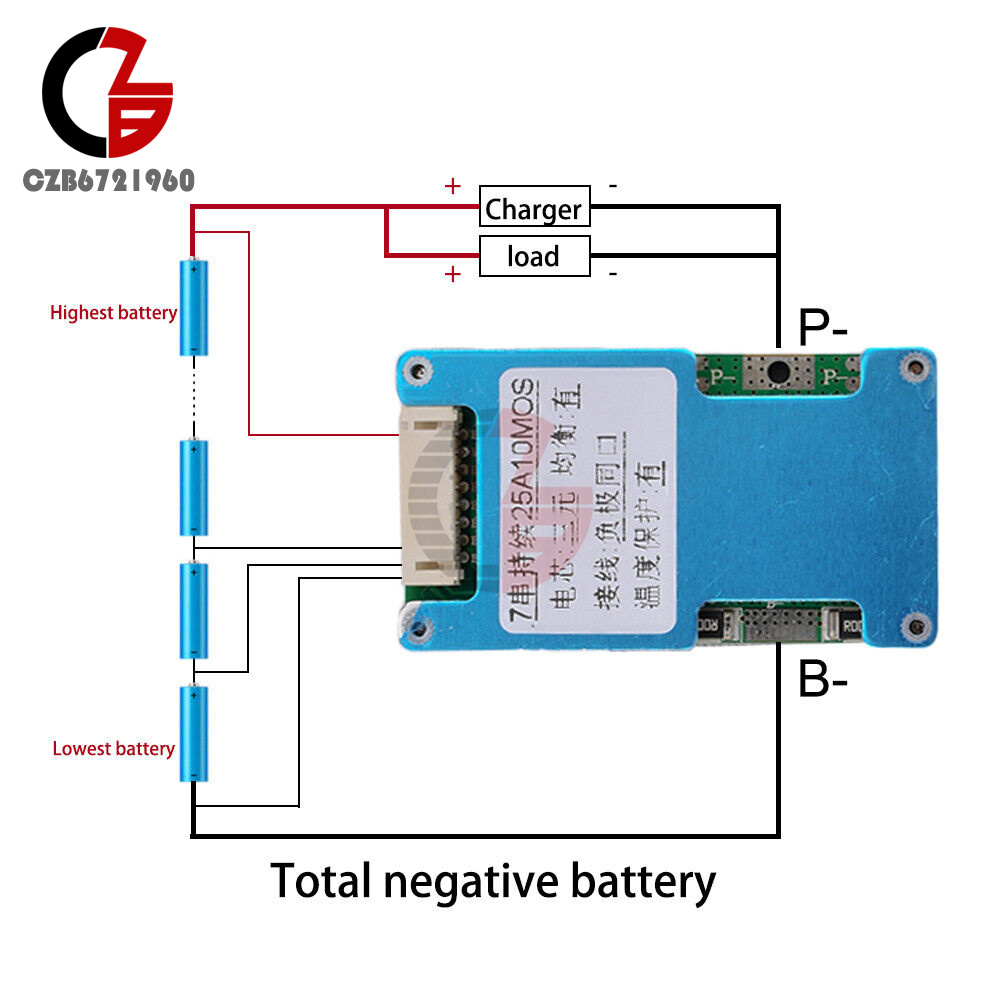

    Wiring mode: same port
    Single battery over discharge voltage: 2.7V±0.08V
    Continuous working current: 25/20/15A (optional)
    Instantaneous protection current: 60A
    Overcurrent recovery condition: charge recovery or load disconnection
    Short-circuit recovery condition: charge recovery or load disconnection
    Single battery overcharge voltage: 4.25V±0.025V
    Continuous charging current: 20/15/10A (optional)
    Charge equalization voltage: 4.15V±0.025V
    Charging equalization current: 40mA
    Charger voltage: 30V (recommended)
    Charge over-temperature: 50℃
    Discharge overtemperature: 70℃
    Operating power consumption: 30μA
    Main circuit on-stream internal resistance: 20mΩ
    Temperature range: -40 to +80℃
    Wire break protection: Yes
    Line size: 2.0MM pitch / 40CM long

    Package Include:.
    Li-ion battery protection board X1

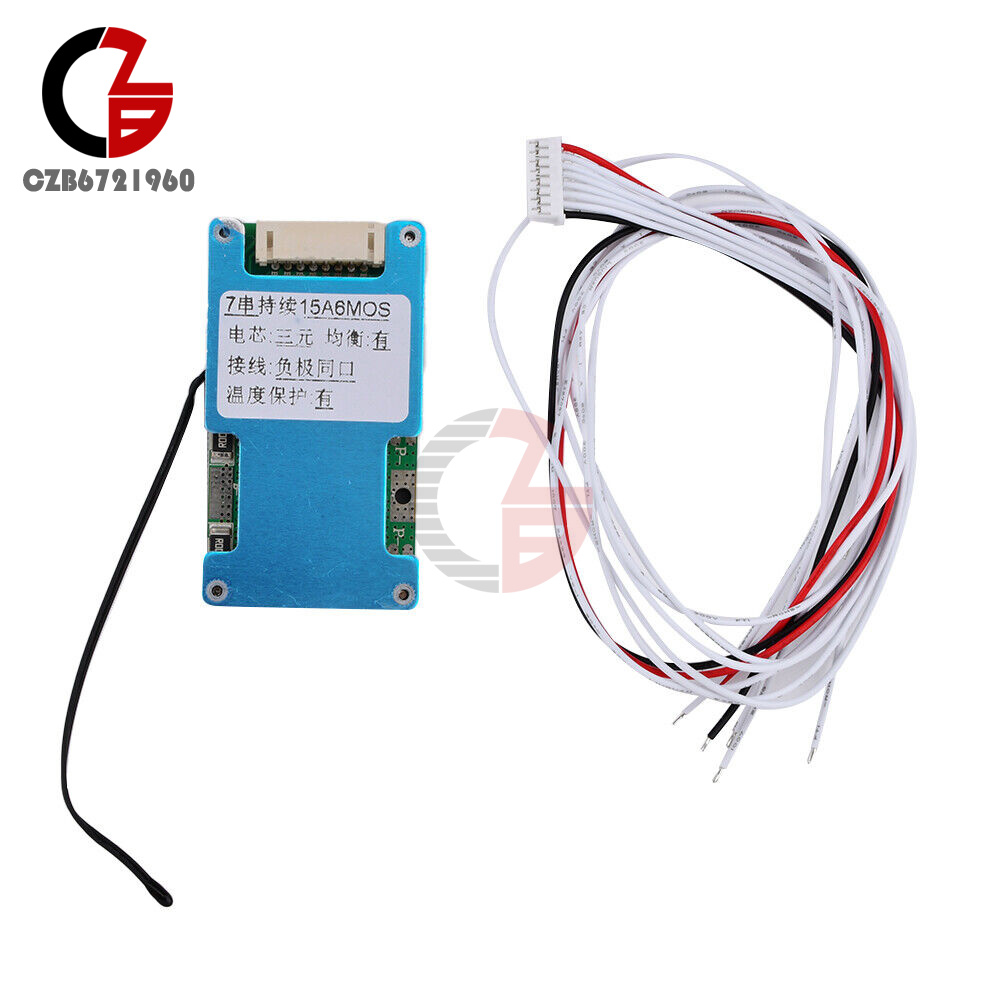

    Cable X1
