Description:
5V
5V
5V MCU Development Boards Timing Supply
Cell phone charger timer switch
Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
DC 5V LED lighting
Fluorescent lamp
5V DC Motor
Fluorescent lamp
Automotive electronics
1 DC 5V control circuit,Wiring diagram below. "LOAD" may be Cell phone charger, MCU Development Boards,LED lights, fans, motors and other DC 5V equipment
2 DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 5V load, need another DC 5V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
Cell phone charger timer switch
Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
DC 5V LED lighting
Fluorescent lamp
5V DC Motor
Fluorescent lamp
Automotive electronics
1 DC 5V control circuit,Wiring diagram below. "LOAD" may be Cell phone charger, MCU Development Boards,LED lights, fans, motors and other DC 5V equipment
2 DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 5V load, need another DC 5V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment

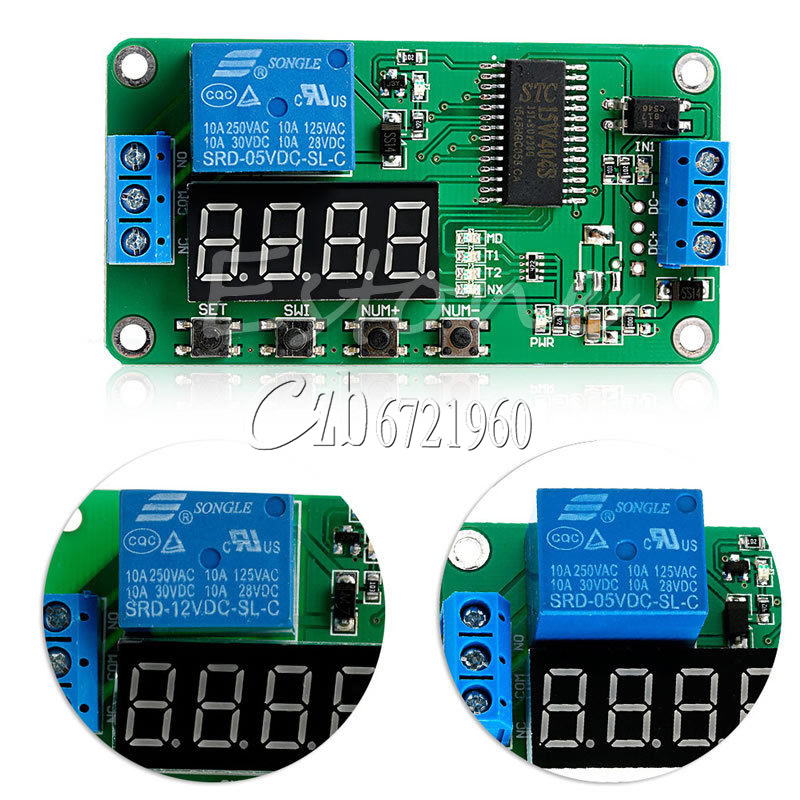

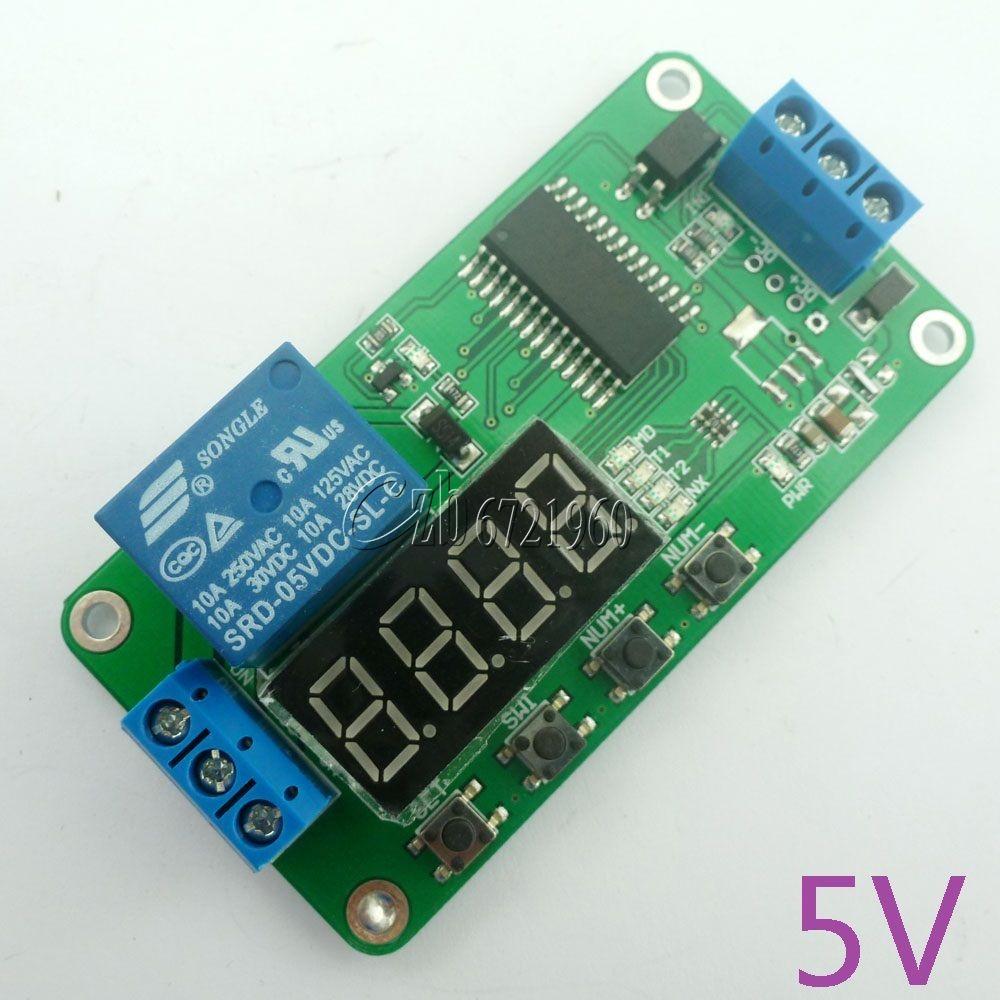

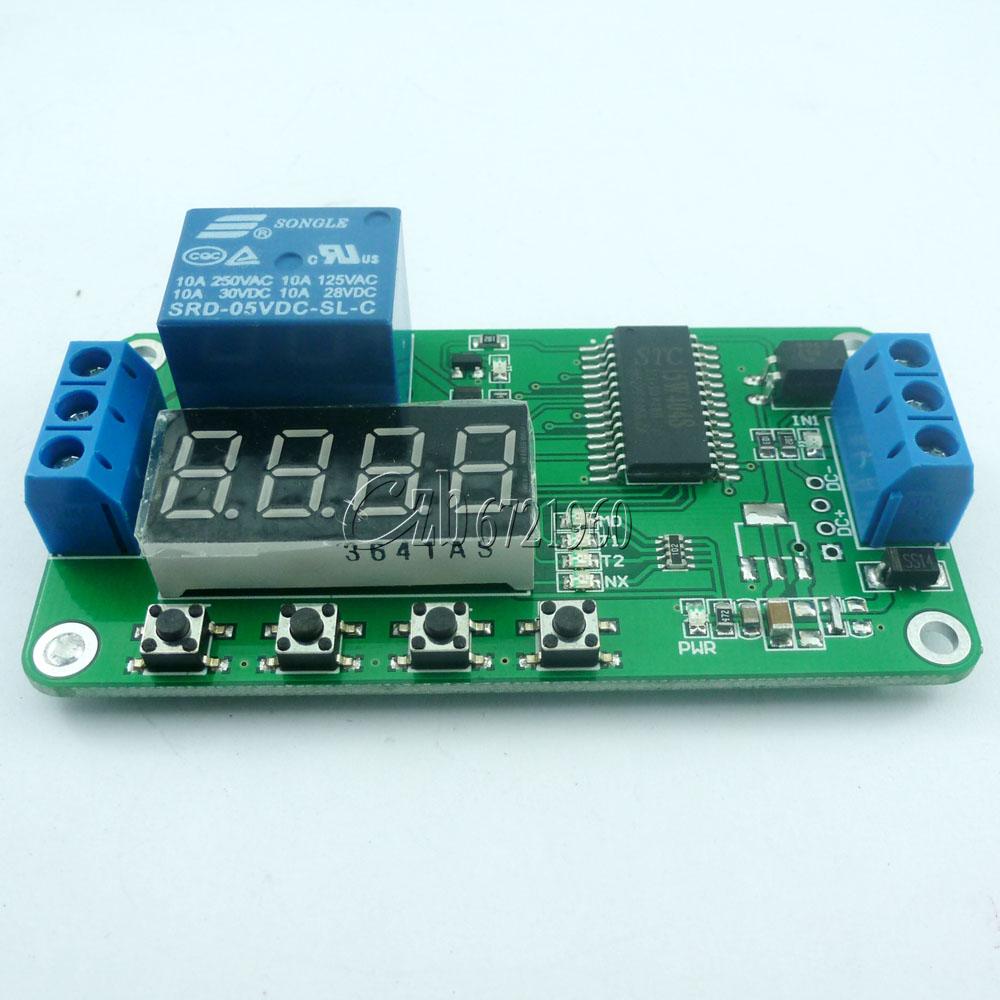

Package inlcuded:1PC DC 5V 1 channel delay relay board
12V
1. 18 kinds of module functions to meet the needs of more application
2.Low level triggered, opto-isolated inputs
3.Increasing the supply anti-reverse feature, power will not damage the module wrong
4.Using high-quality power supple modules, discrete power supply before replacing the system more stable and reliable
5.Increasing in aytomatic power saving feature, users can independently set
1. 18 kinds of module functions to meet the needs of more application
2.Low level triggered, opto-isolated inputs
3.Increasing the supply anti-reverse feature, power will not damage the module wrong
4.Using high-quality power supple modules, discrete power supply before replacing the system more stable and reliable
5.Increasing in aytomatic power saving feature, users can independently set
Specification:
Dimension: 75x44x16mm
Voltage: DC 12V
Applications: Home lighting system, Remote control switch, Remote locking, Smart Home / Home, Automation, DC 12V LED lighting, Fluorescent lamp, 12V DC Motor, Fluorescent lamp, Automotive electronics, Industrial automation and control
Connections:
Module control side: there are 3-wire interface, all interfaces are terminal
1. DC +:12V positive
2. DC-: power in negative
3. CH1: Input Detection Interface
Relay outputs: a 3-wire interface, all interfaces are terminal
1. NO: normal open (before relay closes, this pin is not connected. after relay closes, the pin short-connects with COM)
2. COM: Relay Common Interface
3. NC: Normal closed (before relay closes, this pin short-connect with COM. after relay closes, the pin is not connected )
Package included:1 x Multi-function Time Delay Relay
12V Style 2
Description:

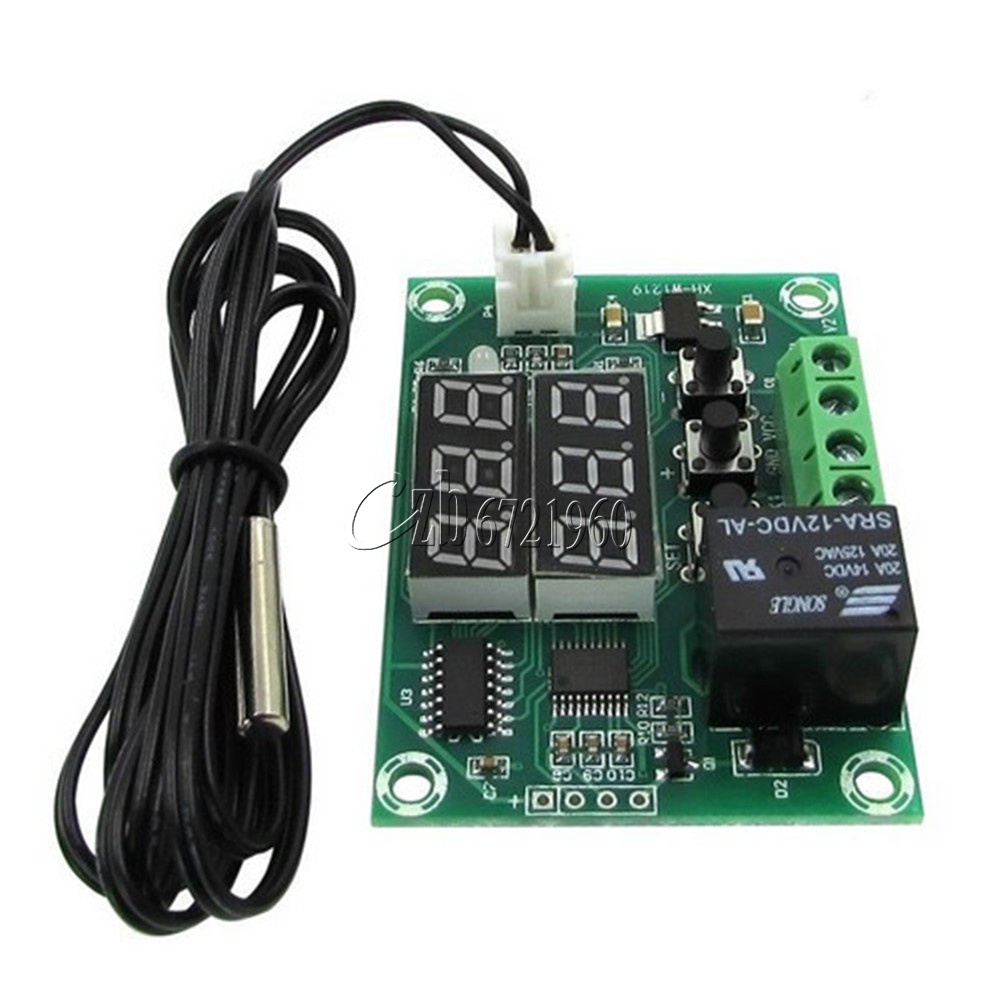

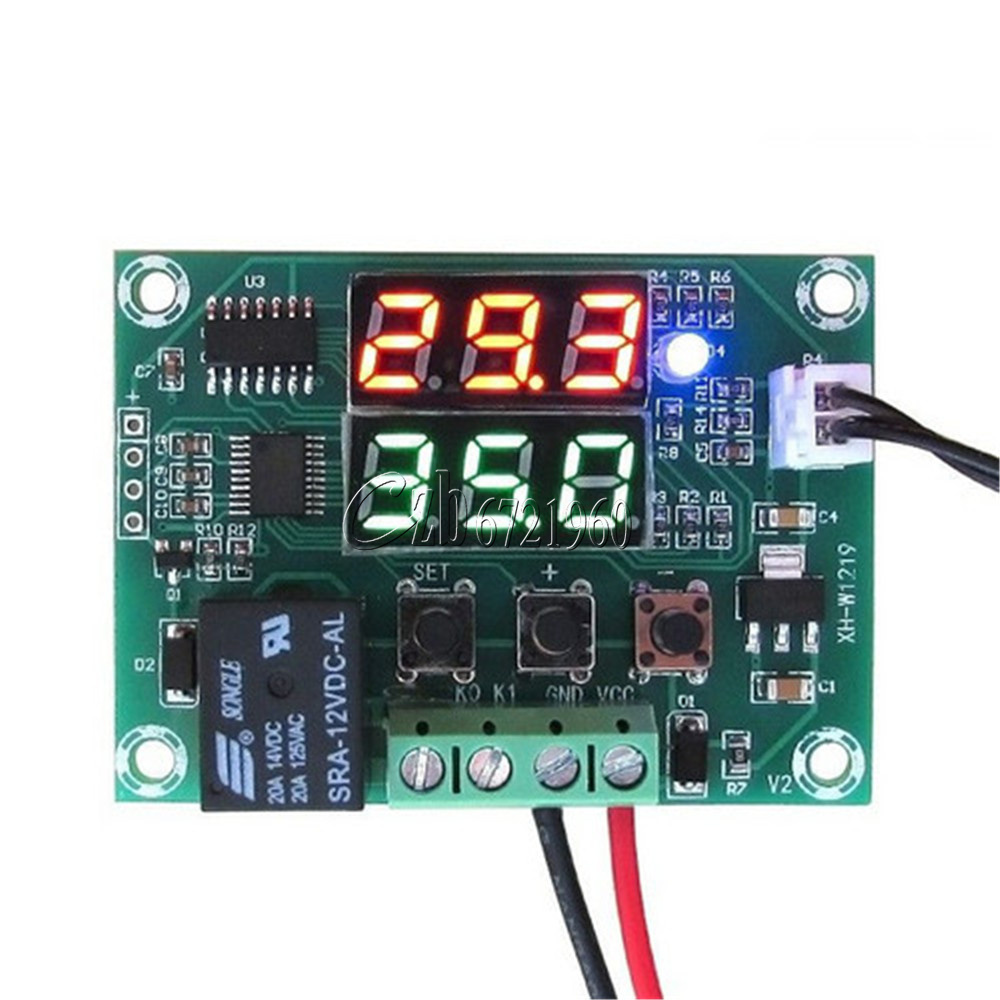

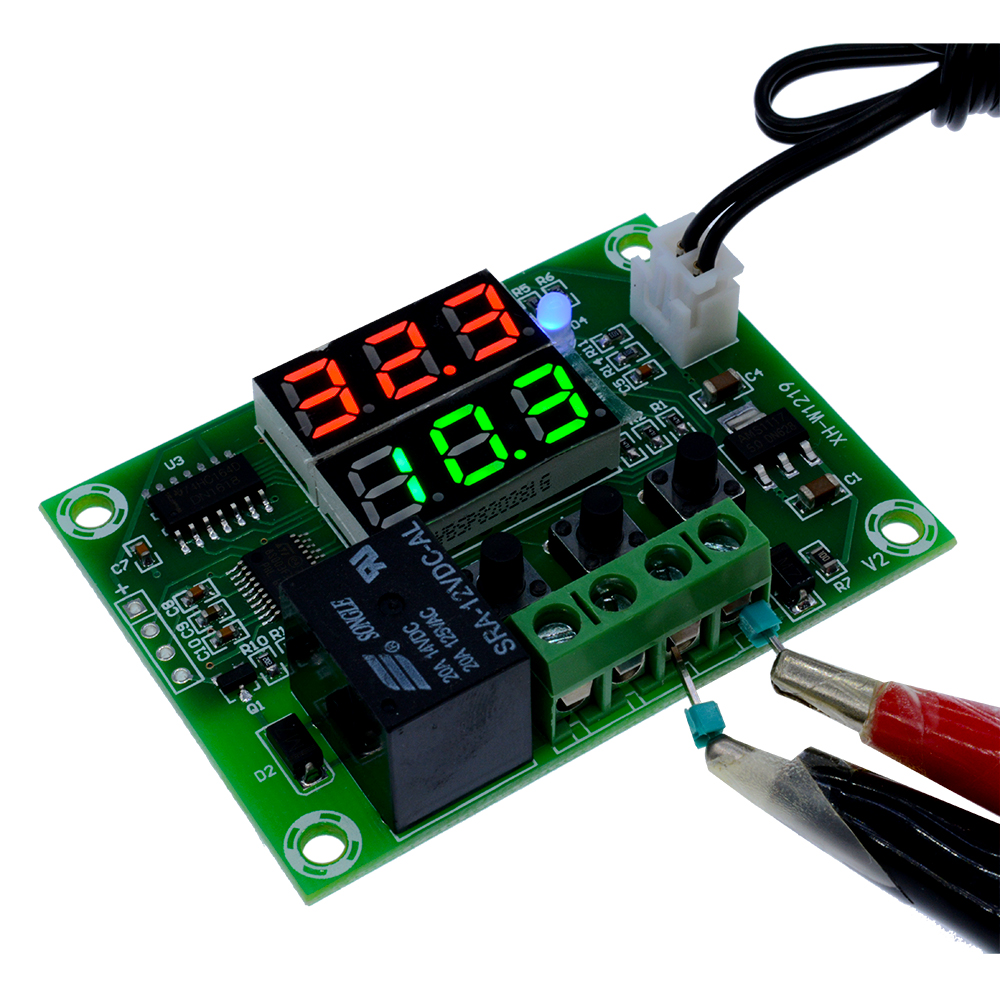

Specifications Model: W1209S
Dimensions: 48 * 40mm
Temperature control mode: ON / OFF
Temperature range :-50-120
Control accuracy: 0.1
Hysteresis accuracy: 0.1
Refresh rate: 0.5S
High temperature protection 0-110
Supply voltage: for DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: for DC 12V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60 Humidity 20% -85%
Parameters
Package included:
1 x DC12V Relay Module Dual LED Display Cycle Timing Delay Relay Module
1 x DC12V Relay Module Dual LED Display Cycle Timing Delay Relay Module
