Mitutoyo Holtest Type II Micrometer Hole Bore Gage Gauge 20-25mm / 0.005mm Grad

product image
product image
product image
product image
product image

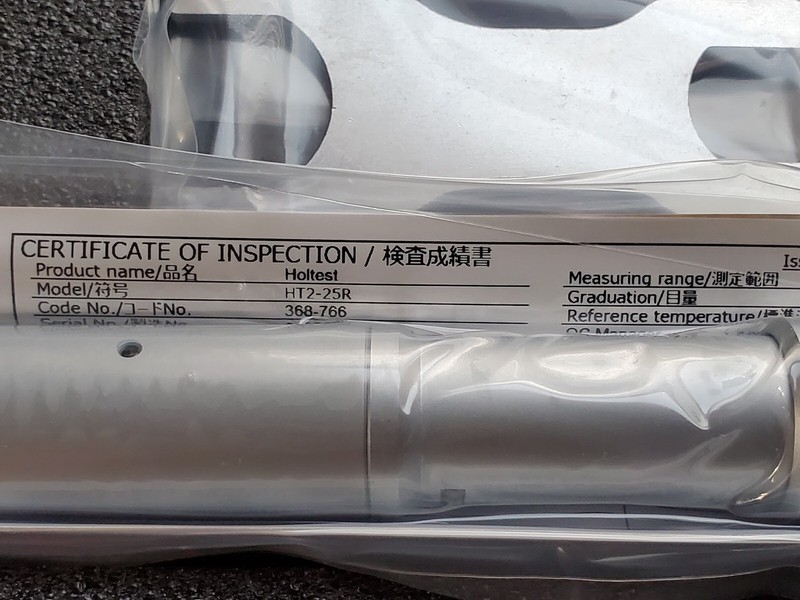

Brand new.  Micrometer is factory sealed with calibration certificate.  Made in Japan in 2023.

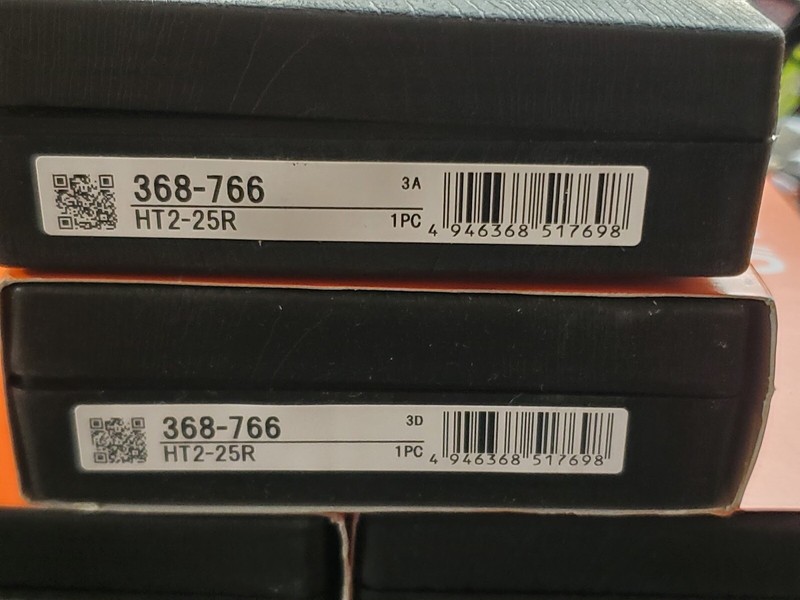

Model #:  Mitutoyo 368-766

Measuring Head type: Holtest Type II

Type:  Inside micrometer / bore gage

Numer of measuring points:  3

Range:  20-25mm

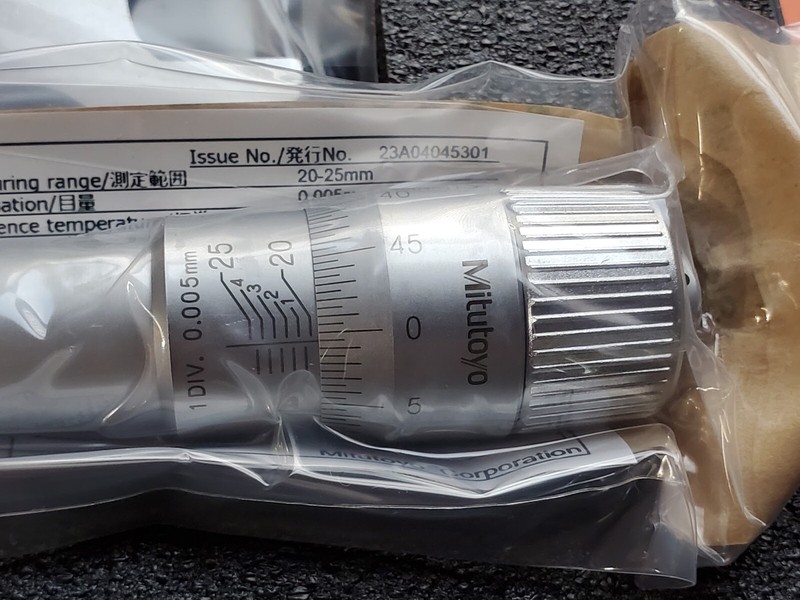

Resolution:  0.005mm

Accuracy:  0.003mm

Three-point contacts for self-centering measurement of the inside dimension (ID) of bores

Measurement can be taken closer to the bottom of the blind bore.

Scale in metric units for taking precise inside dimension (ID) measurements

Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements

Satin chrome finish helps resist rust and reduce glare

High-grade tool steel construction for durability
