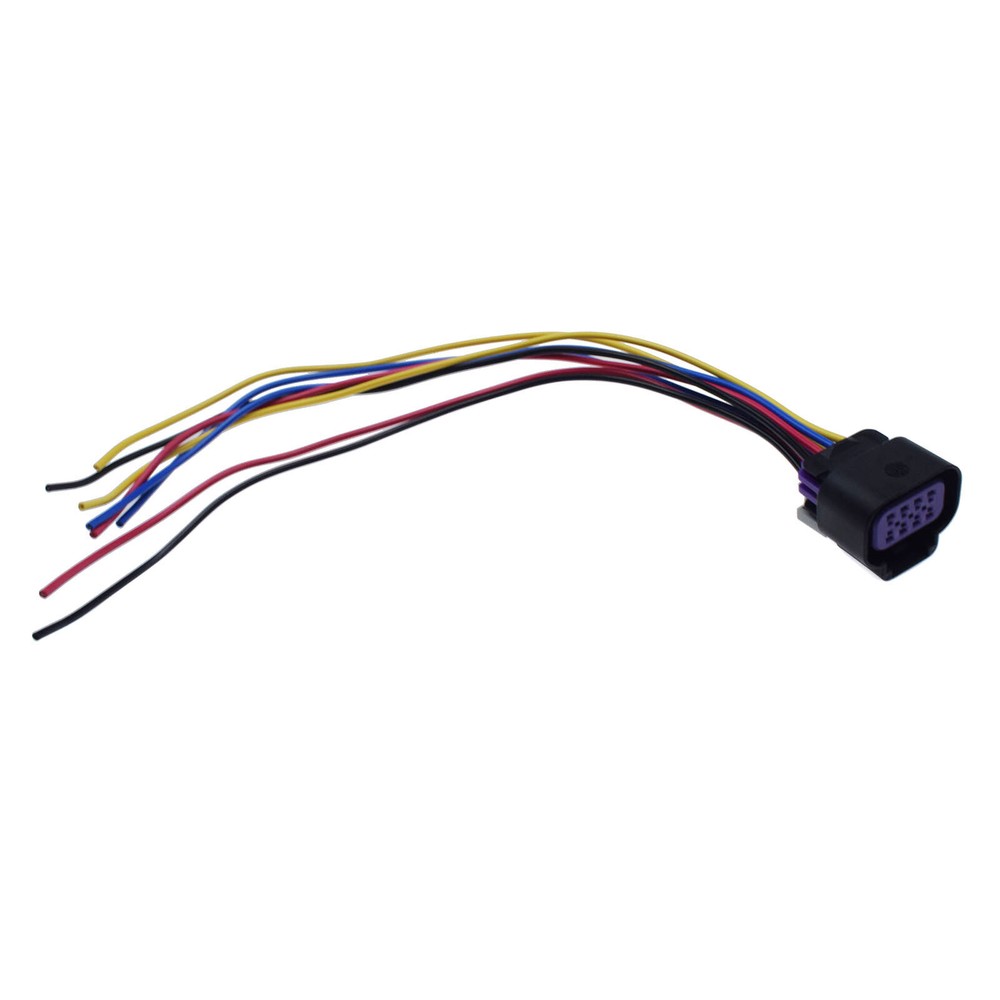

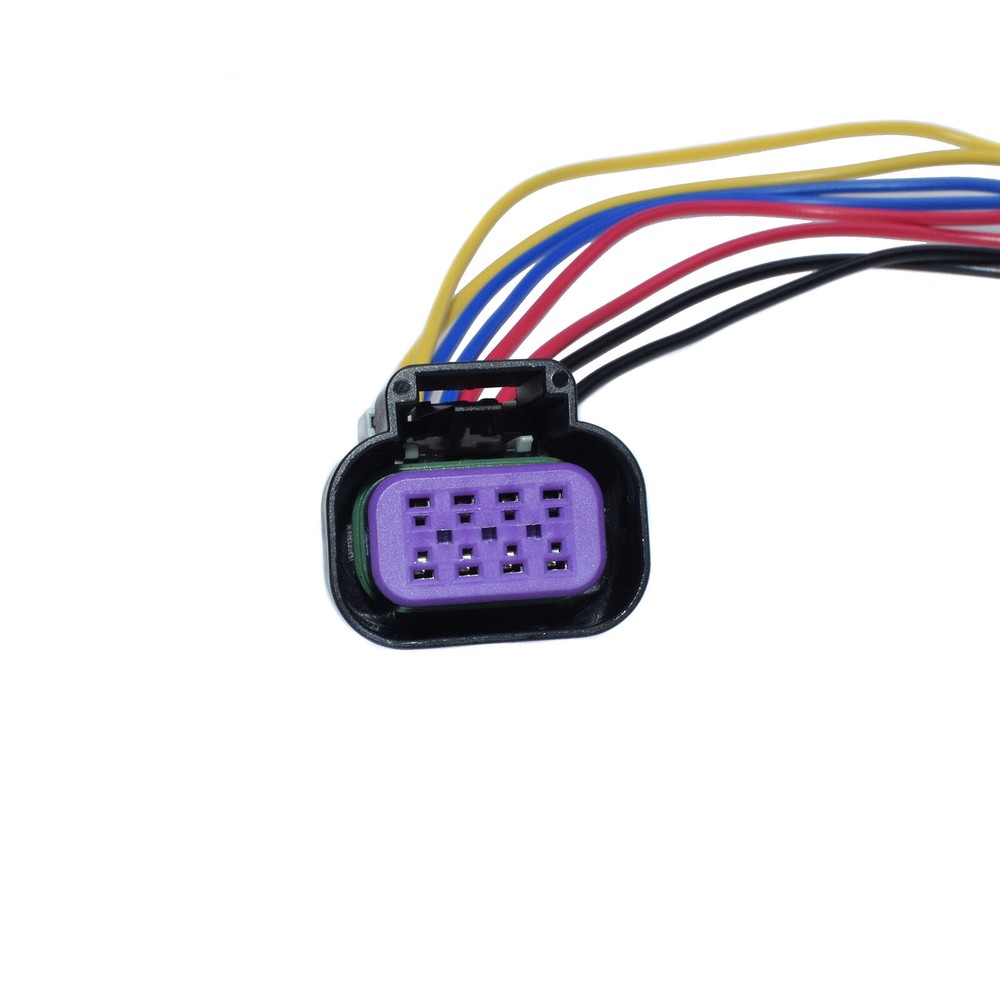

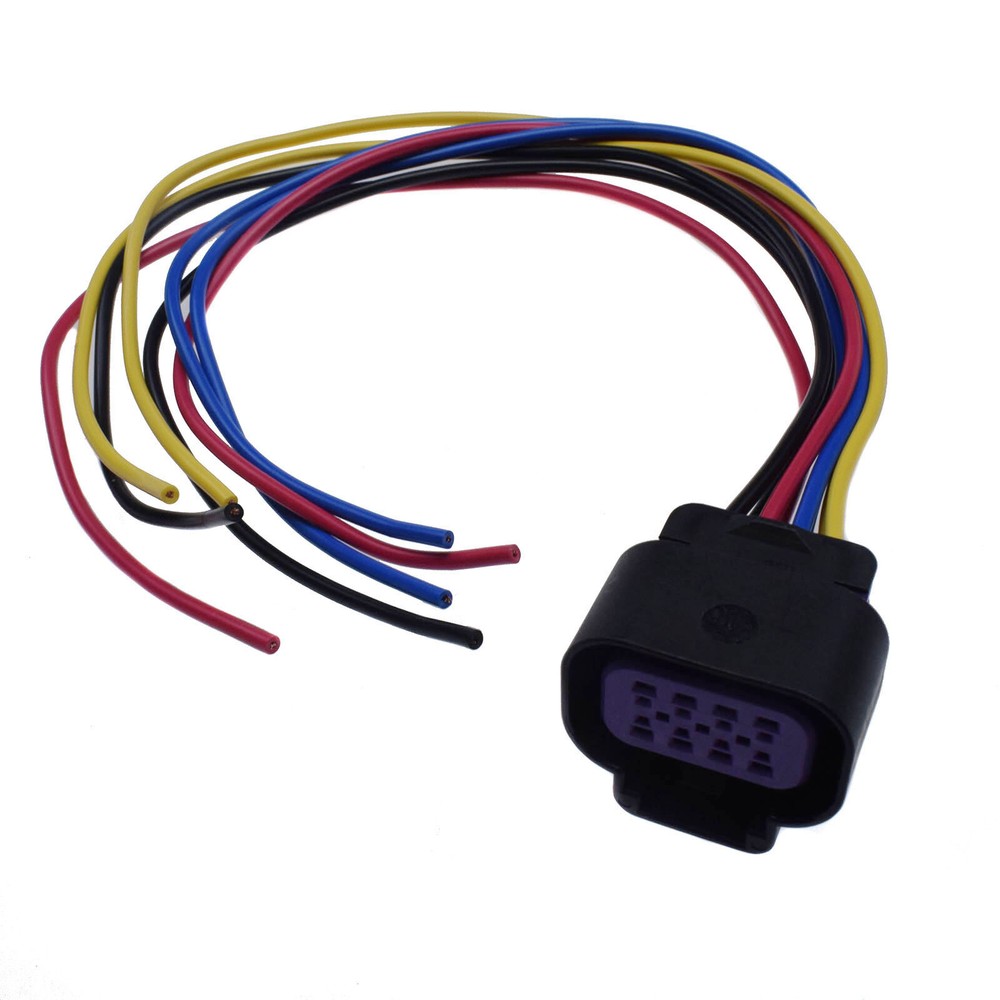

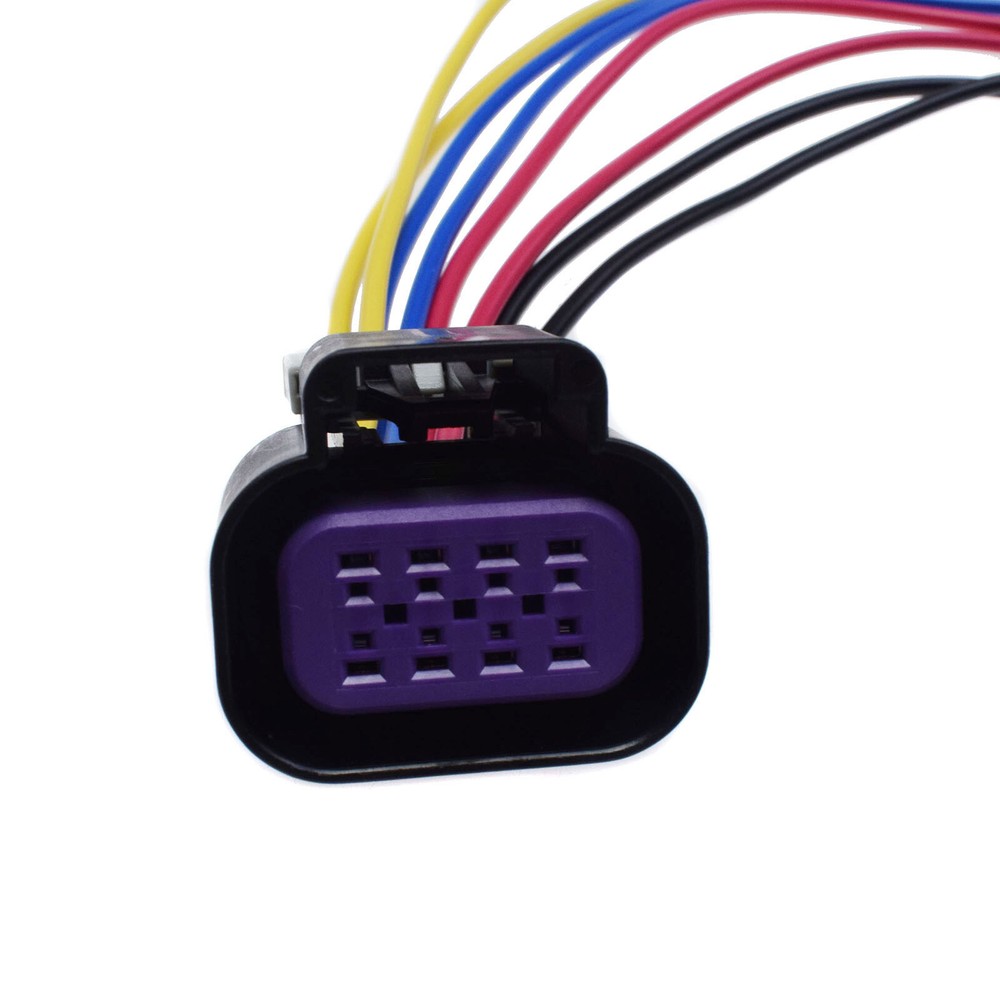

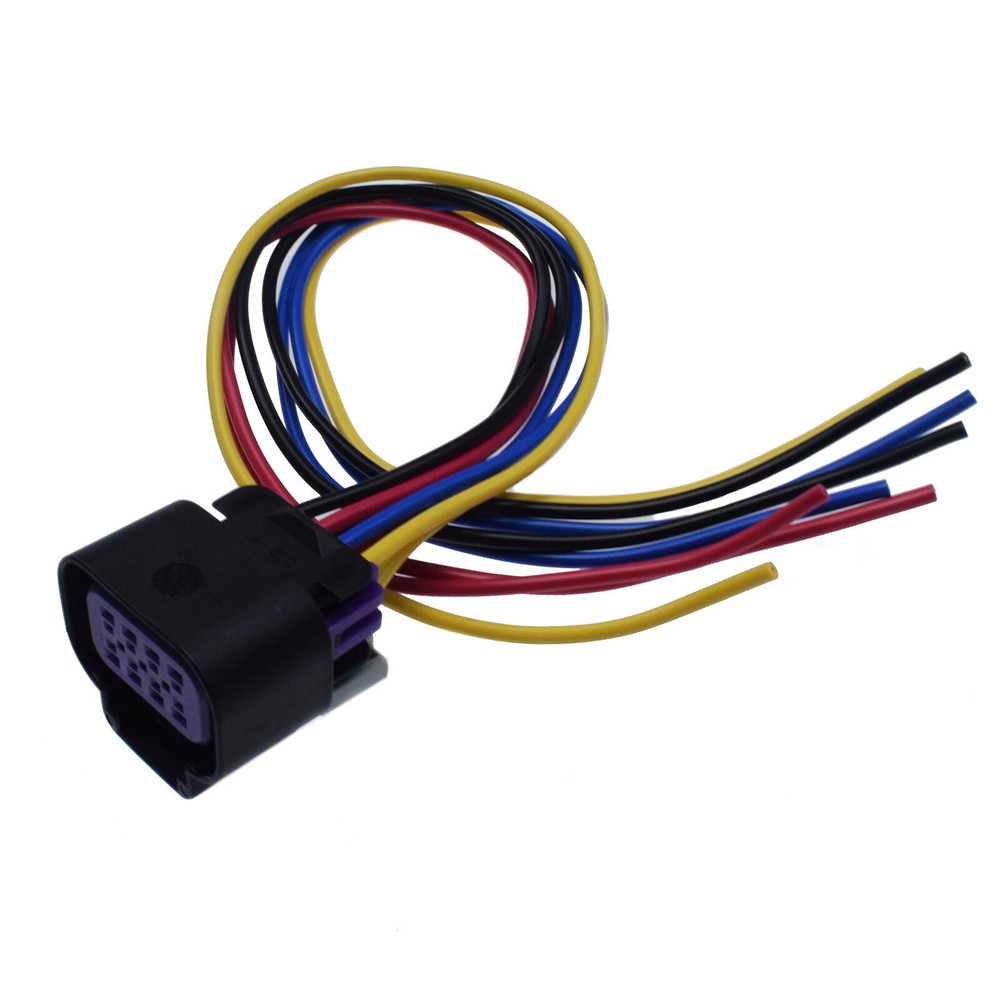

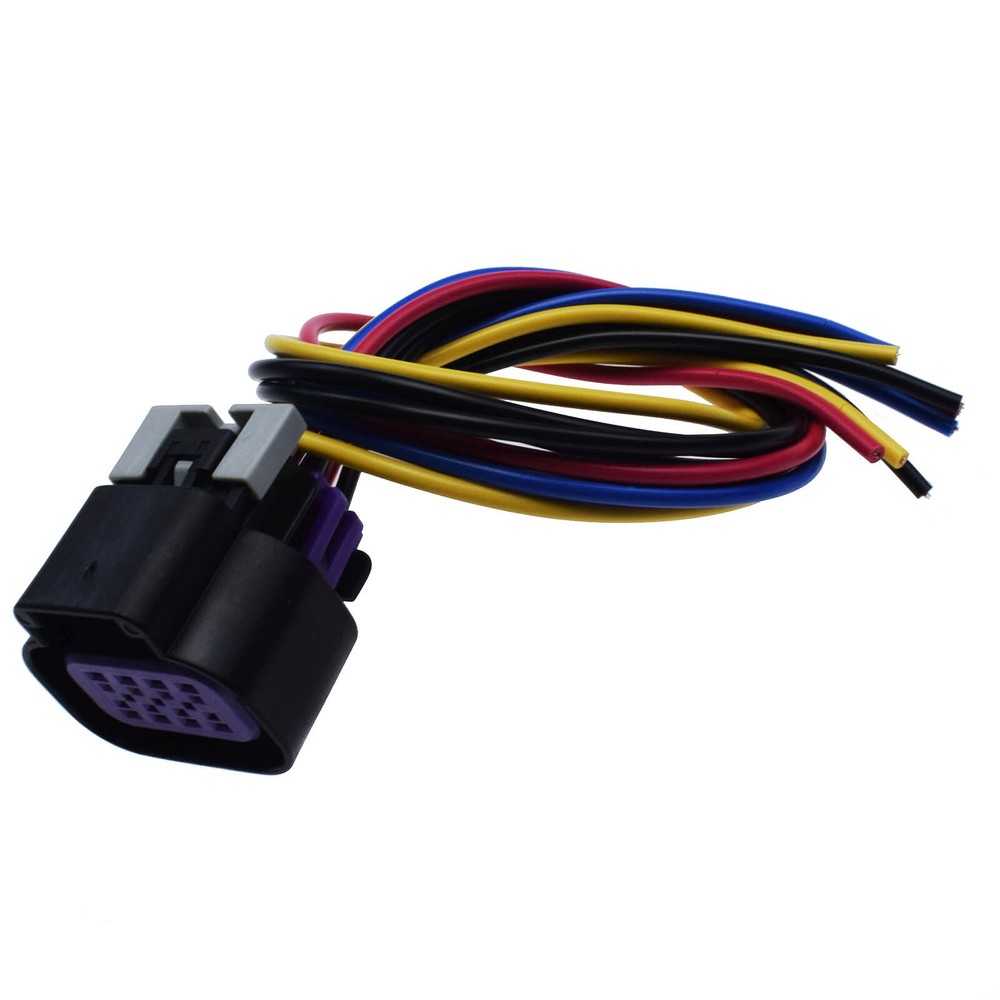

Throttle Body Position Connector Pigtail Wire Harness Plug For GM 6.0L LQ9 03-07
Product Description
Reference OE part number: 100-00341
Application:FOR GM 6.0L LQ9 (03-07)
CONNECTOR PINOUT DETAILS:
PIN WIRE FUNCTION
A 18ga YEL TAC MOTOR CONTROL - 1
B 18ga WHT TP SENSOR 2 GROUNDC18ga BRNTA
C 18ga BRN MOTOR CONTROL - 2
D 18ga BLK TP SENSOR 1 GROUND
E 18ga LT BLU TP SENSOR 2 POWER (5V)
F 18ga PPL TP SENSOR 2 SIGNAL
G 18ga DK GRN TP SENSOR 1 SIGNAL
H 18ga GRY TP SENSOR 1 POWER (5V)
