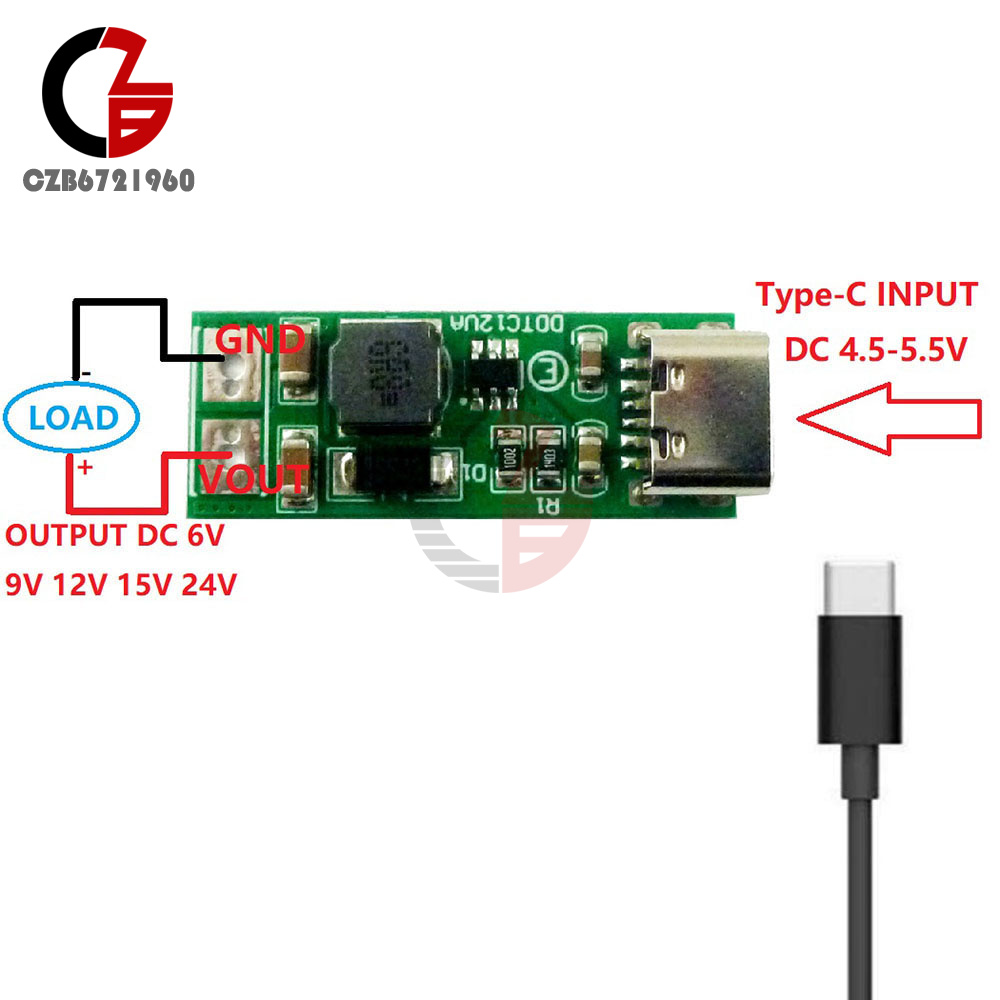

9W Type-C USB DC-DC 5V to 6/9/12/15/24V Boost Step-up Converter Regulator Module
Popular
Product Introduction
1: Wide range of applications
2: Simple to use
3: Various voltage specifications are available
4: Up to 95% Efficiency
5: Under-voltage lockout, current limit, thermal overload protection
2: Simple to use
3: Various voltage specifications are available
4: Up to 95% Efficiency
5: Under-voltage lockout, current limit, thermal overload protection

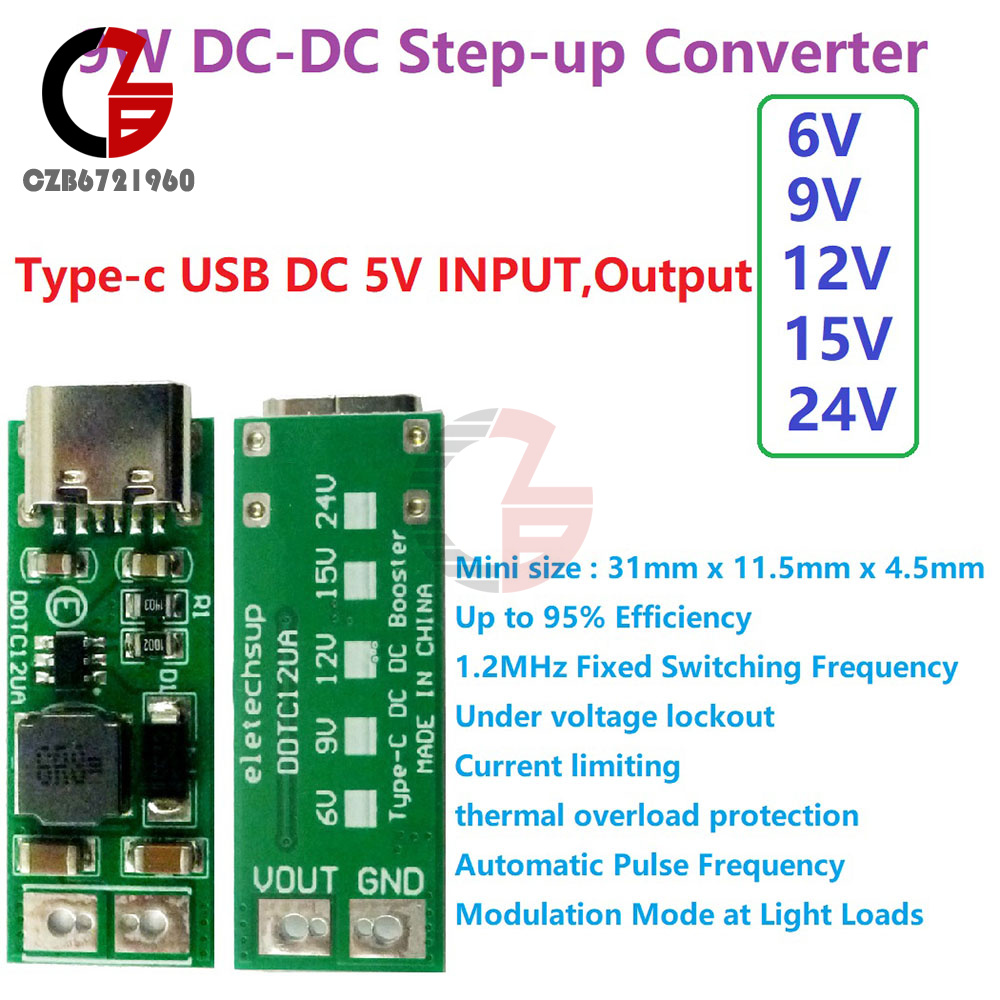

Parameter
DC DC boost converter module operating frequency 1.2MHZ.
Up to 95% efficiency (typically 84%-92%)
Quiescent current (PFM): 100uA.
Quiescent current (PWM): 1.6mA
Light load automatic pulse frequency modulation mode
Undervoltage Lockout, Current Limit, Thermal Overload Protection
Operating temperature range: -40~+85 degrees Celsius
Storage temperature range: -65~+150 degrees Celsius
Dimensions: 31mm x 11.5mm x 4.5mm
Weight: 2g
DC DC boost converter module operating frequency 1.2MHZ.
Up to 95% efficiency (typically 84%-92%)
Quiescent current (PFM): 100uA.
Quiescent current (PWM): 1.6mA
Light load automatic pulse frequency modulation mode
Undervoltage Lockout, Current Limit, Thermal Overload Protection
Operating temperature range: -40~+85 degrees Celsius
Storage temperature range: -65~+150 degrees Celsius
Dimensions: 31mm x 11.5mm x 4.5mm
Weight: 2g
Output 6V:
Input voltage DC 4.5 ~ 5.5V, output DC 6V±3%
Maximum output: 6V/1500MA
Input DC 5V 1.32A, output 6V 1.00A;
Input DC 5V 1.63A, output 6V 1.20A;
Input DC 5V 2.00A, output 6V 1.50A;
Input voltage DC 4.5 ~ 5.5V, output DC 6V±3%
Maximum output: 6V/1500MA
Input DC 5V 1.32A, output 6V 1.00A;
Input DC 5V 1.63A, output 6V 1.20A;
Input DC 5V 2.00A, output 6V 1.50A;
Output 9V:
Input voltage DC 4.5 ~ 5.5V, output DC 9V±3%
Maximum output: 9V/1000MA (see the table below for details)
Input DC 5V 1.00A, output 9V 0.52A;
Input DC 5V 1.50A, output 9V 0.76A;
Input DC 5V 2.00A, output 9V 1.00A;
Input voltage DC 4.5 ~ 5.5V, output DC 9V±3%
Maximum output: 9V/1000MA (see the table below for details)
Input DC 5V 1.00A, output 9V 0.52A;
Input DC 5V 1.50A, output 9V 0.76A;
Input DC 5V 2.00A, output 9V 1.00A;
Output 12V:
Input voltage DC 4.5 ~ 5.5V, output DC 12V±3%
Maximum output: 12V/750MA (see the table below for details)
Input DC 5V 1.00A, output 12V 0.39A;
Input DC 5V 1.50A, output 12V 0.57A;
Input DC 5V 2.00A, output 12V 0.75A;
Input voltage DC 4.5 ~ 5.5V, output DC 12V±3%
Maximum output: 12V/750MA (see the table below for details)
Input DC 5V 1.00A, output 12V 0.39A;
Input DC 5V 1.50A, output 12V 0.57A;
Input DC 5V 2.00A, output 12V 0.75A;
Output 15V:
Input voltage DC 4.5 ~ 5.5V, output DC 15V±3%
Maximum output: 15V/600MA (see the table below for details)
Input DC 5V 1.00A, output 15V 0.31A;
Input DC 5V 1.50A, output 15V 0.45A;
Input DC 5V 2.00A, output 15V 0.60A;
Input voltage DC 4.5 ~ 5.5V, output DC 15V±3%
Maximum output: 15V/600MA (see the table below for details)
Input DC 5V 1.00A, output 15V 0.31A;
Input DC 5V 1.50A, output 15V 0.45A;
Input DC 5V 2.00A, output 15V 0.60A;
Output 24V:
Input voltage DC 4.5~5.5V, output DC 24V±3%
Maximum output: 24V/300MA (see the table below for details)
Input DC 5V 1.00A, output 24V 0.19A;
Input DC 5V 1.50A, output 24V 0.27A;
Input DC 5V 1.60A, output 24V 0.30A;
Input voltage DC 4.5~5.5V, output DC 24V±3%
Maximum output: 24V/300MA (see the table below for details)
Input DC 5V 1.00A, output 24V 0.19A;
Input DC 5V 1.50A, output 24V 0.27A;
Input DC 5V 1.60A, output 24V 0.30A;
Application
battery powered equipment
Instrumentation, multimeter
Type-c USB device
Small power motor
PTZ Camera Webcam
Web video camera
toy car and boat
model airplane
power Bank
LED motor
WIFI router
PLC RS485 device
battery powered equipment
Instrumentation, multimeter
Type-c USB device
Small power motor
PTZ Camera Webcam
Web video camera
toy car and boat
model airplane
power Bank
LED motor
WIFI router
PLC RS485 device
List
1* boost converter module
1* boost converter module
