Atomos Shogun Flame Kit (ATOMSHGFL1)

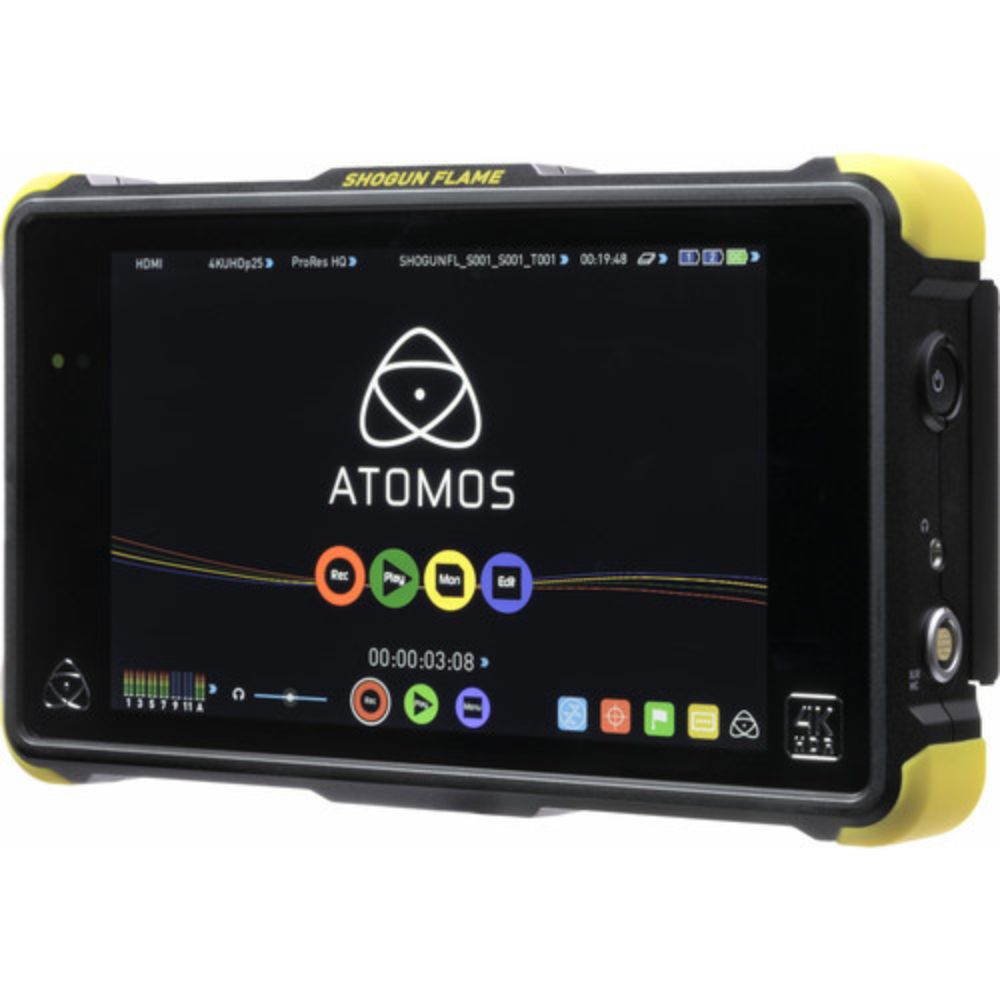

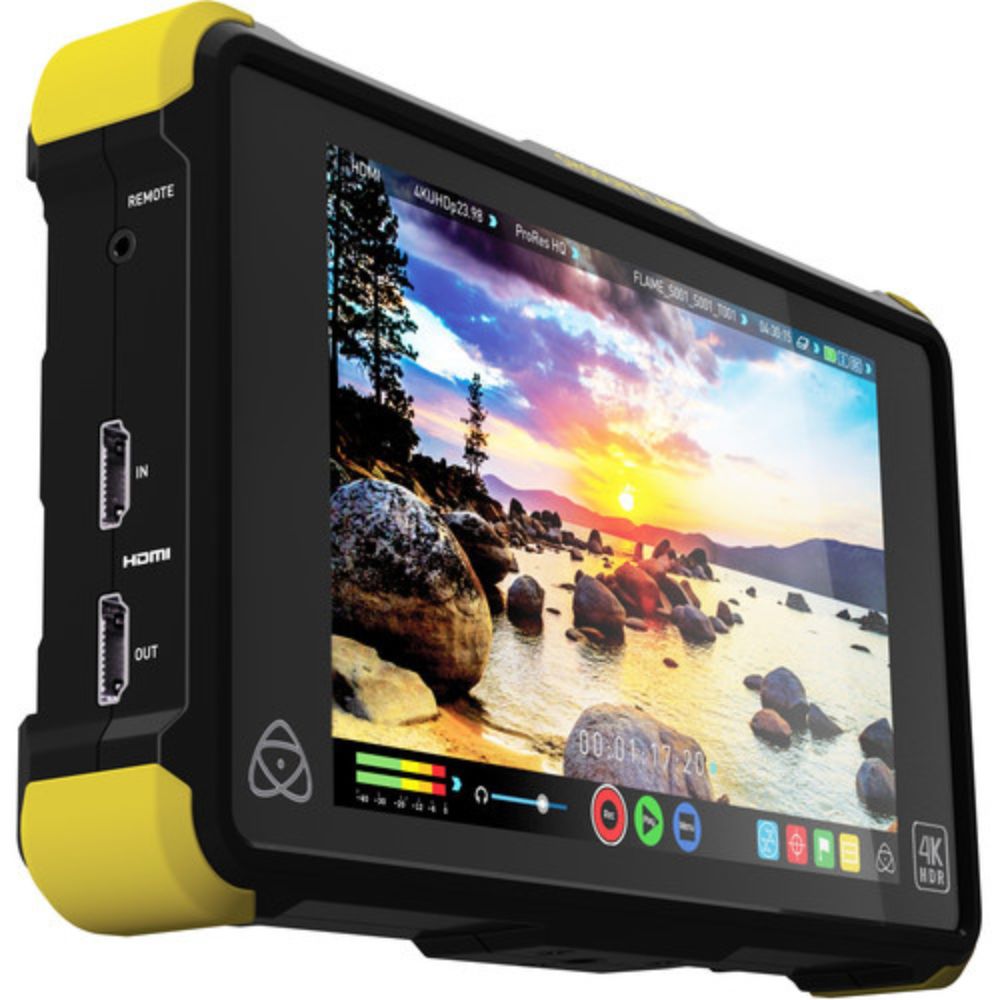

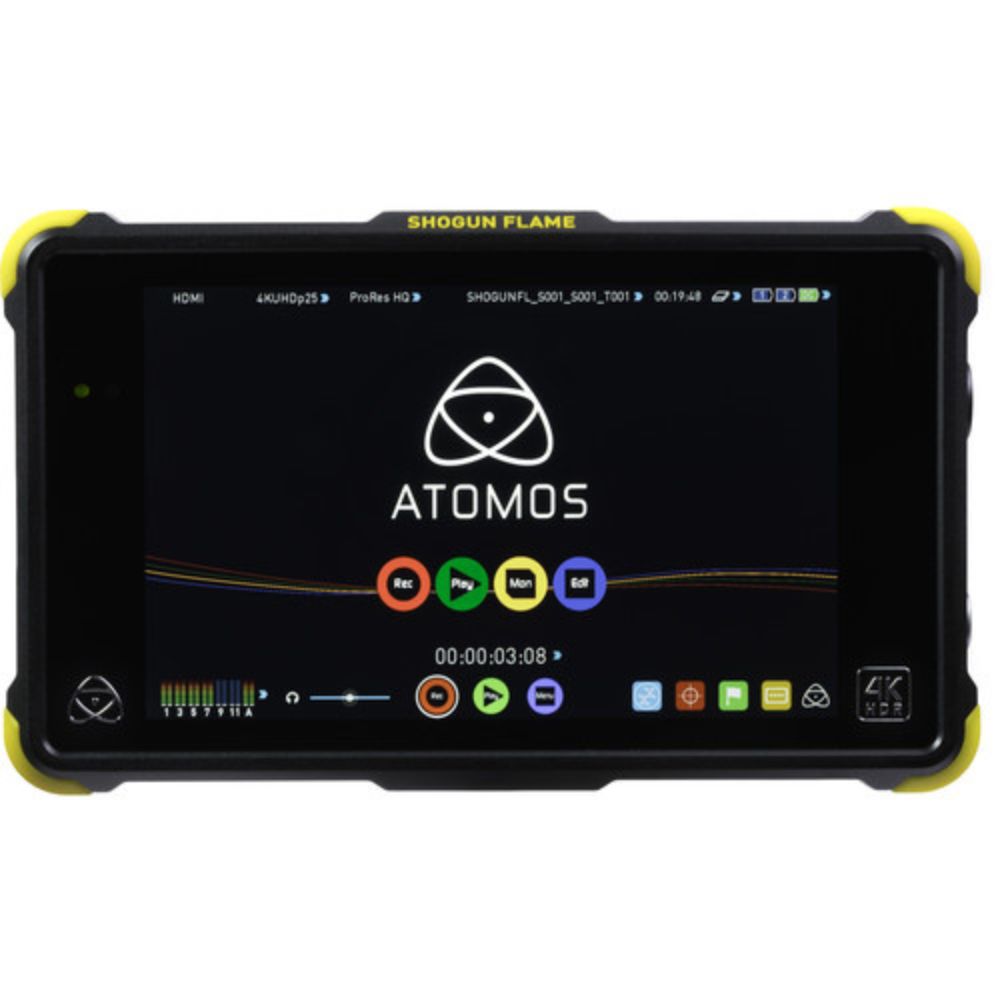

The Atomos Shogun Flame is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160), recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.
The monitor features 10-bit FRC processing and AtomHDR display technology support a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Flame features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor supports balanced XLR inputs with +48V Phantom Power via an included audio breakout cable. Additional features included Genlock / LTC input, SDI/HDMI cross-conversion, and a variety of onscreen exposure analysis, framing, and focus assist tools. Two NP-F750 batteries are included, along with a fast charger, D-tap power cable, AC power adapter, control cable, USB 3.0 docking station, and five Master Caddy SSD/HDD cases. All items come packaged in a custom HPRC hard case.
Monitor
Input/Output
Recording
Additional Features
Box Contains
The monitor features 10-bit FRC processing and AtomHDR display technology support a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Flame features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor supports balanced XLR inputs with +48V Phantom Power via an included audio breakout cable. Additional features included Genlock / LTC input, SDI/HDMI cross-conversion, and a variety of onscreen exposure analysis, framing, and focus assist tools. Two NP-F750 batteries are included, along with a fast charger, D-tap power cable, AC power adapter, control cable, USB 3.0 docking station, and five Master Caddy SSD/HDD cases. All items come packaged in a custom HPRC hard case.
Monitor
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High Bright mode for Rec. 709 viewing
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- 4K UHD downscale for HD monitoring
Input/Output

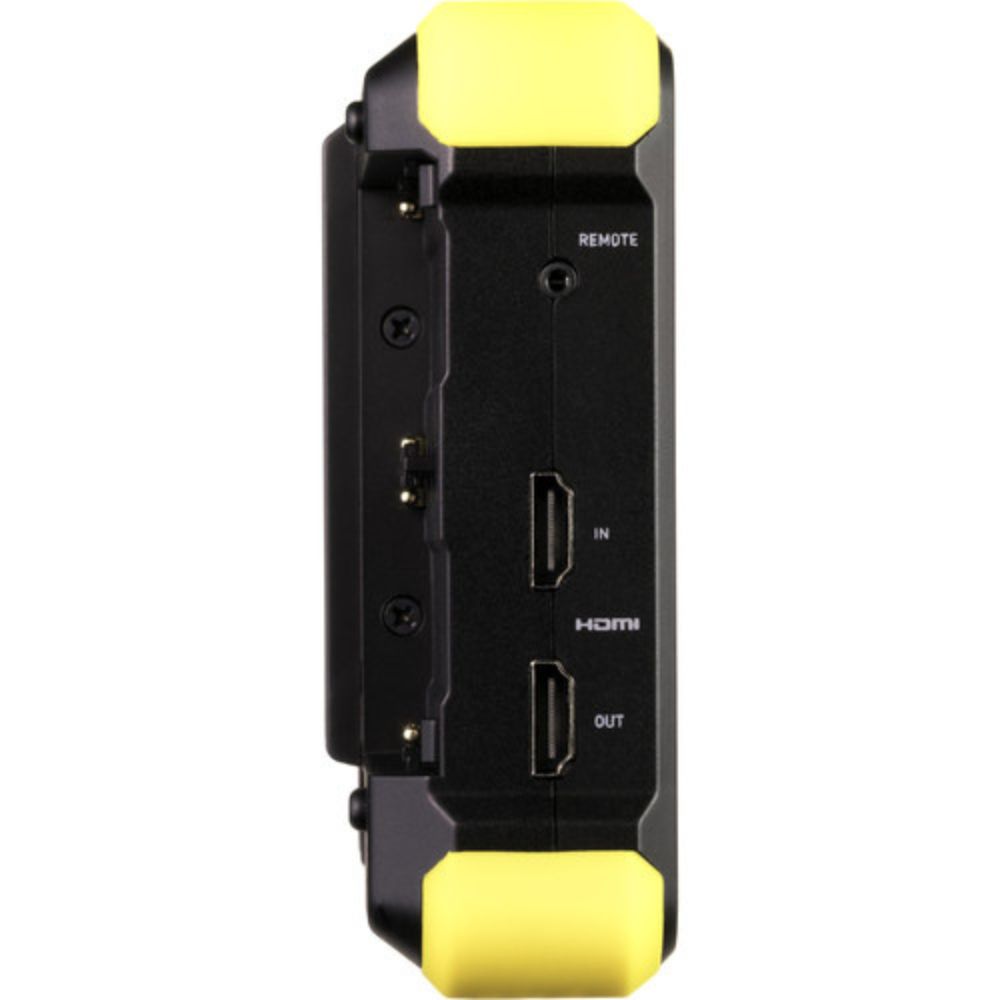

- 4K HDMI and 12G-SDI inputs / outputs
- SDI/HDMI cross-conversion
- Genlock / LTC input
- Audio breakout cable for XLR audio input
Recording
- UHD 4K recording at 24/25/30 fps
- 1080p recording up to 120 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- 10 metadata fields
Additional Features

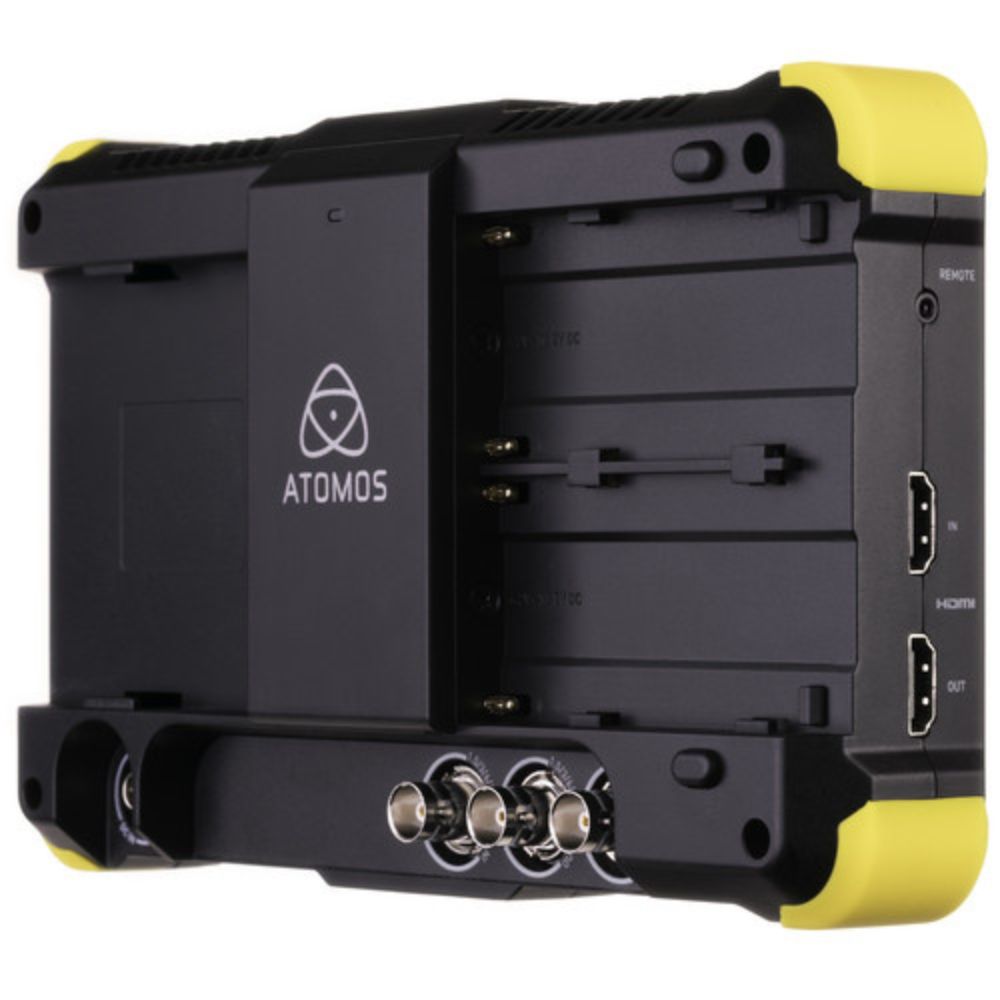

- Dual Sony L-Series battery slots support hot-swappable for continuous power
- Built-in armor with silicone-covered corners
- Audio level meters and mic level adjustment
- Snap-on sun hood
- Two NP-F750 batteries and fast charger included
- Custom HPRC hard case
Box Contains
-
Atomos Shogun Flame Kit (includes 7-inch 10-bit AtomHDR 1500nit Field Monitor plus full accessories) ATOMSHGFL1
- 1 x Sun Hood
- 2 x NP-F750 Batteries
- 1 x Battery Charger
- 1 x XLR Breakout Cable
- 1 x Control Cable (2.5mm Female to 2x 2.5mm Male)
- 1 x USB 3.0 Docking Station
- 1 x Coiled D-Tap to DC Power Cable
- 5 x Master Caddy
- 2 x AC Power Adapter
- HPRC Hard Case (Yellow)
Box Contains
-
Atomos Shogun Flame Kit (includes 7-inch 10-bit AtomHDR 1500nit Field Monitor plus full accessories) ATOMSHGFL1
- 1 x Sun Hood
- 2 x NP-F750 Batteries
- 1 x Battery Charger
- 1 x XLR Breakout Cable
- 1 x Control Cable (2.5mm Female to 2x 2.5mm Male)
- 1 x USB 3.0 Docking Station
- 1 x Coiled D-Tap to DC Power Cable
- 5 x Master Caddy
- 2 x AC Power Adapter
- HPRC Hard Case (Yellow)
| Brand | Atomos |
| Model | Atomos ATOMSHGFL1 |
| MPN | ATOMSHGFL1_LO |
| Type | Monitor |
| Type | 7.1 (18 cm) IPS capacitive touchscreen |
| Resolution | 1920 x 1200 325 ppi |
| Bit Depth | 10-bit (8-bit plus FRC) |
| Video Aspect Ratio | Native: 16:9 |
| Brightness | 1500 cd/m² |
| LUT Support | 3D LUT (.cube file format) |
| Inputs | 1 x HDMI (1.4b) 1 x 12G-SDI (BNC) 1 x Genlock / LTC (BNC) 1 x 2.5 mm LANC 2 x XLR (included LEMO bre |
| Outputs | 1 x HDMI (1.4b) 1 x 12G-SDI (BNC) 2 x XLR Out (included LEMO breakout cable required) 1 x 3.5 mm hea |
| Supported Signal | Input: 10- / 8-bit 4:2:2 (dependent on video source) Output: 10- / 8-bit 4:2:2 (dependent on video s |
| Input/Output Resolutions | HDMI: 2160p 24/25/30 1080p 24/25/30/50/60/120 1080i 50/60 720p 50/60 SDI: 2160p 24/25/30 1080p 24/2 |
| Video Signal Conversion | HDMI to SDI: 2160p 24/25/30 1080p 24/25/30/50/60/120 1080i 50/60 720p 50/60 SDI to HDMI: 2160p 24/ |
| Encoding Formats | DCI RAW 4096x2160 from Supported cameras (Sony FS700, Sony FS7, Canon C300 MKII, Canon C500): Apple |
| Pulldown Conversion | 24/25/30psf to 24/25/30p (2:2 pulldown) 60i to 24p (3:2 pulldown) |
| Dynamic Range | > 90 dB |
| Signal Level | Maximum: +24 dBu |
| Gain | Maximum Analog Gain: +52 dB |
| Phantom Power | +48 V phantom power for XLR inputs |
| HDMI | Auto HDMI trigger Supported Protocols: Canon, Sony, Atomos Open Standard |
| SDI | SDI trigger camera selectable |
| LANC | Supports slave configuration |
| Supported Media | 4K 2.5 SSD HD High Frame Rate (50/60/120p): 2.5 SSD 2.5 HDD (7,200 rpm and up) for 1080p 50/60 |
| Master Caddy Dock | Interface: 2.5 SATA to USB 2.0/3.0 |
| Supported Applications | Final Cut Pro X/7+ Avid Media Composer 5.0+ Adobe Premiere 5.5+ Grass Valley EDIUS 6.0+ Sony Vegas P |
| XML Support | FCPX XML native, FCP7 supported with conversion (Adobe compatible) |
| Power Requirements | 6.2 to 16.8 VDC (battery or DC power input) |
| Power Consumption | 10 to 24 W |
| Supported Battery Types | 2 x Sony L-series |
| Battery Life | 5200 mAh: up to 1.5 hours (monitor and record 4K) 7800 mAh: up to 2.2 hours (monitor and record 4K) |
| Construction | ABS polycarbonate |
| Dimensions | 8.4 x 5 x 1.8 (21.4 x 12.7 x 4.5 cm) |
| Weight | Without Batteries & Media: 1.4 lb (0.65 kg) With Batteries & Media: 2.4 lb (1.09 kg) |
