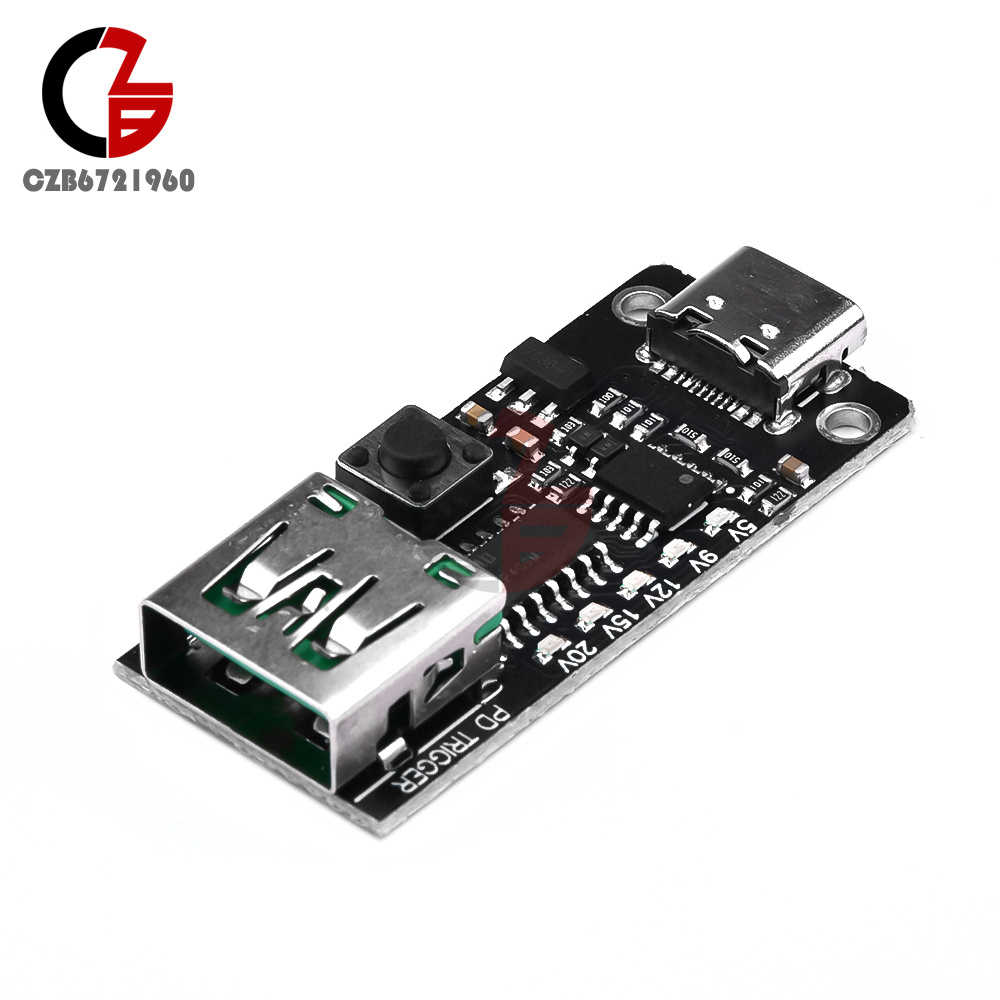

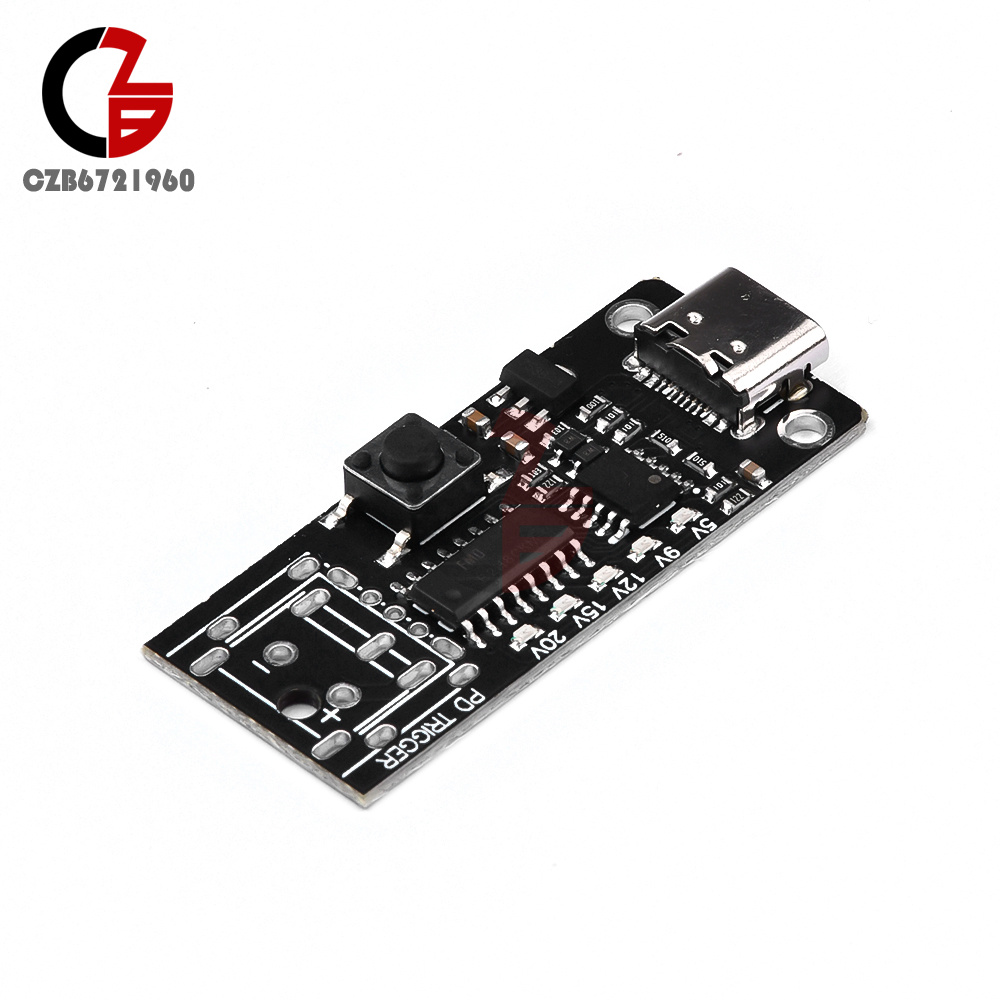

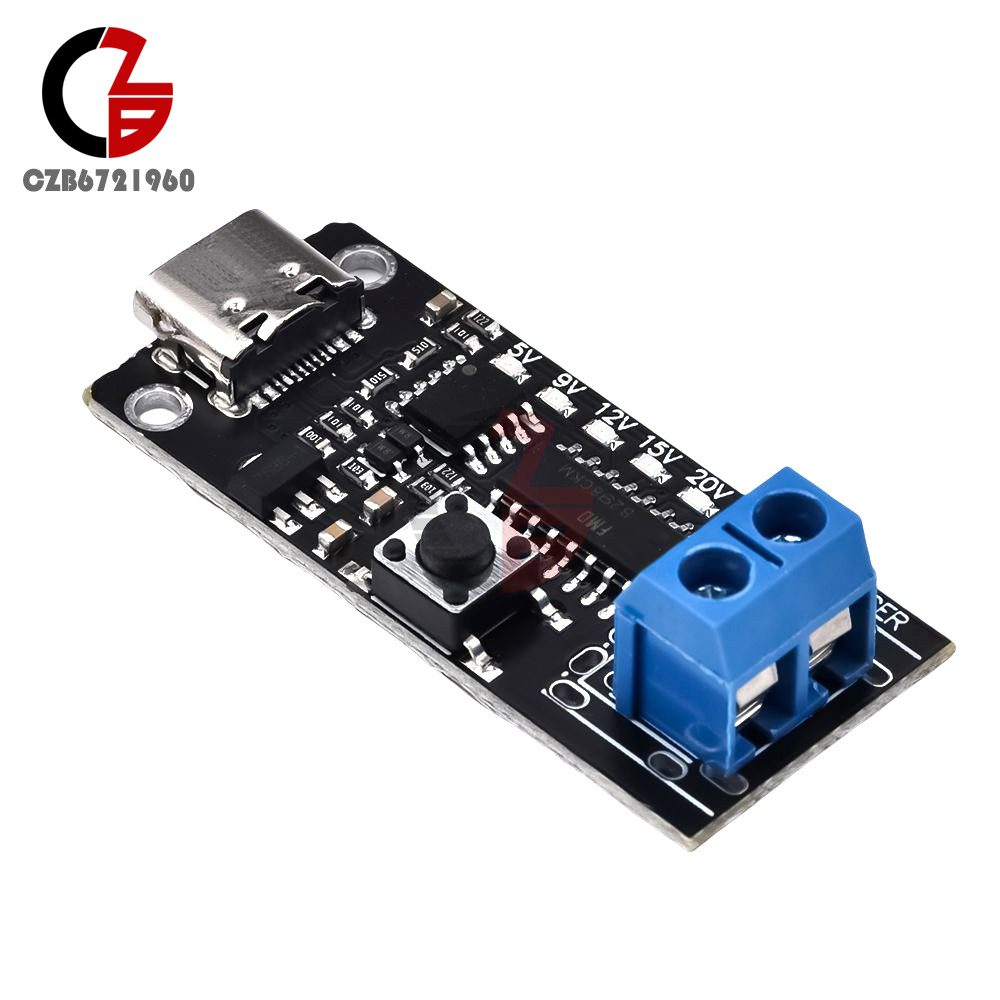

PD/QC Type-C Automatic Detection Voltage Aging Test Charging Boost Board Module
Popular

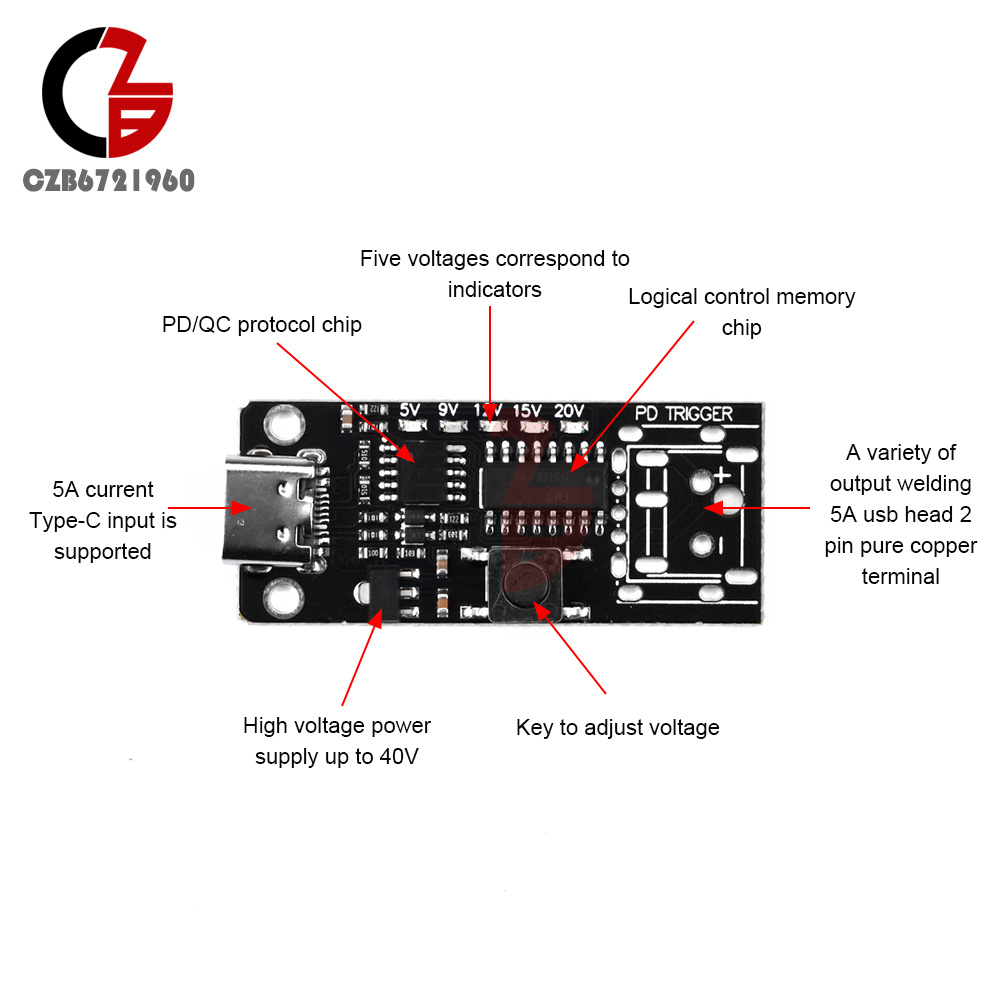

Product Introduction
Features
TYPEC interface in one piece, strong and durable, key procurement using a good sense of touch, the height is appropriate.
USB using 5A high current interface, high durability
External fast switching keys and software security lock are available
Voltage detection, automatic polling
High voltage resistance, adjustable jumping time, low voltage flashing prompt
USB using 5A high current interface, high durability
External fast switching keys and software security lock are available
Voltage detection, automatic polling
High voltage resistance, adjustable jumping time, low voltage flashing prompt

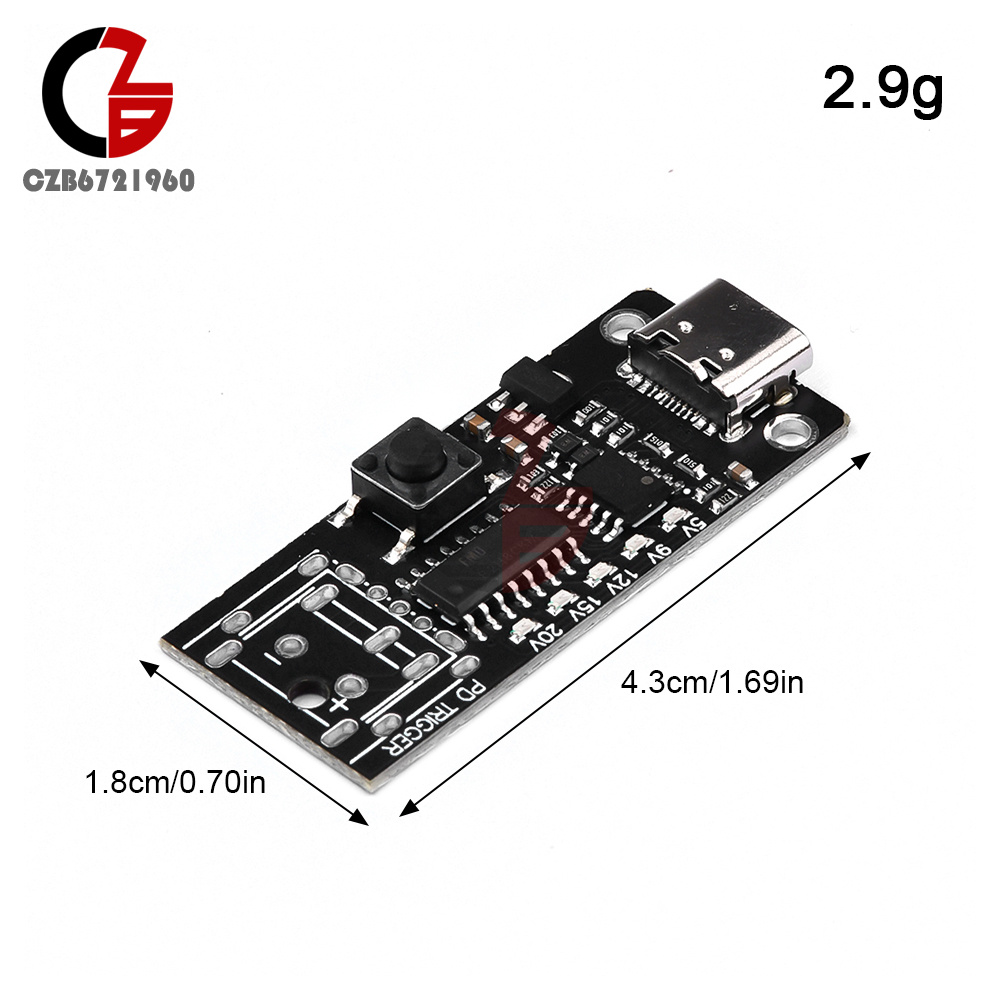

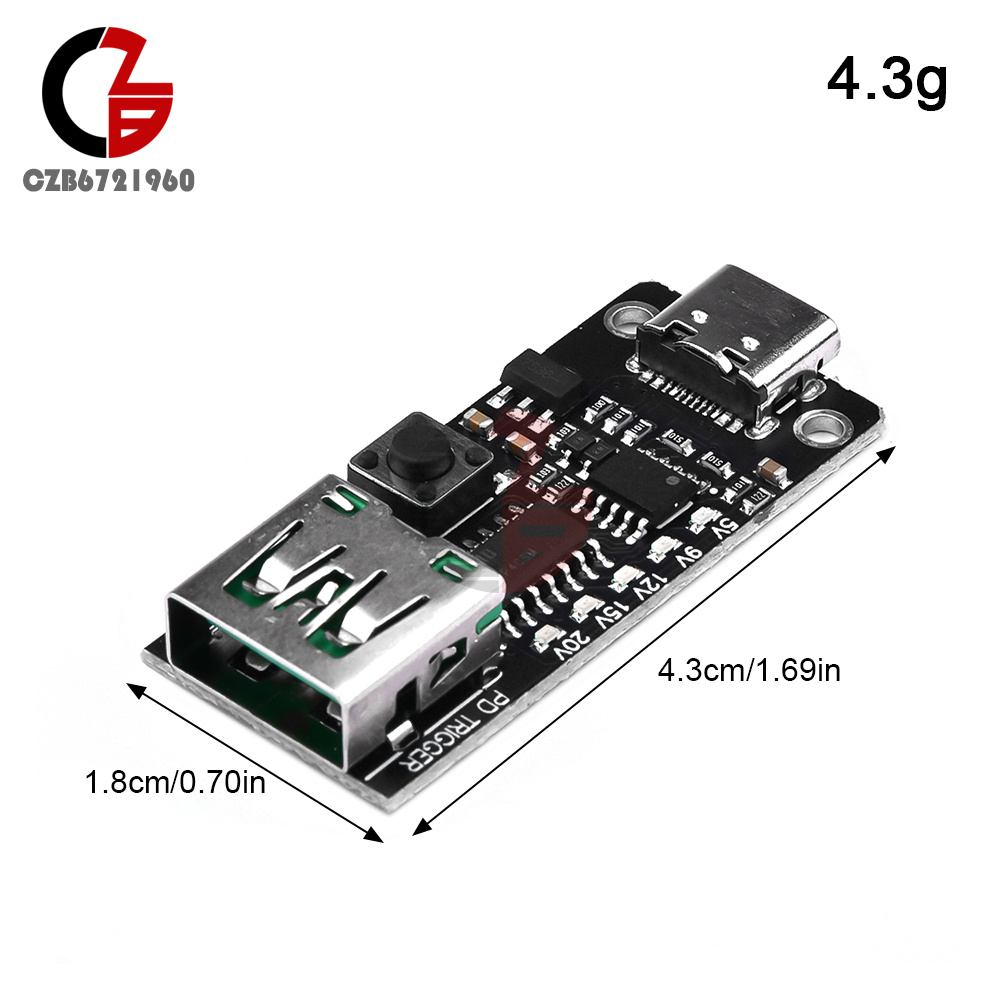

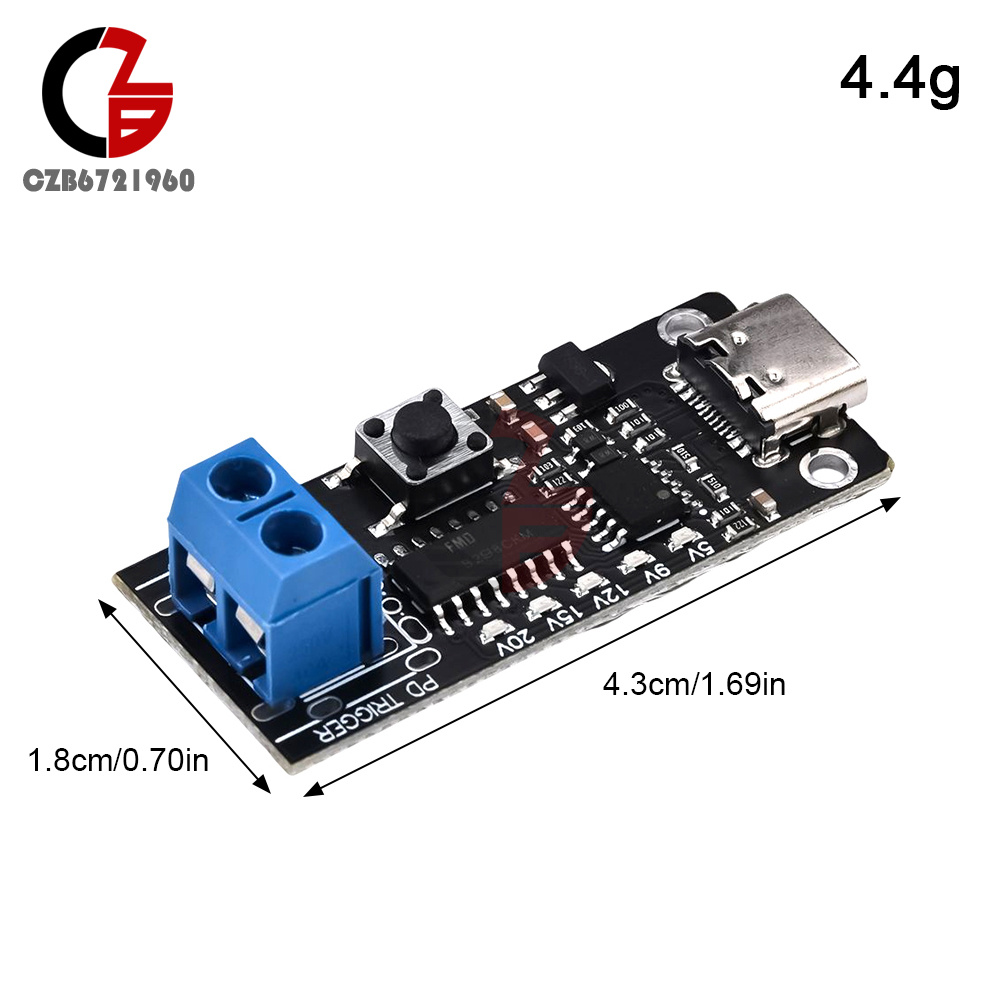

Specification
Automatic voltage switching, 5-20V with EMarker maximum 100W can be automatically detected
With E-Marker support 20V 5A 100w
Support PD3.0, PD2.0, QC, FCP, AFC voltage cheat output, mode free switching, can also be set to support only PD
Support 5V/9V/12V/20V decoy output (specific range and the use of power-related)
With key lock function to prevent misoperation (so as not to set the voltage by mistake to damage the load equipment)
5V/9V/12V/20V quick setting, LED indication output.
Parameter brake to save, re-power to execute the last decoy setting.
Ultra-low power consumption, high current, support 100W output
Maximum 20V5A output (actual value according to your power supply).
Support select auto-polling to the highest voltage and hold, auto-polling to the highest voltage and then hold to 5V, infinite cycle and other test functions.
Test jump time adjustable.
Suitable for aging test, the module can withstand more than 30V.
Automatic voltage switching, 5-20V with EMarker maximum 100W can be automatically detected
With E-Marker support 20V 5A 100w
Support PD3.0, PD2.0, QC, FCP, AFC voltage cheat output, mode free switching, can also be set to support only PD
Support 5V/9V/12V/20V decoy output (specific range and the use of power-related)
With key lock function to prevent misoperation (so as not to set the voltage by mistake to damage the load equipment)
5V/9V/12V/20V quick setting, LED indication output.
Parameter brake to save, re-power to execute the last decoy setting.
Ultra-low power consumption, high current, support 100W output
Maximum 20V5A output (actual value according to your power supply).
Support select auto-polling to the highest voltage and hold, auto-polling to the highest voltage and then hold to 5V, infinite cycle and other test functions.
Test jump time adjustable.
Suitable for aging test, the module can withstand more than 30V.

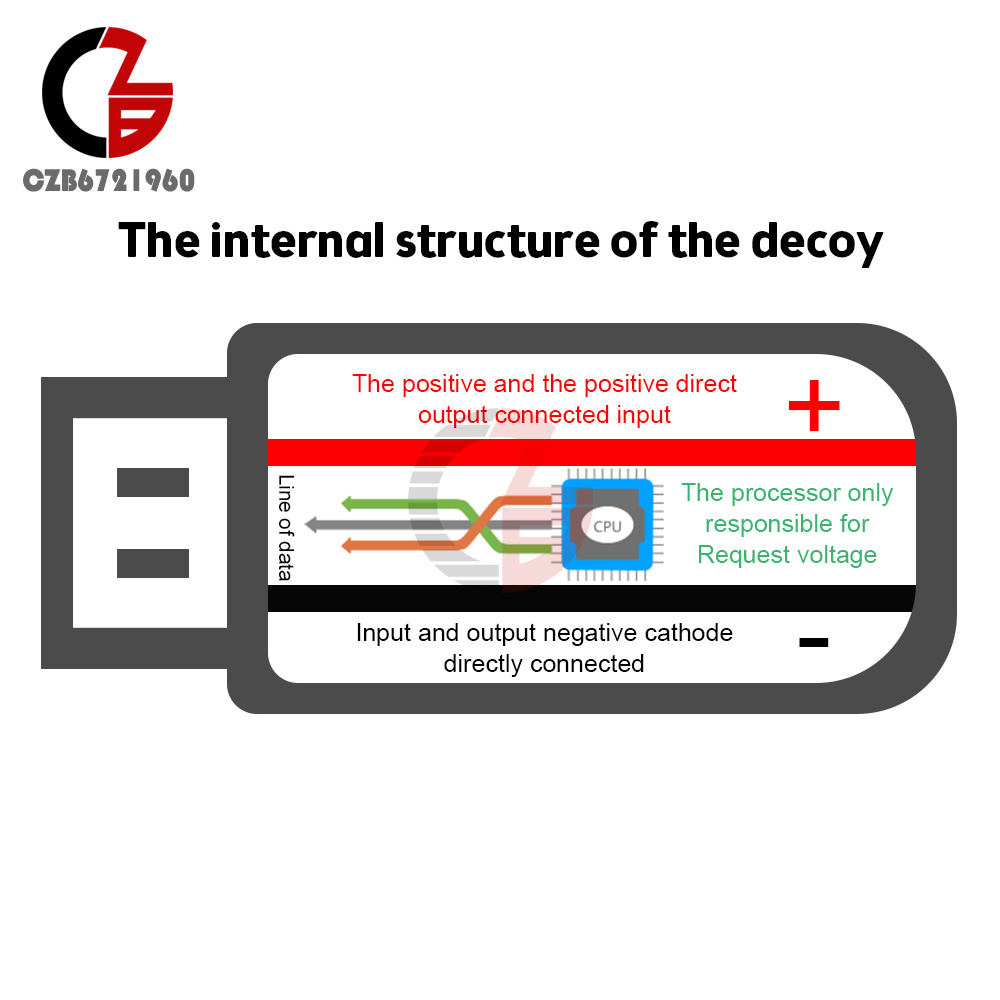

Note
1. The decoy needs to be used with a QC or PD fast charging head or rechargeable battery, if you are not sure whether your charging head supports, please check to confirm the charging head model. Charging head will also be marked on the top of the output voltage, please determine whether you need the voltage
2. Whether the module is selected with E-mark or not depends on the actual requirements. The power without E-mark can only support up to 60W, need to output more power, need E-mark support. type-c female input if you want to cheat 5A, need the line can support E-mark. type-c male input module comes with analog E-mark.
3. module currently supports 5V/12V/15/20V output.
1. The decoy needs to be used with a QC or PD fast charging head or rechargeable battery, if you are not sure whether your charging head supports, please check to confirm the charging head model. Charging head will also be marked on the top of the output voltage, please determine whether you need the voltage
2. Whether the module is selected with E-mark or not depends on the actual requirements. The power without E-mark can only support up to 60W, need to output more power, need E-mark support. type-c female input if you want to cheat 5A, need the line can support E-mark. type-c male input module comes with analog E-mark.
3. module currently supports 5V/12V/15/20V output.

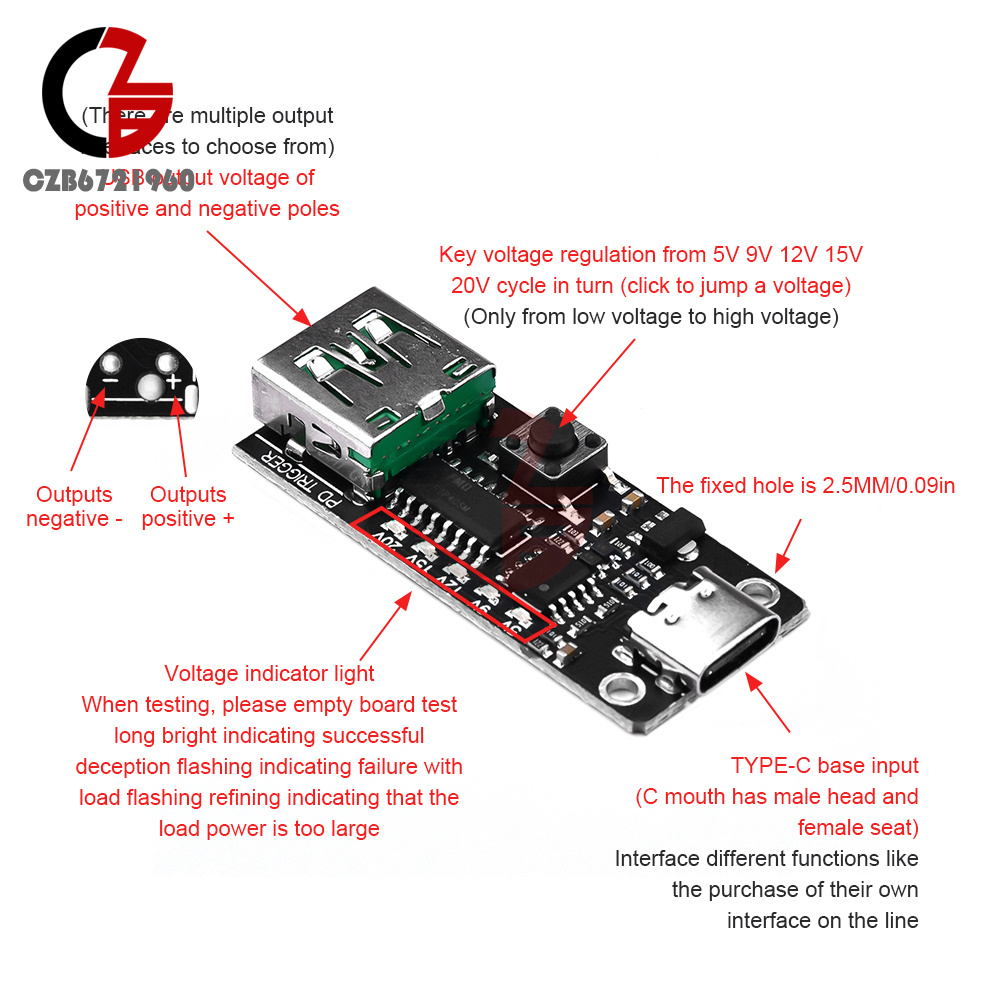

Instructions for use

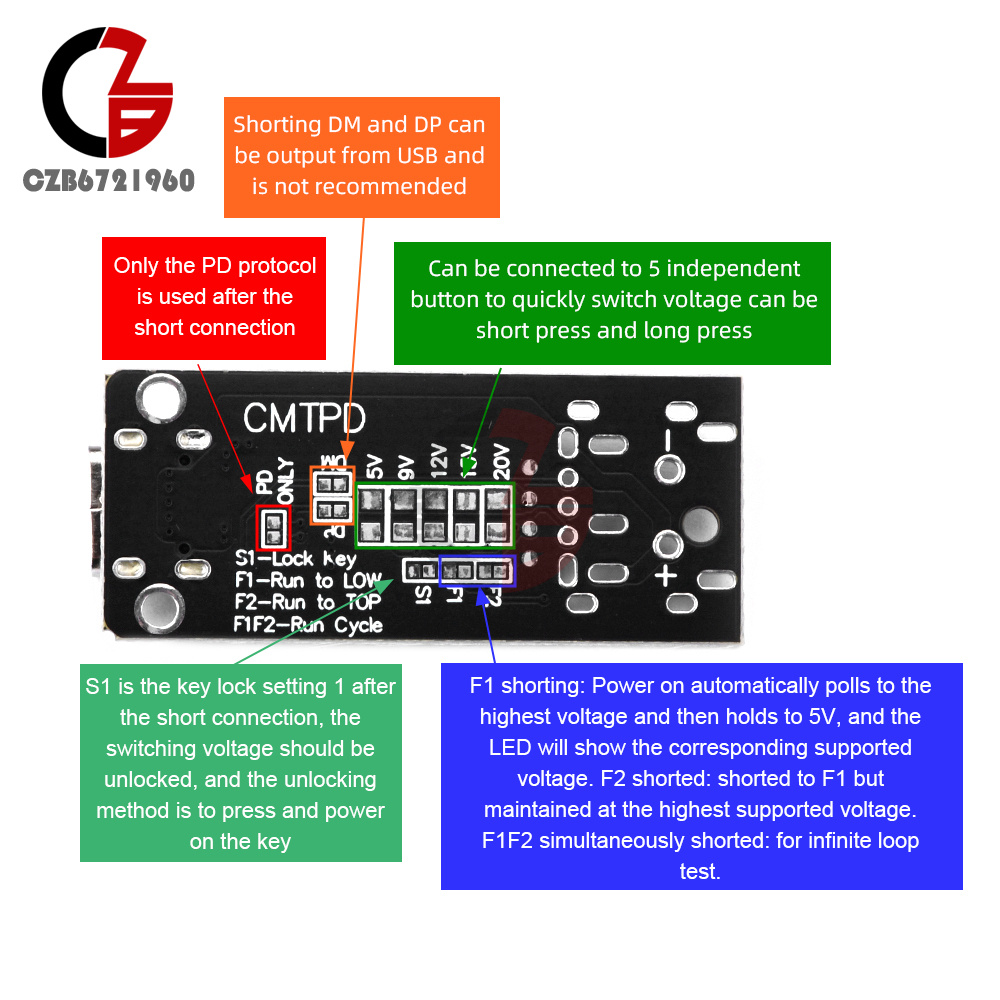

PD ONLY short contact:The module only supports PD protocol after short contact.
DM and DP short contact: DM and DP can be input from USB after short connection, unless it is needed, otherwise, short connection is not recommended.
5 independent keys interface: can be connected to 5 independent keys for fast voltage switching, can be short press or long press or short connection. The top end of the diagram is grounded to the bottom, and the circuits are connected together.
S1 short connection point: for the key lock setting, short connection after switching voltage need to unlock, unlock method is to press and hold the key power on, re-power need to re-unlock.
PD ONLY short contact:The module only supports PD protocol after short contact.
DM and DP short contact: DM and DP can be input from USB after short connection, unless it is needed, otherwise, short connection is not recommended.
5 independent keys interface: can be connected to 5 independent keys for fast voltage switching, can be short press or long press or short connection. The top end of the diagram is grounded to the bottom, and the circuits are connected together.
S1 short connection point: for the key lock setting, short connection after switching voltage need to unlock, unlock method is to press and hold the key power on, re-power need to re-unlock.
F1 short: power on automatically polled to the highest voltage and then hold to 5V. and the LED will show the corresponding supported voltage, the corresponding voltage support LED full light, otherwise for flashing.
F2 shorting: the same as F1 shorting, but the highest voltage supported by the output is maintained after the polling.
F1, F2 shorted at the same time: for infinite cycle test. The voltage will switch the output from low to high cycle.
The default polling and jumping time is 0.5 seconds, and the time can be modified according to the red method below.
F1, F2 short connection polling or voltage jump time settings: press and hold the key without releasing the power, then the first LED will flash, then if you release the key, for unlock. Otherwise, keep pressing the key until all the LEDs flash, then release the key to enter the time setting, and switch the time reset to 0.5 seconds, then each time you press the key, the time will be increased by 0.5 seconds, and the LED will display the corresponding time in binary mode (you can count how many times you have added the time if you are not familiar with binary), the maximum increase is 30 times (corresponding to the longest time of 15.5 seconds, the LEDs are fully lit).
If you don't press the button within 3 seconds, the time setting will be automatically popped up and the setting value will be saved, and the LED light will be fully lit and flashing to remind you.
F2 shorting: the same as F1 shorting, but the highest voltage supported by the output is maintained after the polling.
F1, F2 shorted at the same time: for infinite cycle test. The voltage will switch the output from low to high cycle.
The default polling and jumping time is 0.5 seconds, and the time can be modified according to the red method below.
F1, F2 short connection polling or voltage jump time settings: press and hold the key without releasing the power, then the first LED will flash, then if you release the key, for unlock. Otherwise, keep pressing the key until all the LEDs flash, then release the key to enter the time setting, and switch the time reset to 0.5 seconds, then each time you press the key, the time will be increased by 0.5 seconds, and the LED will display the corresponding time in binary mode (you can count how many times you have added the time if you are not familiar with binary), the maximum increase is 30 times (corresponding to the longest time of 15.5 seconds, the LEDs are fully lit).
If you don't press the button within 3 seconds, the time setting will be automatically popped up and the setting value will be saved, and the LED light will be fully lit and flashing to remind you.
List
1 x Module
1 x Module
- We accept PayPal only. But we only Accept your Ebay Address,Please Make sure it's 100% right.
- Payment must be received in 5 business days of auction closing.
- Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order.
- Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched.
- We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
- All package need to wait 30 days(US only need 7-10 days),Please take care it.Less than 30 days,we can't take a refund.
- If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it.
- If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
PD/QC Type-C Automatic Detection Voltage Aging Test Charging Boost Board Module
Product Introduction
Features
TYPEC interface in one piece, strong and durable, key procurement using a good sense of touch, the height is appropriate.
USB using 5A high current interface, high durability
External fast switching keys and software security lock are available
Voltage detection, automatic polling
High voltage resistance, adjustable jumping time, low voltage flashing prompt
USB using 5A high current interface, high durability
External fast switching keys and software security lock are available
Voltage detection, automatic polling
High voltage resistance, adjustable jumping time, low voltage flashing prompt
Specification
Automatic voltage switching, 5-20V with EMarker maximum 100W can be automatically detected
With E-Marker support 20V 5A 100w
Support PD3.0, PD2.0, QC, FCP, AFC voltage cheat output, mode free switching, can also be set to support only PD
Support 5V/9V/12V/20V decoy output (specific range and the use of power-related)
With key lock function to prevent misoperation (so as not to set the voltage by mistake to damage the load equipment)
5V/9V/12V/20V quick setting, LED indication output.
Parameter brake to save, re-power to execute the last decoy setting.
Ultra-low power consumption, high current, support 100W output
Maximum 20V5A output (actual value according to your power supply).
Support select auto-polling to the highest voltage and hold, auto-polling to the highest voltage and then hold to 5V, infinite cycle and other test functions.
Test jump time adjustable.
Suitable for aging test, the module can withstand more than 30V.
Automatic voltage switching, 5-20V with EMarker maximum 100W can be automatically detected
With E-Marker support 20V 5A 100w
Support PD3.0, PD2.0, QC, FCP, AFC voltage cheat output, mode free switching, can also be set to support only PD
Support 5V/9V/12V/20V decoy output (specific range and the use of power-related)
With key lock function to prevent misoperation (so as not to set the voltage by mistake to damage the load equipment)
5V/9V/12V/20V quick setting, LED indication output.
Parameter brake to save, re-power to execute the last decoy setting.
Ultra-low power consumption, high current, support 100W output
Maximum 20V5A output (actual value according to your power supply).
Support select auto-polling to the highest voltage and hold, auto-polling to the highest voltage and then hold to 5V, infinite cycle and other test functions.
Test jump time adjustable.
Suitable for aging test, the module can withstand more than 30V.
Note
1. The decoy needs to be used with a QC or PD fast charging head or rechargeable battery, if you are not sure whether your charging head supports, please check to confirm the charging head model. Charging head will also be marked on the top of the output voltage, please determine whether you need the voltage
2. Whether the module is selected with E-mark or not depends on the actual requirements. The power without E-mark can only support up to 60W, need to output more power, need E-mark support. type-c female input if you want to cheat 5A, need the line can support E-mark. type-c male input module comes with analog E-mark.
3. module currently supports 5V/12V/15/20V output.
1. The decoy needs to be used with a QC or PD fast charging head or rechargeable battery, if you are not sure whether your charging head supports, please check to confirm the charging head model. Charging head will also be marked on the top of the output voltage, please determine whether you need the voltage
2. Whether the module is selected with E-mark or not depends on the actual requirements. The power without E-mark can only support up to 60W, need to output more power, need E-mark support. type-c female input if you want to cheat 5A, need the line can support E-mark. type-c male input module comes with analog E-mark.
3. module currently supports 5V/12V/15/20V output.
Instructions for use
PD ONLY short contact:The module only supports PD protocol after short contact.
DM and DP short contact: DM and DP can be input from USB after short connection, unless it is needed, otherwise, short connection is not recommended.
5 independent keys interface: can be connected to 5 independent keys for fast voltage switching, can be short press or long press or short connection. The top end of the diagram is grounded to the bottom, and the circuits are connected together.
S1 short connection point: for the key lock setting, short connection after switching voltage need to unlock, unlock method is to press and hold the key power on, re-power need to re-unlock.
PD ONLY short contact:The module only supports PD protocol after short contact.
DM and DP short contact: DM and DP can be input from USB after short connection, unless it is needed, otherwise, short connection is not recommended.
5 independent keys interface: can be connected to 5 independent keys for fast voltage switching, can be short press or long press or short connection. The top end of the diagram is grounded to the bottom, and the circuits are connected together.
S1 short connection point: for the key lock setting, short connection after switching voltage need to unlock, unlock method is to press and hold the key power on, re-power need to re-unlock.
F1 short: power on automatically polled to the highest voltage and then hold to 5V. and the LED will show the corresponding supported voltage, the corresponding voltage support LED full light, otherwise for flashing.
F2 shorting: the same as F1 shorting, but the highest voltage supported by the output is maintained after the polling.
F1, F2 shorted at the same time: for infinite cycle test. The voltage will switch the output from low to high cycle.
The default polling and jumping time is 0.5 seconds, and the time can be modified according to the red method below.
F1, F2 short connection polling or voltage jump time settings: press and hold the key without releasing the power, then the first LED will flash, then if you release the key, for unlock. Otherwise, keep pressing the key until all the LEDs flash, then release the key to enter the time setting, and switch the time reset to 0.5 seconds, then each time you press the key, the time will be increased by 0.5 seconds, and the LED will display the corresponding time in binary mode (you can count how many times you have added the time if you are not familiar with binary), the maximum increase is 30 times (corresponding to the longest time of 15.5 seconds, the LEDs are fully lit).
If you don't press the button within 3 seconds, the time setting will be automatically popped up and the setting value will be saved, and the LED light will be fully lit and flashing to remind you.
F2 shorting: the same as F1 shorting, but the highest voltage supported by the output is maintained after the polling.
F1, F2 shorted at the same time: for infinite cycle test. The voltage will switch the output from low to high cycle.
The default polling and jumping time is 0.5 seconds, and the time can be modified according to the red method below.
F1, F2 short connection polling or voltage jump time settings: press and hold the key without releasing the power, then the first LED will flash, then if you release the key, for unlock. Otherwise, keep pressing the key until all the LEDs flash, then release the key to enter the time setting, and switch the time reset to 0.5 seconds, then each time you press the key, the time will be increased by 0.5 seconds, and the LED will display the corresponding time in binary mode (you can count how many times you have added the time if you are not familiar with binary), the maximum increase is 30 times (corresponding to the longest time of 15.5 seconds, the LEDs are fully lit).
If you don't press the button within 3 seconds, the time setting will be automatically popped up and the setting value will be saved, and the LED light will be fully lit and flashing to remind you.
