Product Description

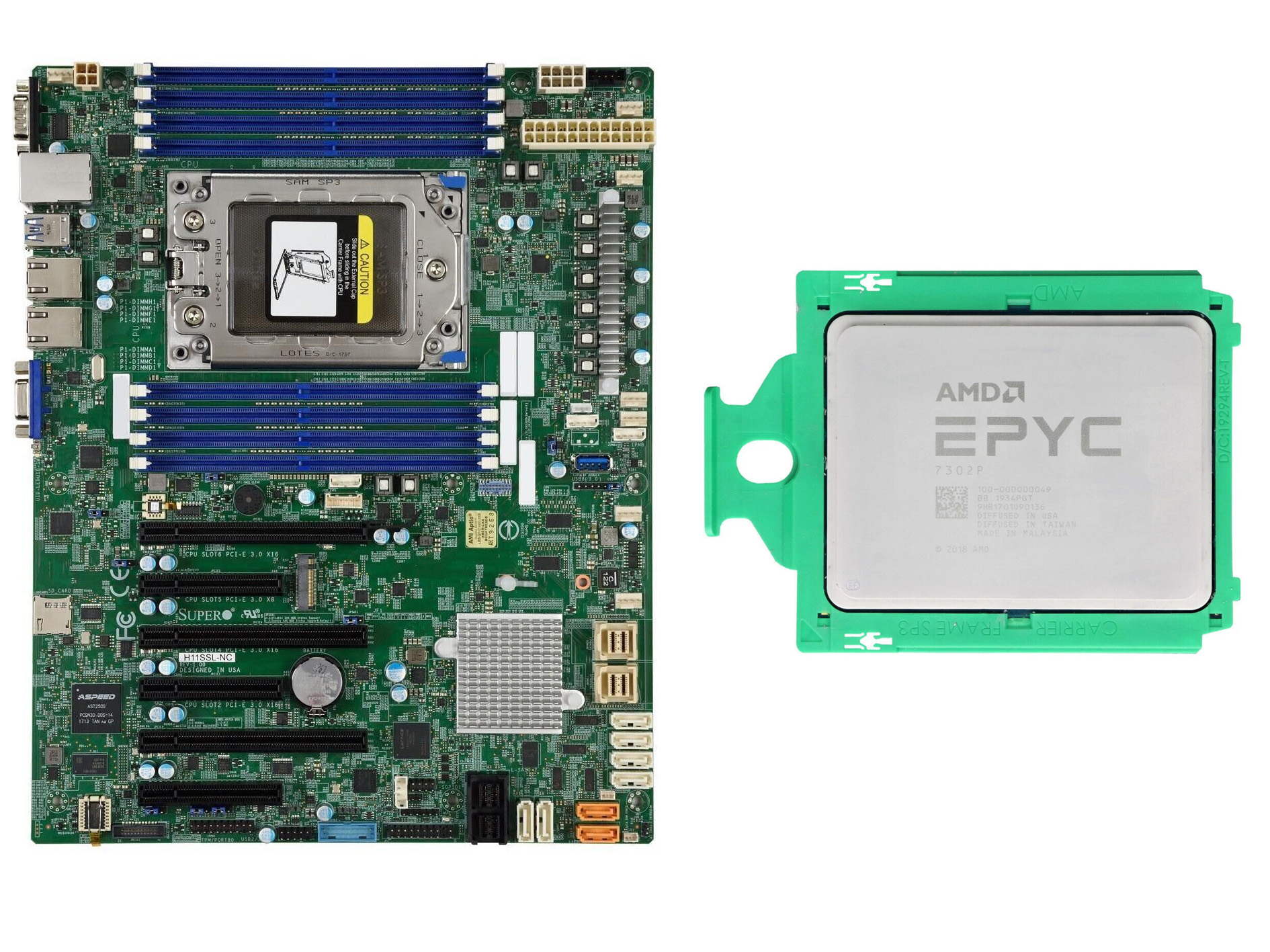

AMD EPYC 7302p 6 core 32 thread 3.0 GHz CPU + Supermicro H11SSL-c Motherboard

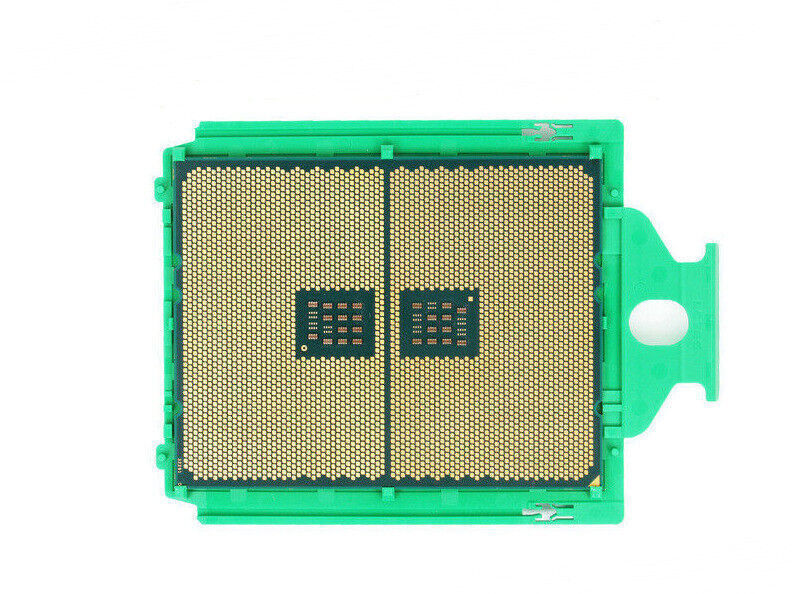

AMD EPYC™ 7302P CPU

General Specifications
Platform
Server
Product Family
AMD EPYC™
Product Line
AMD EPYC™ 7002 Series
# of CPU Cores
16
# of Threads
32
Max. Boost Clock
Up to 3.3GHz
Base Clock
3.0GHz
L3 Cache
128MB
1kU Pricing
825 USD
Default TDP
155W
CPU Socket
SP3
Socket Count
1P
Connectivity
PCI Express® Version
PCIe 4.0 x128
System Memory Type
DDR4
Memory Channels
8
System Memory Specification
Up to 3200MHz
Per Socket Mem BW
204.8 GB/s
Product IDs
Product ID Boxed
100-100000049WOF
Product ID Tray
100-000000049
Key Features
Supported Technologies

AMD Infinity Architecture
Workload Affinity
EDA
Media streaming
Value per core CAE/CFD/FEA

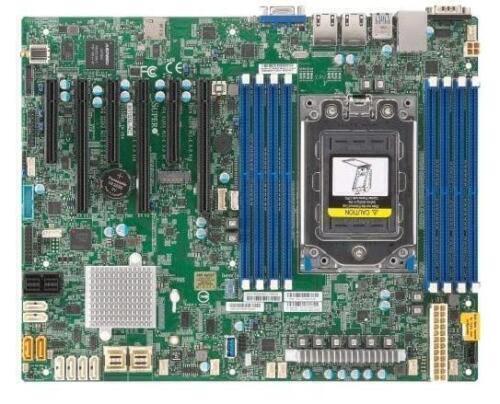

Motherboard:

Product SKUs

MBD-H11SSL-C
  • H11SSL-C
MBD-H11SSL-C-B
  • H11SSL-C (Bulk Pack)
MBD-H11SSL-C-O
  • H11SSL-C (Retail Pack)


Physical Stats

Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.5cm x 24.4cm)


Processor/Chipset

CPU
  • Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required)
  • Socket SP3
Cores
  • Up to 32 Cores
  • Up to 64 Cores (Board revision 2.x required)
Chipset
  • System on Chip


System Memory

Memory Capacity
  • 8 DIMM slots
  • Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)


On-Board Devices

SATA
  • SATA3 (6 Gbps)
SAS
  • Broadcom 3008 SAS3 (12 Gbps) controller
  • RAID 0, 1, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • 2 1GbE LAN via Intel® I210
  • 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
  • ASPEED AST2500 BMC


Input / Output

SAS
  • 8 SAS3 (12 Gbps) ports
SATA
  • 8 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports
    (2 rear + 2 via header + 1 Type A)
  • 4 USB 2.0 ports (2 rear + 2 via header)
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • 1 TPM 2.0 header


Expansion Slots

PCI-Express
  • 3 PCI-E 3.0 x8
  • 3 PCI-E 3.0 x16

M.2
  • Interface: PCI-E 3.0 x4
  • Form factor: 2280, 22110

  • Key: M-key

Chassis ( Optimized for H11SSL-C )

1U
2U
3U
4U



Server(s) ( with H11SSL-C )

Model(s)


System BIOS

BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1


Management

Software
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery


PC Health Monitoring

CPU
  • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby
  • CPU switching voltage regulator
  • Supports system management utility
  • VBAT
FAN
  • Up to 7-fan status tachometer monitoring
  • Up to 7 4-pin fan headers
  • Dual Cooling Zone
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 7x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • UID



Operating Environment / Compliance

Environmental Specifications
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
