【LCD SCREEN DISPLAY & REMOTE MONITORING】- Built-in Bluetooth module, you can download the ‘’ChargePro 2.0'' (new version) or the "PVChargePro'' (old version) app for remote monitoring that keeps 300 days of historical data. HQST 48V 60A solar controller is equipped with an LCD screen and LED fault indicators, which can not only check device operating data and status but quickly determine system faults and modify controller parameters.
【LOW TEMPERATURE PROTECTION FOR LI BATTERY】- HQST 60 Amp MPPT negative grounded controller offers overcharging/over-discharging/overload/overheat/short circuit/reverse protection and Lithium battery low-temperature protection. The maximum degree avoids the damage due to system fault or installation error. The BMS of low temp protection for Li battery automatically identifies low temperature, stops charging Li battery, and protects its life. This function can be switched on and off manually.
【PARALELL CHARGE FUNCTION】- 2 HQST MPPT controllers of the same series(M2420N/M2440N/M4860N) can work together to charge the same battery with the parallel charge cable (not included), to meet high power charging requirements and 2 controllers should set the same battery pack voltage. Compatible with Flooded, AGM, Gel, and Lithium batteries. User mode allows the buyer to set their charging parameters. 3-Stage Charging: boost, float, and equalization.
[HIGHER HEAT DISSIPATION EFFICIENCY & FULL-LOAD WORKING] Die-cast aluminum heat sink makes the heat dissipation efficiency higher, which can minimize the power loss from heat. Filling inside the controller with gel is for better PCBA cooling conduction and prevents water and other damages, extending the controller service life. With the premium IC and better PCBA, this controller can work under full load even at high temperature environment.
【HIGH TRACKING EFFICIENCY】- 48V 60 amp solar charge controller adopts advanced MPPT technology that ensures fast and stable track of of the maximum power point, high tracking efficiency of up to 99%, and peak conversion efficiency of 98%. Maximizing the energy from solar panels to charge your system. Automatically detects 12V, 24V, 36V, or 48V DC system voltages, which is suitable for RVs, Commercial Vehicles, Boats, Yachts, and any off-grid system.
Specifications:
Battery System Voltage: 12V/24V/36V/48V
Max Solar Charge Current: 60 Amp
Max Load Output Current: 20 Amp
Max PV Input Voltage: 150 Voc
Self-consumption: 12mA/12V; 10mA/24V; 8mA/36V; 6mA/48V;
Max PV Input Power: 900W/12V; 1800W/24V; 2600W/36V; 3200W/48V
Operating Temperature: -31℉ ~ 113℉
Communication Port: RS485
Net Weight: 10 lbs
Model: M4860N
Auto-recognition of 12V/24V/36V/48V battery system
Auto-recognition of 12V/24V/36V/48V battery system.
Built-in Bluetooth module for APP operation (support Chinese, English, Spanish).
Oversize heating sinks for efficient natural heat dissipation.
Support the parallel connection of two units of the same series ( M2420N/ M2440N/M4860N).
The low-temperature protection for lithium battery function extends the battery life.
Gel-filled inside to protect PCBA, improve charging capability and prolong controller life.
Battery temperature compensation function.
Compatible with sealed, gel, flooded, and lithium batteries.
Multiple electronic protections: overcharge/over-discharge/overheat/reverse/overload/short-circuit protection.

Package Included:
1 x 60A MPPT Solar Charge Controller
1 x Temperature Sensor
1 x User Manual

Wiring Two MPPT Controllers of the Same Series in Parallel

Two units of the same series(M2420N/M2440N/M4860N) could work together to charge the same battery bank through the parallel charge cable(parallel cables are NOT included). You can combine 20A+40A, 20A+60A, 40A+60A, 20A+20A, 40A+40A, 60A+60A.

Higher Heat Dissipation Efficiency and Charging Power

The 60A MPPT solar controller filled with gel inside is more efficient to dissipate heat. Compared with conventional MPPT controllers, the HQST controllers can increase the charging capacity by at least 8% at high temperature.

After testing, under the same full load, the charging power of conventional 60A MPPT controllers decreased by 60% after 20 minutes, and the charging power of the HQST 60A MPPT controller only decreased by 8% after 90 minutes of operation.

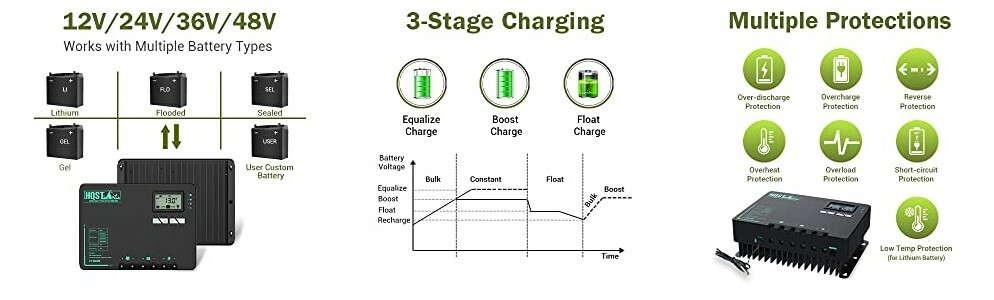

Compatible with Multiple Battery Types

HQST 60 amp mppt solar charge controller is compatible with flooded, agm, gel, lithium batteries.

3-Stage Charging

48V solar charge controller features 3-stage charging: equalize charging, boost charging, and float charging.

Multiple Protection Functions

Lithium batteries are charged at low temperature (below 0℃) or discharged at ultra-low temperature (below -15℃) will reduce the life cycle of the battery. Low temperature protection for Li battery can automatically recognize the low temperature to stop charging the battery, and protect the battery life.

Die-cast Aluminum Design
Die-cast aluminum heat sink allows for efficient natural heat dissipation.

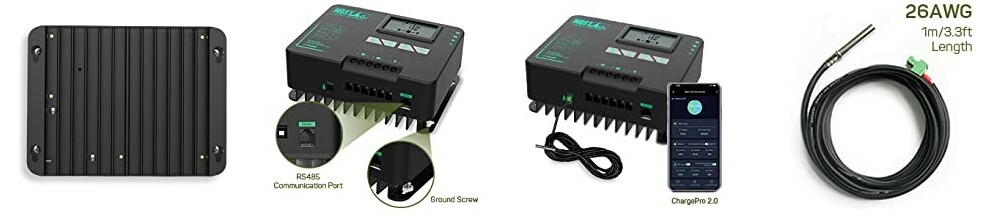

RS485 Communication POTS
Support for external LCD screen/ Bluetooth module.
Built-in Bluetooth Module
Easy for checking real-time data and setting parameters via mobile phone APP that keeps 300 days of historical data.
Temperature Sensor
It senses the environment temperature. Put this sensor near the battery.

Manual of the Controller Manual of the APP
