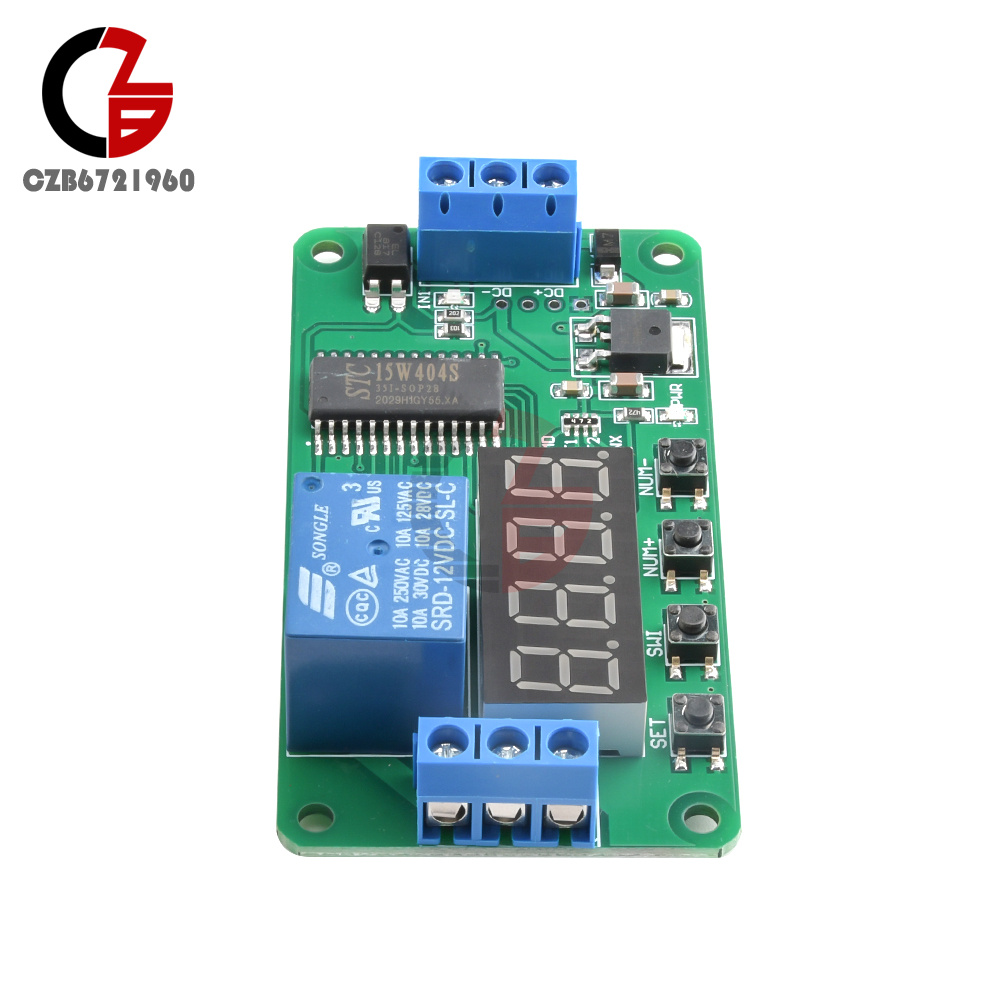

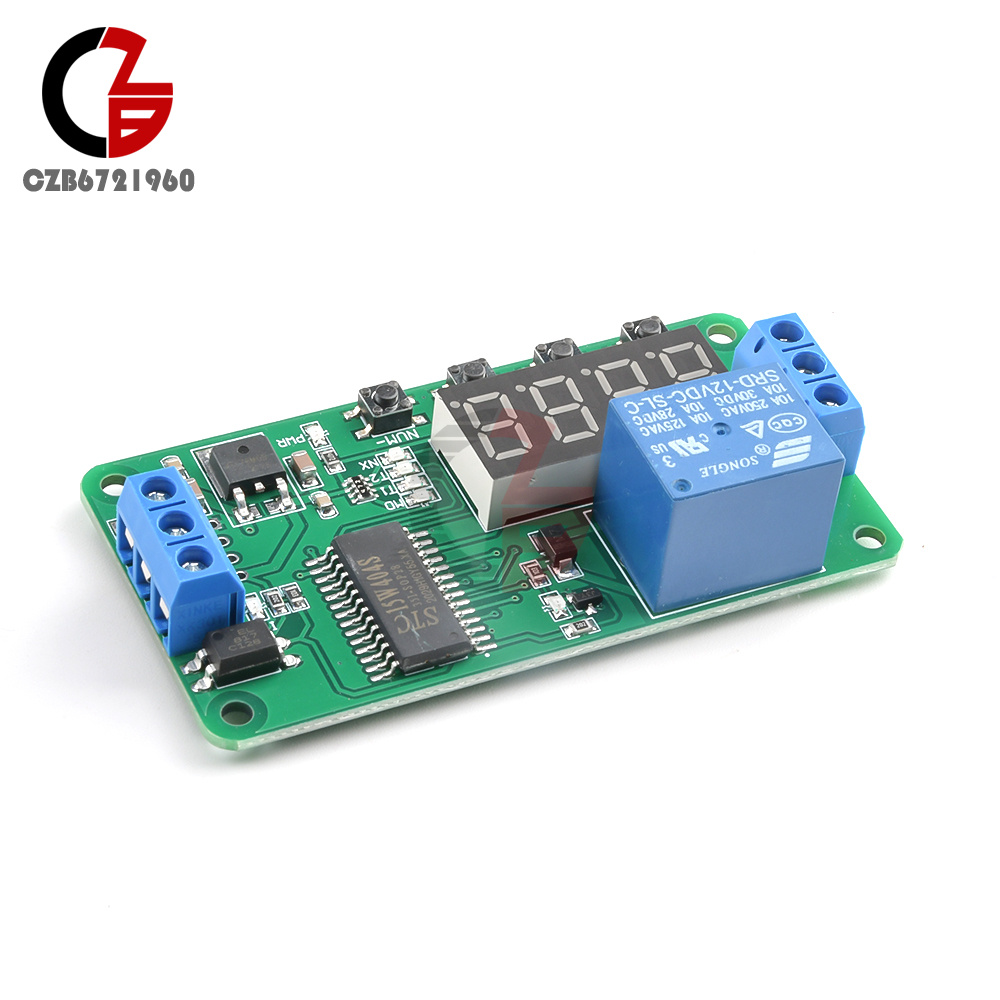

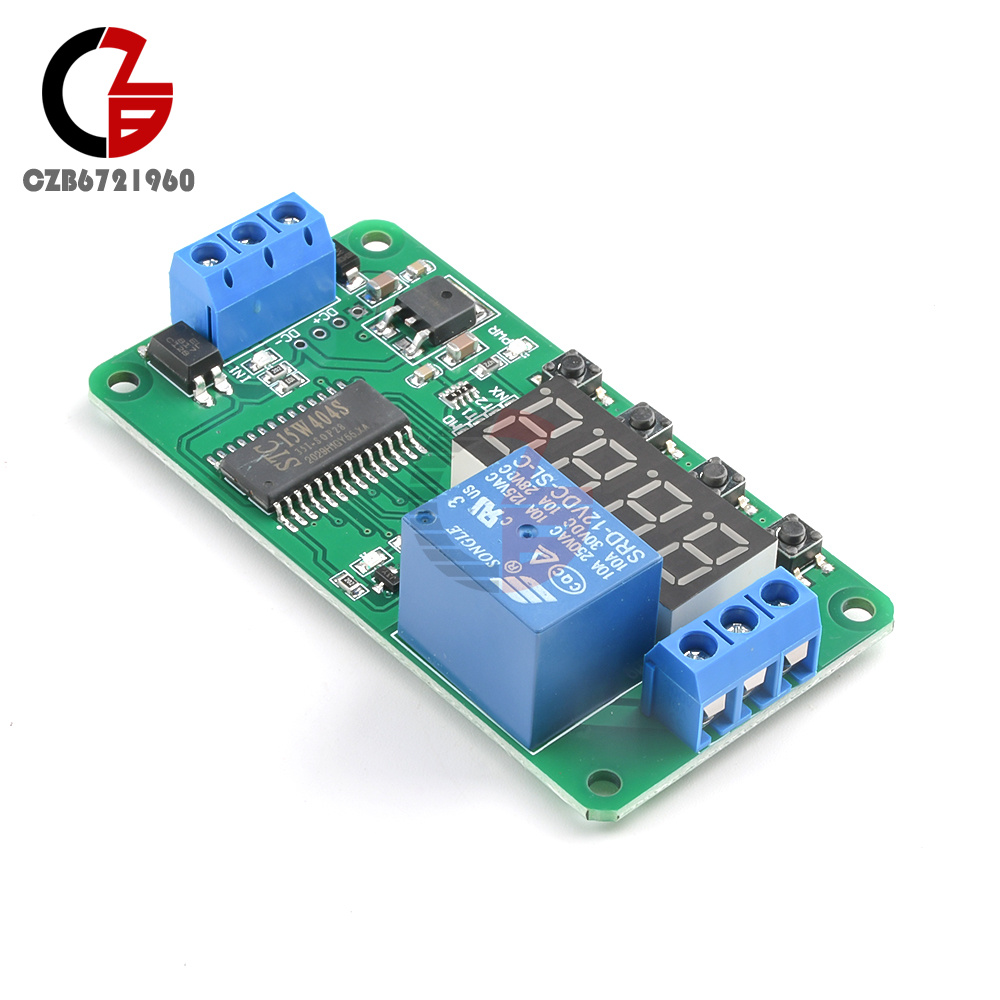

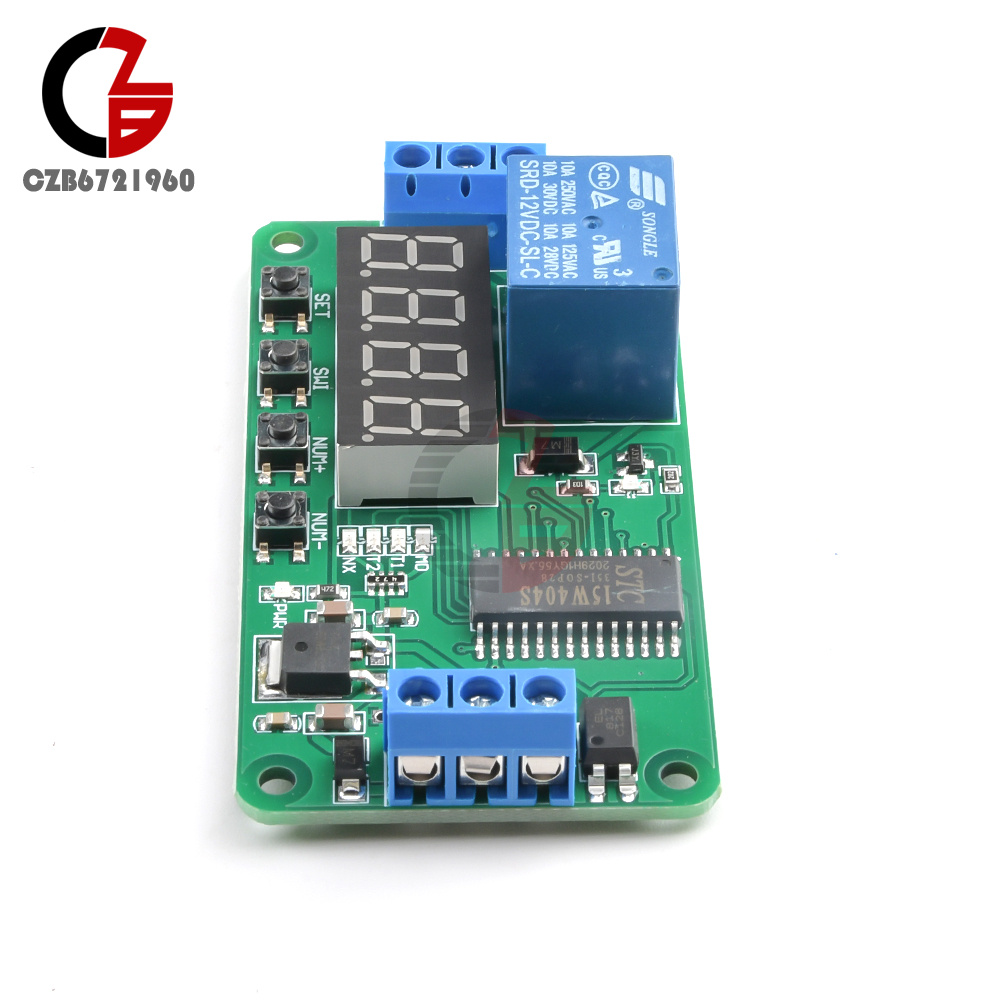

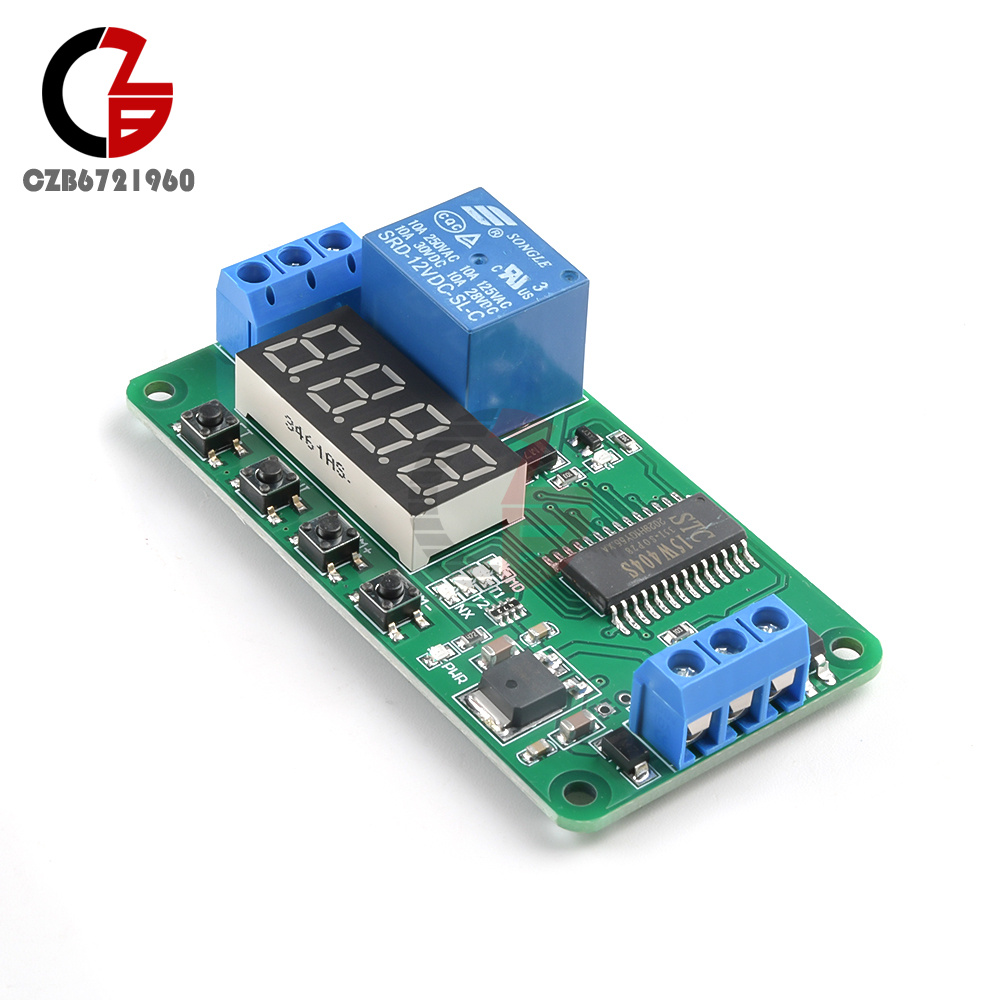

Multifunction Self-lock DC12V Relay Time Delay PLC Cycle Timer Module Switch
Popular
Product Introduction
Feature:
1. 18 kinds of module functions to meet the needs of more application
2.Low level triggered, opto-isolated inputs
3.Increasing the supply anti-reverse feature, power will not damage the module wrong
4.Using high-quality power supple modules, discrete power supply before replacing the system more stable and reliable
5.Increasing in aytomatic power saving feature, users can independently set
Specification:
Dimension: 75x44x16mm
Voltage: DC 12V
Applications: Home lighting system, Remote control switch, Remote locking, Smart Home / Home, Automation, DC 12V LED lighting, Fluorescent lamp, 12V DC Motor, Fluorescent lamp, Automotive electronics, Industrial automation and control

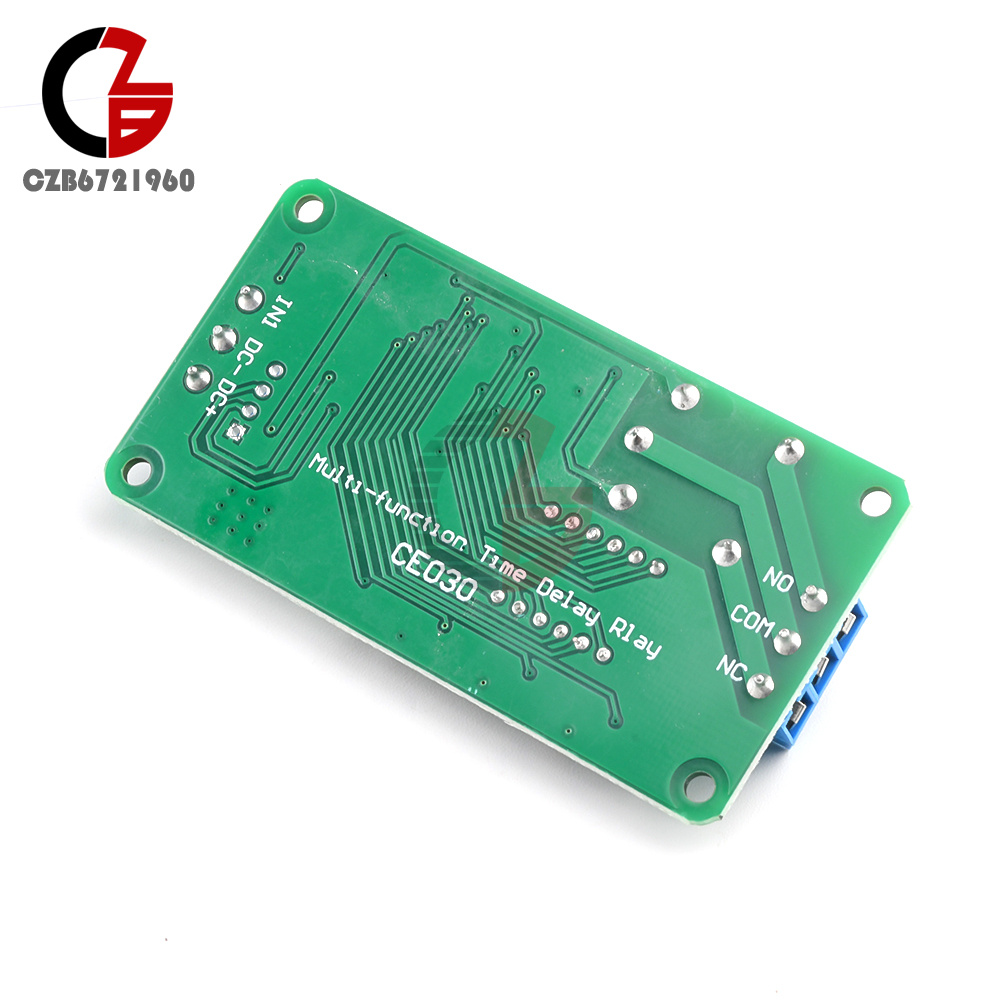

Connections:
Module control side: there are 3-wire interface, all interfaces are terminal
1. DC +:12V positive
2. DC-: power in negative
3. CH1: Input Detection Interface
Relay outputs: a 3-wire interface, all interfaces are terminal
1. NO: normal open (before relay closes, this pin is not connected. after relay closes, the pin short-connects with COM)
2. COM: Relay Common Interface
3. NC: Normal closed (before relay closes, this pin short-connect with COM. after relay closes, the pin is not connected )
Package included:
1. 18 kinds of module functions to meet the needs of more application
2.Low level triggered, opto-isolated inputs
3.Increasing the supply anti-reverse feature, power will not damage the module wrong
4.Using high-quality power supple modules, discrete power supply before replacing the system more stable and reliable
5.Increasing in aytomatic power saving feature, users can independently set
Specification:
Dimension: 75x44x16mm
Voltage: DC 12V
Applications: Home lighting system, Remote control switch, Remote locking, Smart Home / Home, Automation, DC 12V LED lighting, Fluorescent lamp, 12V DC Motor, Fluorescent lamp, Automotive electronics, Industrial automation and control
Connections:
Module control side: there are 3-wire interface, all interfaces are terminal
1. DC +:12V positive
2. DC-: power in negative
3. CH1: Input Detection Interface
Relay outputs: a 3-wire interface, all interfaces are terminal
1. NO: normal open (before relay closes, this pin is not connected. after relay closes, the pin short-connects with COM)
2. COM: Relay Common Interface
3. NC: Normal closed (before relay closes, this pin short-connect with COM. after relay closes, the pin is not connected )
Package included:

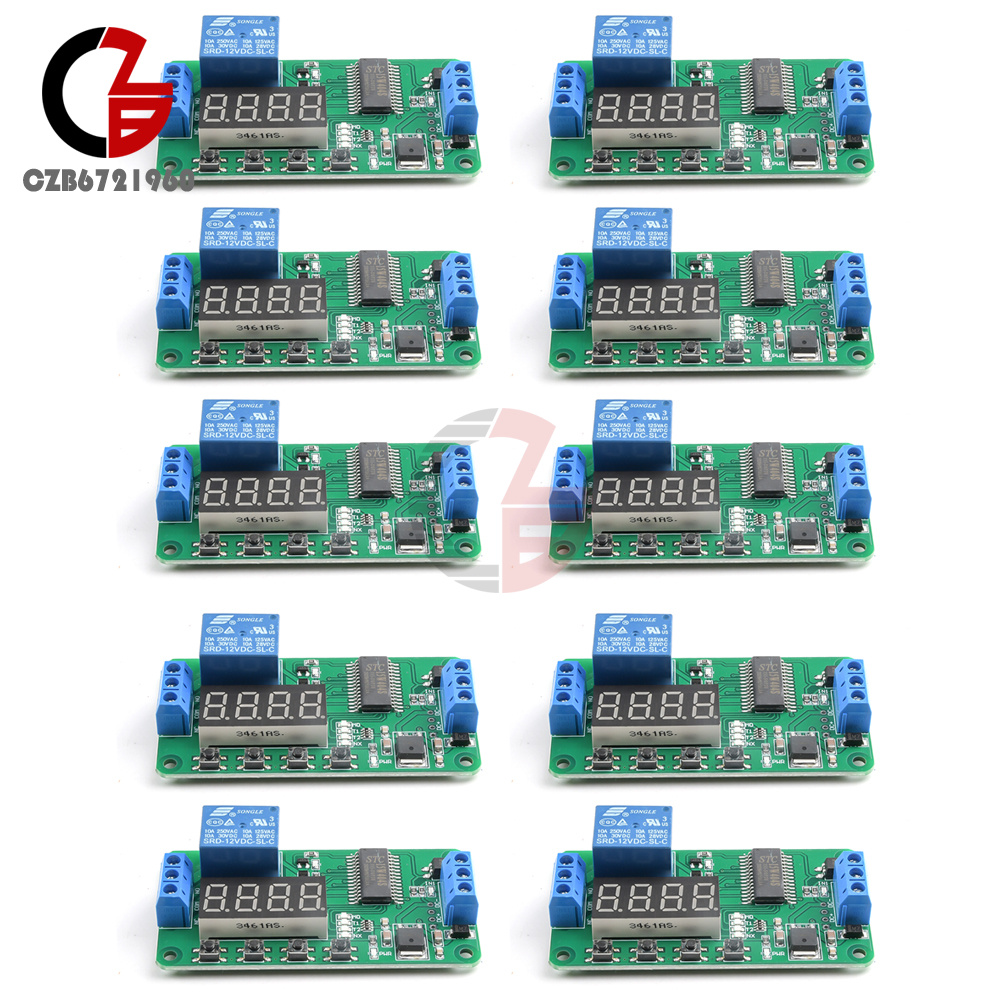

1/2/5/10PCS Multi-function Time Delay Relay
