Cycle Delay AC110V 120V 220V 230V Timing Timer Relay Switch ON/OFF Button Module
Popular
Product Introduction
Description:
This timer relay on off cycle module is designed with high precision. It has a 0.5s~1000min wide adjustable time range, and you can adjust the delay time according to your need both at "RUN" time and "STOP" time, which will surely bring great convenience to you. And the module supports start/stop function, so the relay works according to the setting run and stop time. Besides, you can use this module on timer operating equipment, machine repetitive test circuit and fish tank intermittent pump.
This timer relay on off cycle module is designed with high precision. It has a 0.5s~1000min wide adjustable time range, and you can adjust the delay time according to your need both at "RUN" time and "STOP" time, which will surely bring great convenience to you. And the module supports start/stop function, so the relay works according to the setting run and stop time. Besides, you can use this module on timer operating equipment, machine repetitive test circuit and fish tank intermittent pump.
Features:
AC 100V~250V voltage, can be used for 100V/110V/ 120V/ 127V/220V/230V/240V power

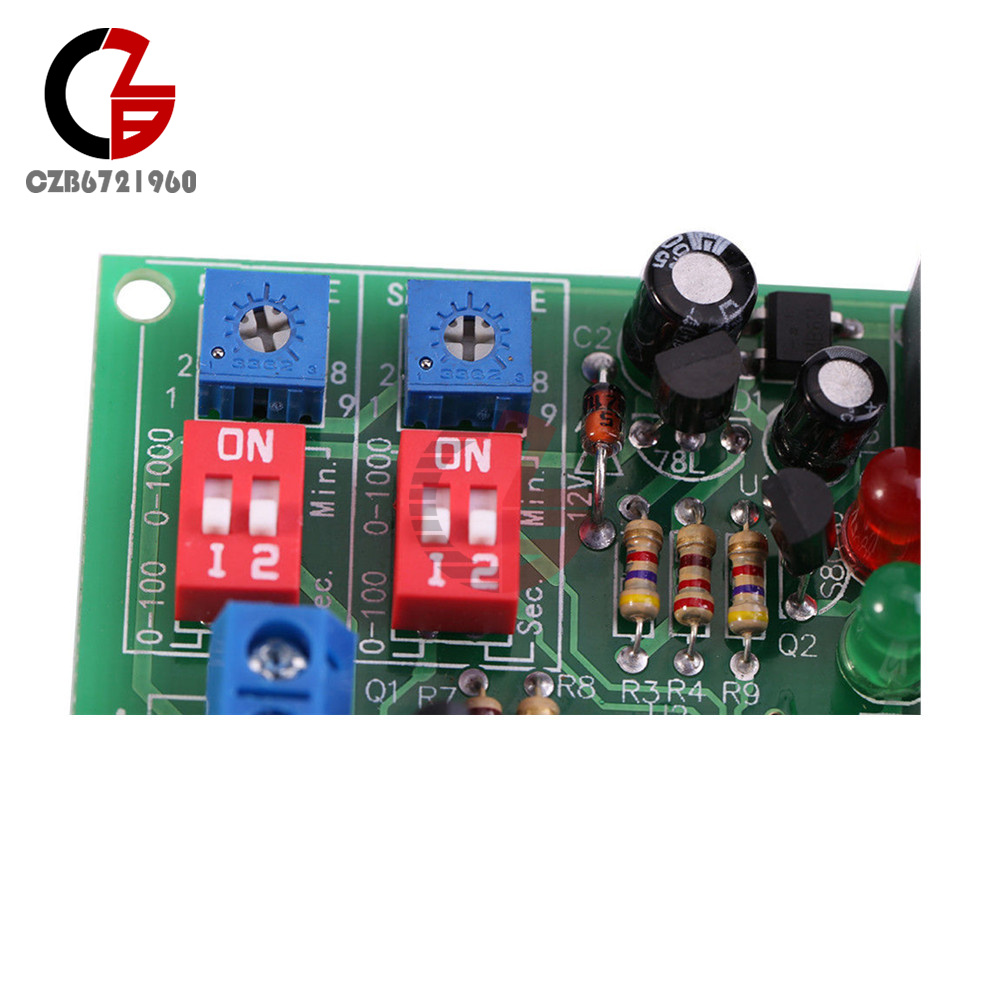

0.5s~1000min wide adjustable time range, you can adjust the delay time both at "RUN" time and "STOP" time
Module enters into an infinite cycle mode when power on, and stops working automatically after the setting time, easy to operate
Can be used to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test
Suitable for timer operating equipment, machine repetitive test circuit and fish tank intermittent pump
AC 100V~250V voltage, can be used for 100V/110V/ 120V/ 127V/220V/230V/240V power
0.5s~1000min wide adjustable time range, you can adjust the delay time both at "RUN" time and "STOP" time
Module enters into an infinite cycle mode when power on, and stops working automatically after the setting time, easy to operate
Can be used to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test
Suitable for timer operating equipment, machine repetitive test circuit and fish tank intermittent pump
Specifications:
Voltage: AC 100V~250V
Power: <1.0W

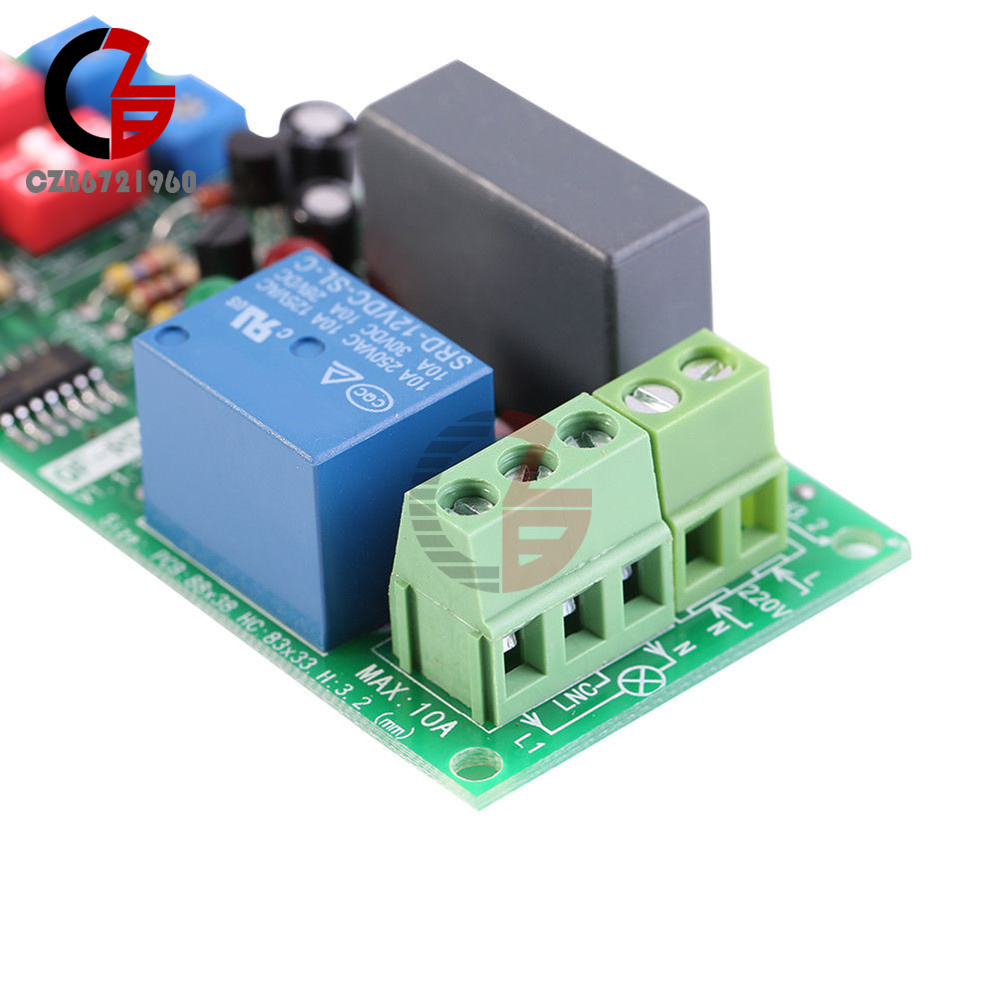

Output: Active output, output voltage equals to input voltage.
Max. Output Current: <10A
Input: Passive switch input, green led lights up after turn on, red led lights up after stop
Time Range: 0.5sec. to 1000min.
Time Accuracy: Max. range valuex0.001

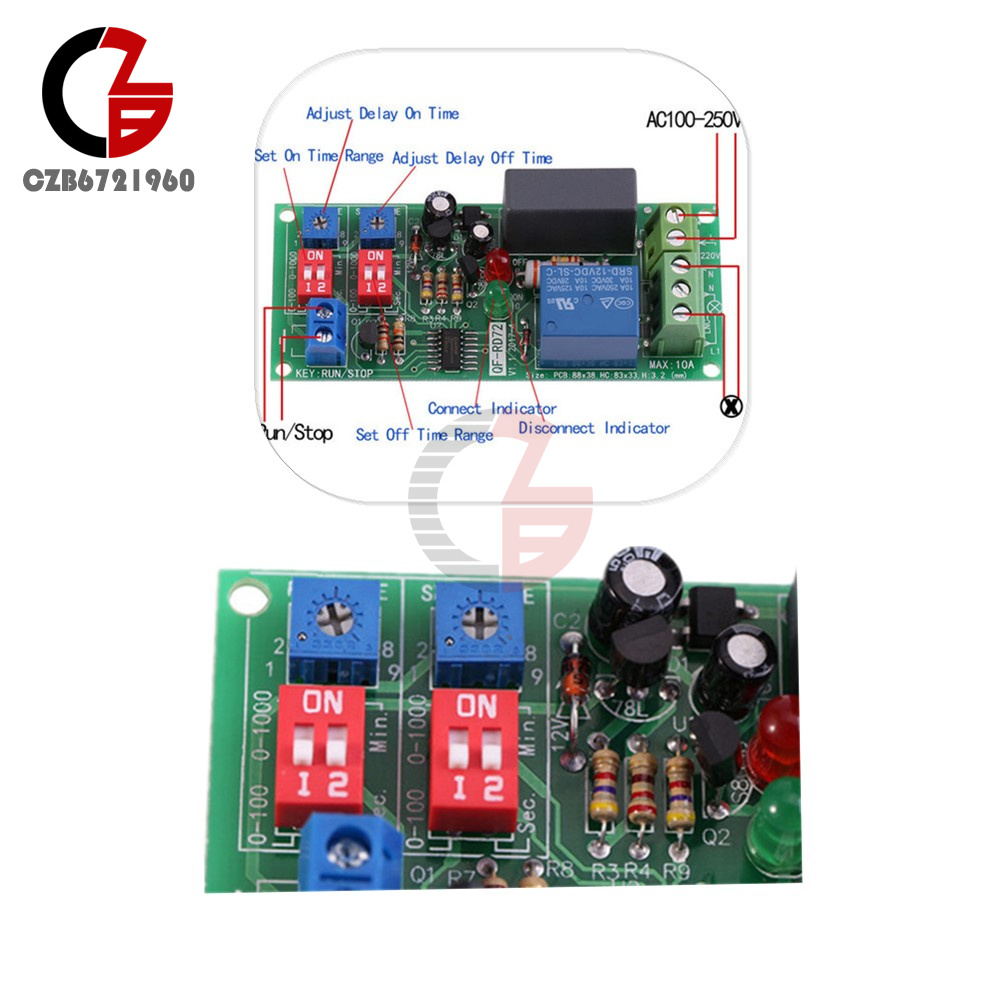

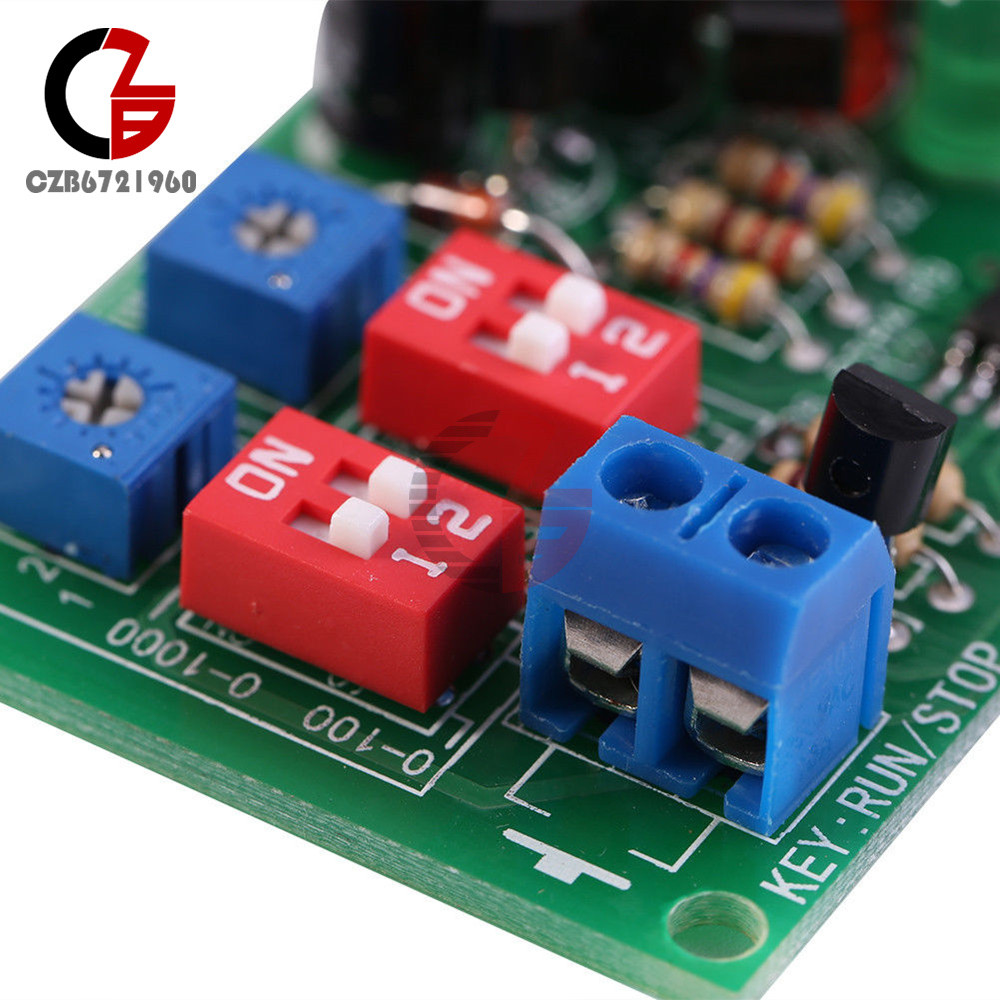

Input(start button): Passive switch input, green led lights up after turn on, red led lights up after stop
Start input is not necessary. Connect these 2 terminals and then the board will cycle infinitely after power on.

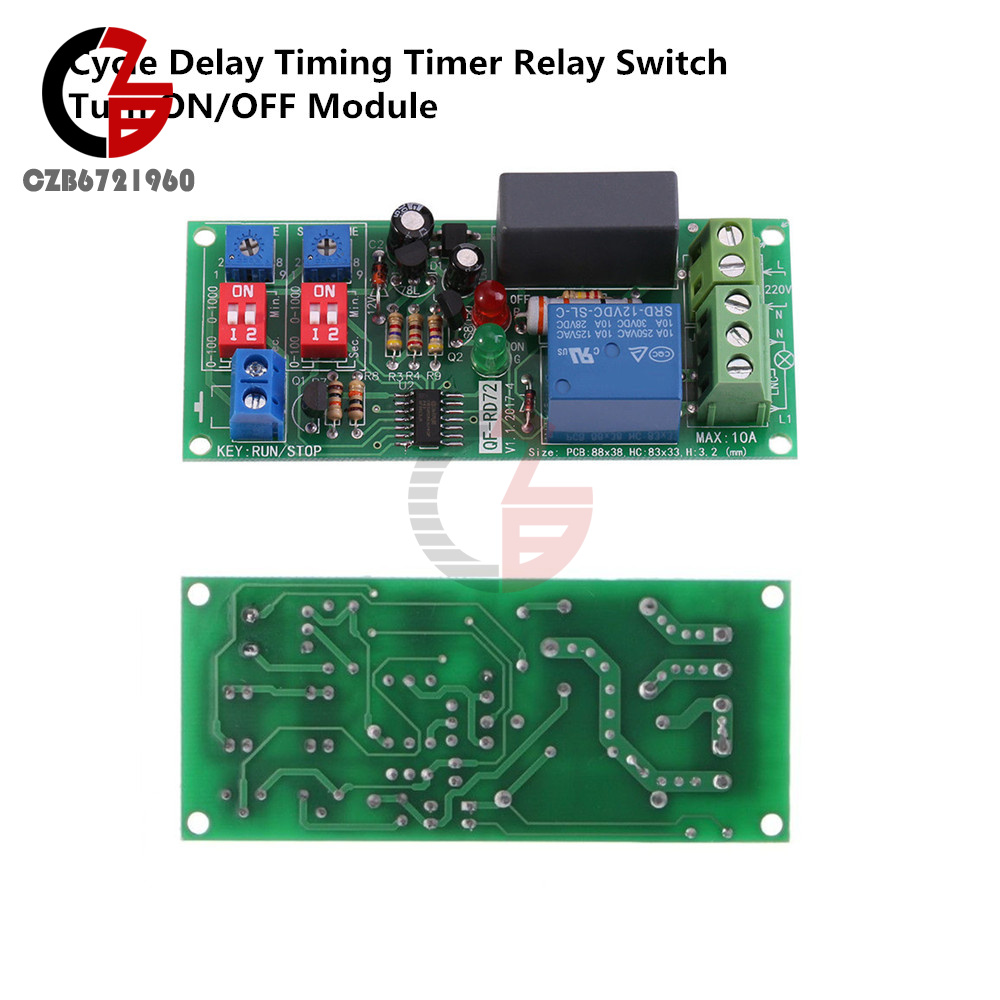

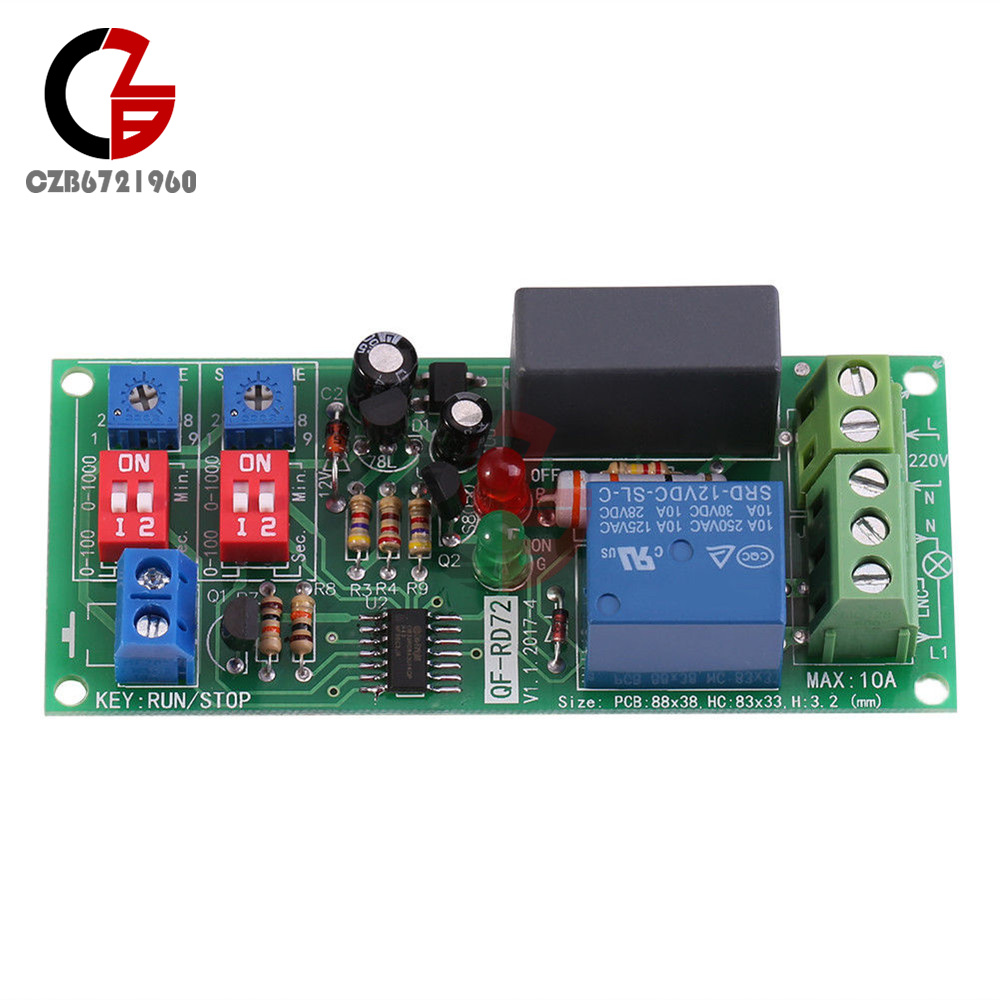

Size: 88x38mm/3.46x1.49"
Quantity: 1Pc
Voltage: AC 100V~250V
Power: <1.0W
Output: Active output, output voltage equals to input voltage.
Max. Output Current: <10A
Input: Passive switch input, green led lights up after turn on, red led lights up after stop
Time Range: 0.5sec. to 1000min.
Time Accuracy: Max. range valuex0.001
Input(start button): Passive switch input, green led lights up after turn on, red led lights up after stop
Start input is not necessary. Connect these 2 terminals and then the board will cycle infinitely after power on.
Size: 88x38mm/3.46x1.49"
Quantity: 1Pc
Note:
Manual measuring, please allow 1-2cm error,thank you.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!!
Manual measuring, please allow 1-2cm error,thank you.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!!
Package includes:

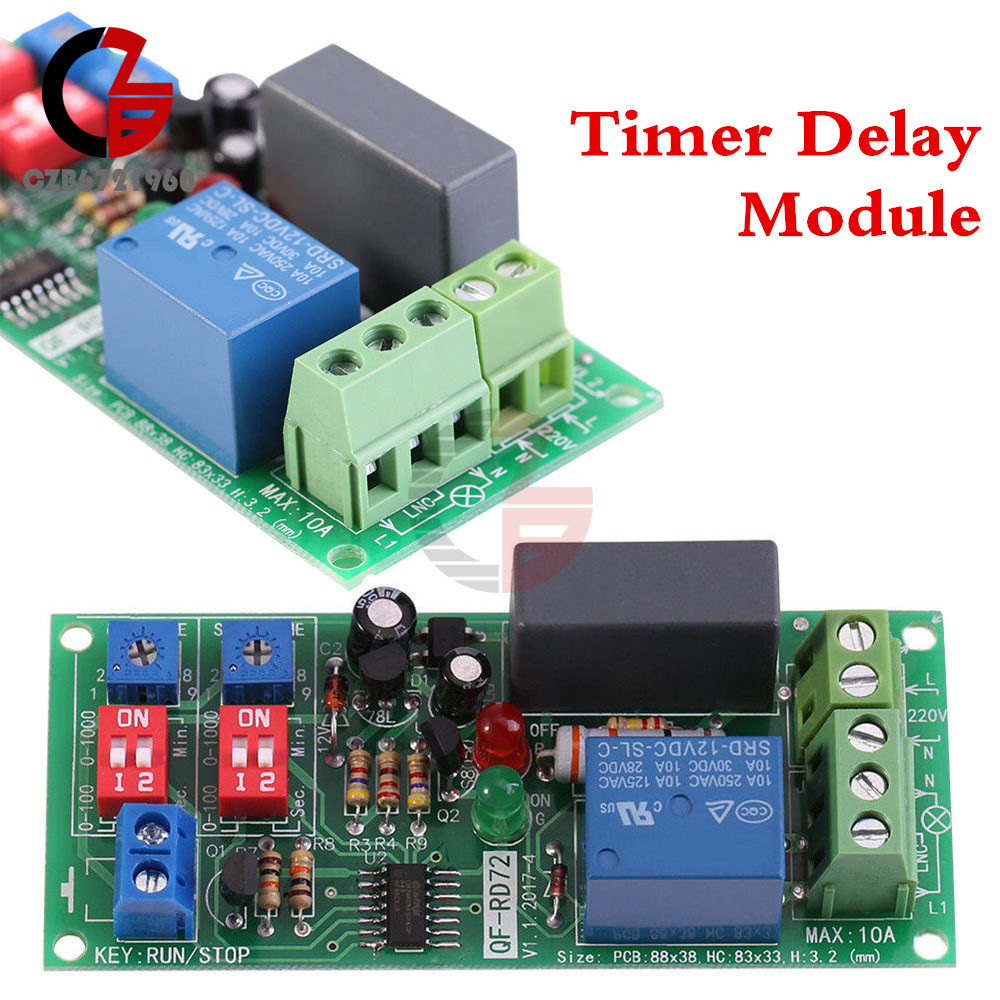

1 x Timer Delay Module
