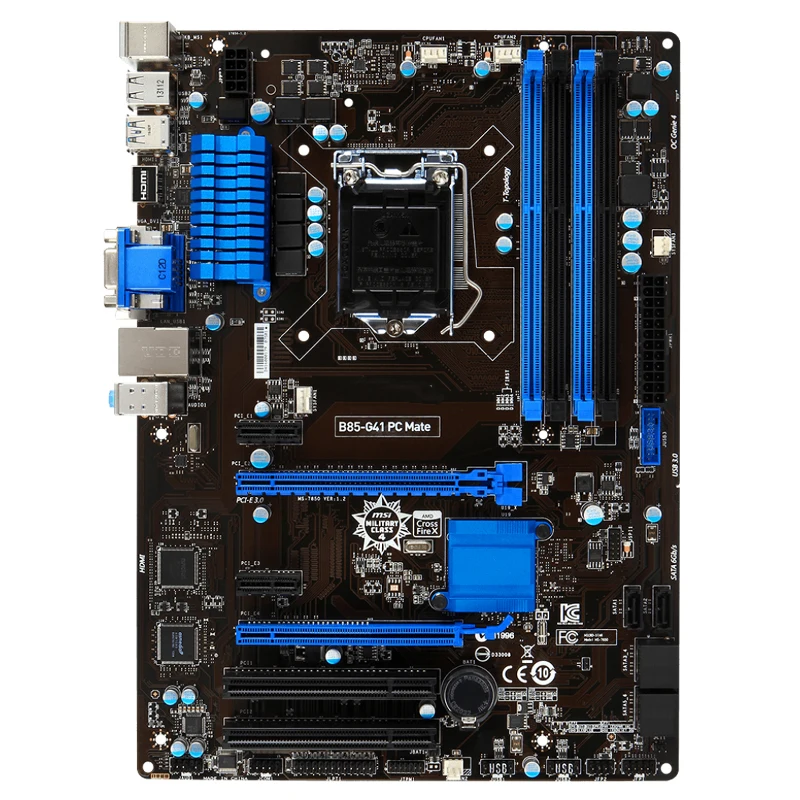

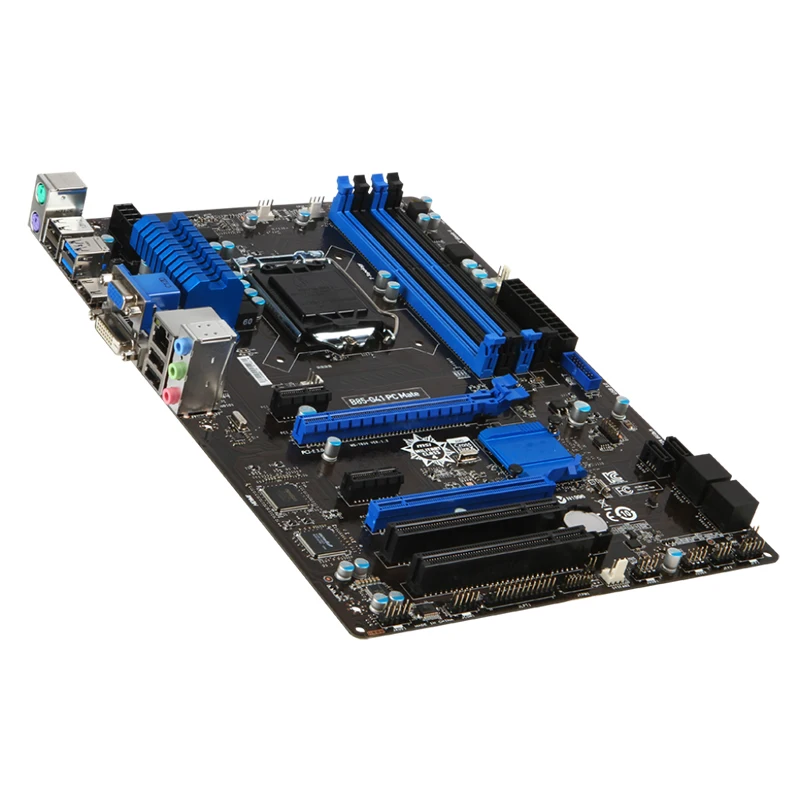

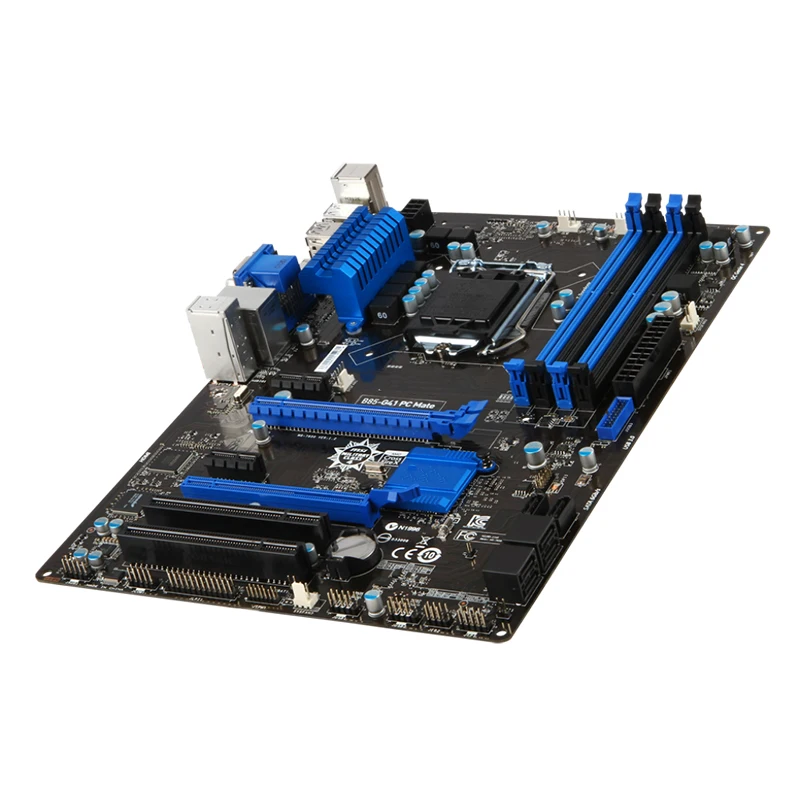

MSI B85-G41 PC Mate detailed parameters
Motherboard chip:
Integrated chip: sound card/network card
Main chipset: Intel B85
Chipset description:using Intel B85 chipset
Display chip: CPU built-in display chip (requires CPU support)
Audio chip: integration Realtek ALC887 8-channel sound effect chip
Network card chip: board Realtek RTL8111G Gigabit network card
Processor specifications:
CPU type: Core i7/i5/i3/Pentium/Celeron
CPU slot: LGA 1150
Memory specifications:
Memory type: 4 × DDR3 DIMM
Maximum memory capacity: 32GB
Memory description: supports dual channel DDR3 1600/1333/1066MHz memory
Storage Expansion:
PCI-E standard: PCI-E 3.0
PCI-E slot: 2 × PCI-E X16 graphics card slot, 2 × PCI-E X1 slot
PCI slot: 2 × PCI slot
Storage interface: 4 × SATA III interface, 2 × SATA II interface

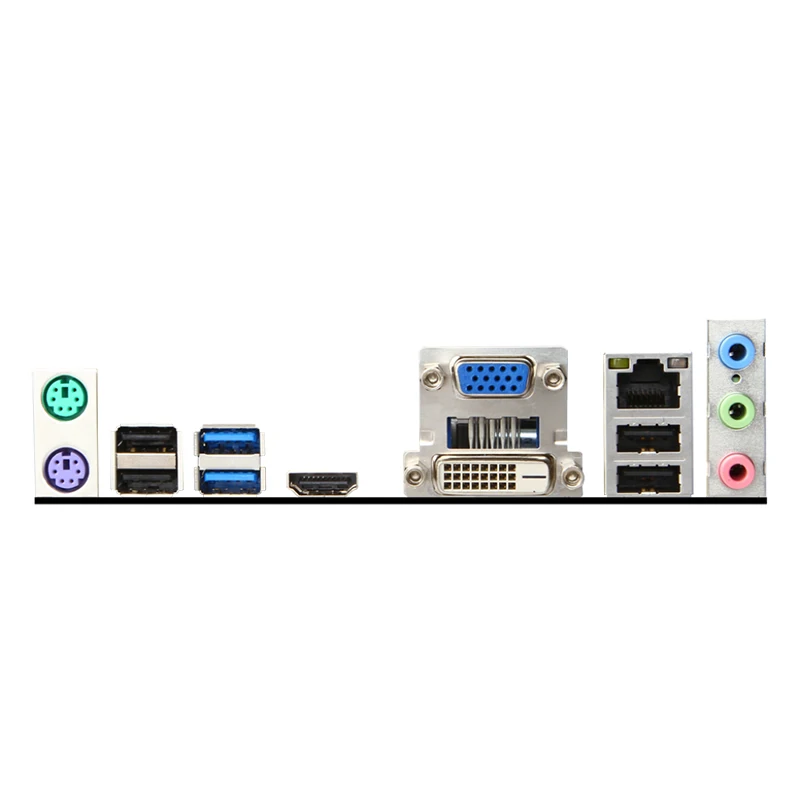

I/O interface:
USB interface: 4 × USB3.0 interface (2 built-in+2 backplane), 8 × USB2.0 interface (4 built-in+4 backplane)
Video interface: 1 × DVI interface, 1 × VGA interface, 1 × HDMI interface
1x 8-pin power interface and 1x 24-pin power interface
Other interfaces: 1 × RJ45 network interface, audio interface, 1 × PS/2 mouse, 1 × PS/2 keyboard interface
Plate type:
Main board type: ATX board type
External dimensions: 30.5 × 22.0cm
Other parameters:
Multi graphics card technology: supports AMD CrossFireX hybrid fire technology
