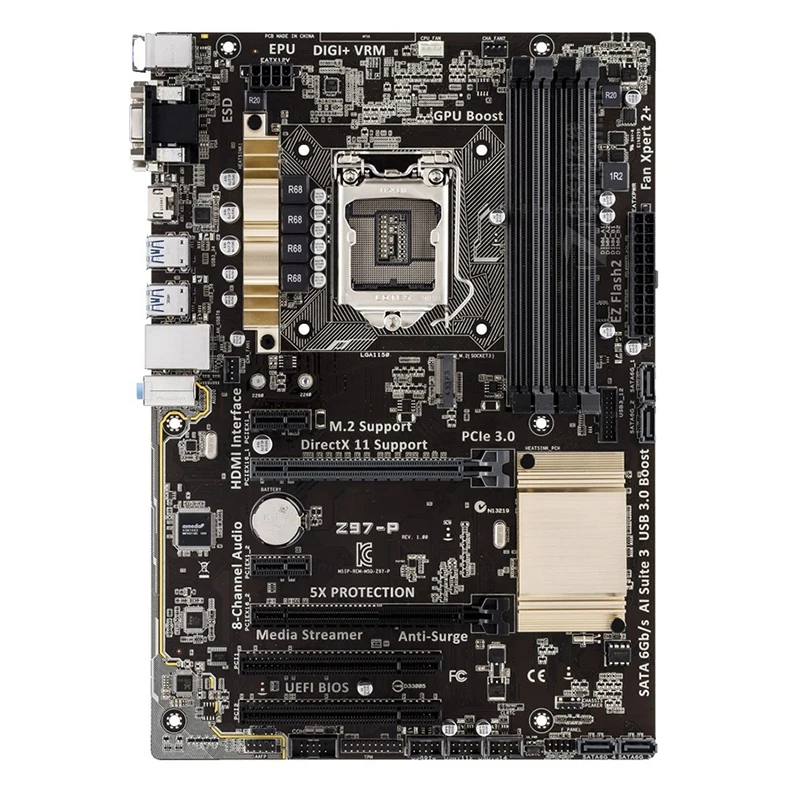

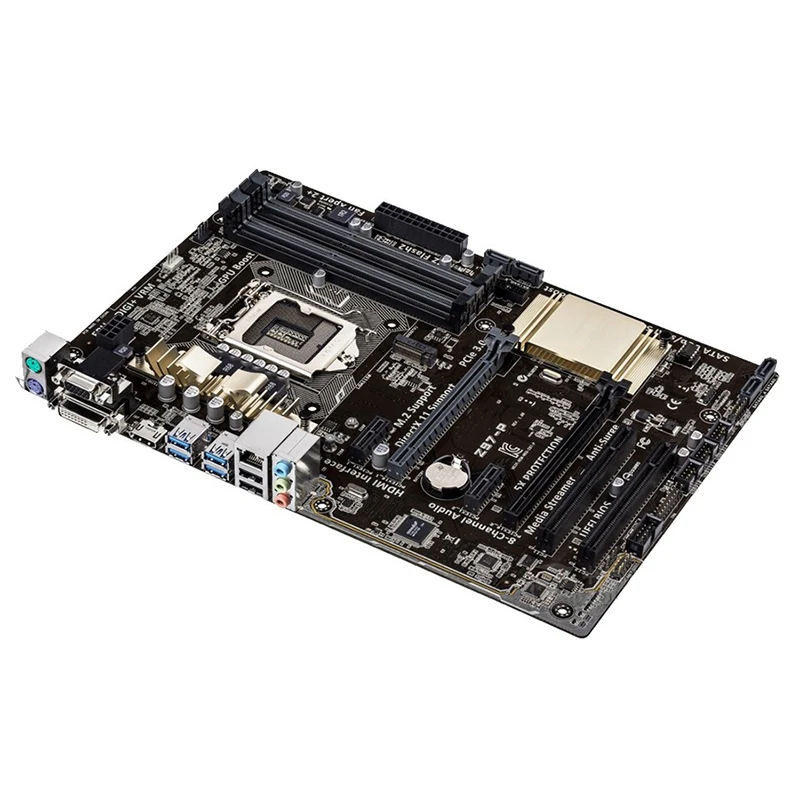

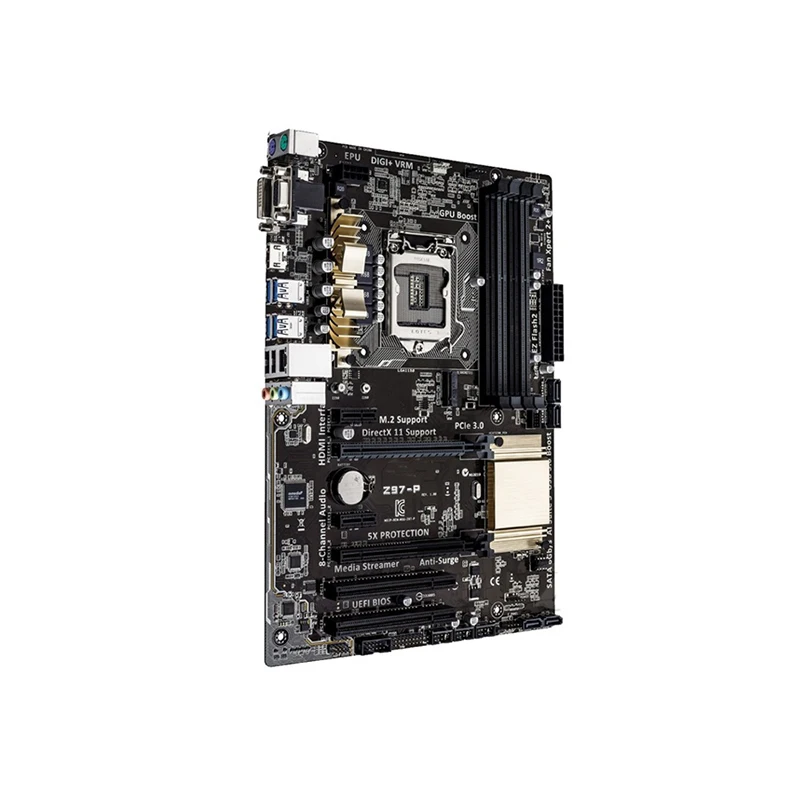

Note: This motherboard has been used( 90% New ), we will test 100% before Shipping (without battery)
Motherboard chip:
Integrated chip: sound card/network card
Main chipset: Intel Z97
Chipset description: using Intel Z97 chipset
Display chip: CPU built-in display chip (requires CPU support)
Audio chip: integration Realtek 8-channel sound effect chip
Network card chip: board Realtek RTL8111GR Gigabit network card
Processor specifications:
CPU type: Core i7/i5/i3/Pentium/Celeron
CPU slot: LGA 1150
CPU description: supports Intel 22nm processors
Memory specifications:
Memory type: 4 × DDR3 DIMM
Maximum memory capacity: 32GB
Memory description: supports dual channel DDR3 3200 (overclocking)/3100 (overclocking)/3000 (overclocking)/2933 (overclocking)/2800 (overclocking)/2666 (overclocking)/2600 (overclocking)/2400 (overclocking)/2250 (overclocking)/2200 (overclocking)/2133 (overclocking)/2000 (overclocking)/1866 (overclocking)/1600/1333MHz memory
Storage Expansion:
PCI-E standard: PCI-E 3.0
PCI-E slot: 2 × PCI-E X16 graphics card slot, 2 × PCI-E X1 slot
PCI slot: 2 × PCI slot
Storage interface: 4 × SATA III interface

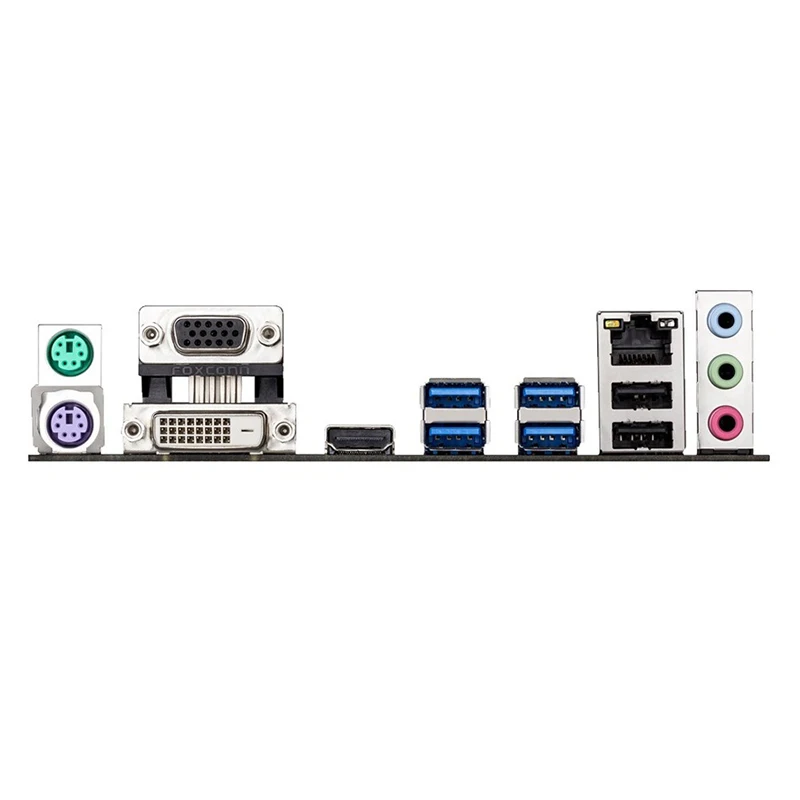

I/O interface:
USB interface: 6 × USB3.0 interface (2 built-in+4 backplane), 8 × USB2.0 interface (6 built-in+2 backplane)
Video interface: 1 × VGA interface, 1 × DVI interface, 1 × HDMI interface
1x 8-pin power interface and 1x 24-pin power interface
Other interfaces: 1 × RJ45 network interface, audio interface, 1 × TPM interface, 1 × PS/2 mouse, 1 × PS/2 keyboard interface, 1 × COM interface
Plate type:
Main board type: ATX board type
External dimension: 30.5 × 21.3cm
Software Management:
BIOS performance: 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, multi language BIOS, ASUS EZ Flash 2,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 Favorites, Quick Notes, History, F12 Screenshot, F3 Shortcuts, Memory SPD Information
Other parameters:
Power supply mode: four phase
Overfrequency function: support
RAID function: supports RAID 0, 1, 5, 10
