Motherboard chip:
Integrated chip: sound card/network card
Main chipset: Intel Z97
Chipset description: using Intel Z97 chipset
Display chip: CPU built-in display chip (requires CPU support)
Audio chip: integrated with SupremeFX 8-channel sound effect chip
Network card chip: onboard Intel I218V Gigabit network card

Processor specifications:
CPU type core: i7/i5/i3/Pentium/Celeron
CPU slot: LGA 1150

Memory specifications:
Memory type: 4 × DDR3 DIMM
Maximum memory capacity: 32GB
Memory description: supports dual channel DDR3 3000 (overclocking)/2933 (overclocking)/2800 (overclocking)/2666 (overclocking)/2500 (overclocking)/2400 (overclocking)/2200 (overclocking)/2133 (overclocking)/2000 (overclocking)/1866 (overclocking)/1600/1333MHz memory


Storage Expansion:
PCI-E standard: PCI-E 3.0
PCI-E slot: 3 × PCI-E X16 graphics card slot, 3 × PCI-E X1 slot
Storage interface:1 × M. 2 interfaces, 6 × SATA III interface

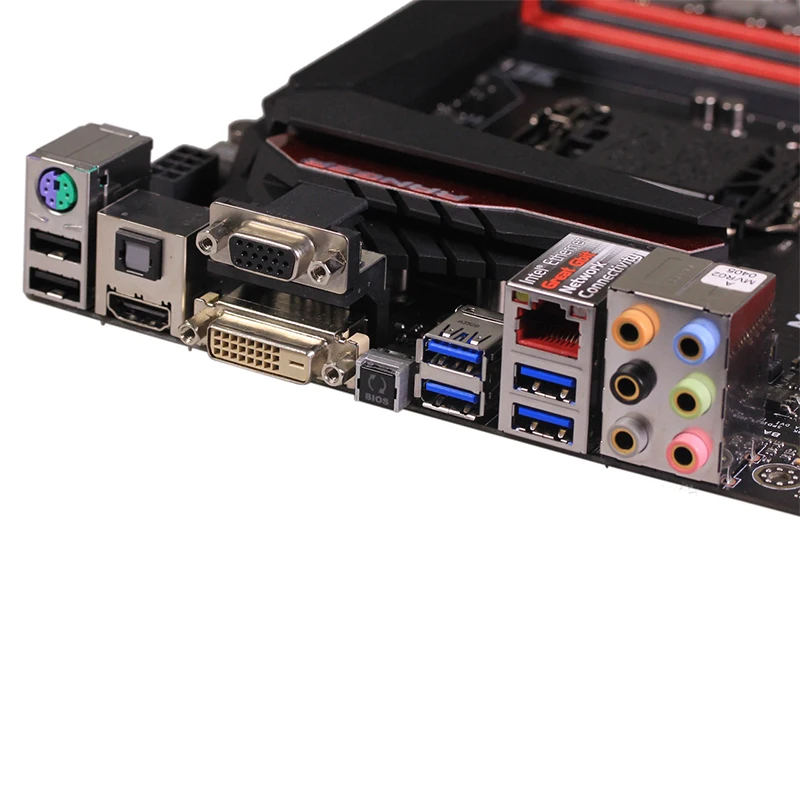

I/O interface:
USB interface: 6 × USB3.0 interface (2 built-in+4 backplane), 7 × USB2.0 interface (4 built-in+4 backplane)
Video interface: 1 × VGA interface, 1 × DVI interface, 1 × HDMI interface
1x 8-pin power interface and 1x 24-pin power interface
Other interfaces: 1 × RJ45 network interface, 1 × Fiber optic interface, audio interface, 1 × PS/2 keyboard and mouse universal interface

Plate type:
Main board type: ATX board type
External dimensions: 30.5 × 24.4cm

Other parameters:
Multi graphics card technology: supports AMD Quad GPU CrossFire x dual card quad core crossfire technology
Support NVIDIA Quad-GPU SLI dual card quad core fire technology
Power supply mode: 6+2 phases
RAID function: supports RAID 0, 1, 5, 10
Other features: support HIFI
