PWM↔Voltage Conversion Module 0%-100% PWM Convert to 0-10V 0-5V/0-10V to 0-100%

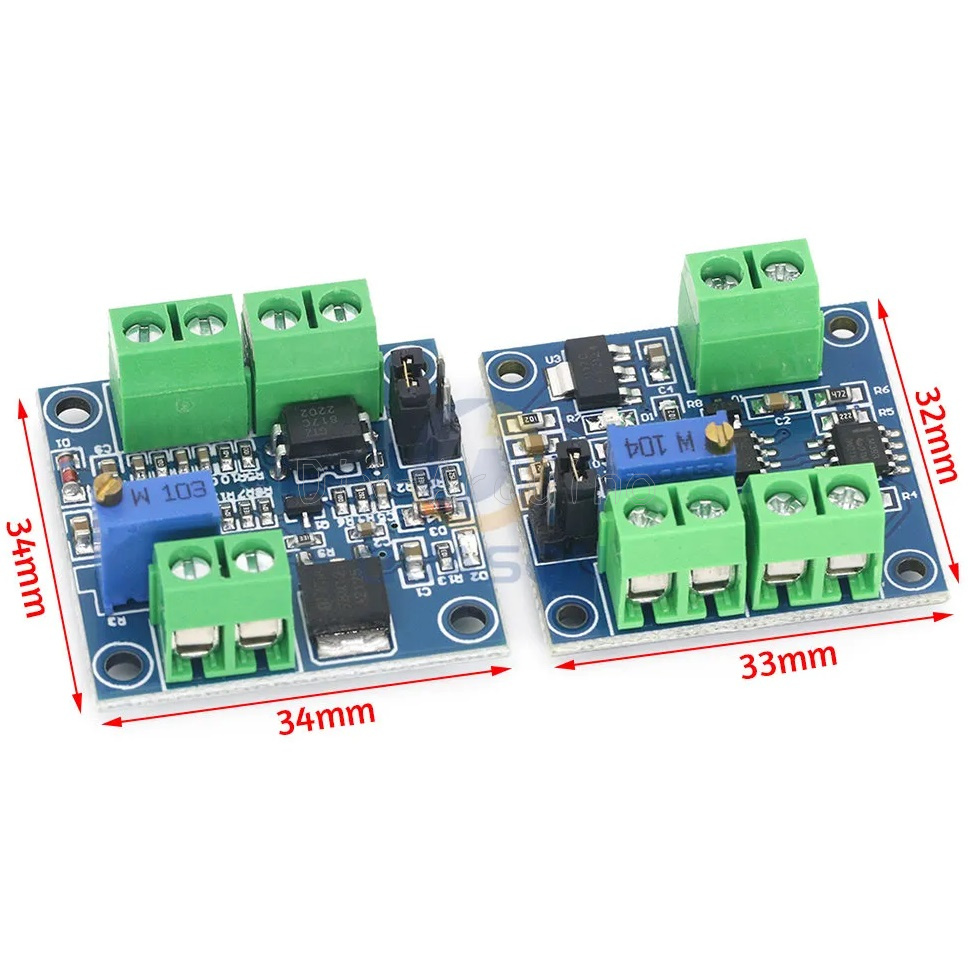

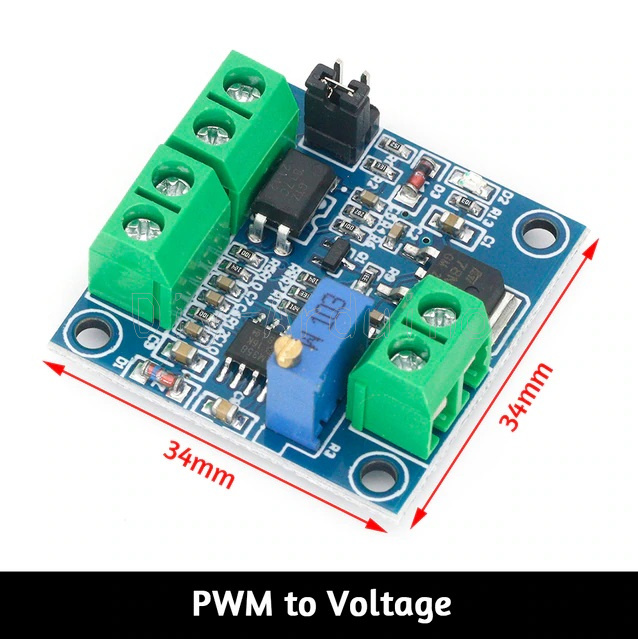

PWM to voltage module 0%-100% PWM conversion to 0-10V voltage
Features:
1: Wide range of applications
2: Easy to operate, can be fine-tuned by potentiometer
3: The module is small, easy to carry and easy to use;
4: Adopt single chip embedded technology;
5: Simple and easy to understand
Product parameters
1. Adopt single chip embedded technology;
2. The peak value is 4.5V to 10V level, and the jumper is inserted at 5V. This type of level signal is mainly aimed at the interface of the 5V CPU of the conventional industrial control card (such as MACH3 board);
3. Easy to operate, can be fine-tuned by potentiometer;
4. Select the PWM signal input level range by short-circuiting;
5. The module is small, easy to carry and easy to use;
6. Module working voltage: DC12V-30V (power requirements: greater than 100MA);
7. PWM signal receiving frequency range: 1KHZ-3KHZ;
8. PWM signal input level range:;
9. Peak 12 to 24V level, the jumper is inserted at 24V. This type of level signal is mainly aimed at the conventional PLC interface;
10. Conversion range: 0%-100% PWM conversion to 0-10V voltage;
11. Allowable error: 5%;

Packing list:
1* PWM to voltage module

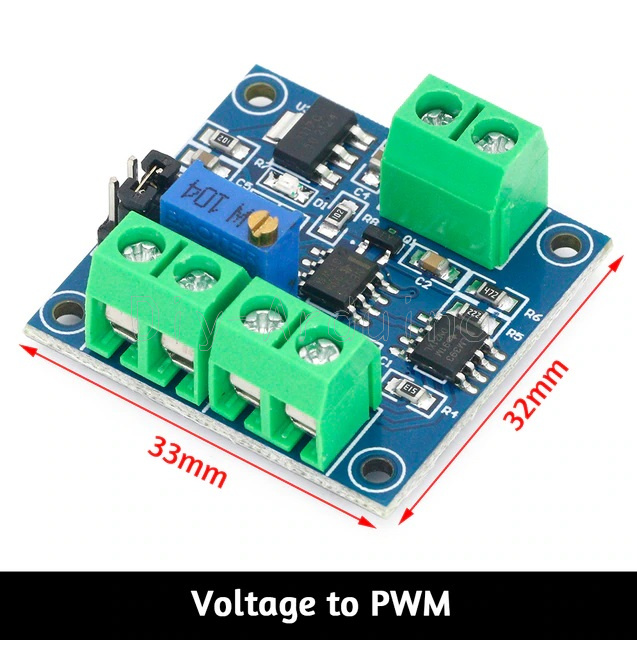

Voltage to PWM module 0-5V/0-10V voltage is converted to 0%-100% PWM
Features:
1: Wide range of applications
2: Easy to operate, can be fine-tuned by potentiometer
3: The module is small, easy to carry and easy to use;
4: Adopt single chip embedded technology;
5: Simple and easy to understand
Product parameters
1. Adopt single chip embedded technology;
2. Easy to operate, can be fine-tuned by potentiometer;
3. Select different input voltage ranges through the short circuit;
4. The module is small, easy to carry and use;
5. Module working voltage: DC5V-12V;
6. Conversion range: 0-5V/0-10V voltage is converted to 0%-100% PWM;
7. Allowable error: 1%-3%;
8. Output PWM amplitude: 5V
9. Output PWM frequency: about 50KHz
(1) VCC: Working power supply 5V-12V.
(2) GND: working power ground
(3) VIN: Input voltage 0-10v.
(4) GND: Input voltage ground.
(5) GND: output PWM ground.
(6) PWM: output PWM.
(7) Operation instructions. Connect the working voltage to VCC and GND, not reverse, so as not to damage the board and device
(8) Connect the controllable voltage to the VIN terminal, the voltage range is divided into 0-5V and 0-10v according to the selected mode.
(9) The output at the PWM terminal is PWM.
(10) The duty cycle can be adjusted by adjusting the voltage.
(11) The accuracy can be controlled by adjusting the potentiometer.

Packing list:
1* Voltage to PWM module
