DS18 2" Throat Bolt-on Nedodymium Driver 2-Way Polymer Mid/High-Range 8ohm

Amplifiers Batteries Tweeter SubWoofers Marine Loud Speakers

Description

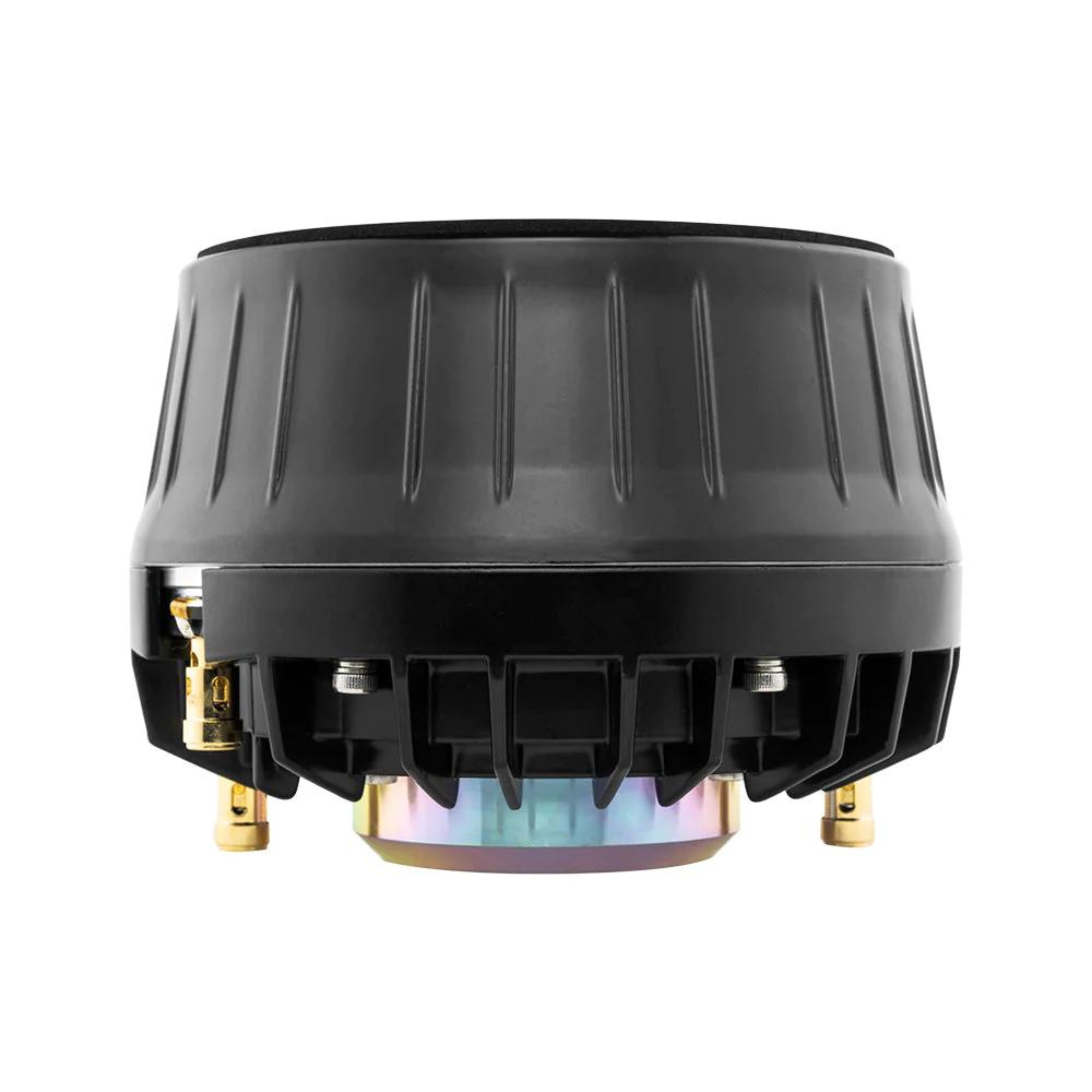

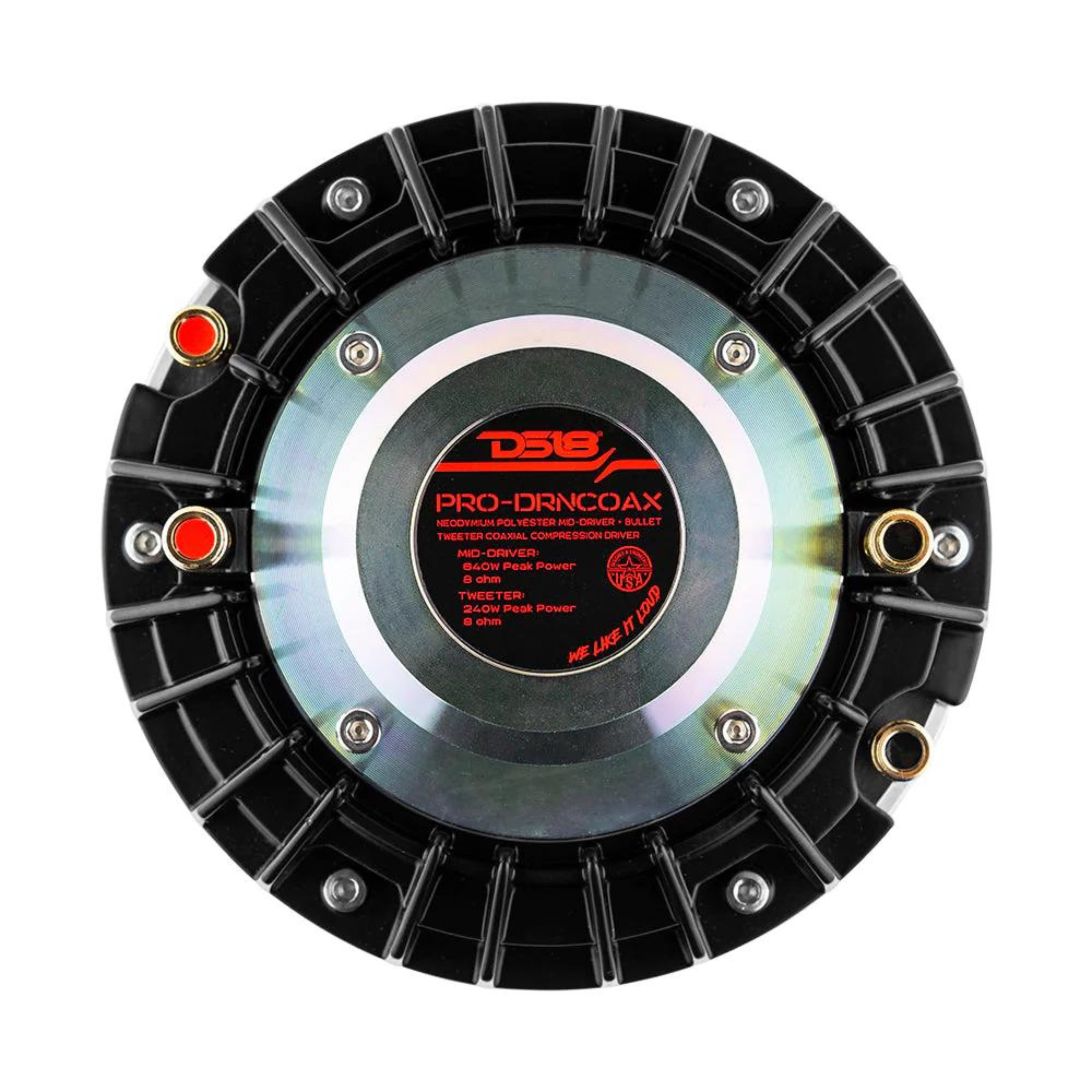

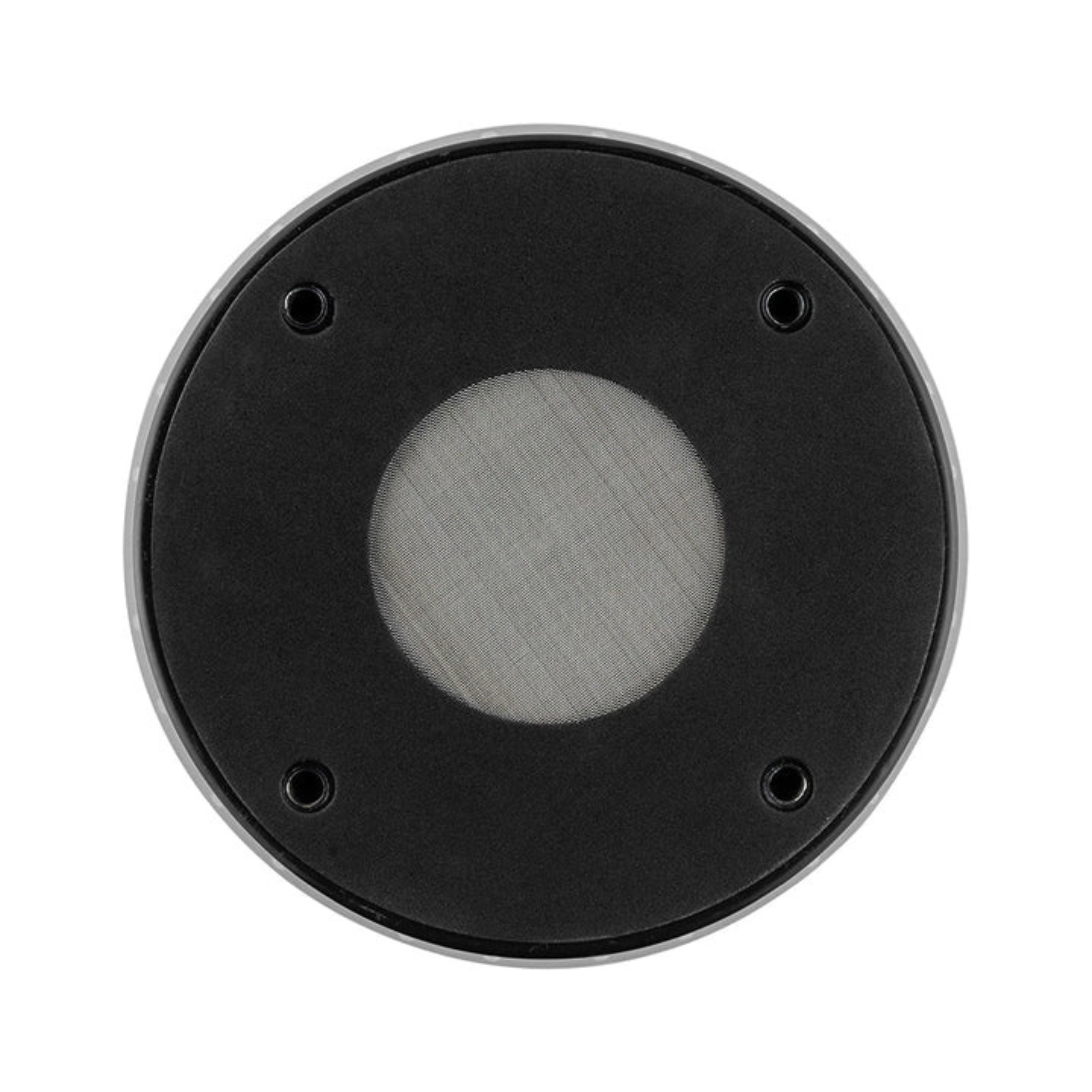

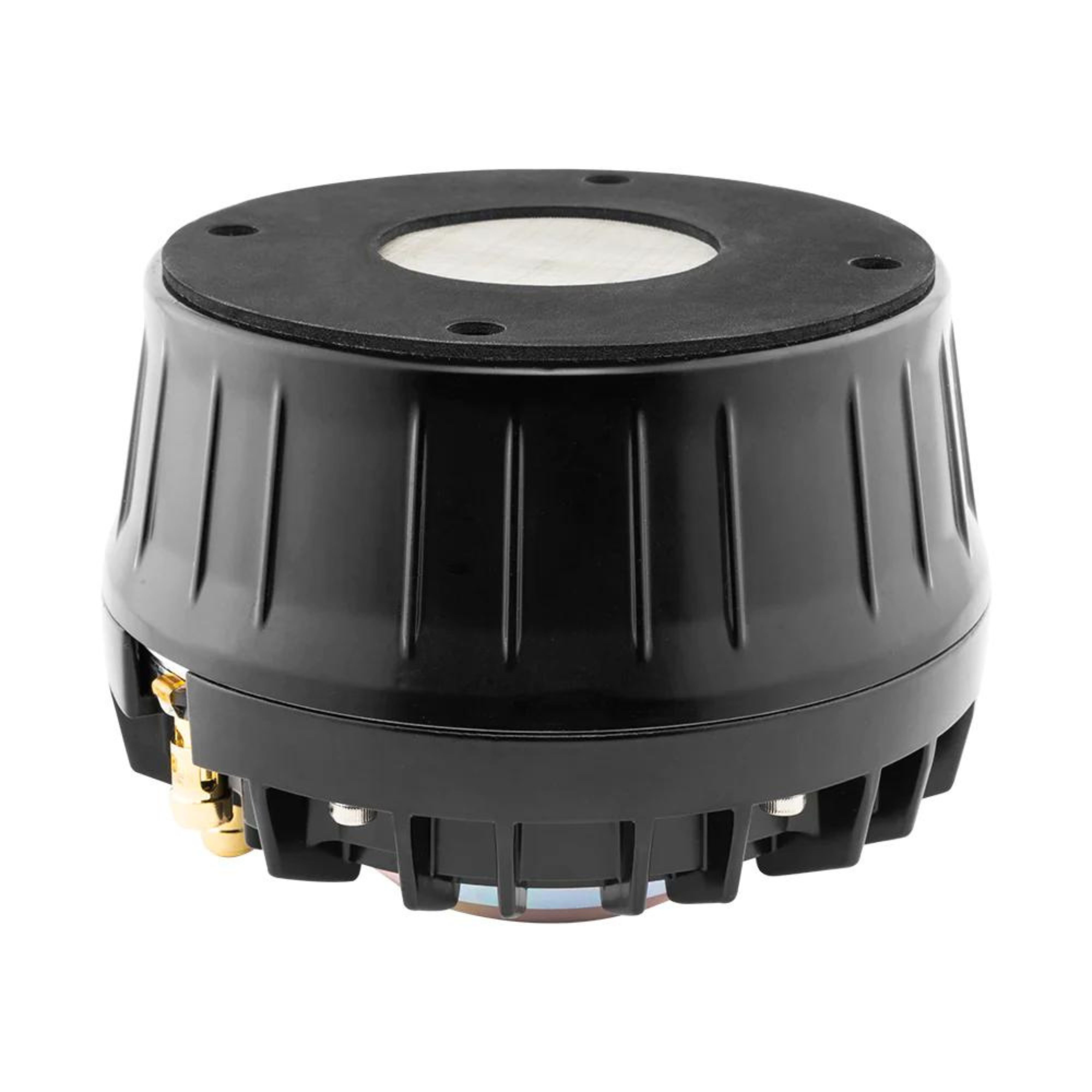

DS18 2" Throat Bolt-on Nedodymium Driver 320W w/Dual Polymer Mid/High-Range 8ohm


This Listing Includes:


(1) 8ohm MID-DRIVER + BULLET TWEETER COAXIAL COMPRESSION DRIVER


Bringing new and innovative products is what DS18 is all about! Our new coax driver will be sure to fill in all your high end frequencies without slipping one beat! This unique neodymium driver is 2 way. The midrange driver plays 315Hz - 20KHz, while the high range tweeters fills out frequencies from 4 KHz to 20KHz for added punch!


Secifications:


Installation Type Bolt-on


Sensitivity (1w/1m) 118dB


Frequency Response 315Hz - 20KHz


Mid-Driver Specifications


Peak Power Handling 640W


Program Power Handling 320W


AES Power Handling 160W


Frequency Response 315Hz - 20KHz


Recommended Band-Pass Crossover 630Hz - 5KHz


Tweeter Specifications


Peak Power Handling 240W


Program Power Handling 120W


AES Power Handling 60W


Frequency Response 4KHz - 20KHz


Recommended Hi-Pass Crossover 5KHz


Motor


Tweeter Voice Coil Diameter 1.75"/44.4mm


Mid-Drive Voice Coil Diameter 3.5"/90mm


Voice Coil Former Material Kapton


Winding Material CCAW


Diaphragm Material Polyester


Magnet Material Neodymium


Measurements


Overall Diameter 5.5"/140 mm


Overall Depth 3.9"/101 mm


Bolt Pattern M6 - 4"/102mm
