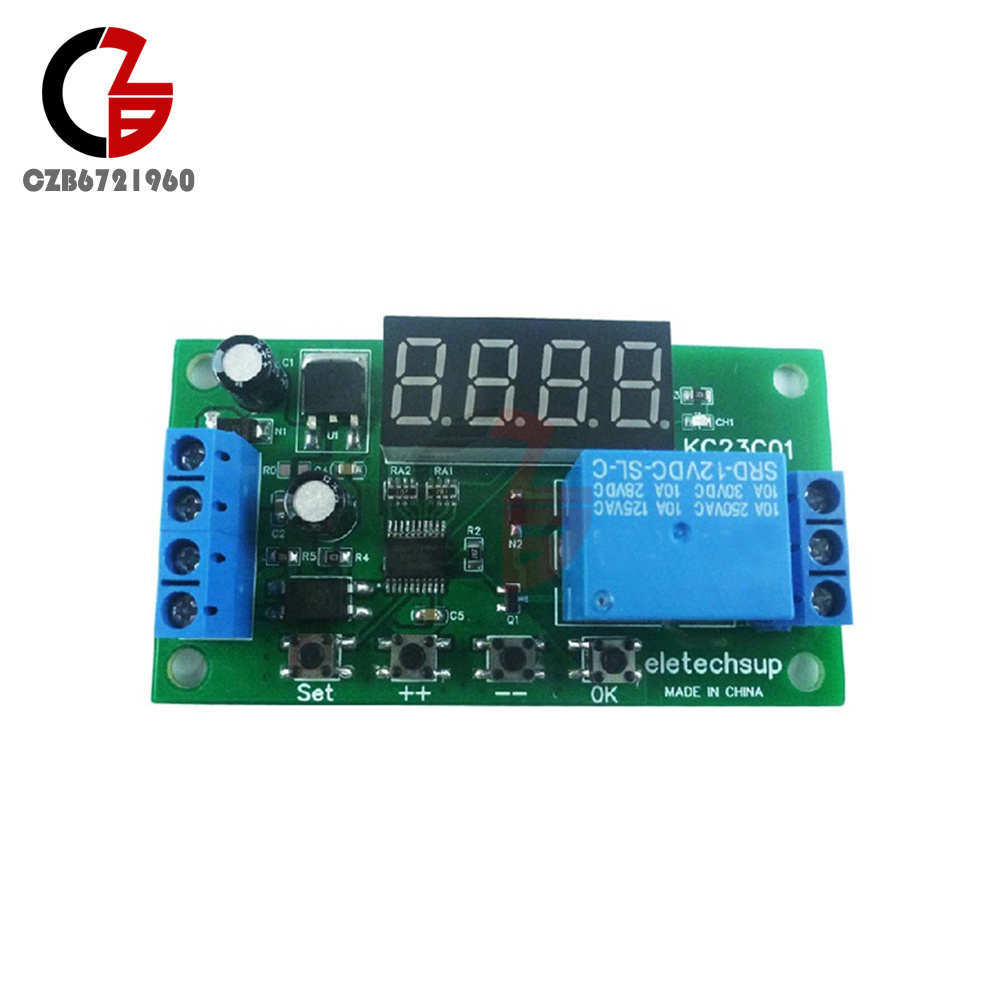

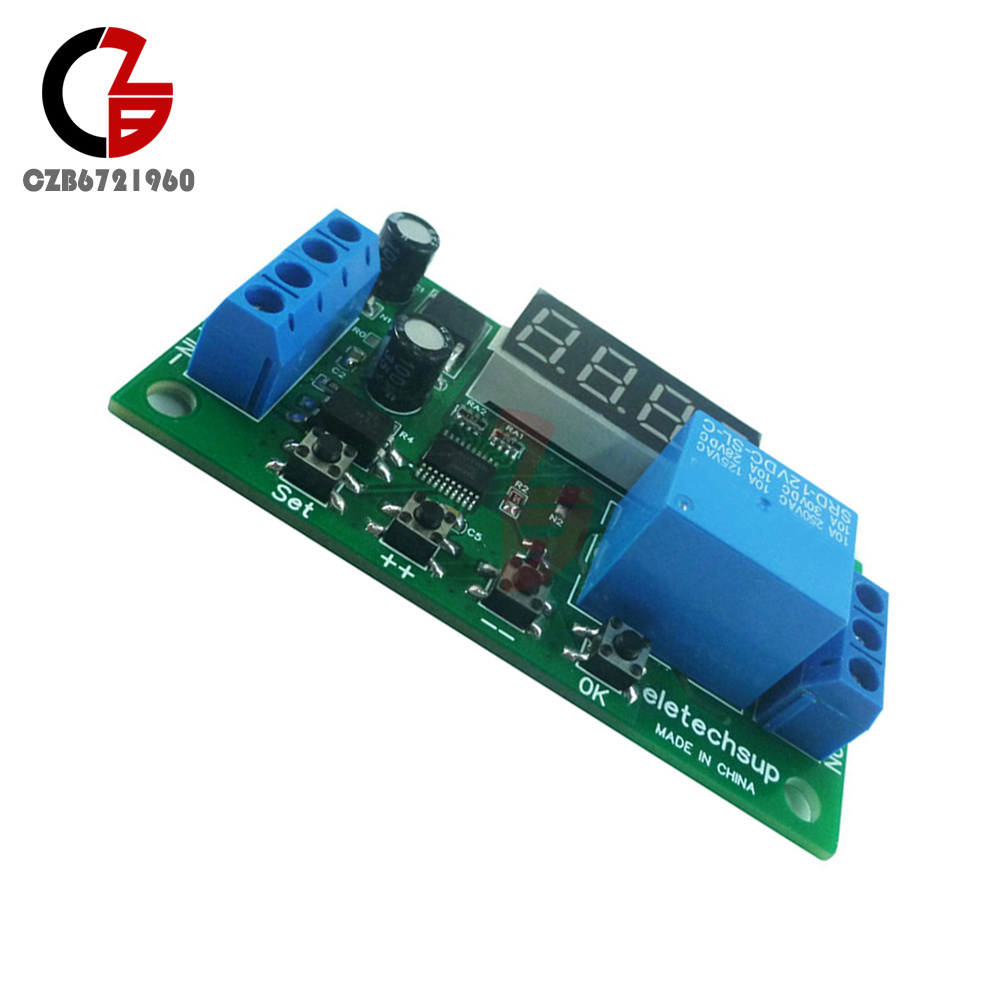

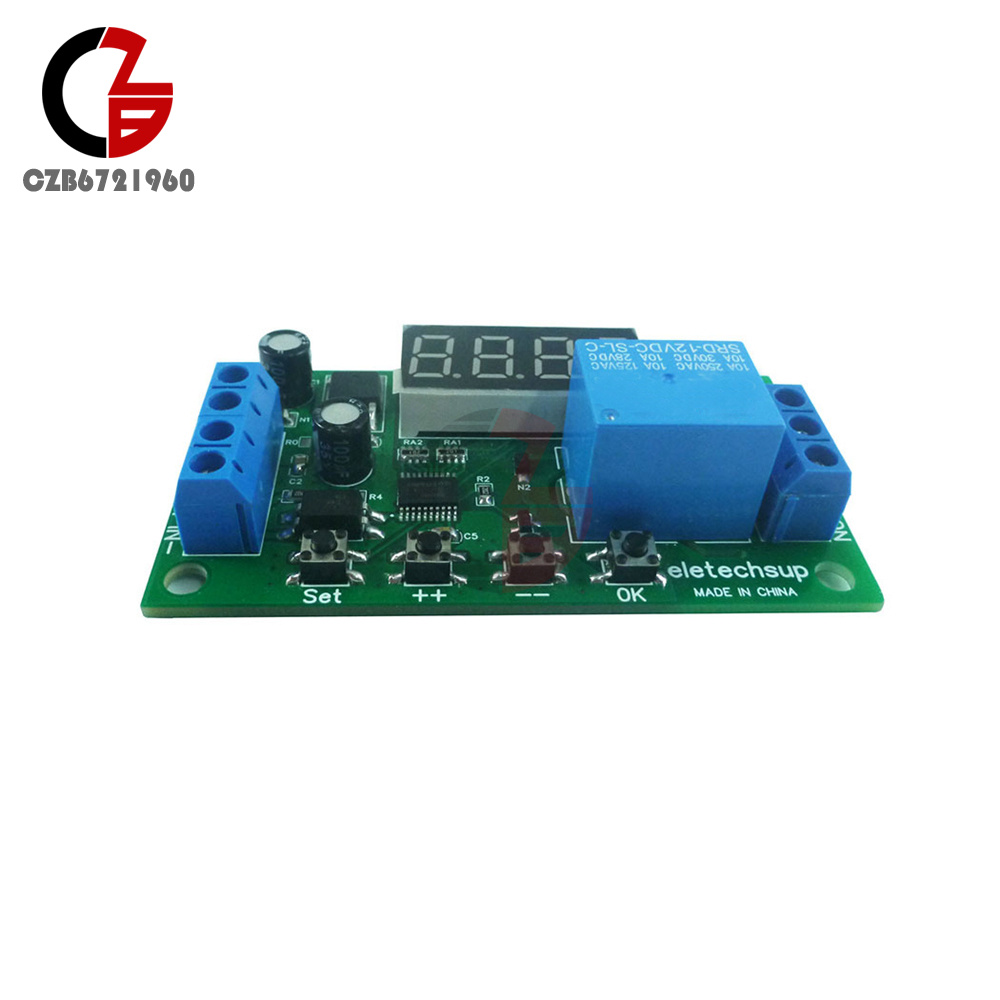

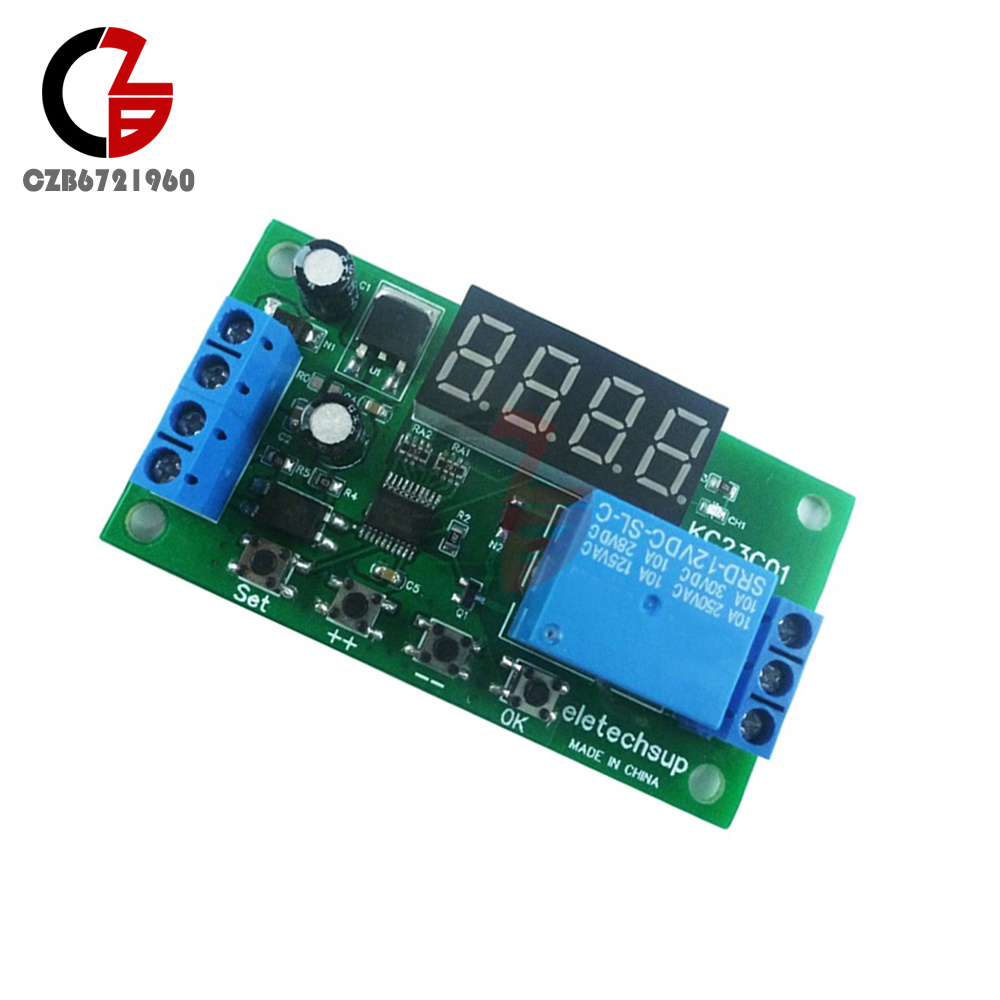

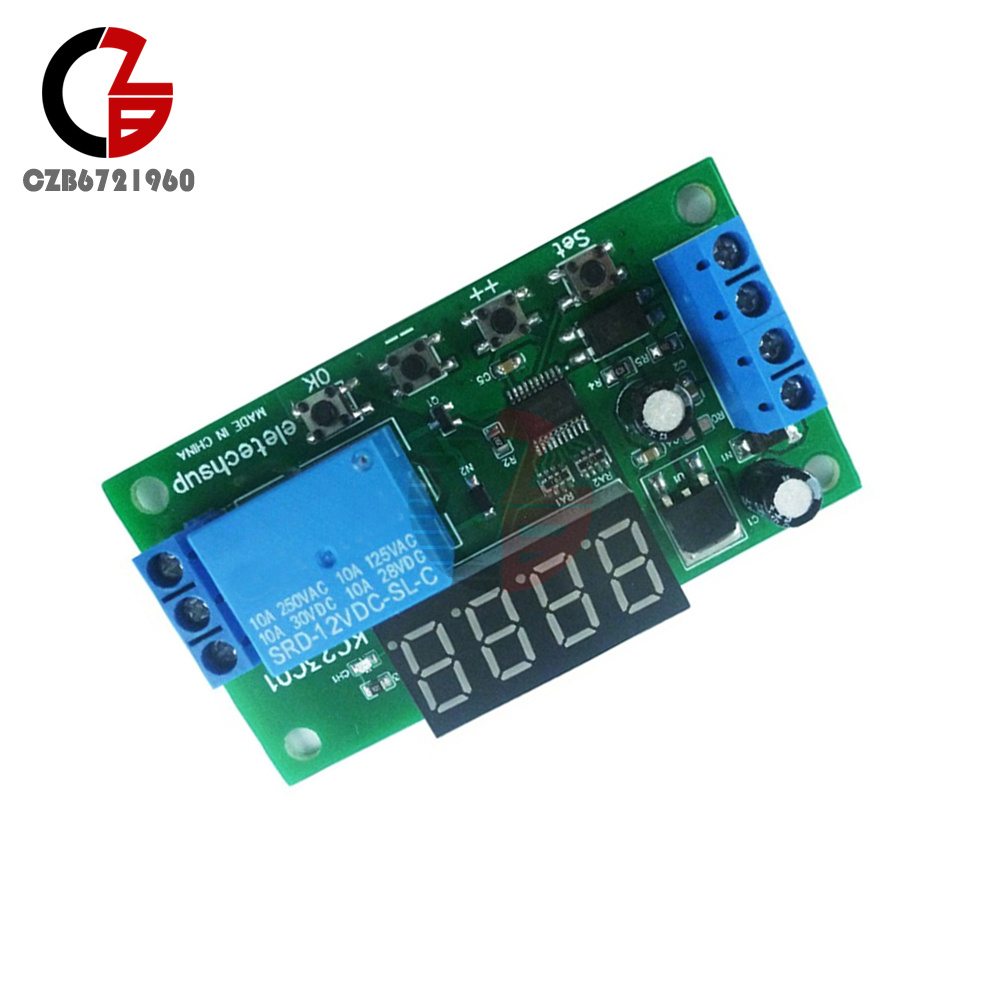

DC5/12/24V Pulse Counter Switch Adjustable Timer Delay Turn On/Off Relay Module

Popular

    Product Introduction

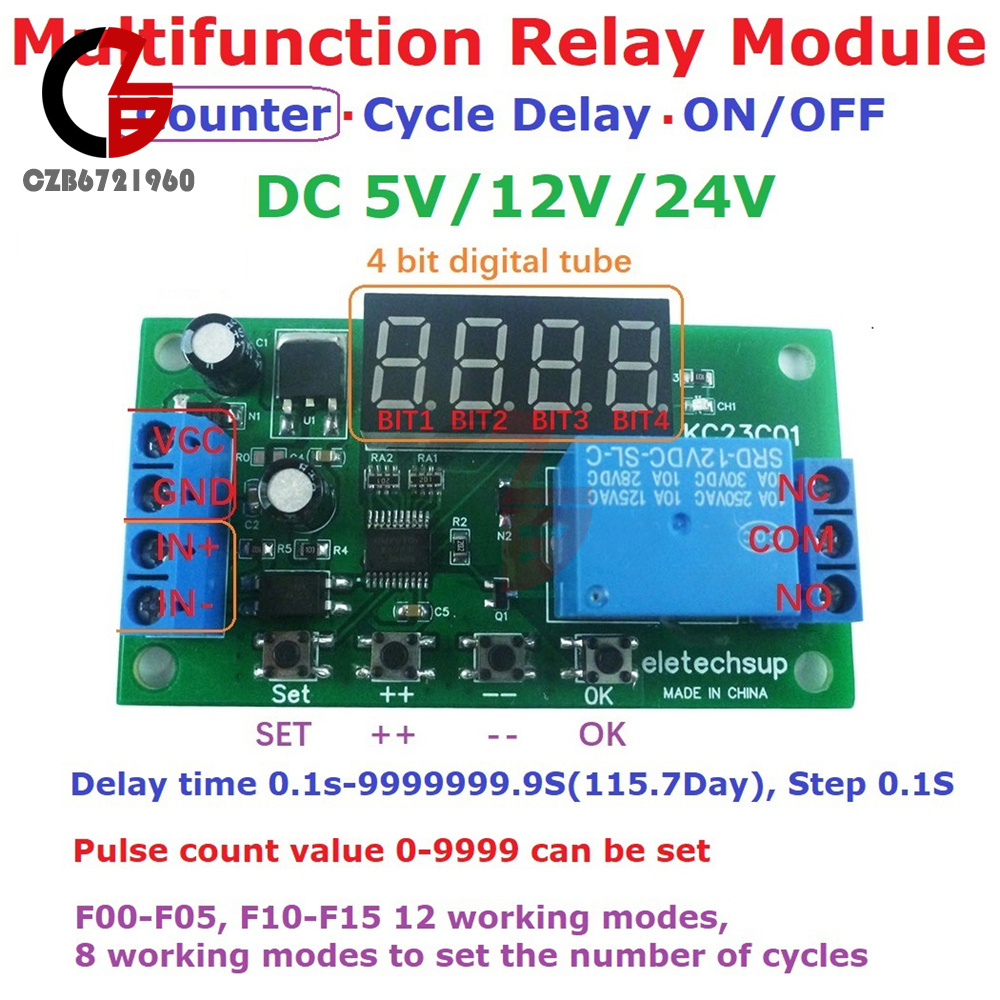

    Description:

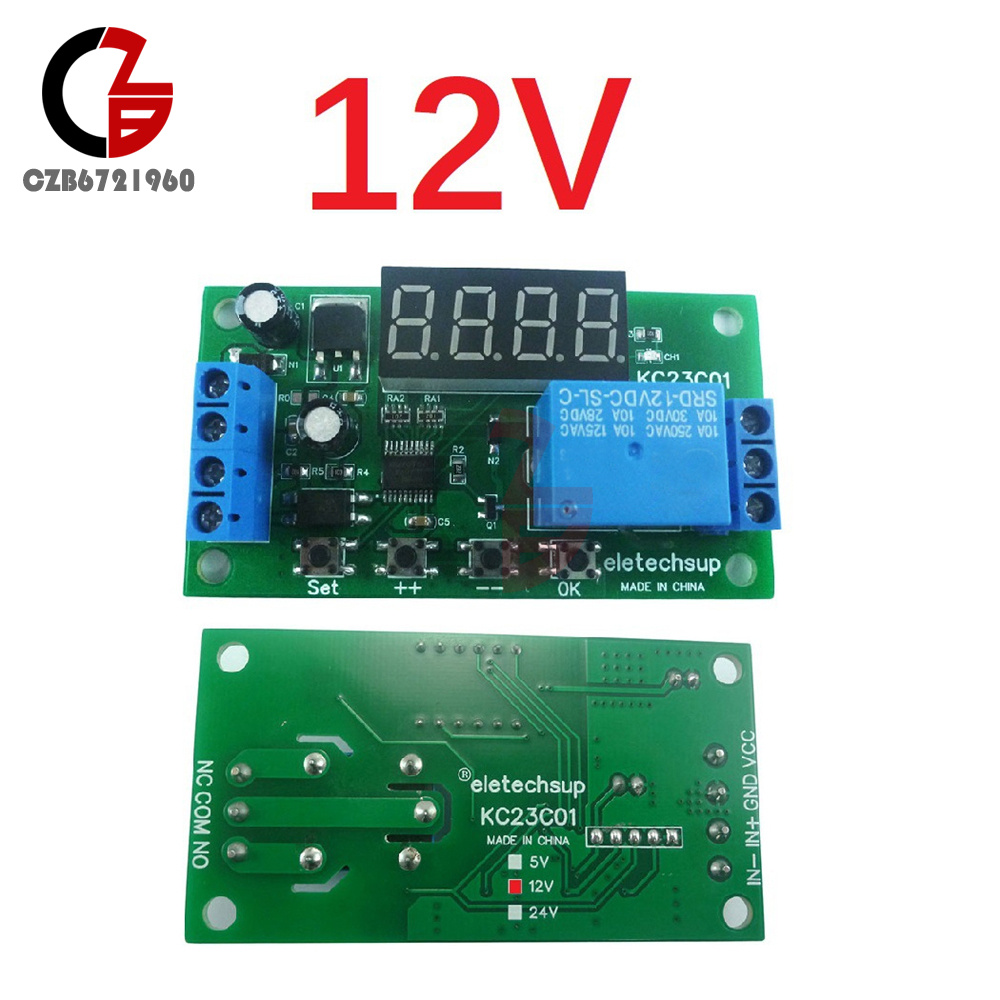

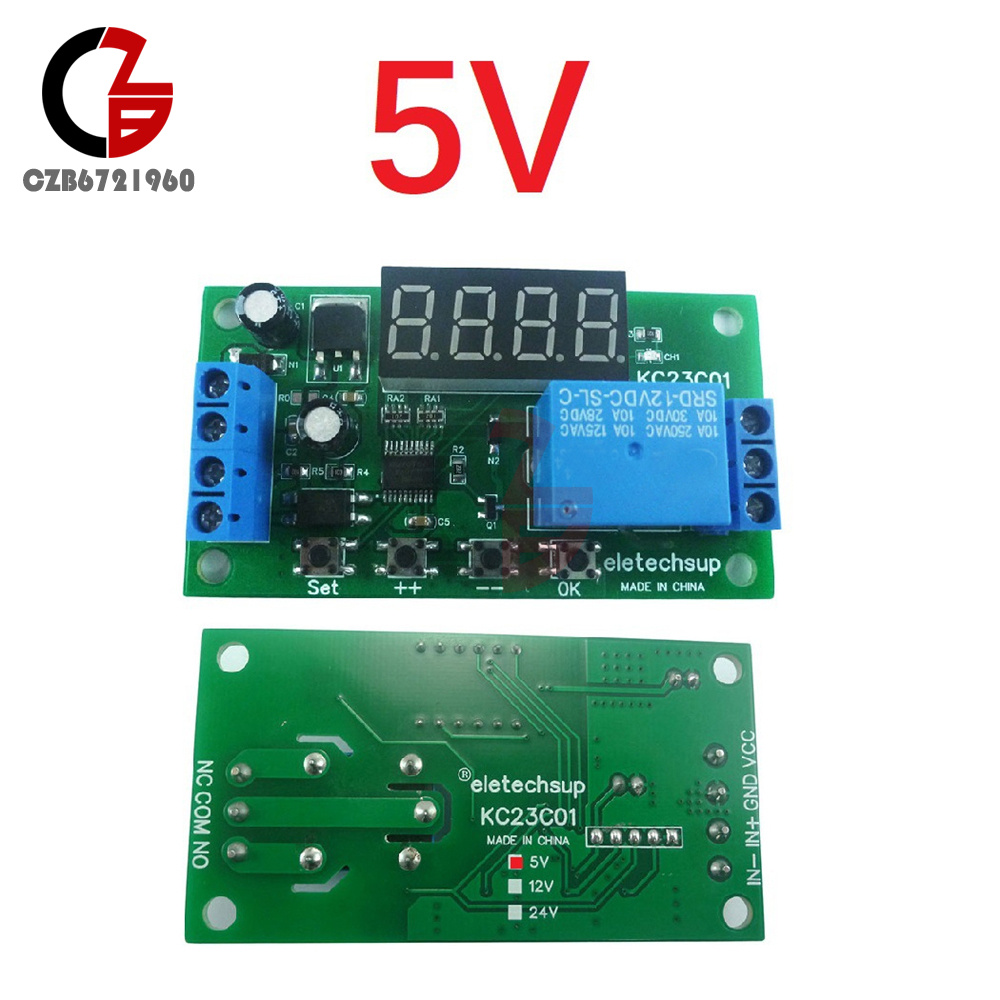

    Working voltage: DC 12V (DC 5V/DC24V optional)
    Working current: digital tube OFF (power saving state): relay OFF 6MA, relay ON 35MA
    Digital tube ON (working state): relay OFF 29MA, relay ON 56MA
    Three states: working state, power saving state, setting state
    Input port: optocoupler isolation input, compatible with NPN/PNP input (5-24V switch signal)
    Output port: 10A relay NO COM NC three ports
    Working mode: F00-F05 single-shot pulse control mode, which is a general delay relay mode
    F10-F15 pulse counting control mode, input port counting control relay
    Size: 74.4*40.5*19.6MM
    Weight: 29g
    Relay load: 10A/250VAC; 10A/30VDC
    Features:
    Delay time 0.1s-9999999.9S (115.7Day), step size 0.1S, precision 0.01S
    Pulse count value 0-9999 can be set
    F00-F05, F10-F15 12 working modes, there are 8 working modes to set the number of cycles

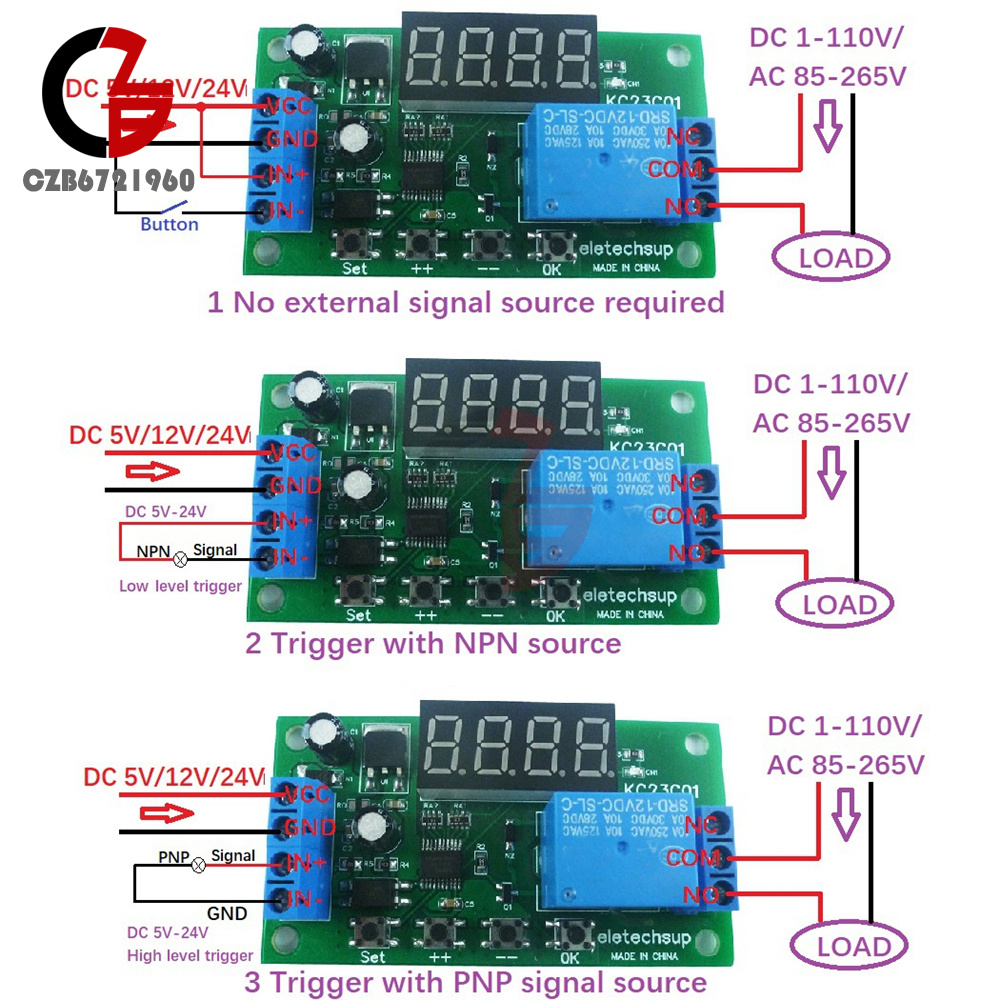

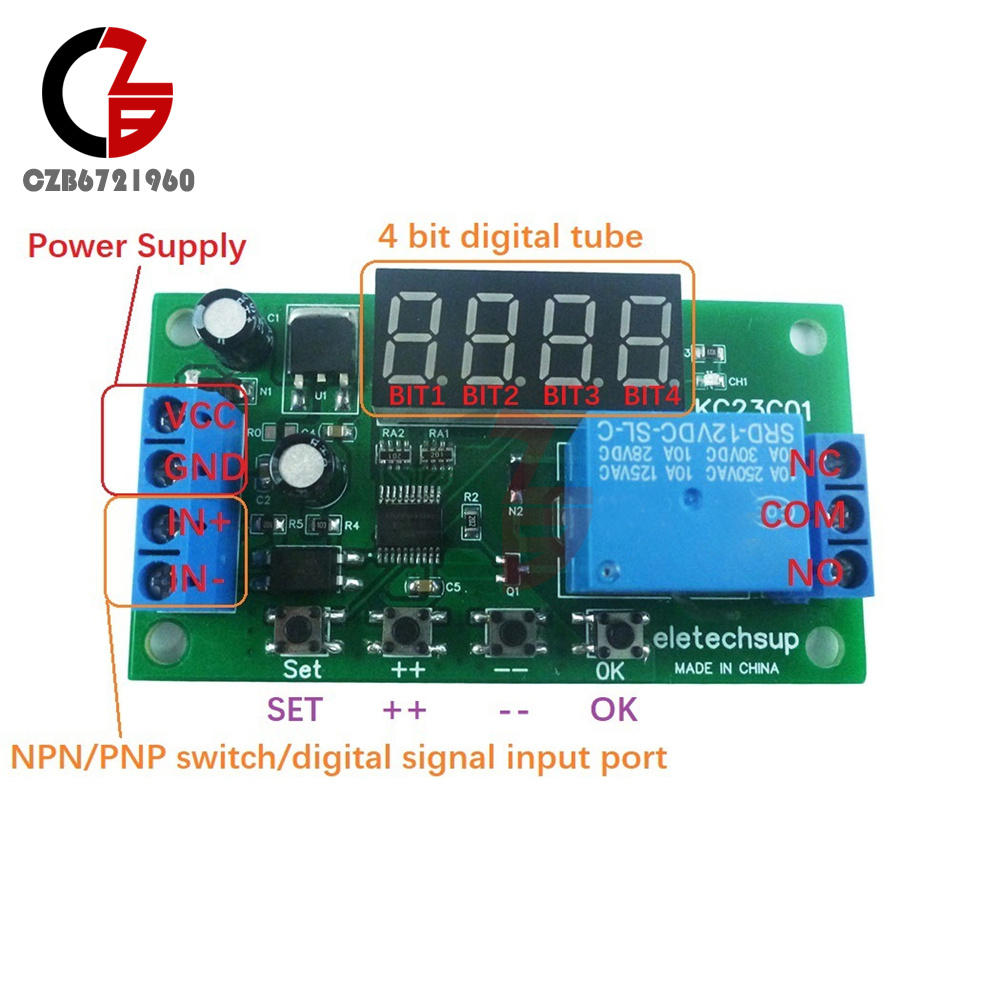

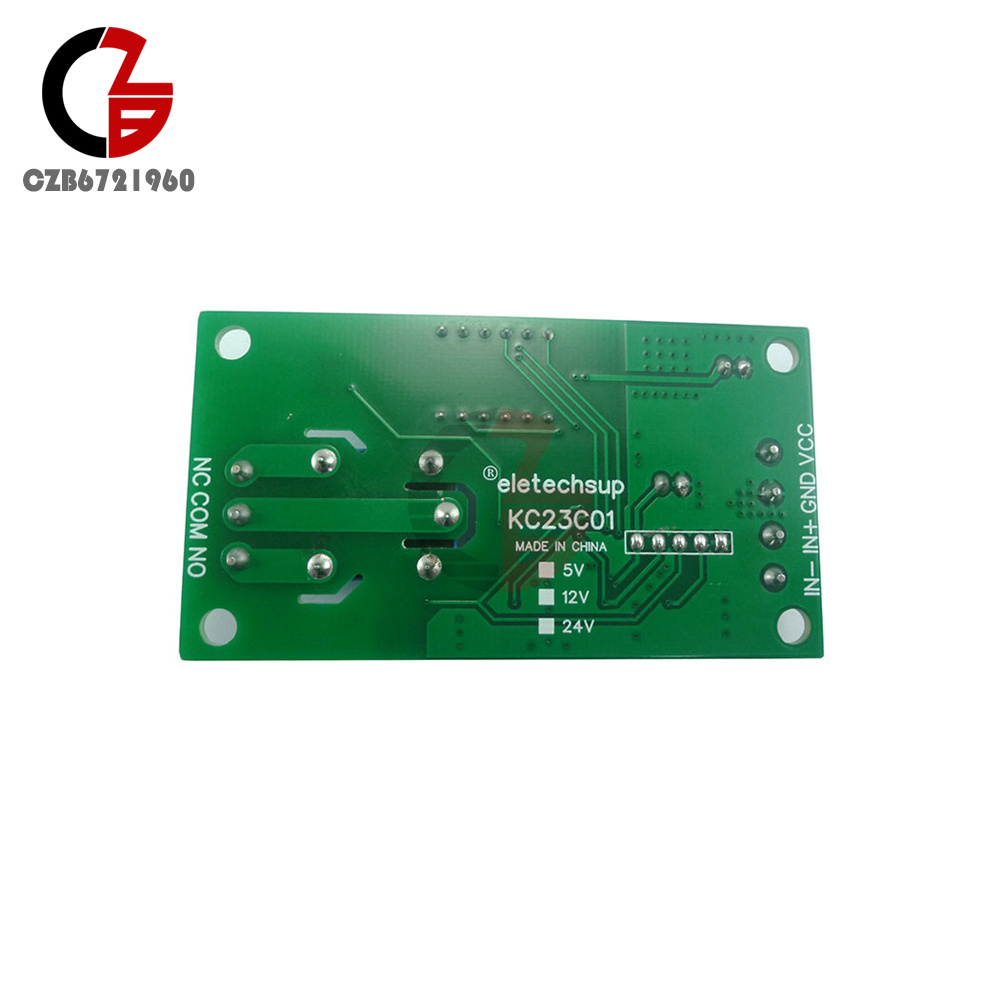

    There are three wiring methods for the trigger signal input terminal:
    1 No external signal source required
    2 with NPN source
    Trigger 3 Trigger with PNP source
    Setup Instructions:
    Short press: the key time is less than 2 seconds;
    Long press: button for more than 2 seconds;
    Status: working status, power saving status, setting status
    Working status: power-on working status, F00-F05 mode displays the remaining time, F10-F15 mode displays the remaining time and pulse count value.
    Note: When the remaining time is greater than four digits, short press the "OK" key to scroll and display the remaining time once.
    Setting status: short press ''SET'' key to enter setting status, then short press ''SET'' to switch parameters, short press ''++''/''--'' to modify parameters. Short press the "OK" key to save the parameters and exit the setting state.
    Note: After setting the parameters, it must be powered on again.

    Query status: without modifying the parameter setting status, short press the "SET" button to enter the query status, then press "SET" to switch parameters, and short press the "OK" button to exit the query status
    Power-saving state: The working state of the digital tube is off. In this state, the digital tube does not display, and other functions work normally. Press and hold the "OK" button for 5 seconds to enter the power saving state, and long press the "OK" button for 5 seconds to exit the power saving state.
    Notice:
    1 In the power-saving state, you can still enter the setting and query state, and automatically enter the power-saving state after 20 seconds of no key operation.
    2 After turning it on again, the digital tube displays for 20 seconds, how to turn off the digital tube.
    Factory setting: Press and hold the "++" and "--" keys at the same time for 3 seconds to restore the factory settings and turn off the display of the digital tube. Run with default parameters after reboot.
    Note: After setting the parameters, it must be powered on again.
    Exception handling:
    1 If you encounter inexplicable problems, please power on again (this is because there is no restart after setting parameters)
    2 If the problem still cannot be solved after powering on again, please long press the ''++'' and "--" keys at the same time for 3 seconds to restore the factory settings. then reboot

    Package Include:
    1*Multifunctional pulse counter relay module
