How to install the oxygen sensor?

Step 1 - Some sensors are equipped with a heat shield that must be removed before the sensor removal, this is performed by removing any mounting bolts.



Step 2 - By using a regular socket it minimizes potential damage to the sensor body and the threads, this technique helps avoid stripping the old sensor upon removal.



Step 3 - Then, locate and disconnect the wiring connector, this step should be done before removing the sensor if the wiring is still attached.



Step 4 - Its important that the wiring harness connectors are exactly the same, each sensor is unique to it's position and is located in the system by its connector configuration. (Note: some replacement sensors have a universal electrical connector that must be configured to the wiring of the old sensor.)



Step 5 - Use a small wire brush to help clean the threaded port to ensure a proper seal of the new sensor. Gently install the new oxygen sensor by hand while keeping the wiring and connector free from bends.



Step 6 - Gently tighten the sensor while keeping wiring free from damage, these sensors need to be fairly snug to avoid leakage.



Step 7 - Once the sensor is tightened, reinstall any heat shields or bracing that had to be removed.



Step 8 - After the heat shield has been reinstalled, mount the connector to it's holder and reattach the connector back onto the wiring harness. If the car has diagnostic trouble codes, they will need to be cleared.

Note:

1. welcome to consult, we 24 hours online. In addition, we have warehouses in Kentucky, Texas and California, which can automatically match the nearest warehouse address according to your receiving address to give priority to delivery, greatly reducing the logistics time (if one warehouse is out of stock, we will deliver goods to you from other warehouses)!

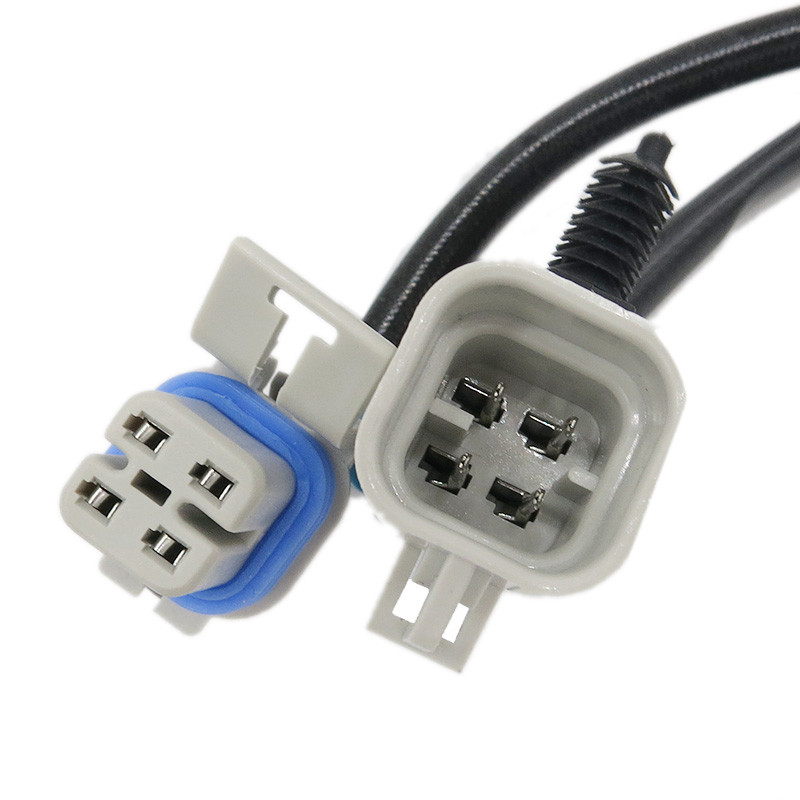

2. The compatibility list is for reference only, and there are some differences among different models. First, check to see if your car is on the list. Then, compare your original oxygen sensor with the display image of our product, especially it has the same pattern and shape as the plastic shell at the connector end. If you are not sure, please feel free to send us pictures so that we can confirm for you.

Warranty

Warranty is for REPLACEMENT of the parts only.  If there is a problem with the item please notify us prior to altering or installing the item.  Altered, abused, or improperly installed/maintained items will void the warranty and are not returnable.  Warranty is not transferable.  Warranty does not cover shipping, labor, towing, rentals, storage, legal fees, lost wages or any other incidental fees.
