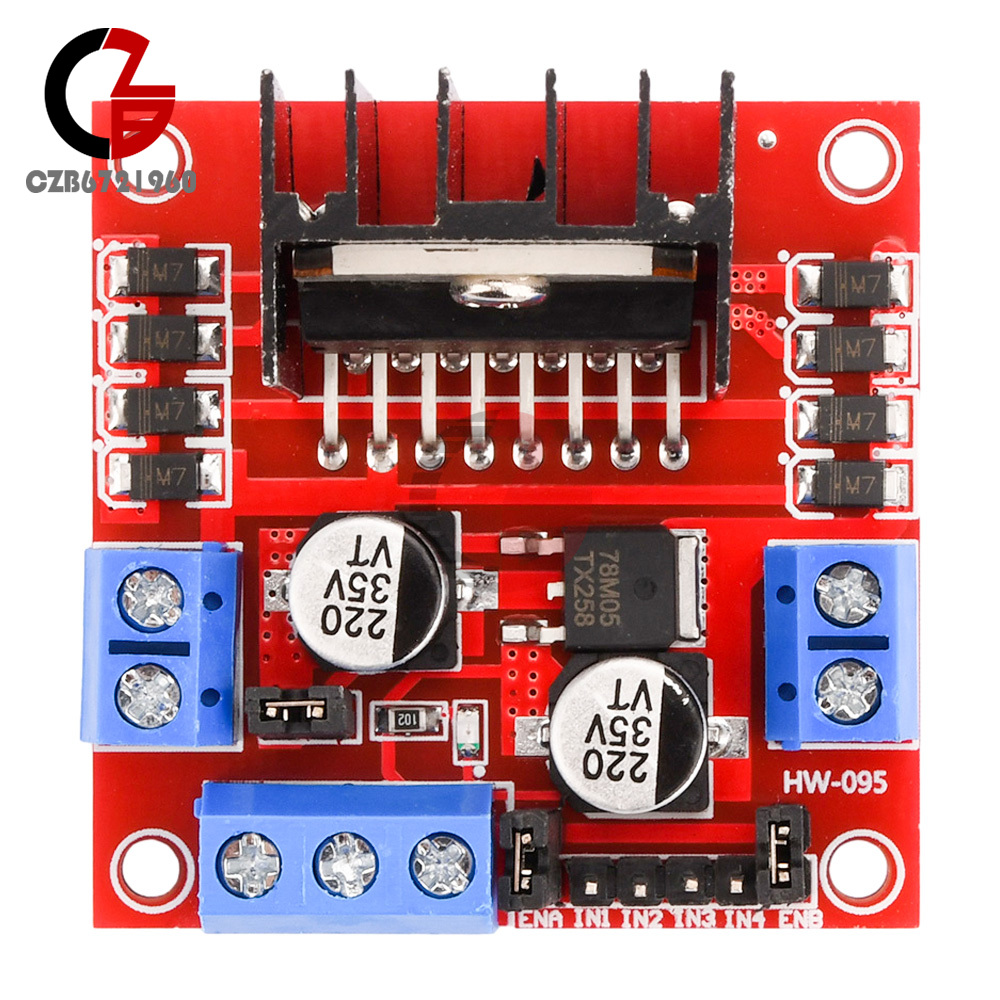

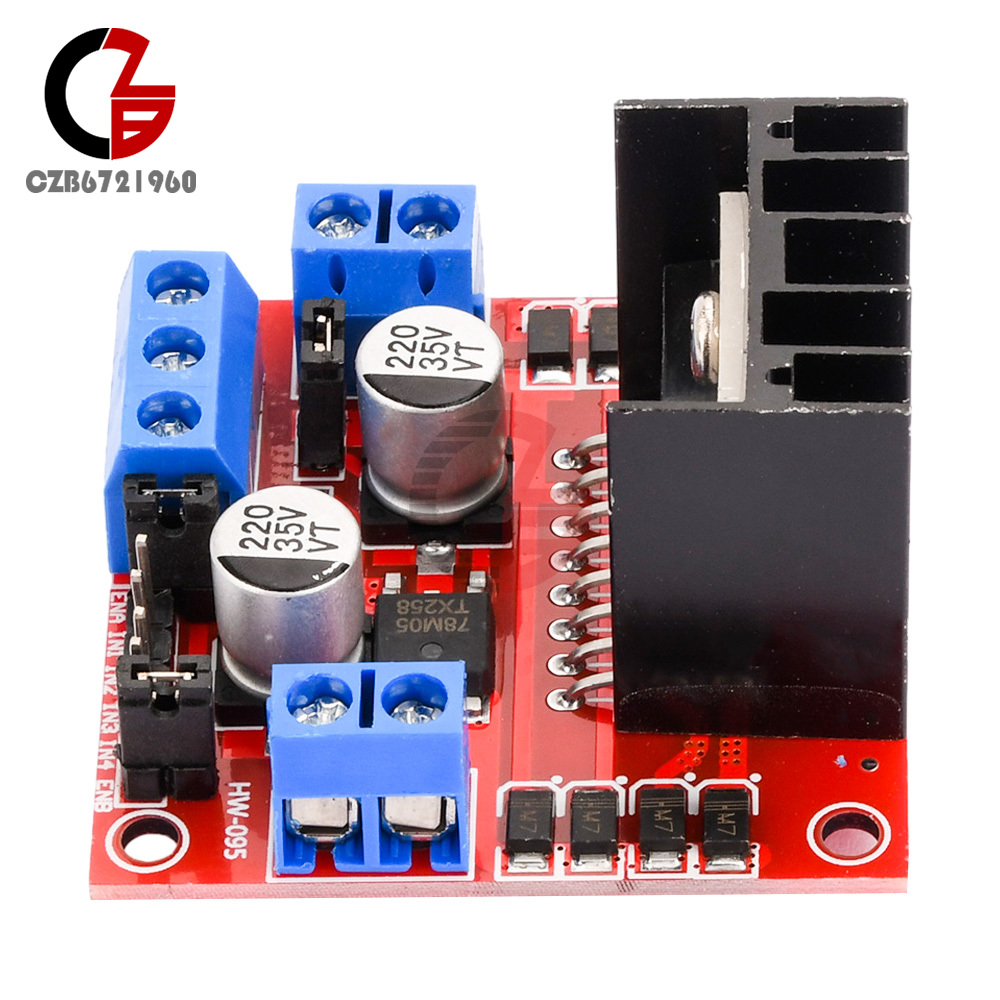

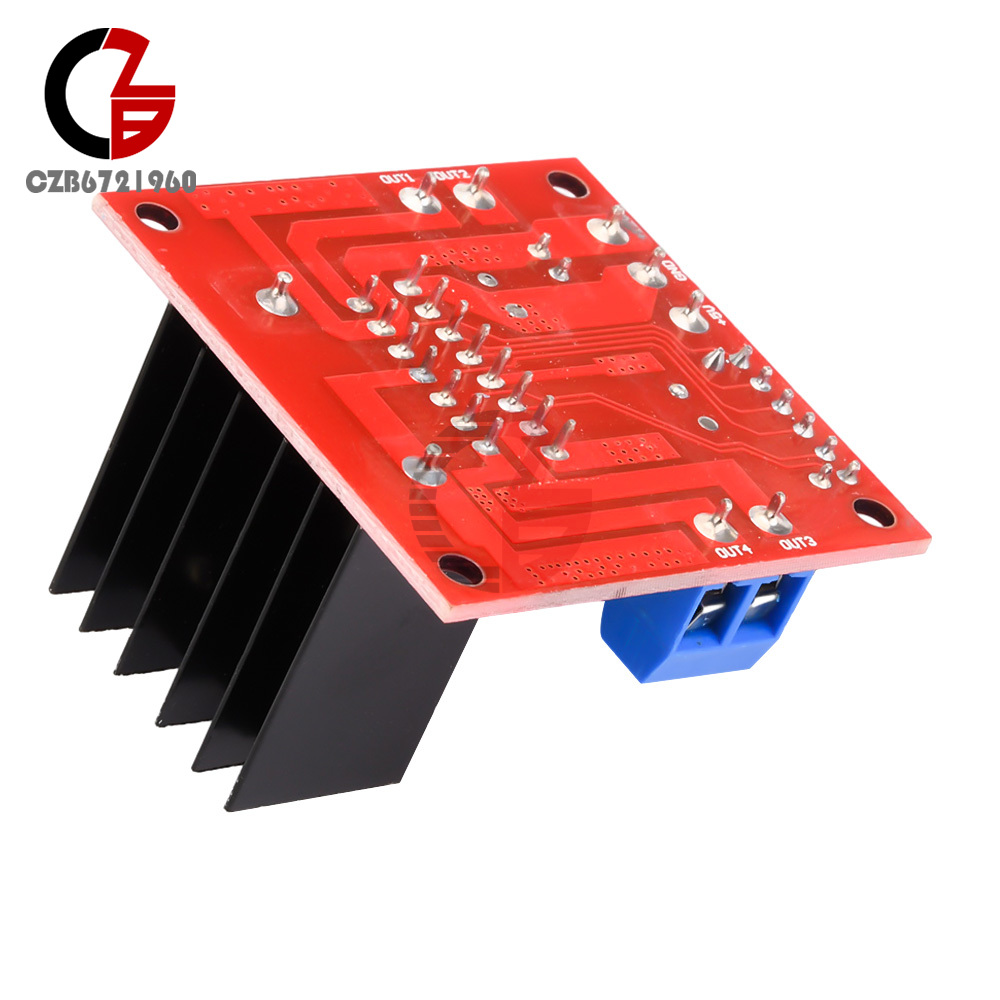

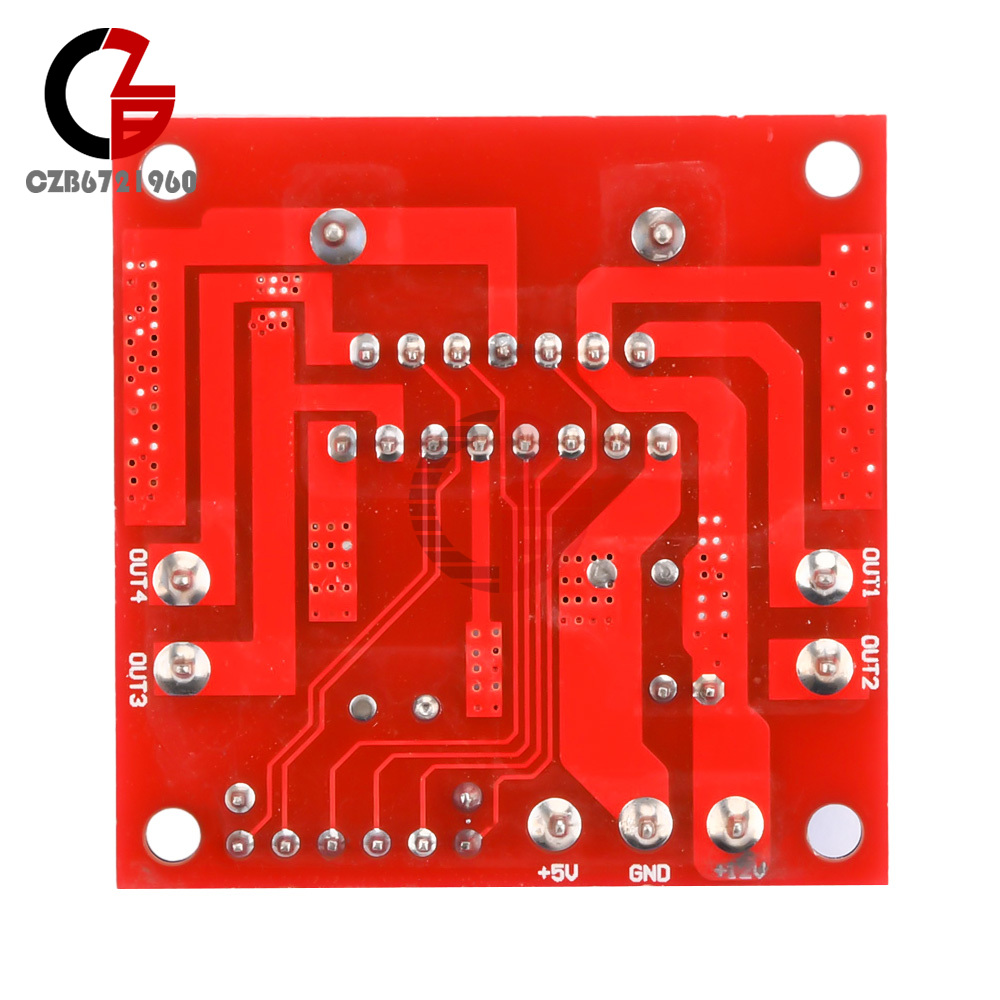

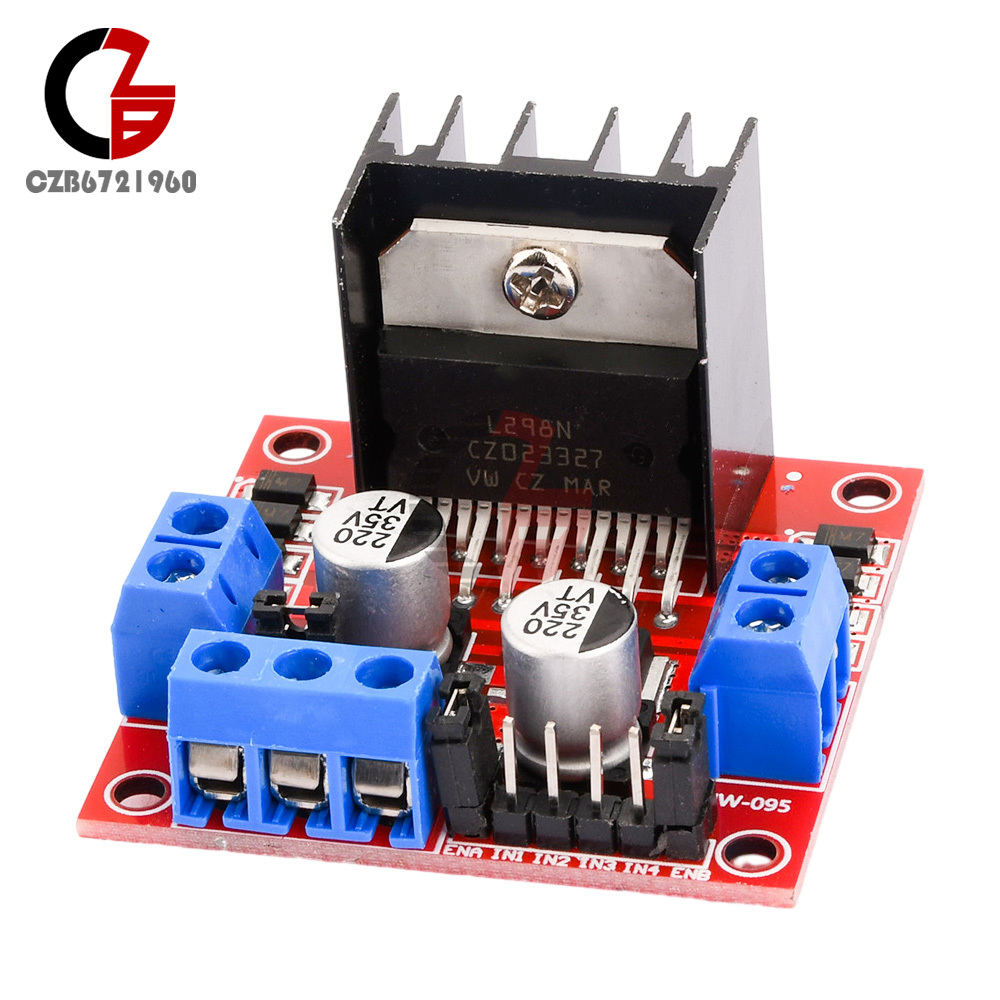

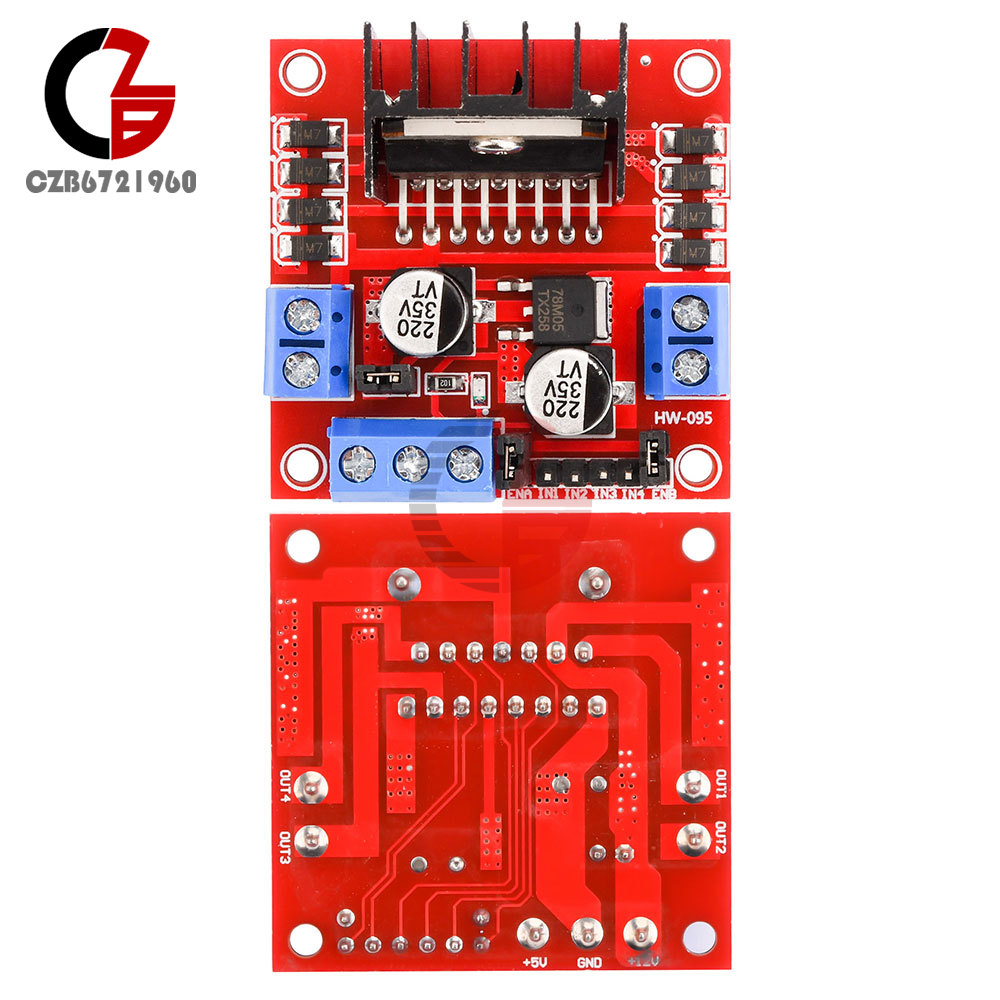

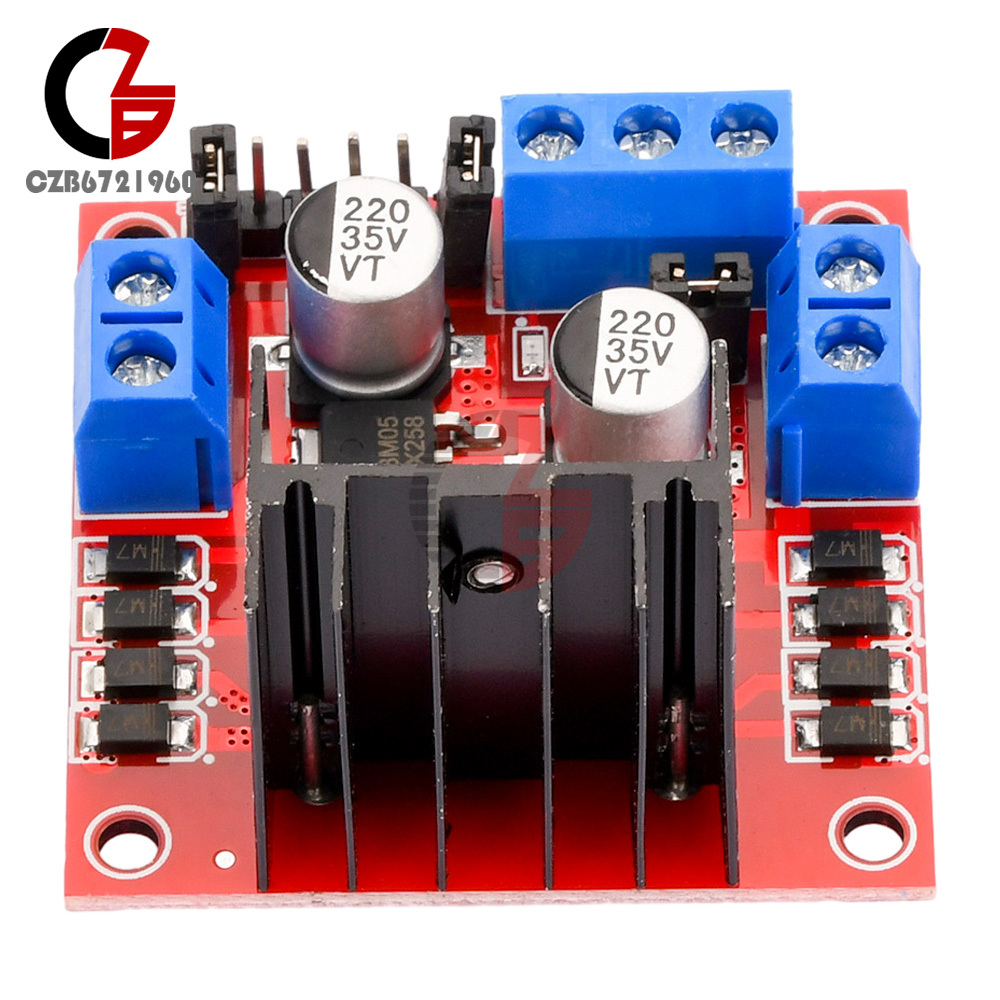

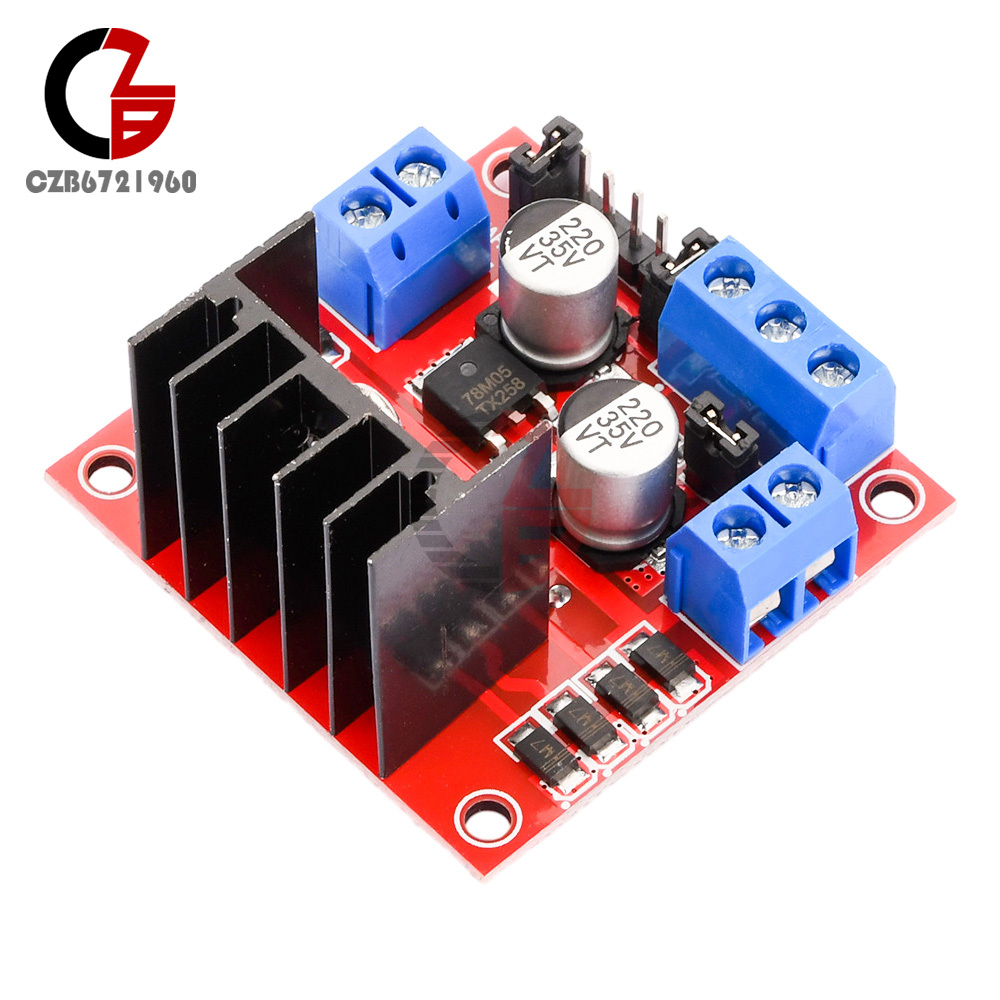

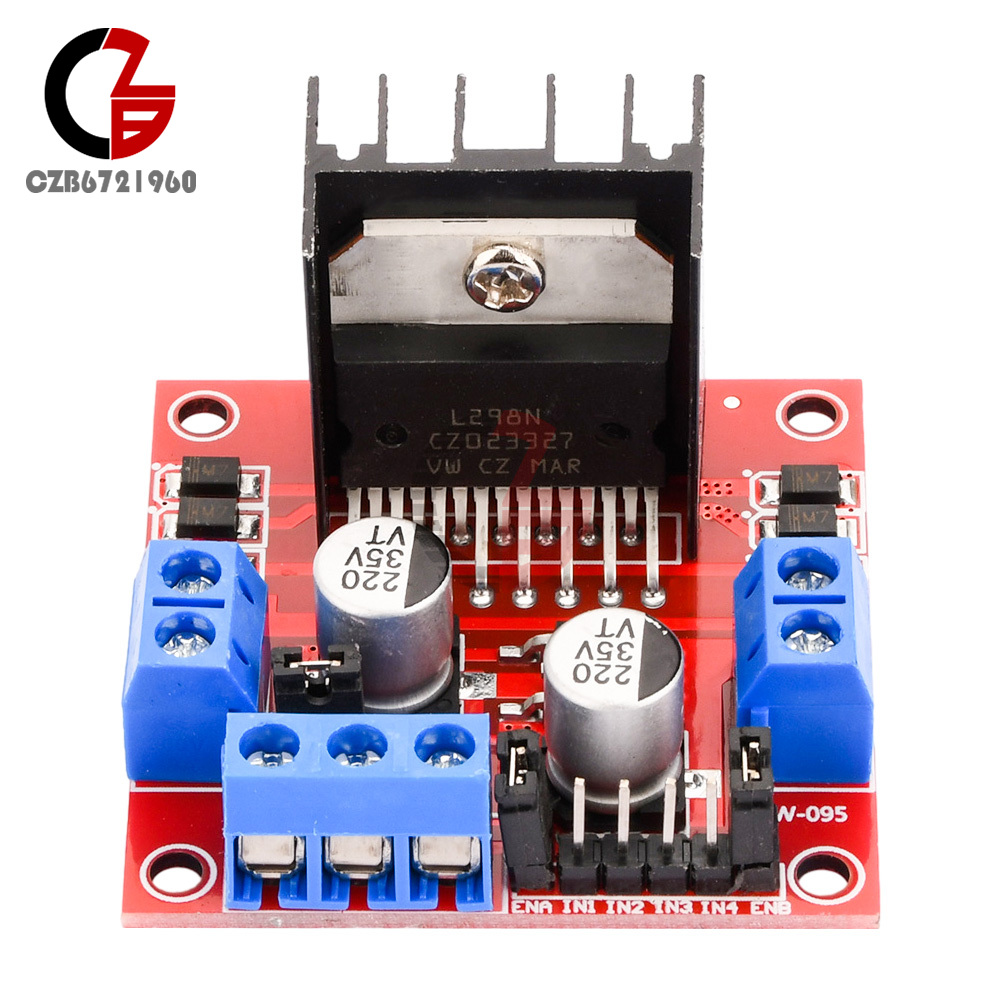

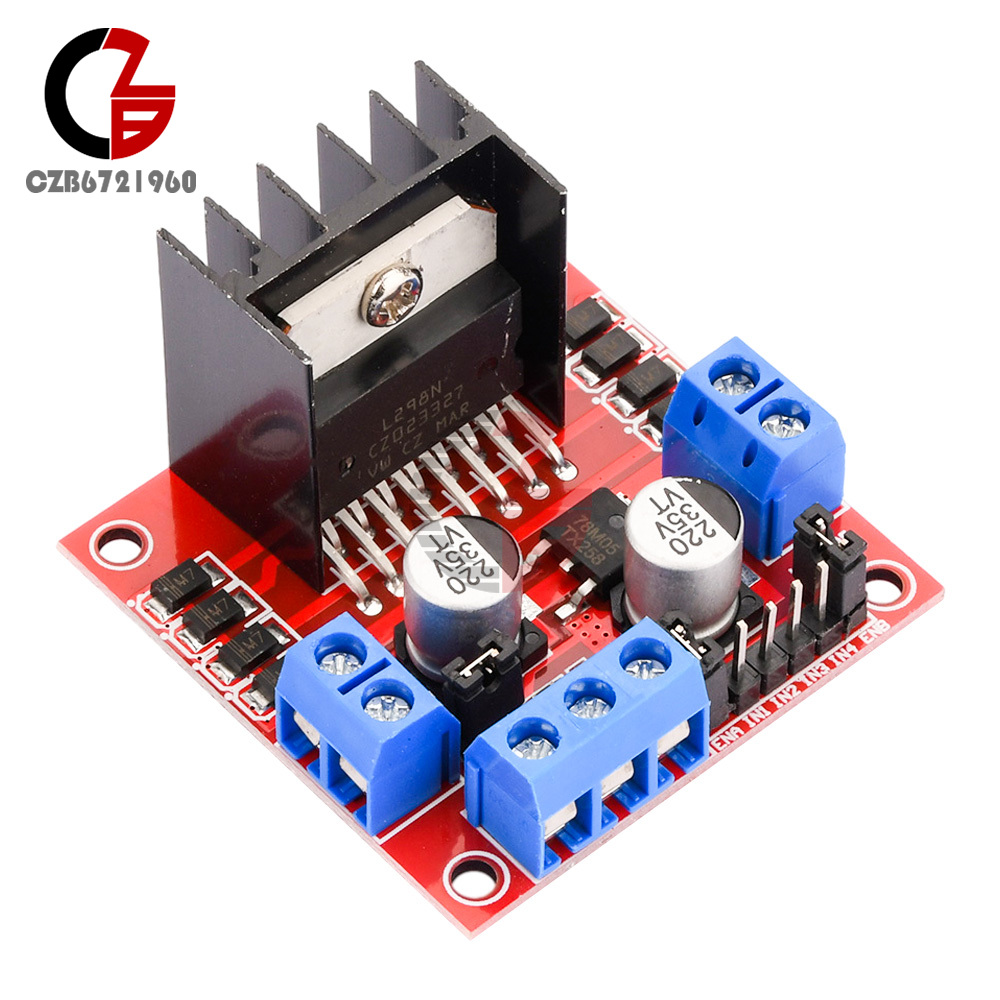

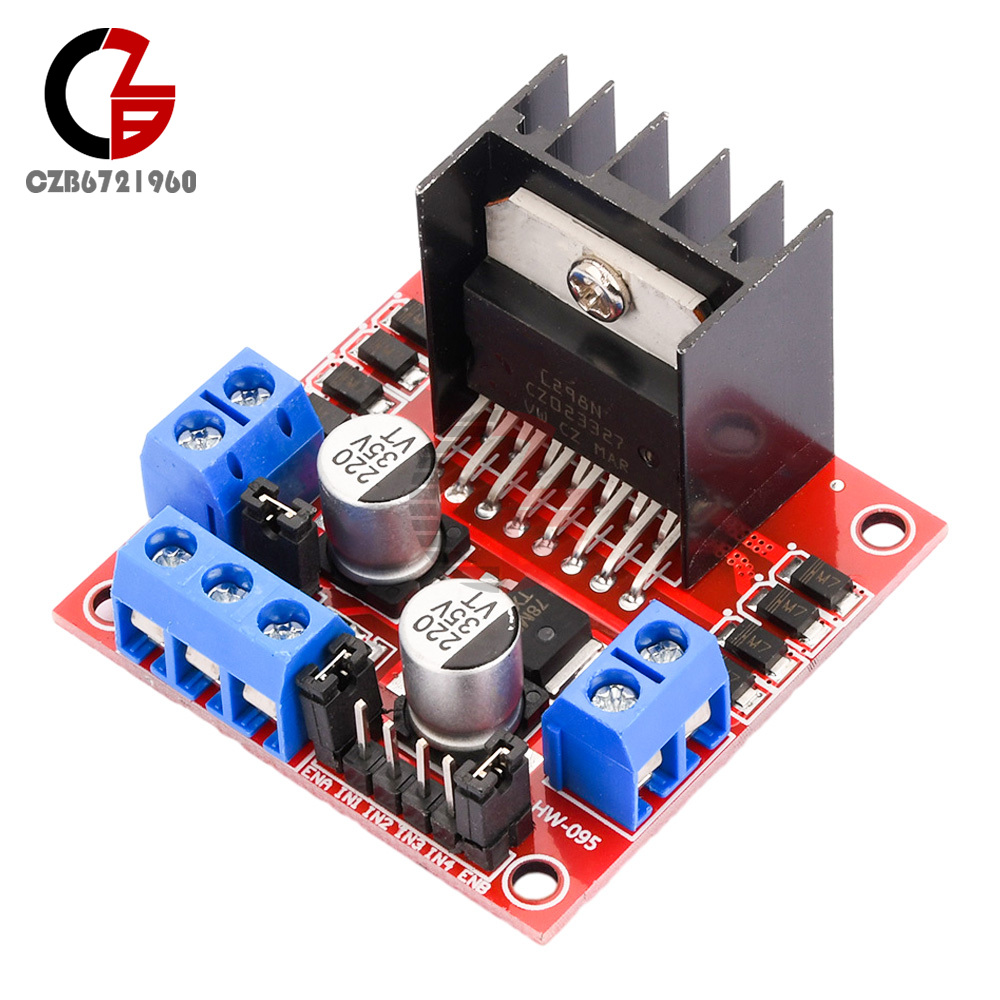

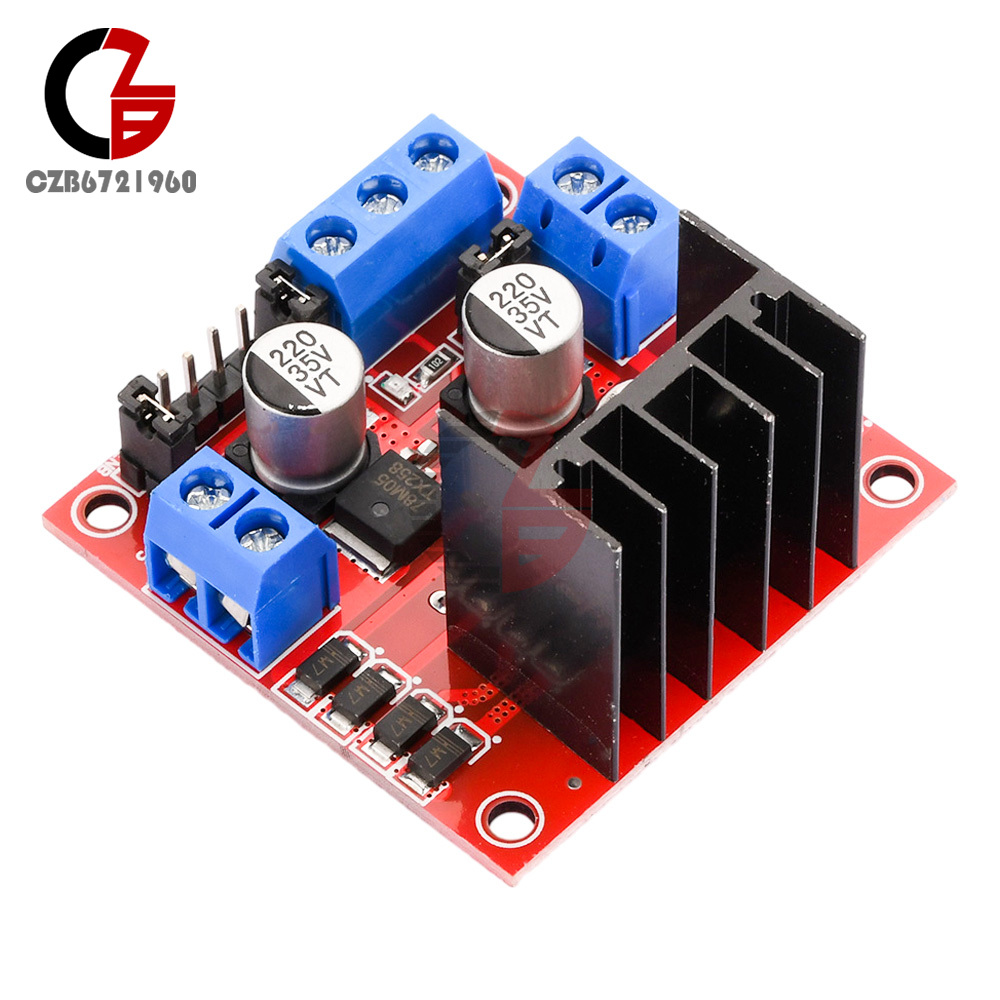

L298N DC Stepper Motor Driver Module Dual H Bridge Control Board for Arduino 25W

Popular

    Product Introduction

    L298N as main chip, ST corporation production.
    Low heat,outstanding anti-interference performance.
    High working power to 46v,large current can reach 3A MAX and continue current is 2A, power to 25w.
    Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
    Built-in 78M05,get power from drive power,however, when drive power over12V, please use the external 5v power as power supply.
    Large capacity filter capacitance,afterflow protection diode, more stable and reliable.


    Specification:

    Double H bridge drive
    Chip: L298N (ST NEW)
    Logical voltage: 5V
    Drive voltage: 5V-35V
    Logical current: 0mA-36mA
    Drive current: 2A(MAX single bridge)
    Max power: 25W
    Size:43 x 43 x 26mm
    Net weight: 26g
    Package weight:36g

    Note:
    This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply
    DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
    When ENA enable IN1 IN2 control OUT1 OUT2
    When ENB enable IN3 IN4 control OUT3 OUT4

    Package Included:
    1 x Dual H Bridge DC Stepper Motor Drive Controller Board Module Arduino L298N
