Configure up to seven cameras via quick-select buttons and quickly recall up to 10 preset movements via the center numeric buttons. Different user modes—Basic, Basic PTZ, and Matrix—tailor the controller to the user's expertise level for more universal use. RS-422 and RS-232 connections on the device facilitate serial control, while support for VISCA, Pelco-P, and Pelco-D protocols facilitate IP connection. The controller is compatible with HuddleCamHD and PTZOptics PTZ camera units. An included RS-232 cable and power supply makes integrating the controller into your preexisting setup a breeze.

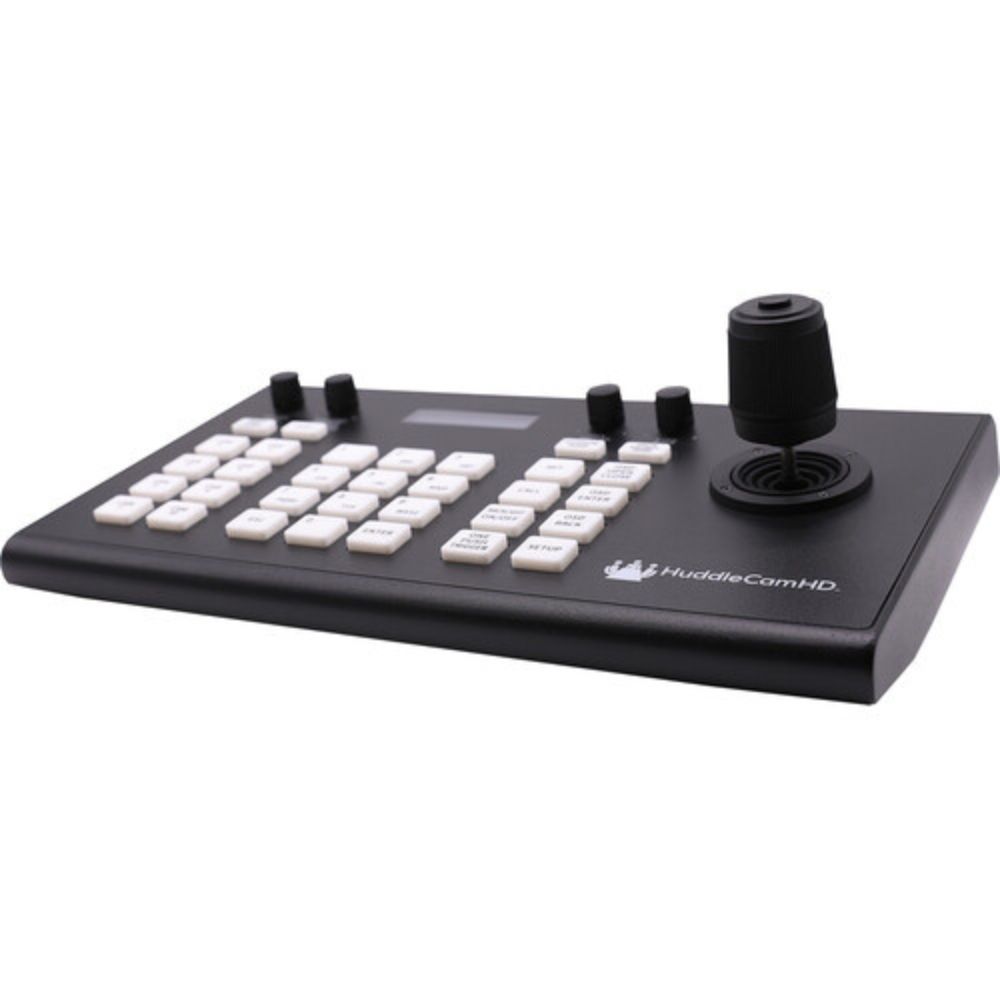

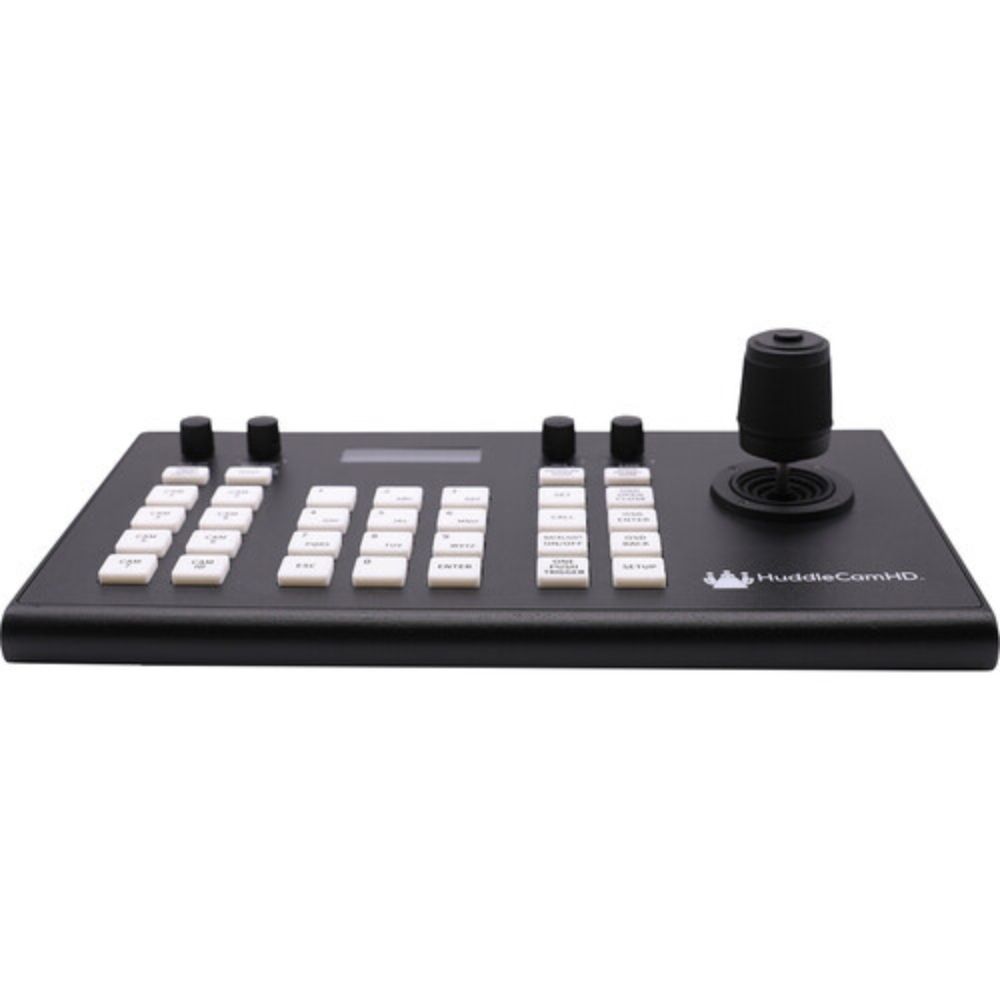

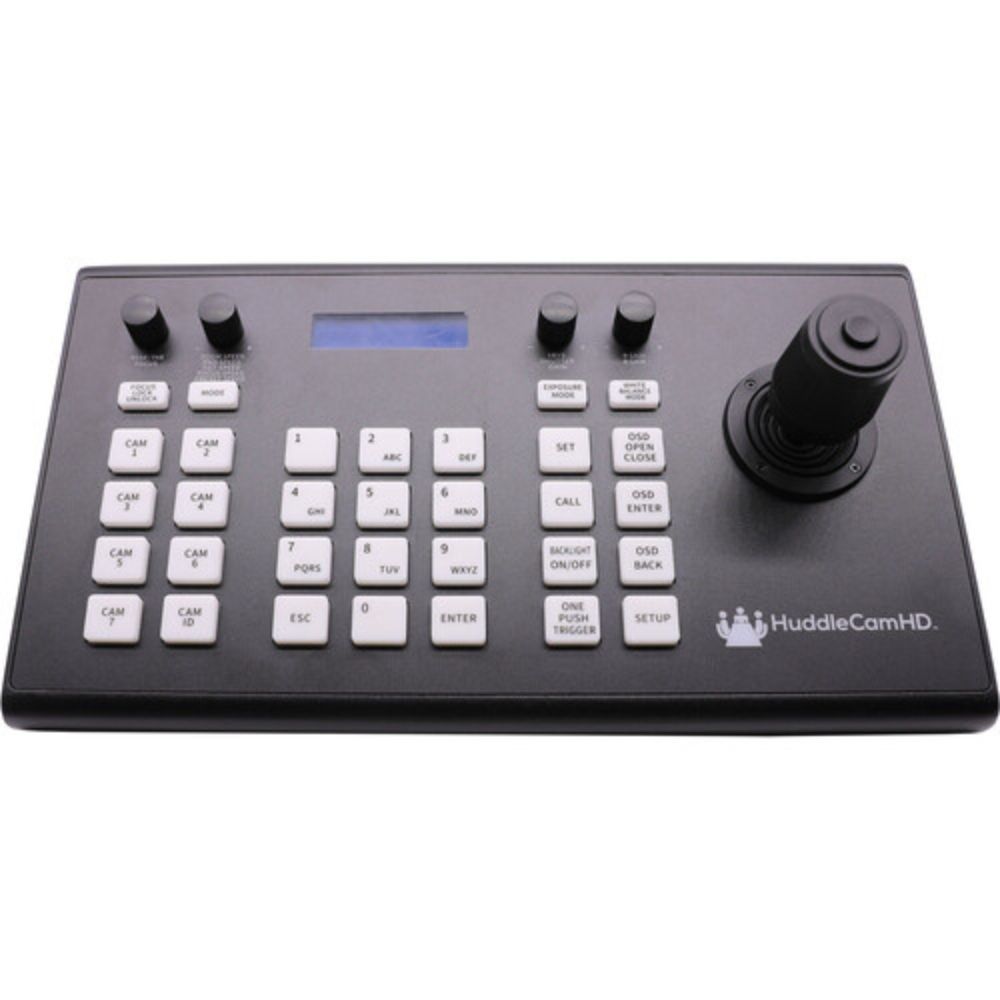

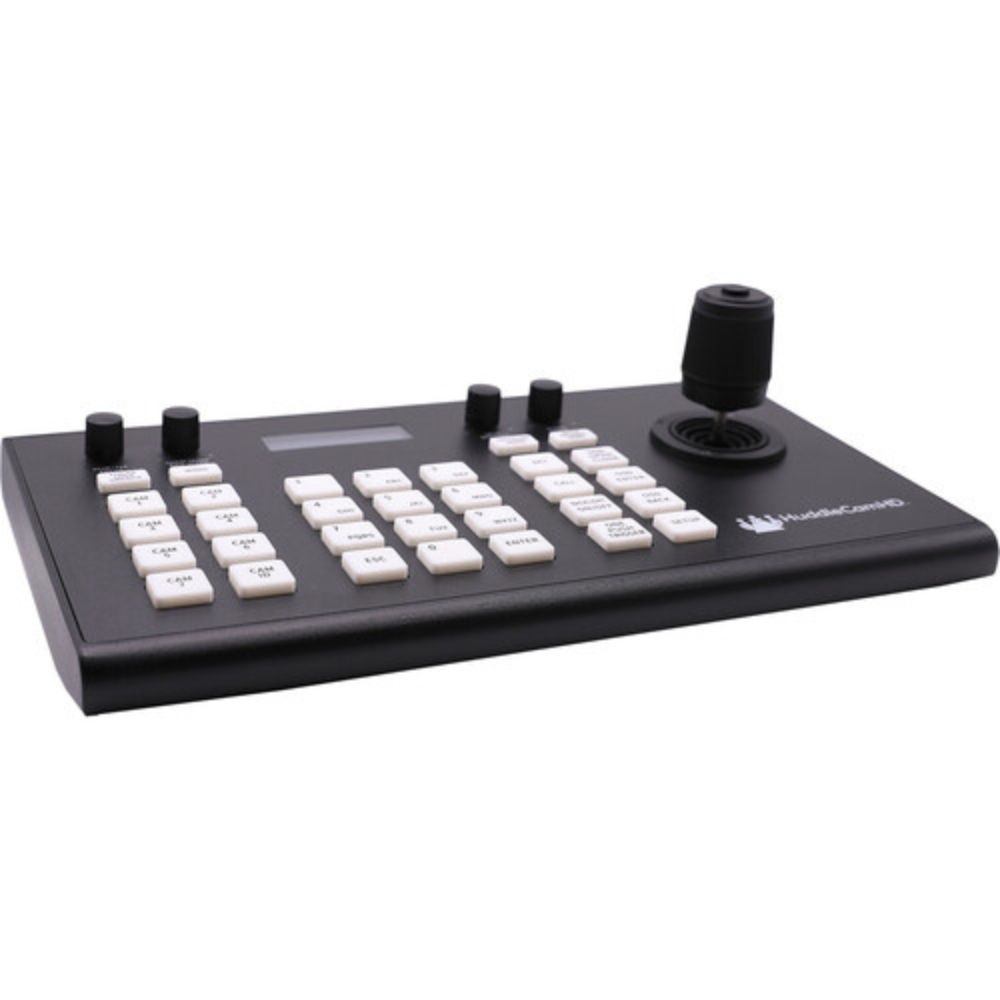

Controller Interface
- Speed Control Dial
- Mode Change Button
- LCD
- Set and Call Presets
- Exposure Control
- White Balance Control
- Joystick Controller
- Focus Control
- Camera Select
- Numeric Buttons
- Backlight Toggle
- OnePush Trigger
- Joystick Setup Menu
- Camera OSD
Box Contains
-
HuddleCamHD HC-JOY-G4 Serial PTZ Joystick Controller (4th Generation)
- RS-232 Cable
- 12 VDC Power Supply
-
HuddleCamHD HC-JOY-G4 Serial PTZ Joystick Controller (4th Generation)
- RS-232 Cable
- 12 VDC Power Supply
| Brand | HuddleCamHD |
| Model | HuddleCamHD HC-JOY-G4 |
| MPN | HC-JOY-G4 |
| Type | Joystick Controller |
| Number of Supported Cameras | 255 Channels via Pelco-D/P |
| Supported Control Protocols | Pelco-D Pelco-P VISCA |

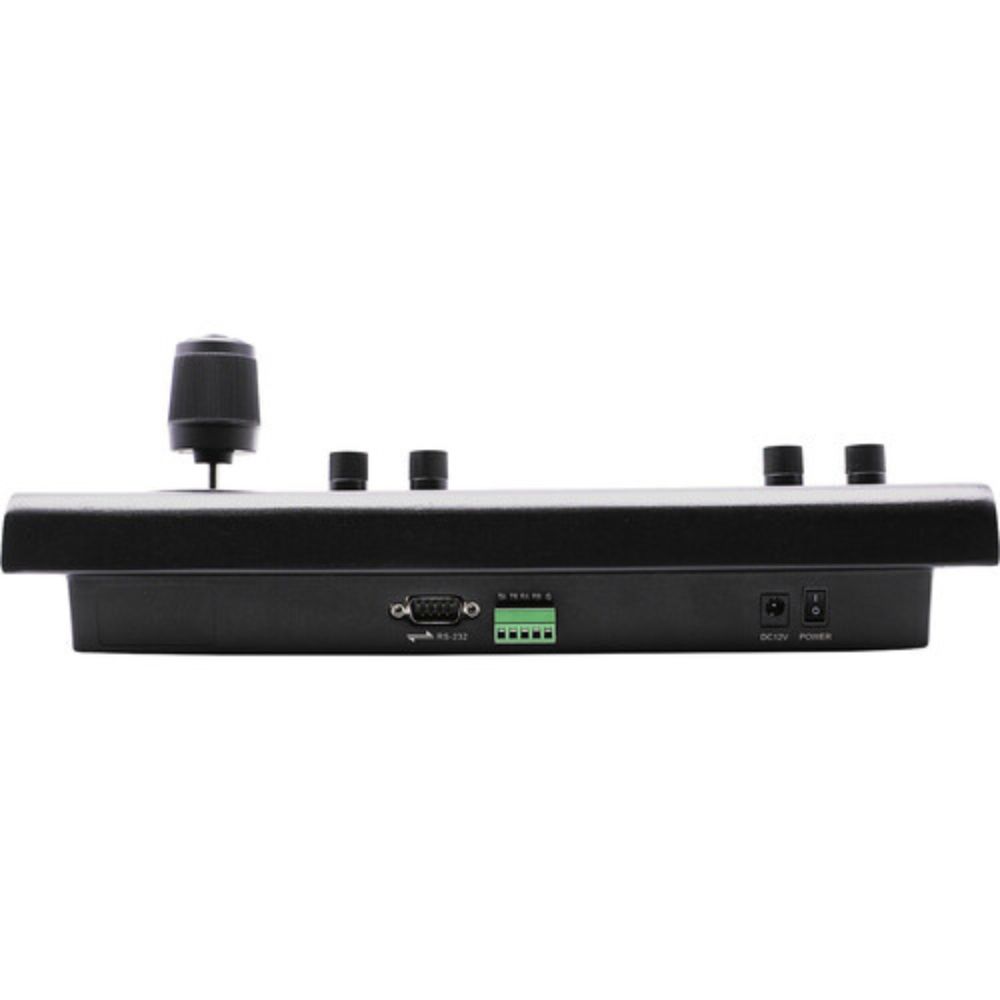

| Control I/O | 1 x D-Sub 9-Pin (RS-232) 1 x Phoenix (RS-422, RS-485) |
| Controls | 1 x Camera Movement Speed, Focus Speed Knob 1 x Focus Knob 1 x Iris Adjustment, Gain Knob 1 x White |
| Presets | 255 |
| PoE Support | None |
| Power Connectors | 1 x JEITA |
| Power Consumption | ≤6 W |
| DC Input Power | 12 VDC at 2000 mA |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Operating Humidity | 10 to 90% |
| Security Lock Support | None |
| Dimensions | 12.6 x 7.1 x 4.3 / 320 x 181 x 110 mm |
| Weight | 3.4 lb / 1.5 kg |
