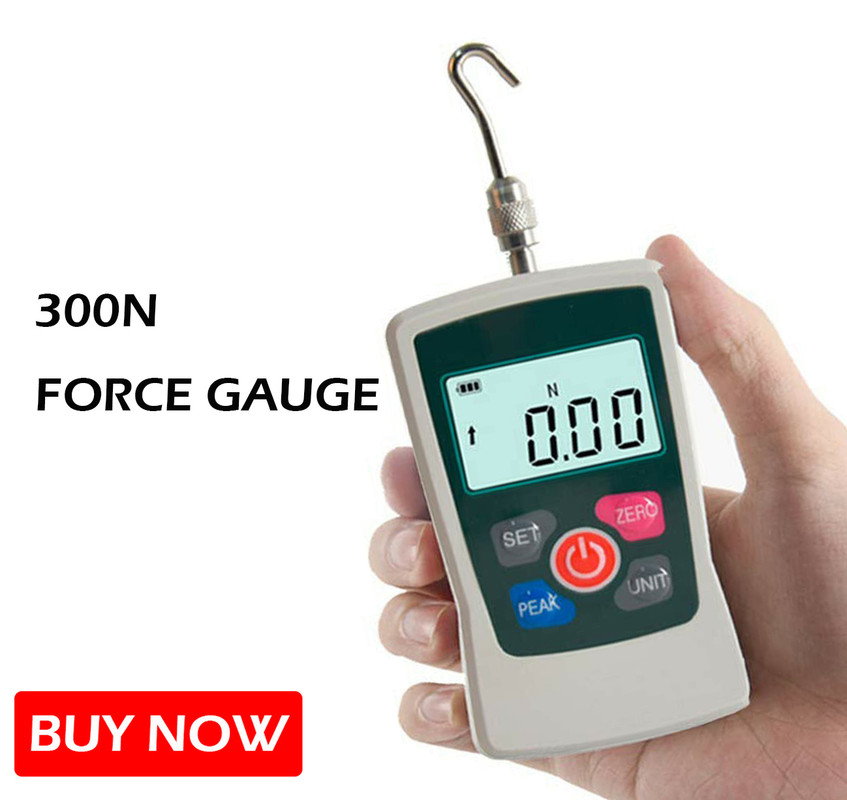

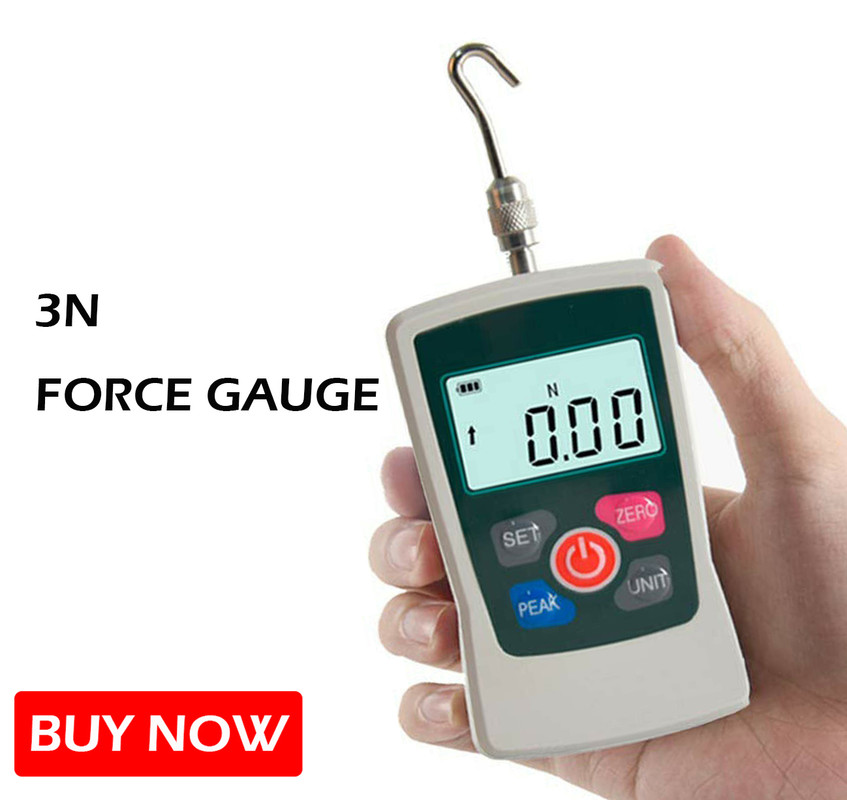

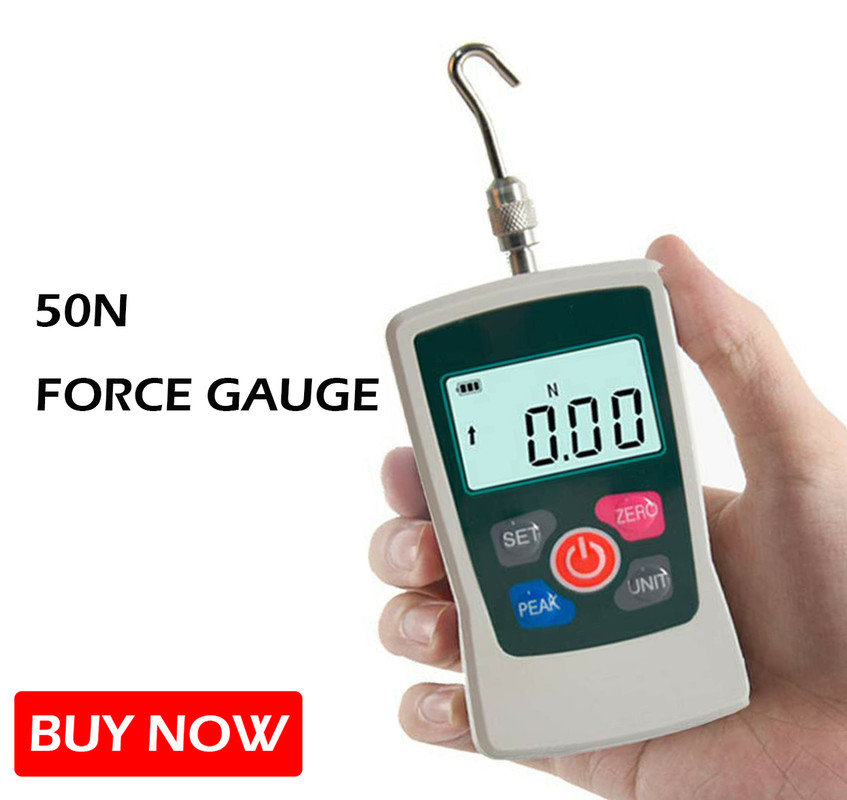

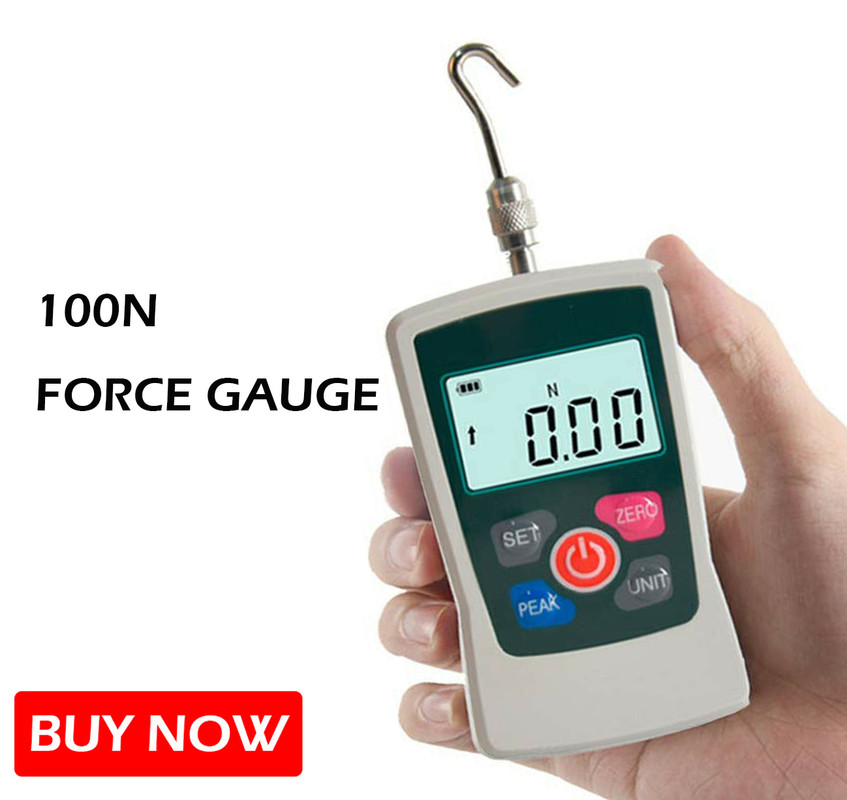

Digital Muscle Force Meter Gauge Muscle Dynamometer Muscle Strength Meter Tester

Note: Battery not Included During The Shipping !!!



Introduction:

Work task analysis and ergonomic analysis is simple and accurate, ideal for workplace design, strength assessment and ergonomic studies.

Features:

• High precision and high resolution.

• Digital display, no parallax.

• N(Newton), kg(kilogram), lb(pound), g(gram) four measurement units can be selected and converted to each other.

• Peak hold function. Maintains peak display until manually cleared.

• Can be powered by alkaline battery; can also be connected to 5V DC power supply.(batteries are not included in transit)



Specifications:

• Measurement range: ±50 kgf ±490 N ±110 Lbf
• Resolution: 0.01 kgf 0.1 N 0.1 Lbf
• Accuracy : 0.5 level
• Accuracy: ±0.5% FS (range) ±1 digital peak
• Units : Kgf, N, Lbf
• Measurable value: Peak value, Instantaneous value
• Display : Four-digit large LCD, dual display in positive direction
• Backlight: Backlight
• Tolerable load: 150% F.s (beeping alarm when 110% F.s is exceeded)
• Power supply: 2 x 5 batteries or 5V DC current (batteries are not included in transit)
• Operating temperature : 0 °C~ 40°C
• Working humidity: <80%
• Net weight: 705g
• Stand size: Handlebar: 315mm*Φ30mm
• Stand: 155mm*95mm*35mm
• Instrument size: Main body: 170mm*72mm*35mm
