2.4/2.8/3.2/3.5" Inch SPI Serial Port TFT LCD Screen Touch Panel Module fArduino

Popular

Product Introduction

2.4 inch LCD
Features:
Type: without touch panel / with touch panel
Size:2.4" SPI Serial
Display area:36.72(W)X48.96(H)mm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o’clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V
Need at least 4 IOs from your MCU
With PCB plate (including power supply IC, SD), compatible with 5110 interface
Package Included:
1PCS * 2.4" SPI 240x320 TFT LCD Serial Port Module with 3.3V PBC Adapter SD ILI9341

2.8 inch LCD

Description:
100% brand new and high quality
Type: with / without touch panel
Size:2.8" SPI Serial
Display area:6.5(W) X 4.5(H)cm/2.55 x 1.77''
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o’clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V or 5V logic
Need at least 4 IOs from your MCU
With PCB plate (including power supply IC, SD), compatible with 5110 interface
Quantity:1pc　

Package Included:
1PC*SPI TFT LCD Serial Port Module

3.2 inch LCD
Product Description:
3.2-inch color screen,support 65K color display,display rich colors
320X240 resolution, Press function
color: red
Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with SD card slot
Provide a rich sample program
process standards, long-term stable work
Provide underlying driver technical support
Product Parameters:
Screen Size : 3.2(inch)
Driver IC : ILI9341
Resolution: 320*240 (Pixel)

Package Contents:
1* 3.2 inch 320*240 MCU SPI Serial TFT LCD Module
3.5 inch LCD
With Touch Panel
Product：
Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
480X320 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Provides an Arduino library with a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support


Product Parameters
Name Parameter
Display Color RGB 65K color
SKU MAR3501（have touch screen）/MAR3502(have no touch screen)
Screen Size  3.5(inch)
Type TFT
Driver IC ILI9486
Resolution 480*320 (Pixel)
Module Interface 8-bit parallel interface
Active Area  73.44*48.96(mm)
Module PCB Size 85.49*55.63(mm)
Operating Temperature -20℃~70℃
Storage Temperature -40℃~70℃
Operating Voltage 5V/3.3V
Power Consumption TBD
Product Weight(Package containing) 44g(have touch screen)，55g(have no touch screen)



Interface Definition

Number Pin Label Pin Description
1 LCD_RST LCD bus reset signal, low level reset
2 LCD_CS LCD bus chip select signal, low level enable
3 LCD_RS LCD bus command / data selection signal,

low level: command, high level: data
4 LCD_WR LCD bus write signal
5 LCD_RD LCD bus read signal
6 GND Power ground
7 5V 5V power input
8 3V3 3.3V power input, this pin can be disconnected
9 LCD_D0 LCD 8-bit data Bit0
10 LCD_D1 LCD 8-bit data Bit1
11 LCD_D2 LCD 8-bit data Bit2
12 LCD_D3 LCD 8-bit data Bit3
13 LCD_D4 LCD 8-bit data Bit4
14 LCD_D5 LCD 8-bit data Bit5
15 LCD_D6 LCD 8-bit data Bit6
16 LCD_D7 LCD 8-bit data Bit7
17 SD_SS SD card SPI bus chip select signal, low level enable
18 SD_DI SD card SPI bus MOSI signal
19 SD_DO SD card SPI bus MISO signal
20 SD_SCK SD card SPI bus clock signal

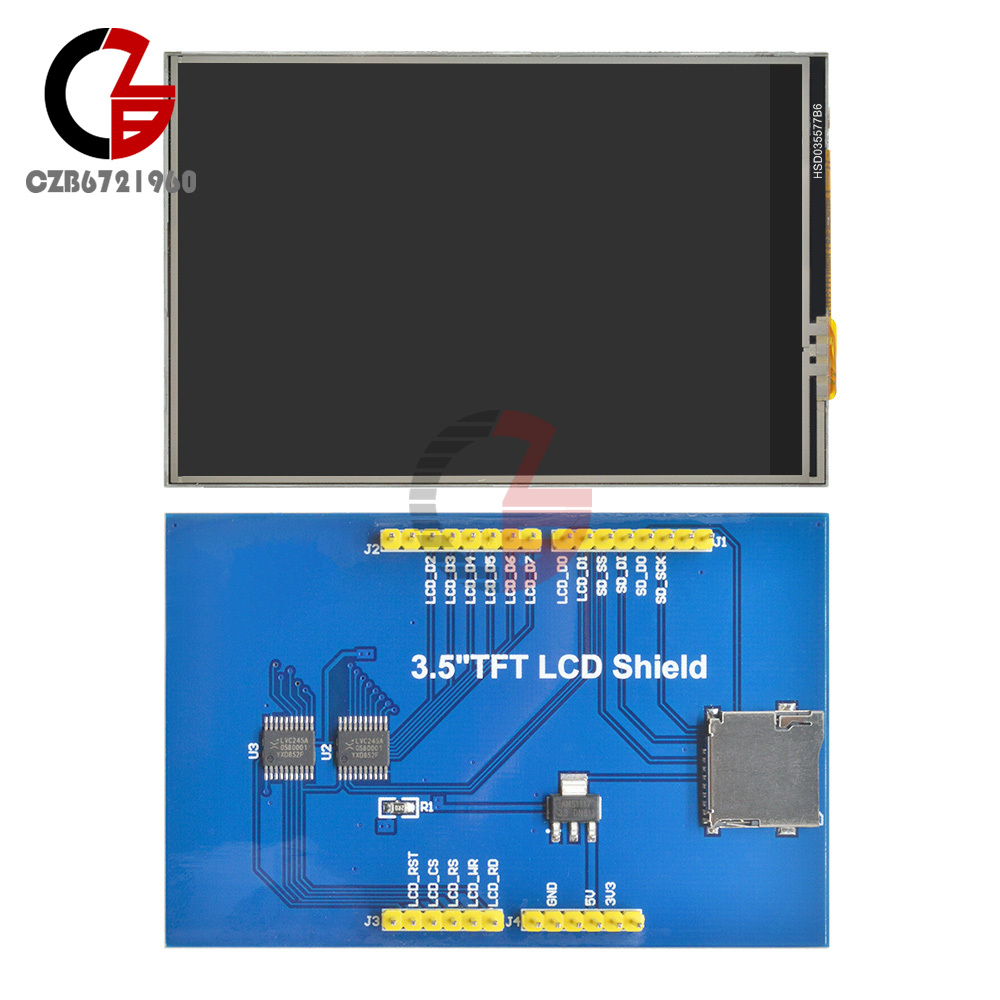

Connect to Arduino

Package included
1*Full Color Touch Screen Module


Without Touch Panel
Features:
100% brand new and high quality.
High quality LCD screen replacement part.
Highly recommend professional installation.
Each item has been tested before shipment and are 100% working.

Specifications:
Size: 3.5" Screen
Screen Material: TFT
Resolution: 480x320
Module pin: 28 Pin ( 8+8+6+6)

Package include:
1 x 3.5 Inch for Arduino LCD Screen Module


  • We accept PayPal only. But we only Accept your Ebay Address,Please Make sure it's 100% right.
  • Payment must be received in 5 business days of auction closing.
  • Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order.
  • Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched.
  • We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
  • All package need to wait 30 days(US only need 7-10 days),Please take care it.Less than 30 days,we can't take a refund.
  • If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it.
  • If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
