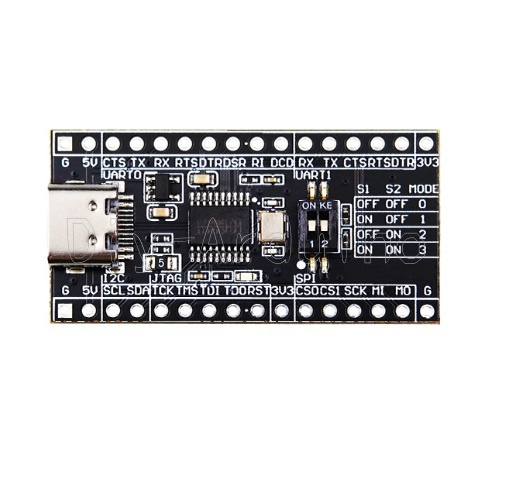

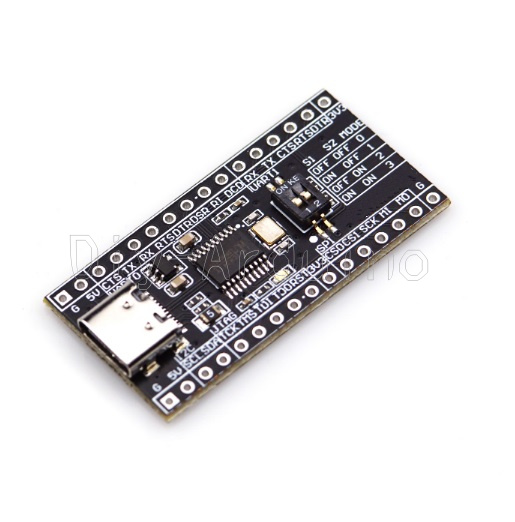

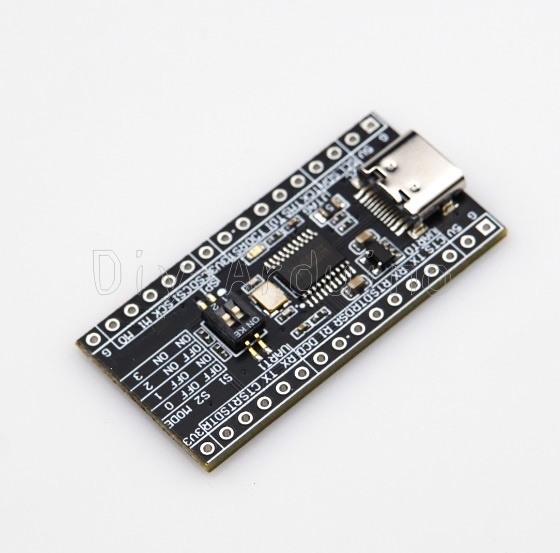

CH347 Development Board Module High Speed USB to UART / I2C / SPI / JTAG / GPIO

Product name: CH347 development board

Main control chip CH347

Communication interface TYPE-CUSB 2.0 high-speed

Support interface UART/12C/SPI/JTAG/GPIO

Operating system Windows/Linux/Mac

Product size 4.1cm * 2.1cm

Product features

USB2.0 high-speed equipment, bandwidth 480Mbps

High speed dual serial ports, supporting the highest baud rate of 9Mbps

12C interface, which can be used to operate EEPROM or various sensors

SPI interface, supports 2-way chip selection signal, and can operate 2 SPI slave devices in time sharing, with the highest frequency up to 36MHz

JTAG interface, 4-wire standard JTAG protocol, high-speed transmission, maximum frequency up to 60MHz

Operating mode

The CH347 development board supports four working modes, corresponding to four different functions. Four

The working mode can be configured by the dial switches S1 and S2.

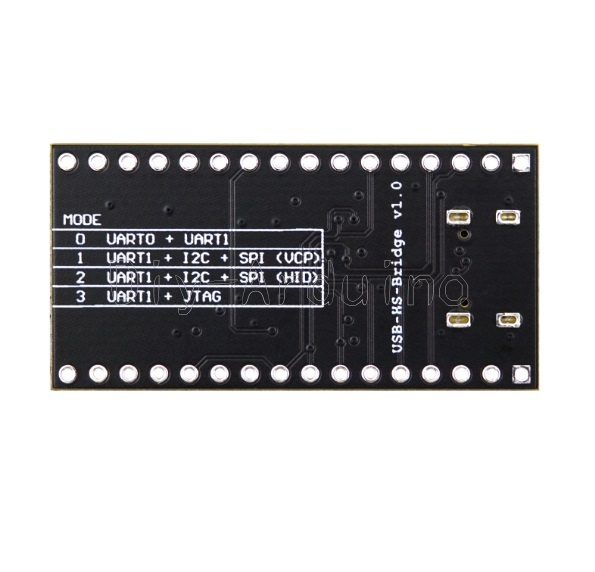

MODE S1 S2

OFF OFF UARTO+UART1

1 ON OFF UART1+12C+SPI(VCP)

2 OFF ON UART1+12C+SPI(HID)

3 ON ON UART1+JTAG



Package Included: 1pcs
