6" 600 Watts Dual Voice Coil 2-Ohm Elite-Z Subwoofer ZR6.2D DS18

Amplifiers Batteries Tweeter SubWoofers Marine Loud Speakers

Description

DS18 Elite-Z 6" 600 Watts Dual Voice Coil 2-Ohm Subwoofer ZR6.2D

The DS18 ZR6.2D is an excellent entry level subwoofer that handles massive power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle. This 6" model comes in a dual 2 ohm configuration to match your amplifiers optimal impedance. This model comes with a 1.5" voice coil that handles 300 watts RMS and 600 watts max power. The large foam surround and pressed paper cone work greatly together to deliver smooth crisp bass that can be heard clearly throughout the vehicle.

This Listing Includes:

(1) DS18 6" Subwoofer ZR6.2D

Features:

-Large foam surround for great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.

-Great power handling of 300w RMS and 600w max through a high-strength 1.5" aluminum voice coil.

-Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dust cap.

-Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.

GENERAL SPECIFICATIONS:

Nominal Diameter: 6.5"

Nominal Impedance: 2+2 OHMS

RMS Power Handling: 300W

MAX Power Handling: 600W

Sensitivity (1w/1m): 82 dB

Frequency Response: 38Hz - 200 Hz

Recommended Lo Pass Crossover: 160 Hz

MOTOR SPECIFICATIONS:

Voice Coil Diameter: 1.5" / 38.8mm

VC Former Material: Aluminum

Winding Material: Copper

Cone Material: Non Pressed Paper

Dust Cap Material: PPI

Surround Material: Foam

Basket Material: Steel

Basket Color/Finish: Matte Black

Magnet Material: Ferrite

Magnet Weight: 50 oz

Displacement Volume: 0.02 ft3

THIELE & SMALL PARAMETERS:

Equivalent Volume: 2.65 L

Excursion (one way): 15mm

Free Air Resonance: 65Hz

Mechanical Factor: 3.412

Electrical Factor: 0.769

Total Factor: 0.627

Moving Mass: 55.41g

Compliance: 91.07 m/N

BL Factor: 5.37

Voice Coil Inductance: 324.3m mH

Cone Area: 143 Cm2

DC Resistance: 1.8 + 1.8 ohm

Efficiency Bandwidth Product: 84.5

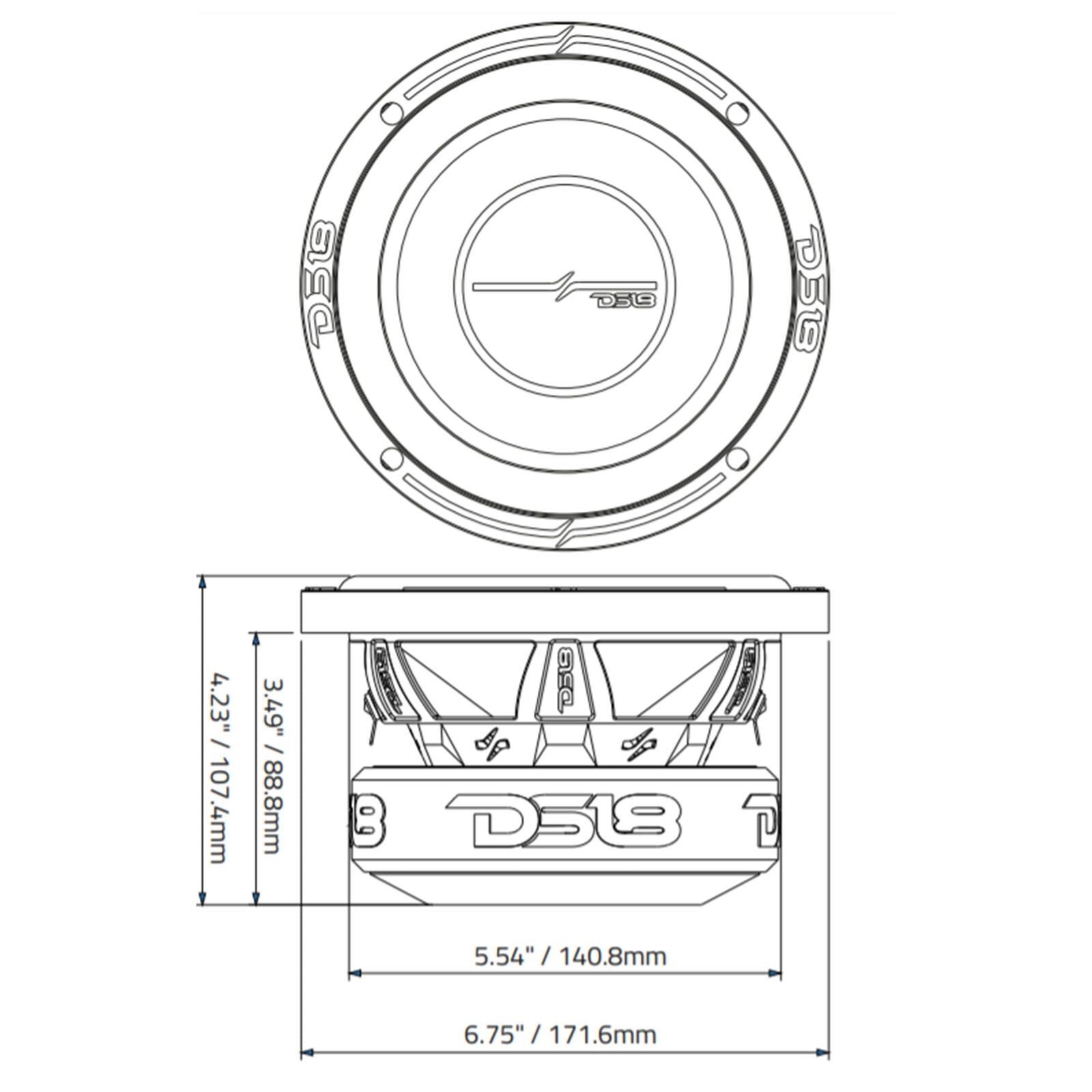

DIMENSIONS:

Overall Diameter: 6.75" / 171.6mm

Overall Depth: 4.23"/107.4mm

Front Mount Baffle Cutout: 5.54"/140.8mm

Mounting Depth: 3.49"/88.8mm

Motor Diameter: 5.23" / 133mm
