Description

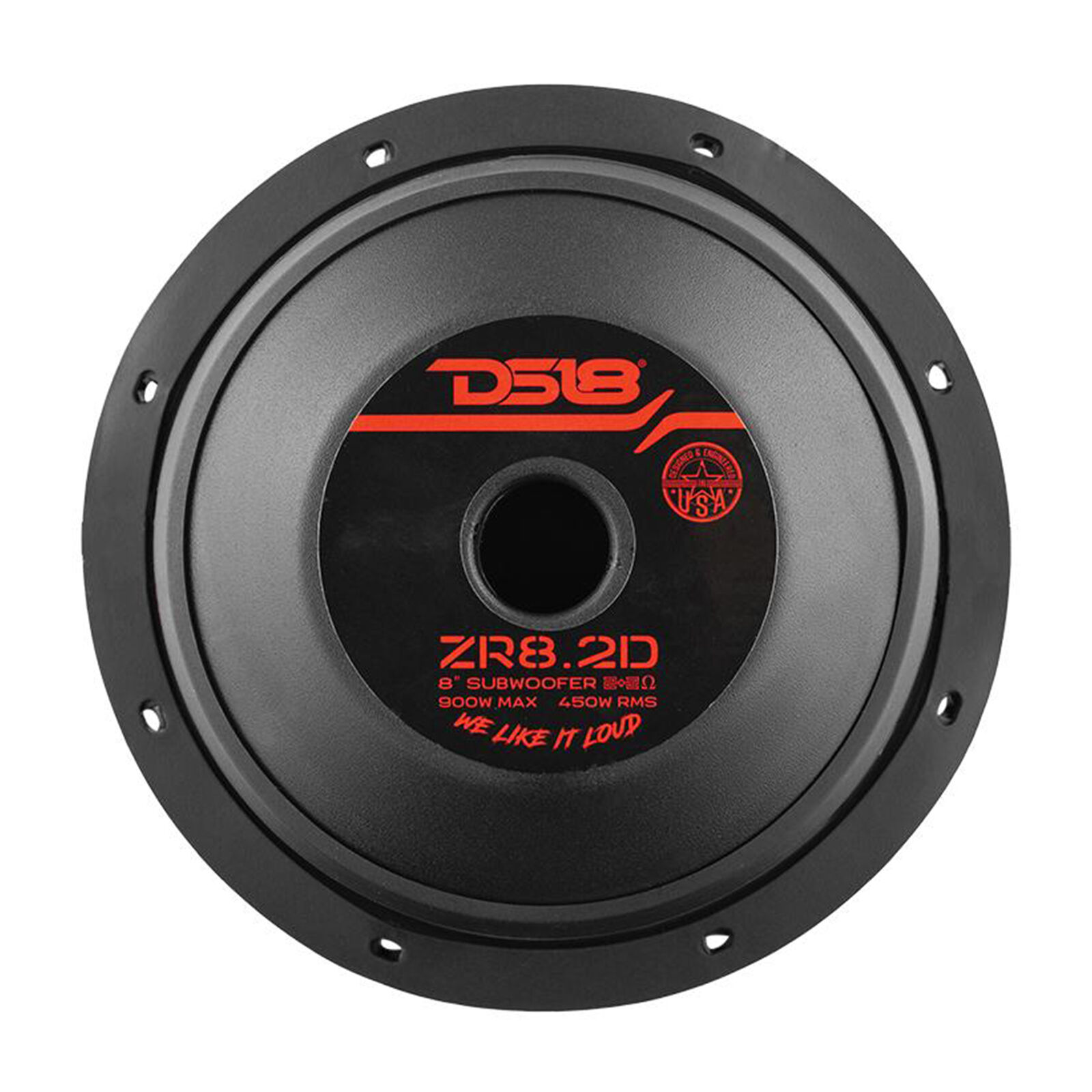

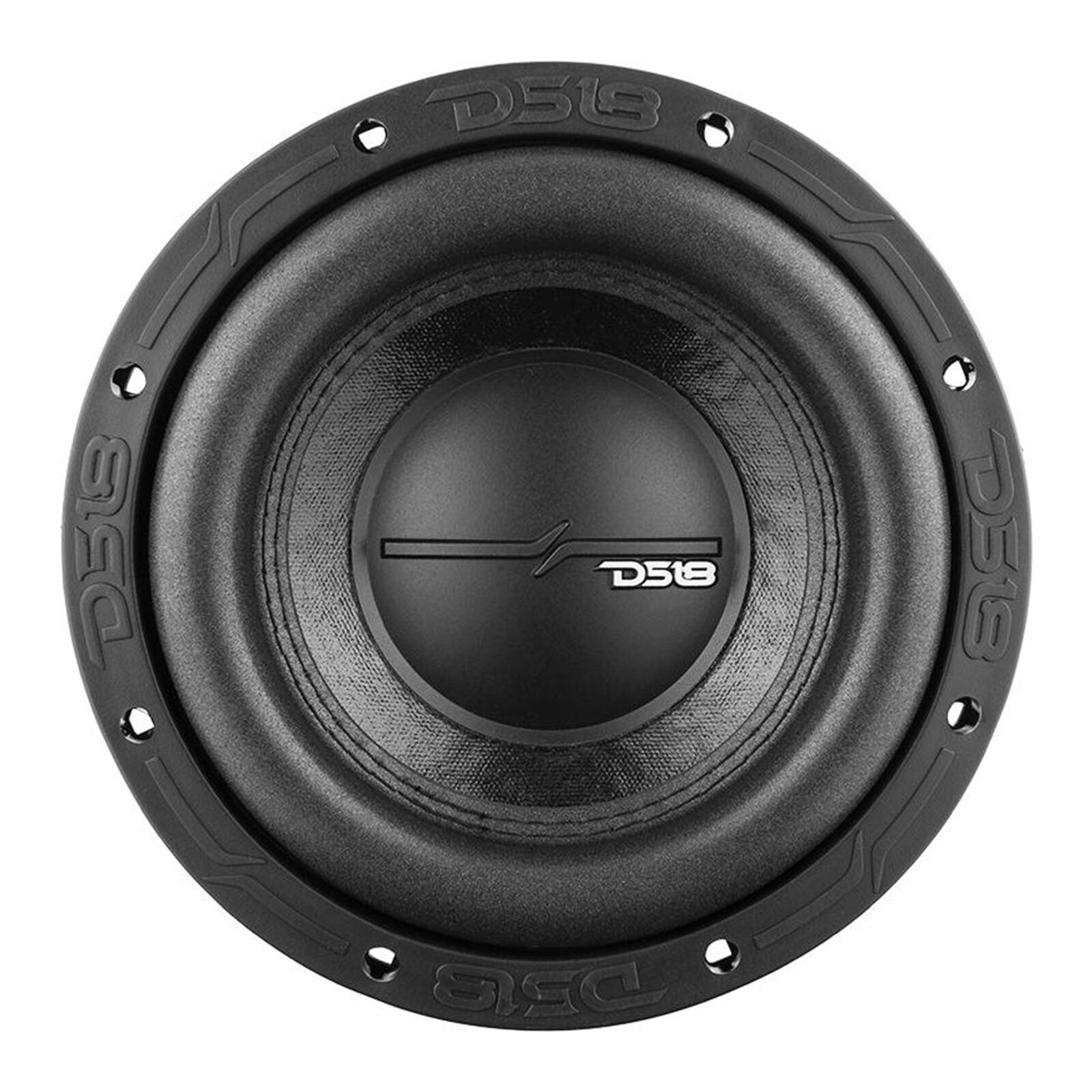

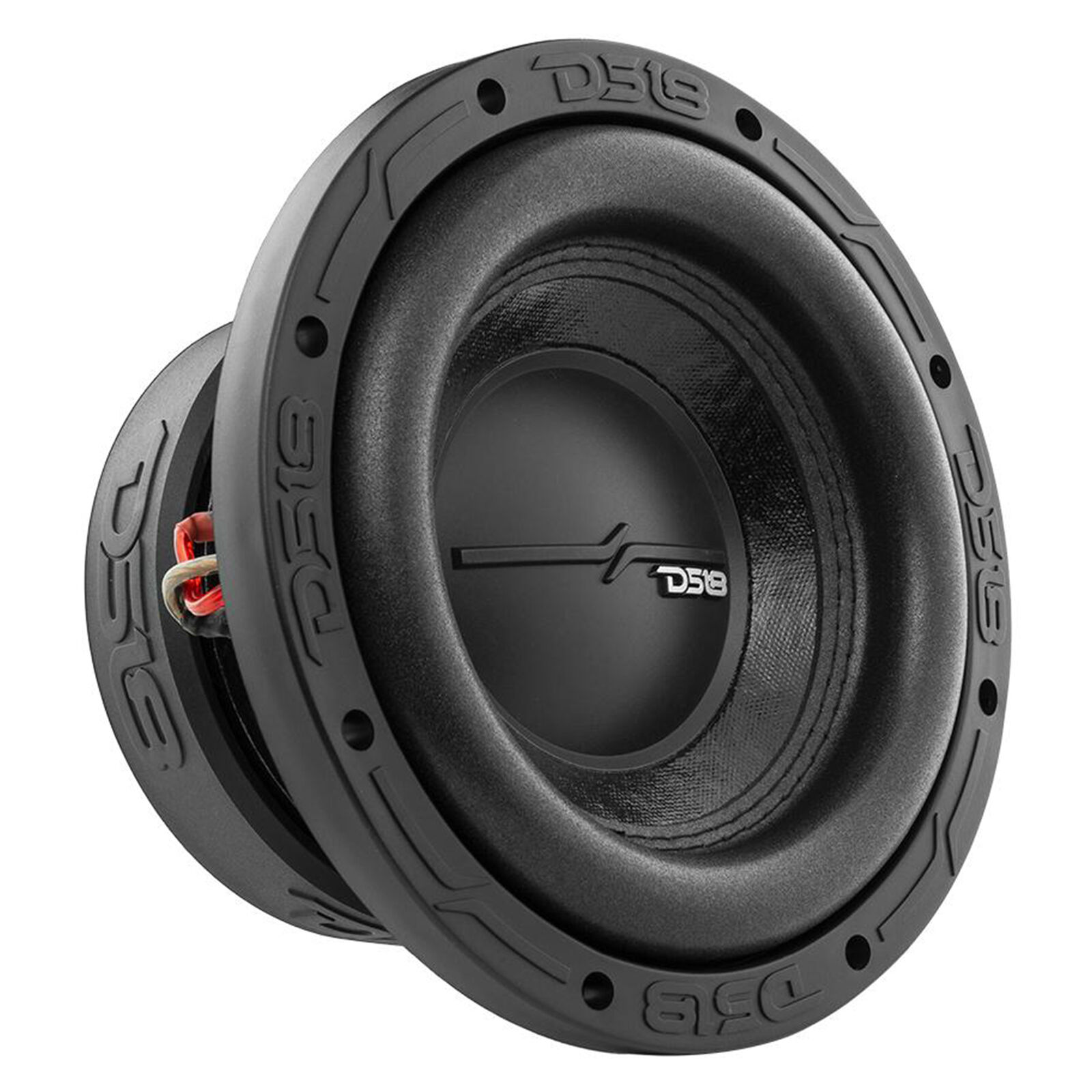

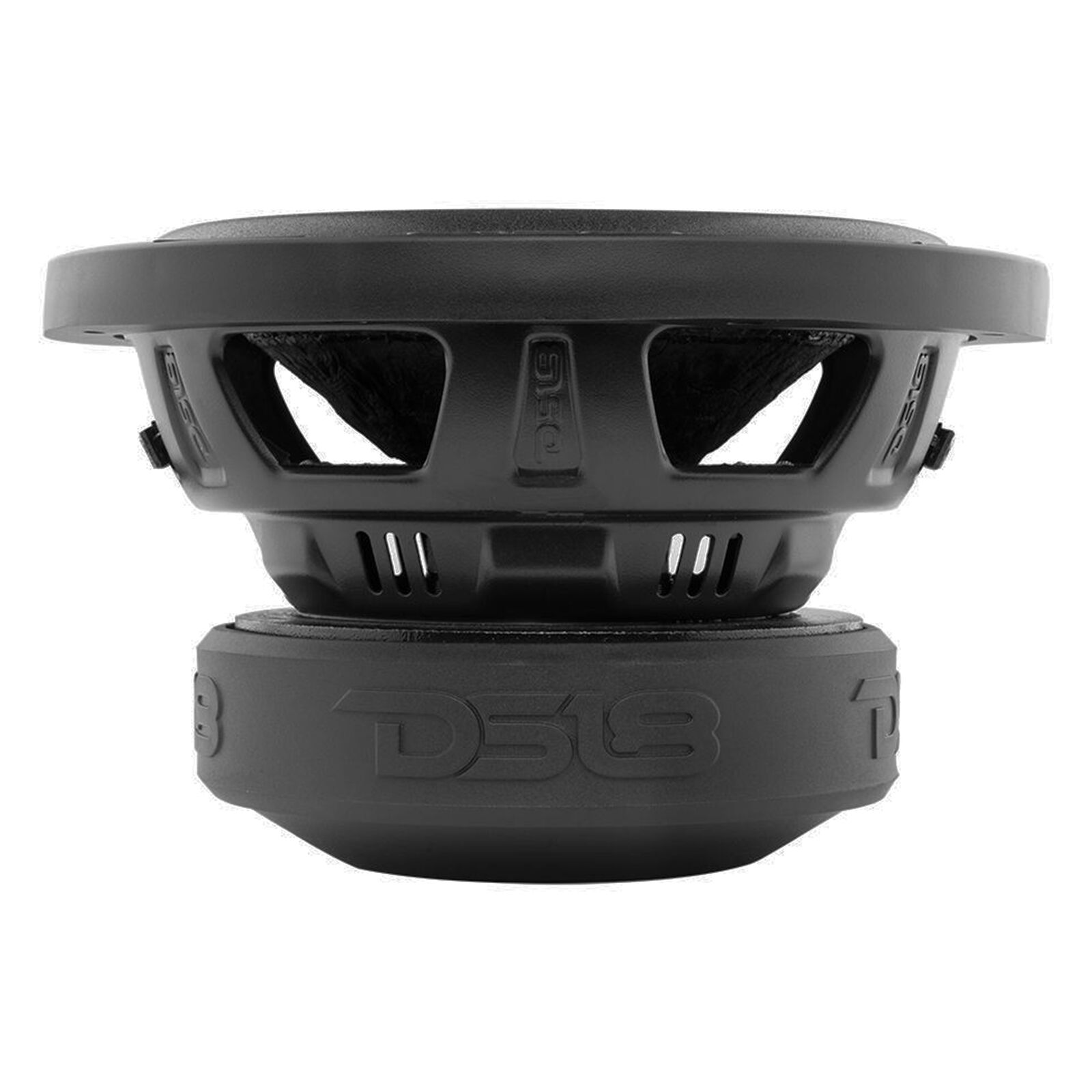

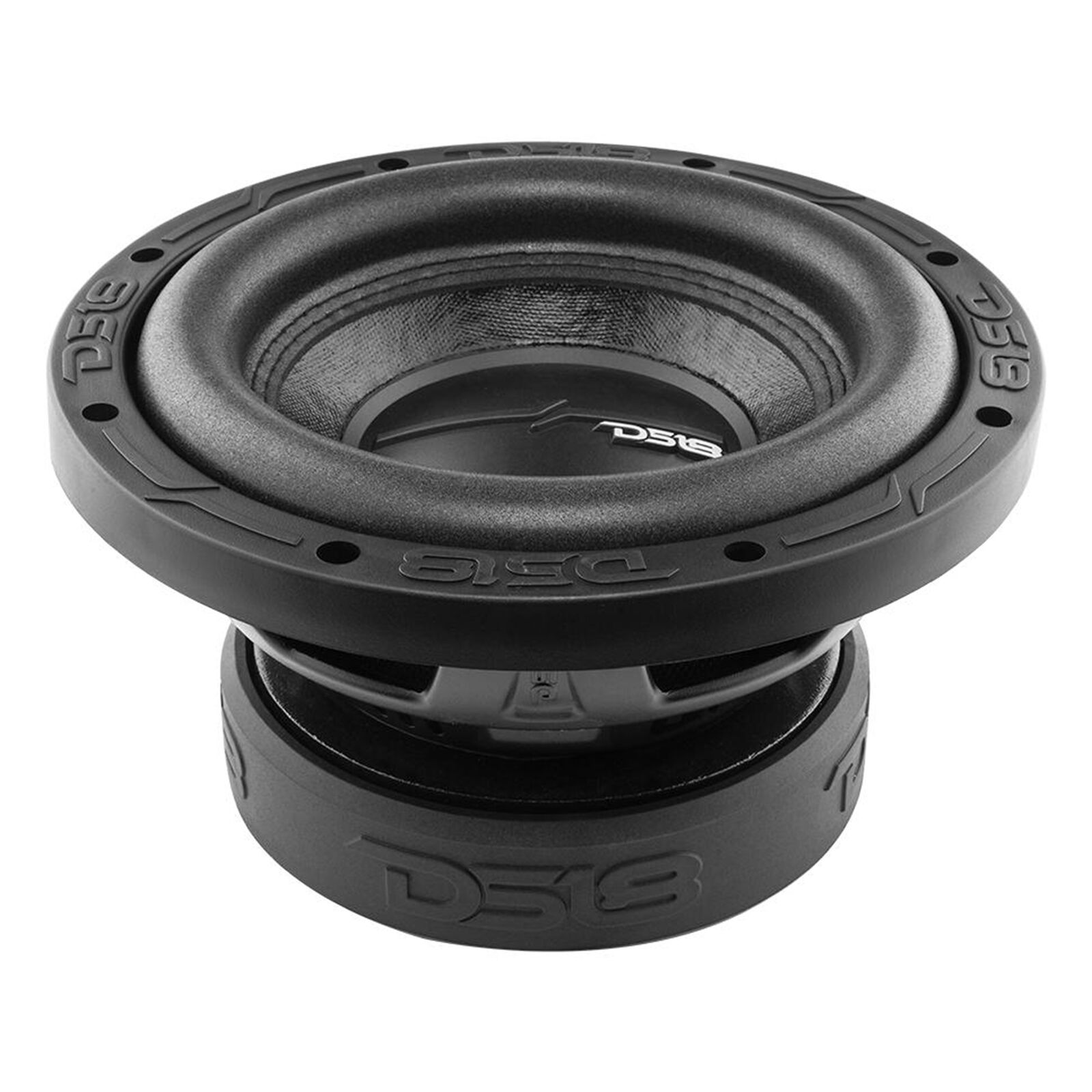

2 x DS18 Elite-Z 8" 1800 Watts Dual Voice Coil 2 Ohm Subwoofers ZR8.2D

The DS18 ZR8.2D is an excellent entry level subwoofer that handles huge power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle. This 8" model comes in a dual 2 ohm configuration to match your amplifiers optimal impedance. This model comes with a 2 inch voice coil that handles 450 watts RMS and 900 watts max power. The large foam surround and pressed paper cone work greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle.

This Listing Includes:
(2) DS18 8" Subwoofers ZR8.2D

Features:
-Large foam surround for great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
-Great power handling of 450w RMS and 900w max through a high-strength 2" aluminum voice coil.
-Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dust cap.

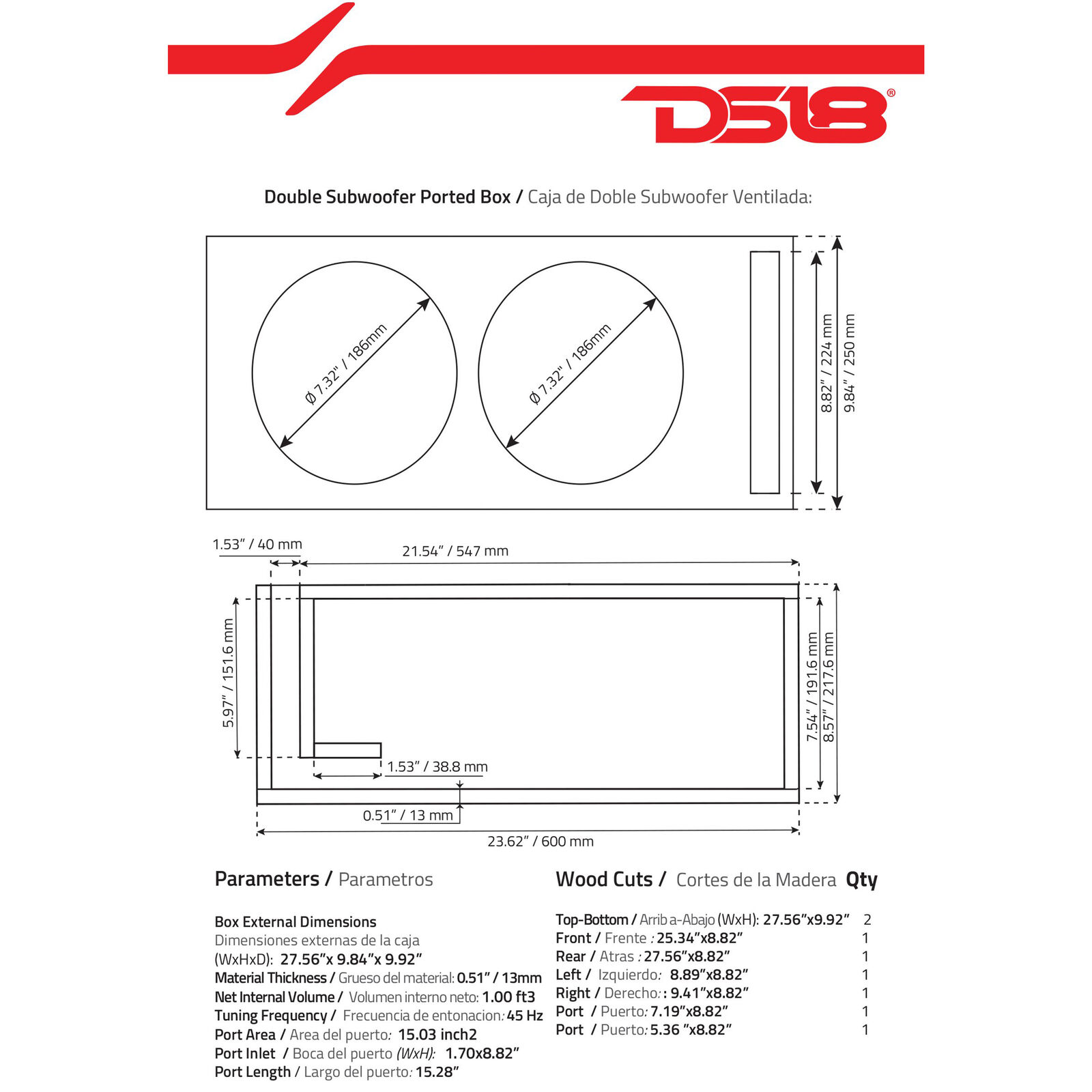

-Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.

GENERAL SPECIFICATIONS PER SUBWOOFER:
Nominal Diameter: 8"
Nominal Impedance: 2+2 OHMS
RMS Power Handling: 450W
MAX Power Handling: 900W
Sensitivity (1w/1m): 82 dB
Frequency Response: 33Hz - 200 Hz
Recommended Lo Pass Crossover: 120 Hz

MOTOR SPECIFICATIONS PER SUBWOOFER:
Voice Coil Diameter: 2" / 50.8mm
VC Former Material: Aluminum
Winding Material: Copper
Cone Material: Non Pressed Paper
Dust Cap Material: PPI
Surround Material: Foam
Basket Material: Steel
Basket Color/Finish: Matte Black
Magnet Material: Ferrite
Magnet Weight: 55 oz
Displacement Volume: 0.03 ft3

THIELE & SMALL PARAMETERS PER SUBWOOFER:
Equivalent Volume: 5.74 L
Excursion (one way): 18mm
Free Air Resonance: 40Hz
Mechanical Factor: 4.38
Electrical Factor: 0.66
Total Factor: 0.57
Moving Mass: 112.72g
Compliance: 105.133 m/N
BL Factor: 6.67
Voice Coil Inductance: .373.76m mH
Cone Area: 196 Cm2
DC Resistance: 1.8 + 1.8 ohm
Efficiency Bandwidth Product: 60.6

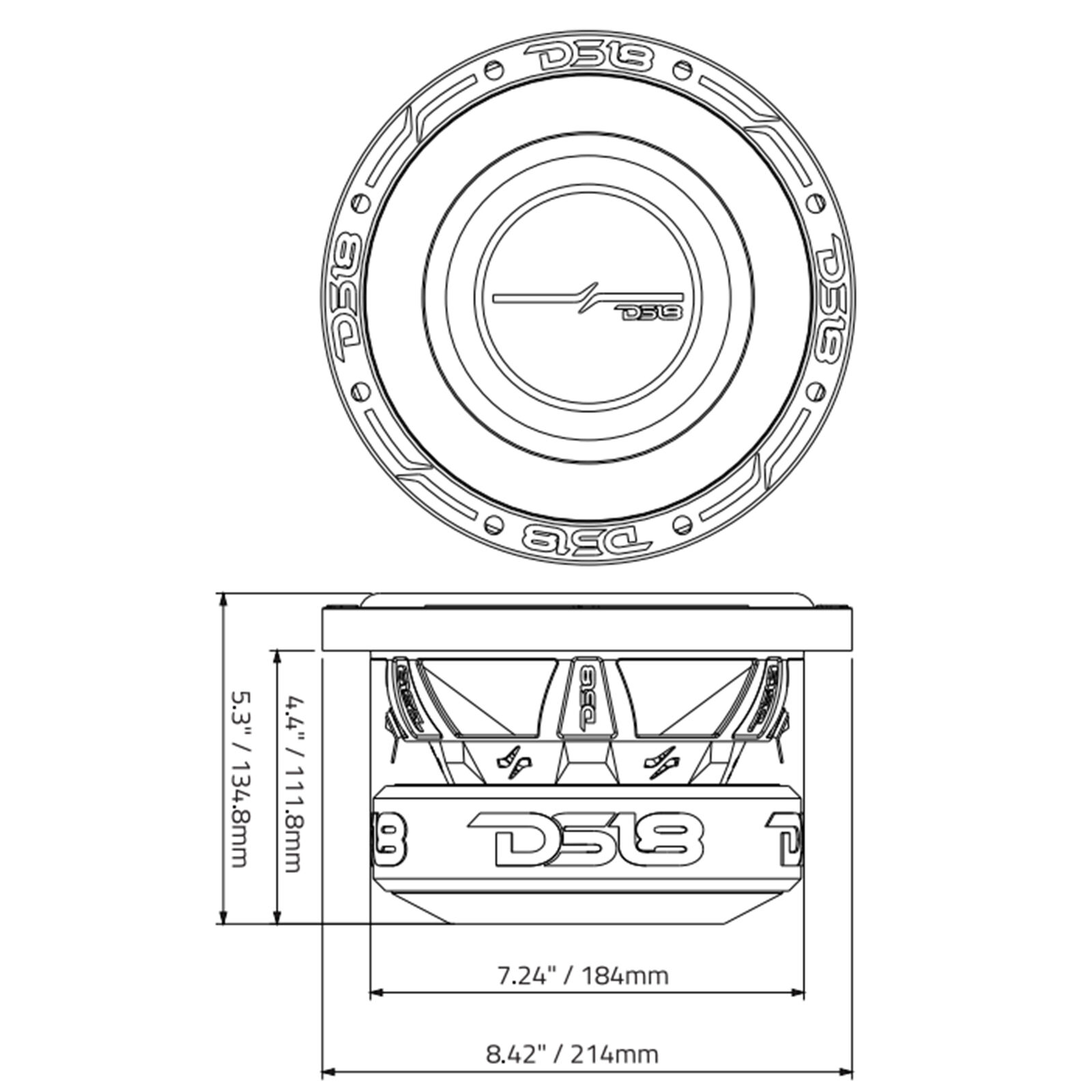

DIMENSIONS PER SUBWOOFER:
Overall Diameter: 8.42" / 214mm
Overall Depth: 5.3" / 134mm
Front Mount Baffle Cutout: 7.24" / 184mm
Mounting Depth: 4.4" / 111.4mm
Motor Diameter: 5.7" / 145mm
