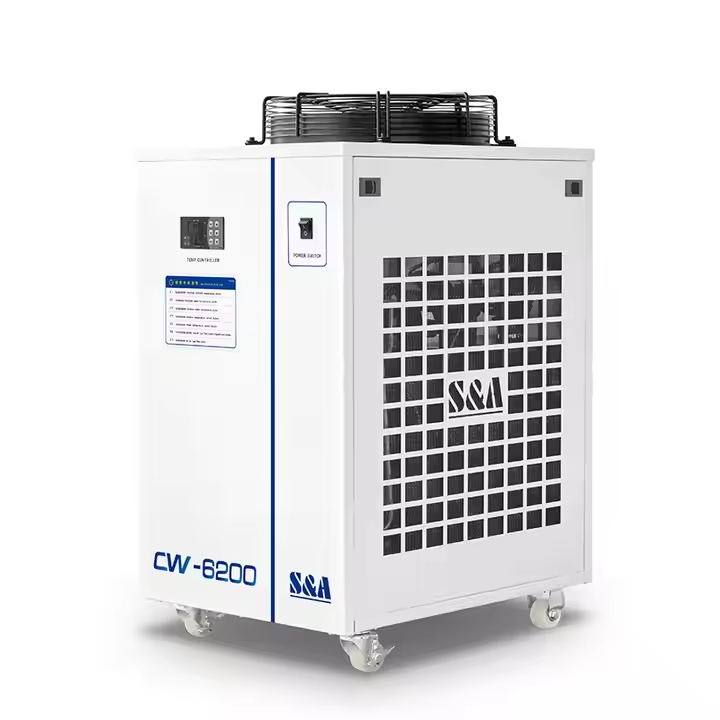

S&A 220V 50Hz CW-6200BI Industrial Water Chiller (for 200W Laser Diode and CO2 RF Laser , 600W CO2 Laser,400W Solid-state Laser, 600W-1000W Fiber Laser, 45KW CNC Spindle Cooling)
APPLICATION:
S&A CW-6200 series is high-precision compression refrigeration small water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system.
S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
Features
1. 5100W cooling capacity; optional environmental refrigerant;
2. ±0.5℃ precisely temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions;
with various setting and display functions;
4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection,
water flow alarm and over high / low temperature alarm;
5. Multiple power specifications; CE approval;
6. Long working life and simple operation;
7. Optional heater and water filter.

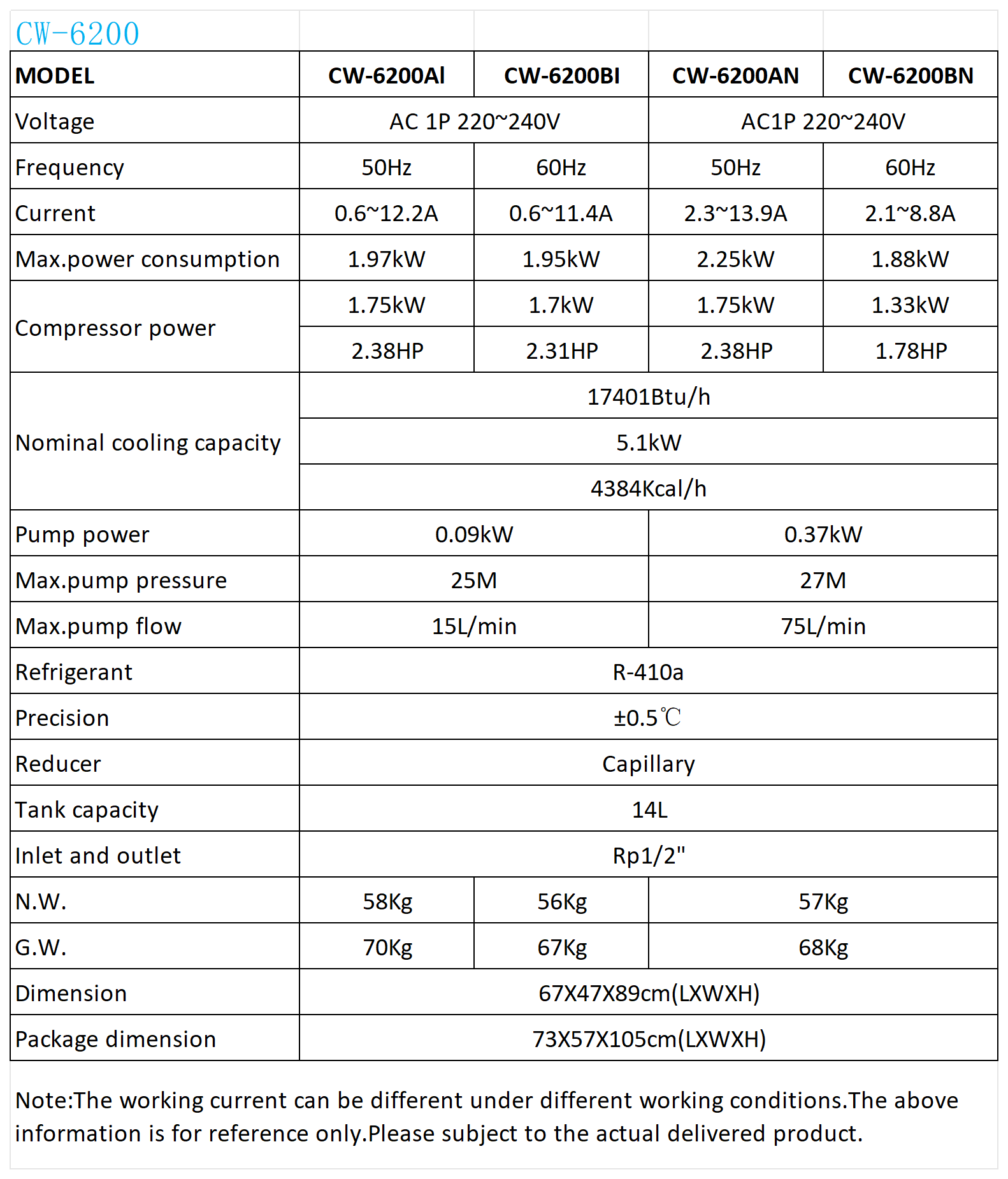

Specification
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch
to appropriate operating temperature.
CW-6200AI : applied to cool dual 200W CO2 laser tubes;
CW-6200AN: applied to cool a single CO2 RF laser tube, a single 600W CO2 laser tube, a single 200W laser diode, a single 400W solid-state laser, a single 600W-1000W fiber laser or a single 45KW CNC spindle;
Intelligent temperature controller
The temperature controller offers high precision temperature control of ±0.5°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.
Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
Cooling fan of famous brand installed.
With high quality and low failure rate.
Temperature Controller Panel Description
The intelligent temperature controller does not need to adjust the controlling parameters under normal circumstance. It will self-adjust controlling parameters according to room temperature for meeting equipment cooling requirements.
User also can adjust the water temperature as needed.
Temperature controller panel description:
User also can adjust the water temperature as needed.
Temperature controller panel description:
Alarm Function
(1) Alarm Display:
When alarm occurs, the error code and the temperature will be alternately displayed.
(2) To suspend the alarm:
In alarming state, the alarm sound could be suspended by pressing any button, but the alarm display remains until the alarm condition is eliminated.
(2) To suspend the alarm:
In alarming state, the alarm sound could be suspended by pressing any button, but the alarm display remains until the alarm condition is eliminated.
Alarm And Output Ports
In order to guarantee the equipment will not be effected while abnormal situation happens on the chiller, CW-6100 series chillers possess alarm protection function.
(1) Alarm output terminals and wiring diagram.
(2) Alarm causes and working status table.
(1) Alarm output terminals and wiring diagram.
(2) Alarm causes and working status table.
