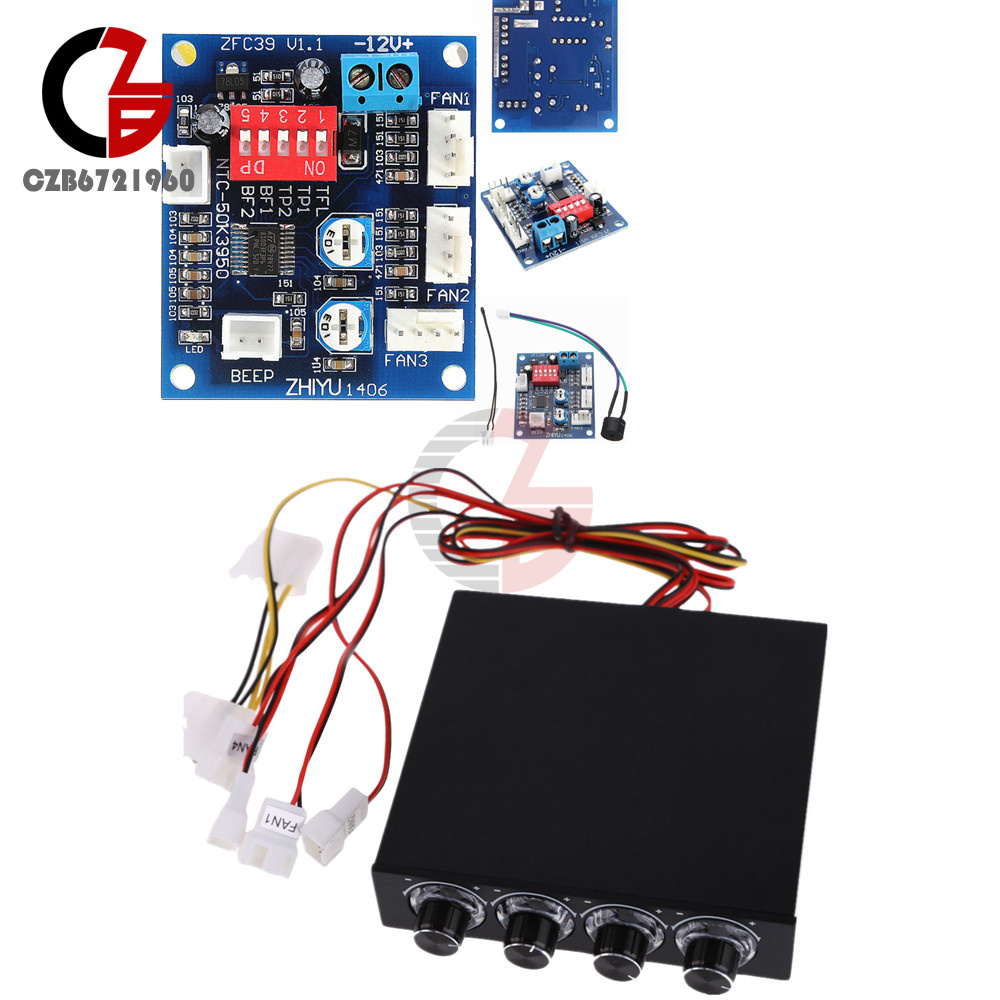

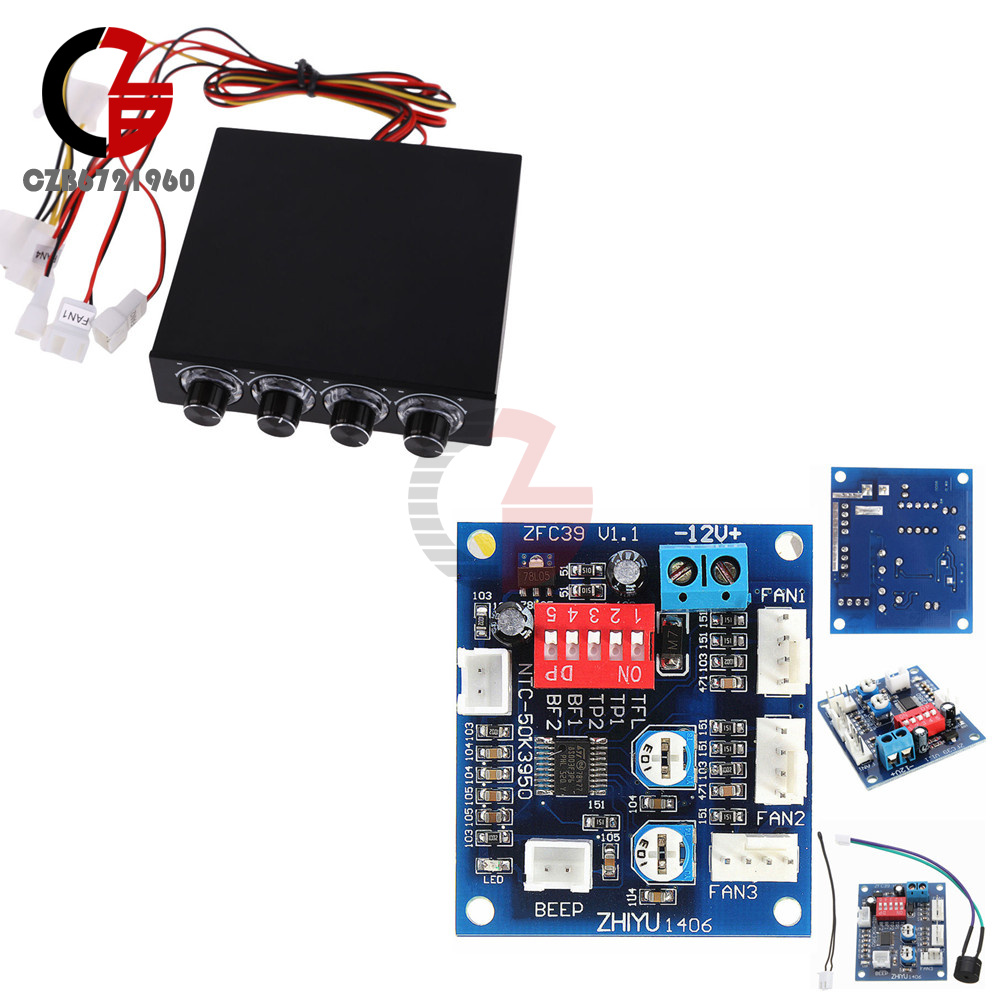

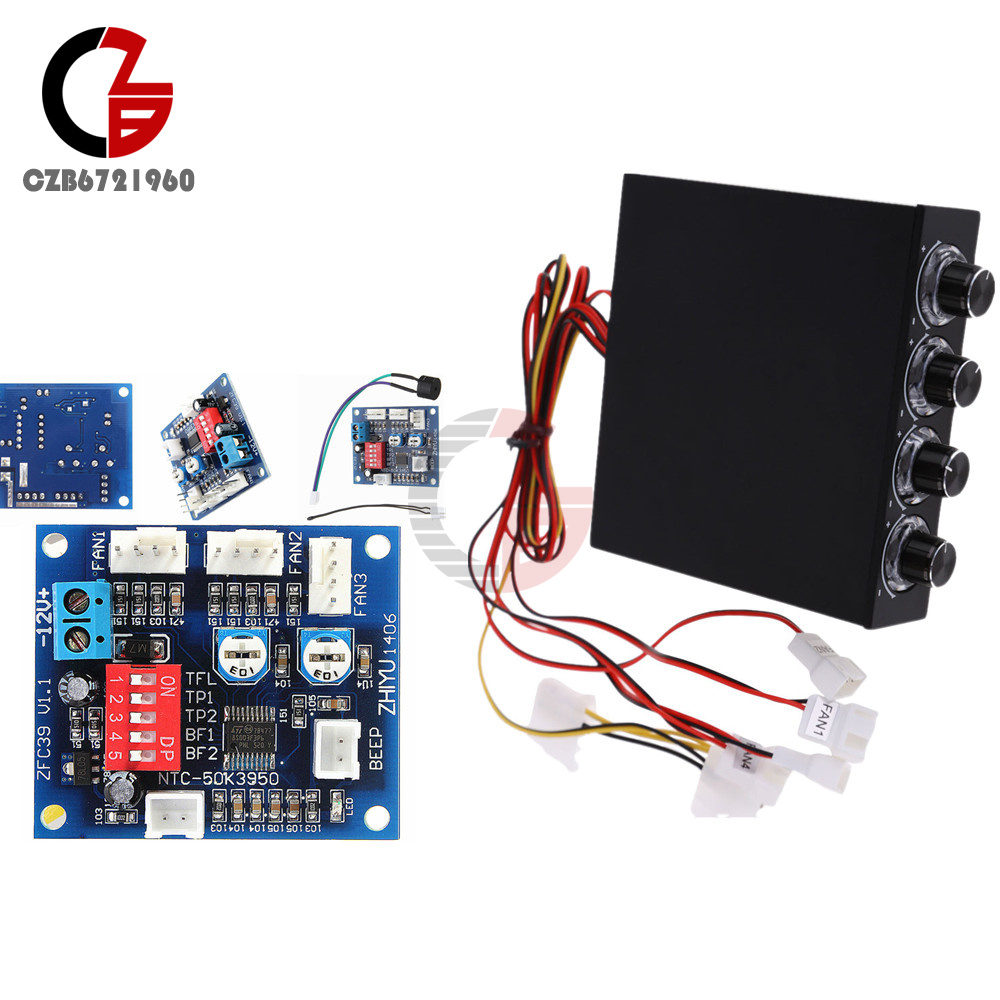

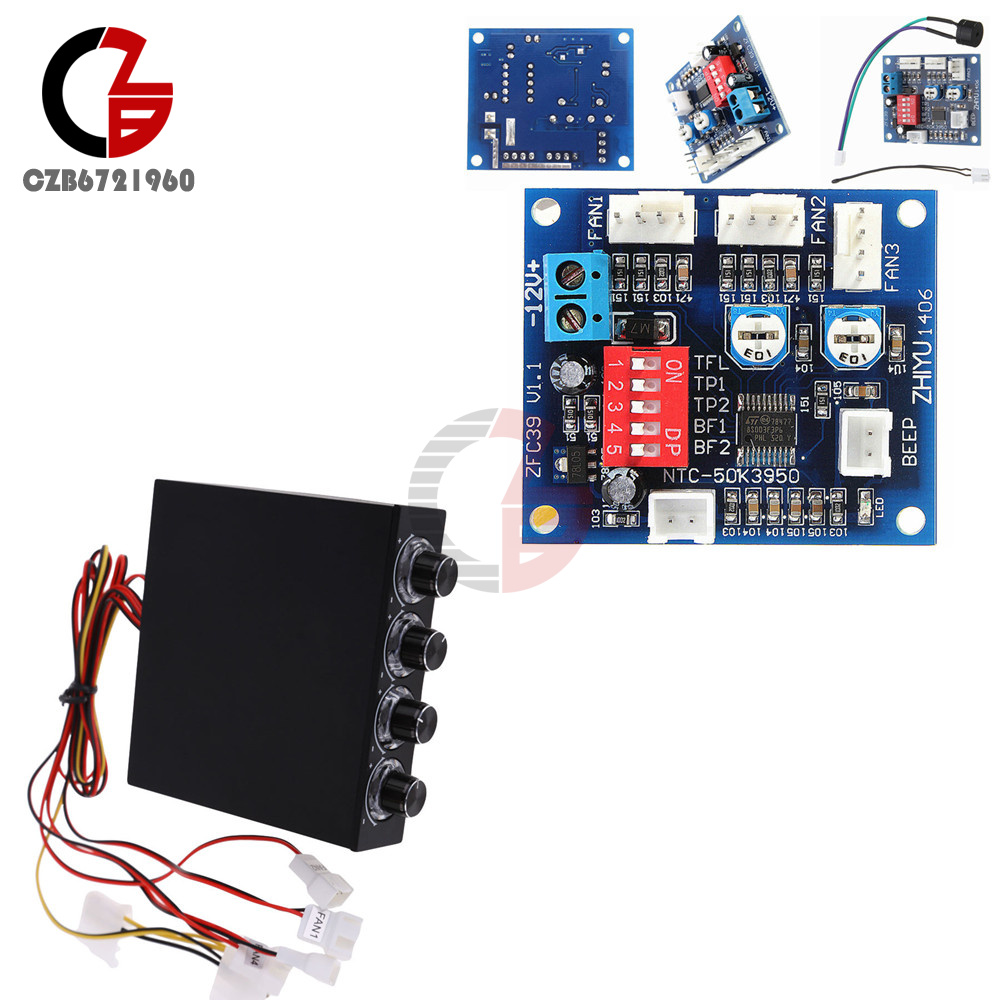

Features
Support all within 12V 5A fans, synchronous rectifier output, high efficiency! Even if a large current work does not require additional heat sink! A plurality of fans can be used in parallel (total current does not exceed 5A), supports automatic temperature control and manumotive speed control, temperature control speed with four temperature zones for setting up, easy to apply in a variety of applications! It can be opened with a three-wire fan monitoring function (stall warning).
Specifications
Working voltage:DC12V
Circuit load capacity: maximum current per output 5A, the bus currents up 9A
Output Range: The first channel 20% -100%, or 40% -100% (TFL = ON)
The second channel and the third channel 10% -100%
(Note: Above range only for PWM range, the actual control effect will vary depending on the fan.)
Temperature probe parameters: 50K B = 3950
Thermostat temperature zone error: error depending on the temperature probe, generally 3-5%
Stall alarm minimum speed: 700-800 rpm
Function setting switch Description:
TFL (No. 1): The lowest temperature channel PWM setting, when ON state FAN1 PWM minimum is 40%, when OFF the minimum PWM of FAN1 is 20%.
TP1 TP2 (No. 2,3): Temperature channel control temperature zones are interpreted as follows (need to used with the temperature probe):
| TP1 | TP2 | Accelerating temperature | Full speed temperature |
| OFF | OFF | 35℃ | 45℃ |
| ON | OFF | 40℃ | 55℃ |
| OFF | ON | 50℃ | 70℃ |
| ON | ON | 60℃ | 90℃ |
When the temperature lower than the accelerated temperature, then output at the minimum rotation speed; when it exceed over the full temperature, then always output at full speed.
BF1 BF2 (No. 4,5): corresponds FAN1 FAN2 stall alarm function switch, when the corresponding open channel fan break down, the controller will alarm with soundand light (works with buzzle), alarm will automatically eliminated when the fan is rotated recovery . If BF1 and BF2 both are open (ON), the FAN1, FAN2 have any one or both stops, the controller will alarm!
Package included
1x Speed controller
1x Temperature probe
1x Buzzle
3.5" CPU Fan Speed Controller
Your computer's fans are just like sports fans; they’re loud, obnoxious, and never shut up.
Take control of your fans with this 4 channel fan speed controller.
Reduce noise and maintain proper heat levels to keep all the parts of your computer running long and running strong.
With the ability to manage 4 fans at once, you’ll be able to silence all the rowdy fans you want, and walk away with a cool victory.
Stylish housing with Ultra-Bright LED light
Regulated max power output: <30W
Voltage of Fan 1, Fan 2, Fan 3, Fan 4 is 6V to 12V
Size: 10.60cm x 10.10cm x 2.50cm (L*W*H)
Color of LED: Blue
4 x Mini Screws
Features
Support all within 12V 5A fans, synchronous rectifier output, high efficiency! Even if a large current work does not require additional heat sink! A plurality of fans can be used in parallel (total current does not exceed 5A), supports automatic temperature control and manumotive speed control, temperature control speed with four temperature zones for setting up, easy to apply in a variety of applications! It can be opened with a three-wire fan monitoring function (stall warning).
Specifications
Working voltage:DC12V
Circuit load capacity: maximum current per output 5A, the bus currents up 9A
Output Range: The first channel 20% -100%, or 40% -100% (TFL = ON)
The second channel and the third channel 10% -100%
(Note: Above range only for PWM range, the actual control effect will vary depending on the fan.)
Temperature probe parameters: 50K B = 3950
Thermostat temperature zone error: error depending on the temperature probe, generally 3-5%
Stall alarm minimum speed: 700-800 rpm
Function setting switch Description:
TFL (No. 1): The lowest temperature channel PWM setting, when ON state FAN1 PWM minimum is 40%, when OFF the minimum PWM of FAN1 is 20%.
TP1 TP2 (No. 2,3): Temperature channel control temperature zones are interpreted as follows (need to used with the temperature probe):
| TP1 | TP2 | Accelerating temperature | Full speed temperature |
| OFF | OFF | 35℃ | 45℃ |
| ON | OFF | 40℃ | 55℃ |
| OFF | ON | 50℃ | 70℃ |
| ON | ON | 60℃ | 90℃ |
When the temperature lower than the accelerated temperature, then output at the minimum rotation speed; when it exceed over the full temperature, then always output at full speed.
BF1 BF2 (No. 4,5): corresponds FAN1 FAN2 stall alarm function switch, when the corresponding open channel fan break down, the controller will alarm with soundand light (works with buzzle), alarm will automatically eliminated when the fan is rotated recovery . If BF1 and BF2 both are open (ON), the FAN1, FAN2 have any one or both stops, the controller will alarm!
Package included
1x Speed controller
1x Temperature probe
1x Buzzle
3.5" CPU Fan Speed Controller
Your computer's fans are just like sports fans; they’re loud, obnoxious, and never shut up.
Take control of your fans with this 4 channel fan speed controller.
Reduce noise and maintain proper heat levels to keep all the parts of your computer running long and running strong.
With the ability to manage 4 fans at once, you’ll be able to silence all the rowdy fans you want, and walk away with a cool victory.
Stylish housing with Ultra-Bright LED light
Regulated max power output: <30W
Voltage of Fan 1, Fan 2, Fan 3, Fan 4 is 6V to 12V
Size: 10.60cm x 10.10cm x 2.50cm (L*W*H)
Color of LED: Blue
4 x Mini Screws
