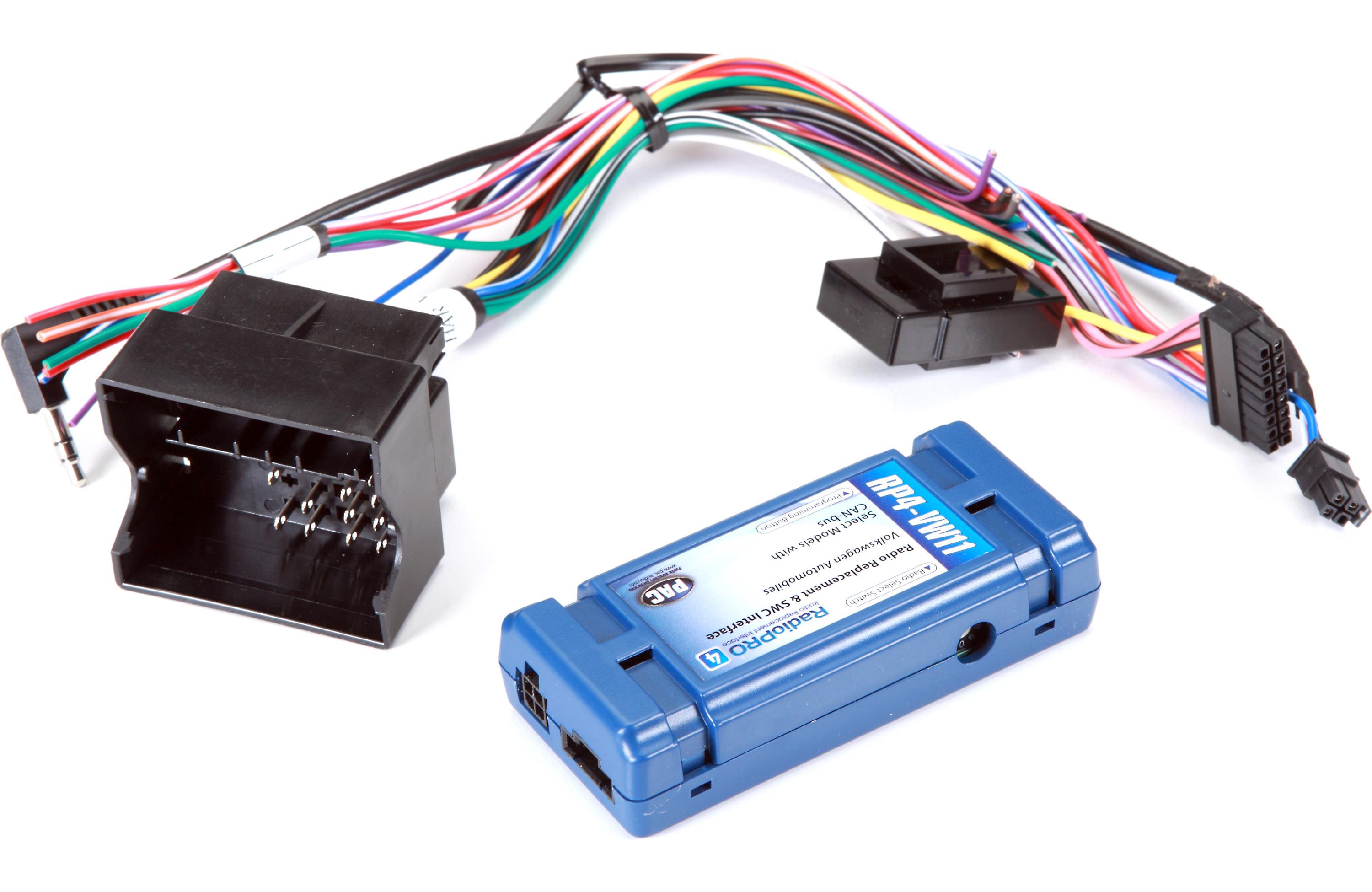

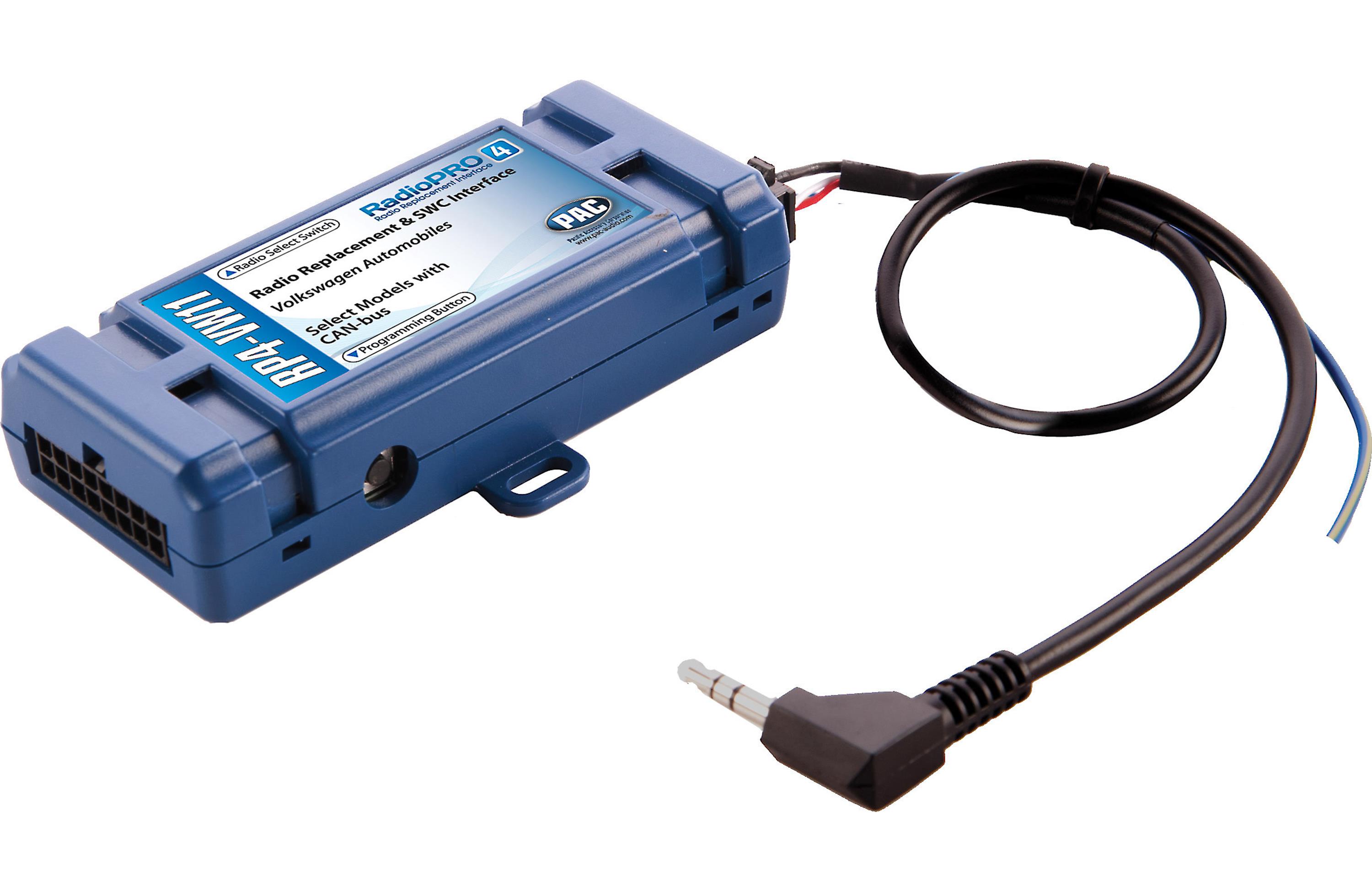

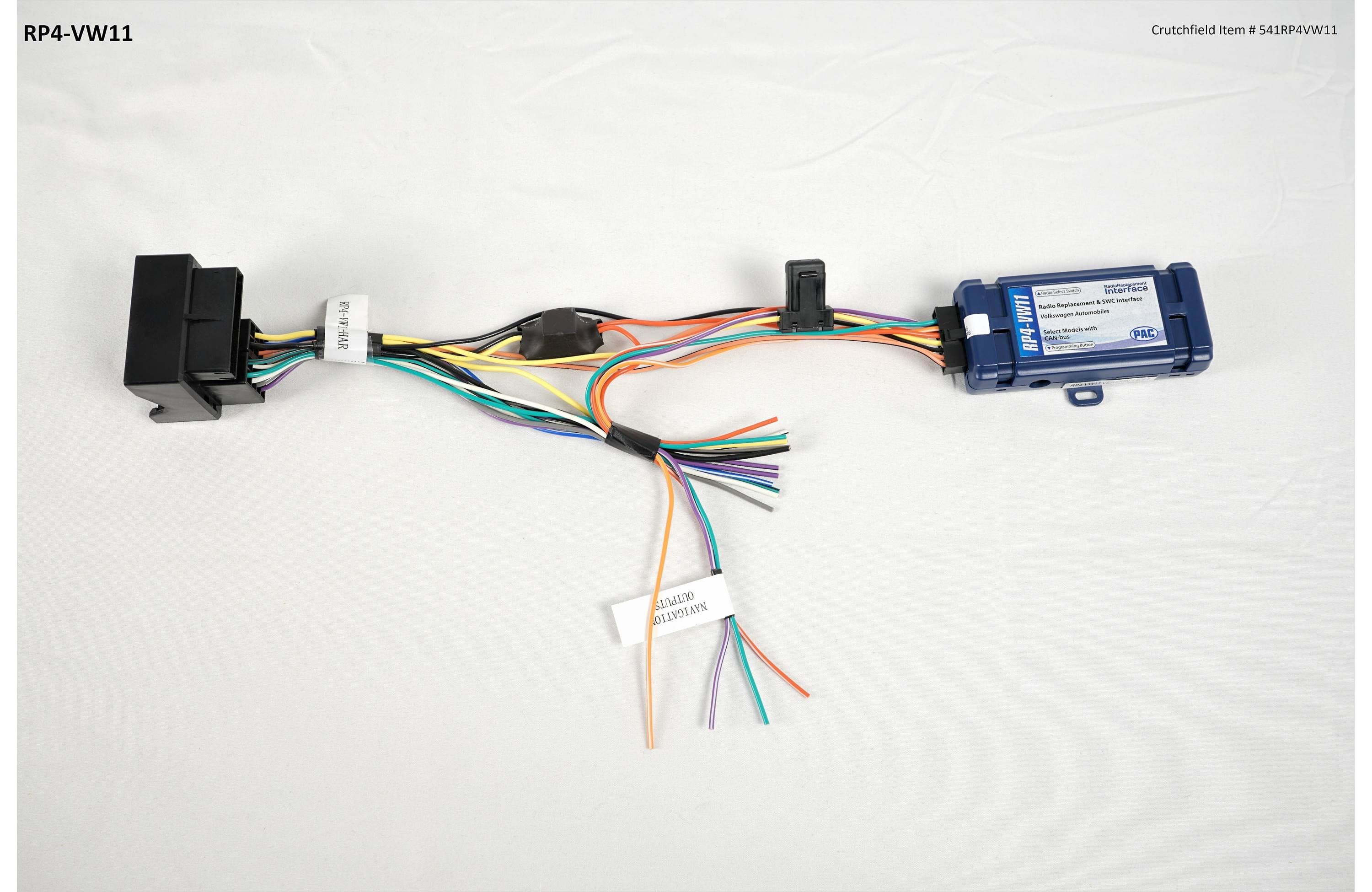

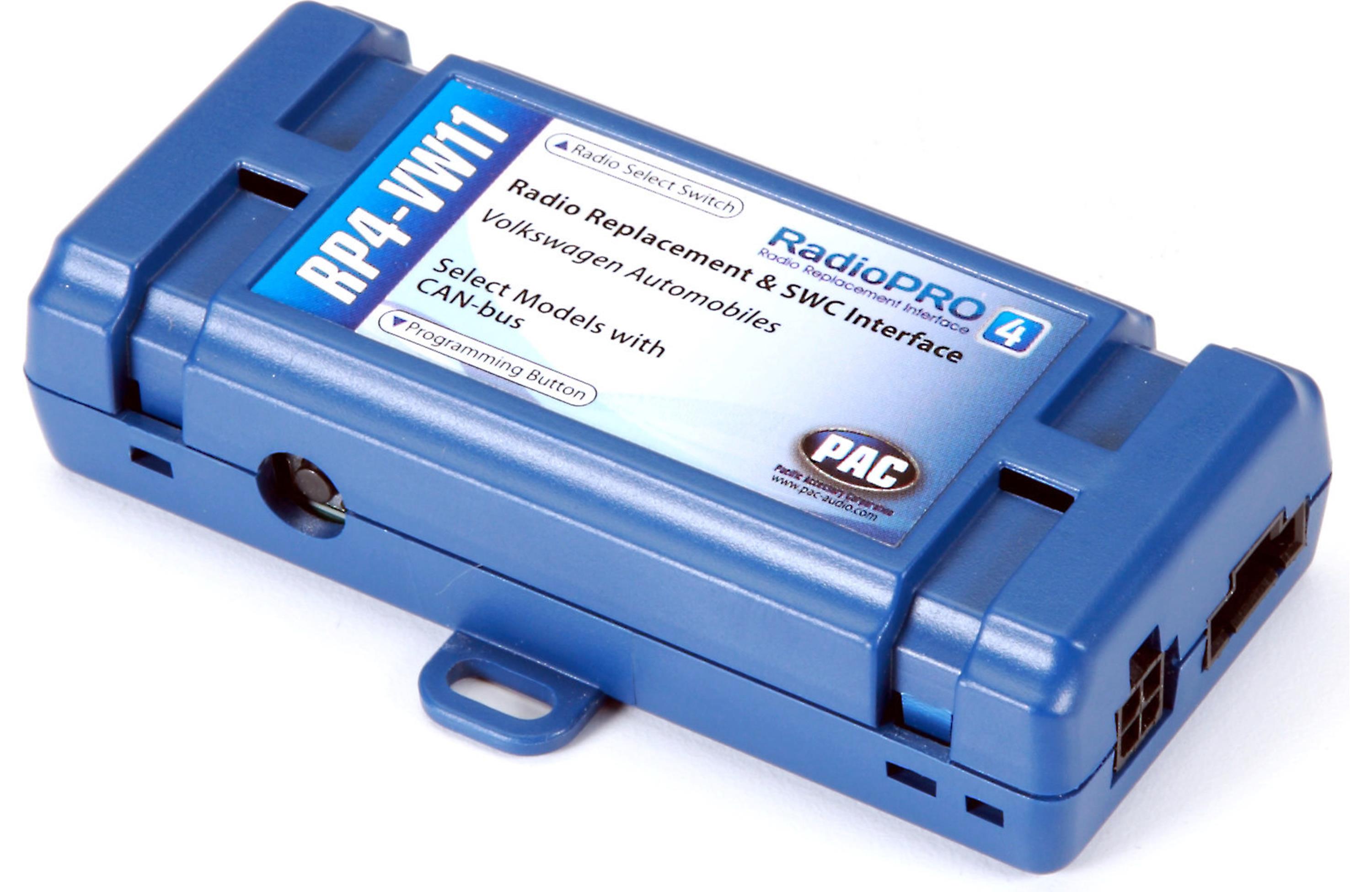

Brand New PAC RP4-VW11 Wiring Interface

Connect a new stereo and retain steering wheel audio controls, rear
seat entertainment system, and factory amp in select 2002-up VWs















COMES WITH 3 YEAR WARRANTY

NOT RETURNED ~ NOT REFURBISHED ~ BRAND NEW FACTORY SEALED


About the PAC RP4-VW11 Wiring Interface

PAC's RP4-VW11 wiring interface lets you replace the factory radio in select 2002-up Volkswagen vehicles. You'll retain your factory steering wheel audio controls, the full entertainment system, and the use of your factory amplifier, if present. The interface supplies all navigation outputs and accessory power. Warranty: 3 year.

Important Note: If you have a factory amp in your vehicle, you'll lose the ability to fade from front to rear when you install a new car stereo. (See Details.) See Details for a list of compatible car stereos.

Installation Notes:

  • 2002-2005 Vehicles: This interface only works when the factory radio is a double-DIN (4" tall) radio, and does not provide a reverse output trigger.
  • 2004-2007 Touareg:  If your VW has factory navigation, this interface will not work with your digital amplified sound system.



Features:

  • Retains steering wheel controls (pre-programmed)
  • Data controlled accessory and navigation outputs
  • Retains all factory amplified systems (Dynaudio & Fender)
  • Provides factory RSE activation
  • Provides VSS and Illumination outputs
  • 2002-2005 Vehicles: In these year vehicles the RP4-VW11 does not provide a Reverse output trigger. This signal is unavailable on the data bus. You must be replacing a factory Double-DIN radio. If the vehicle came equipped with a Single-DIN radio, the RP4-VW11 is not compatible.
  • 2004-2007 Touareg: Does not retain amplified system when the vehicles is equipped with factory navigation radio
  • In Premium Amplified Systems only two input channels can be used from the aftermarket radio, therefore there will be no fading capability of the aftermarket stereo.



Year(s) Make Model Trim Level
2012-2014 VOLKSWAGEN BEETLE ALL TRIM LEVELS
2009-2014 VOLKSWAGEN CC ALL TRIM LEVELS
2006-2012 VOLKSWAGEN EOS ALL TRIM LEVELS
2002-2014 VOLKSWAGEN GOLF ALL TRIM LEVELS
2006-2014 VOLKSWAGEN GTI ALL TRIM LEVELS
2002-2015 VOLKSWAGEN JETTA ALL TRIM LEVELS
2002-2014 VOLKSWAGEN PASSAT ALL TRIM LEVELS
2006-2011 VOLKSWAGEN RABBIT ALL TRIM LEVELS
2009-2014 VOLKSWAGEN TIGUAN ALL TRIM LEVELS
2004-2010 VOLKSWAGEN TOUAREG ALL TRIM LEVELS

Comes with 3 year StereoNeeds warranty. For any warranty issues please contact us.
