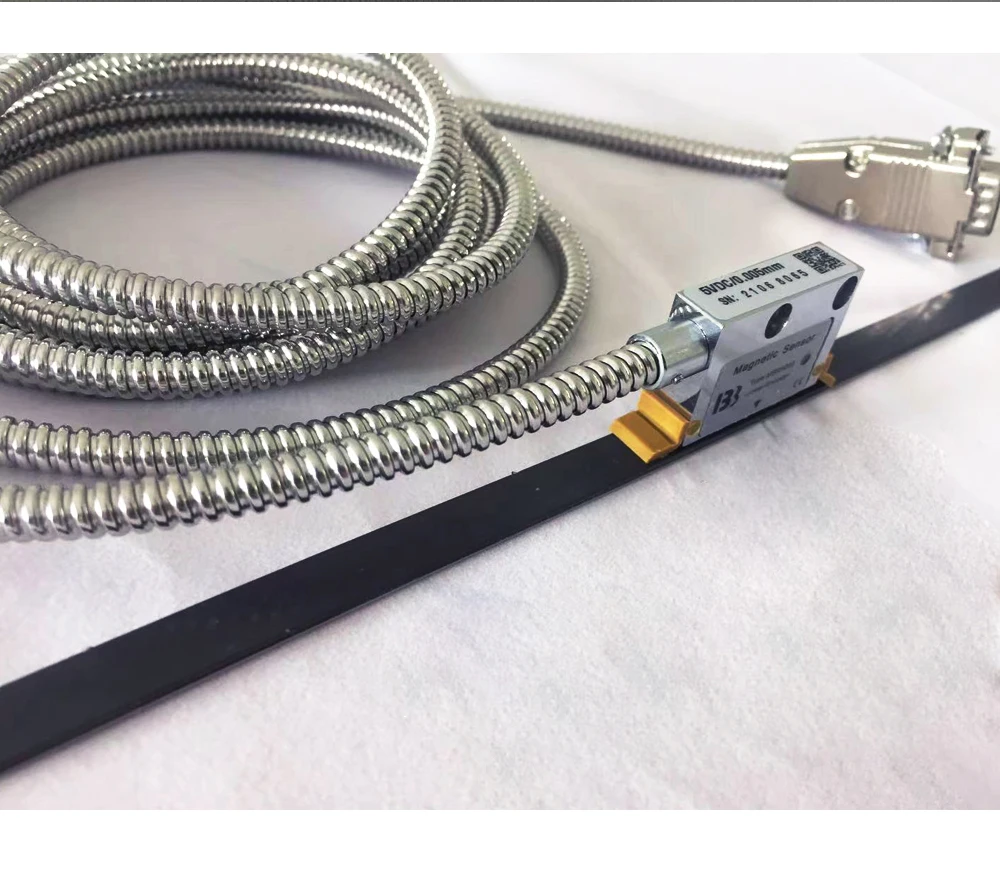

High Precision Lathe DRO Magnetic Scale Sensor 5V 0.005mm 5um Encoder Magnet Scale  forMillingLathe Wooden Stone Machine

Magnetic scale (waterproof/oilproof/dustproof) with a service life of more than ten years

open magnetic linear displacement sensor can be applied to digital display DRO and industrial control automation of various machine tools. It is easy to install, arbitrary cutting length, arbitrary pasting, no fear of oil cooling fluid, long service life, reproducibility up to 0.005mm, non-contact relative displacement principle, no wear and tear! Don't worry that he will absorb iron pins. This will not affect its work. Many of our customers have proved that it can be used for ten years.

Magnetic scale parameter：

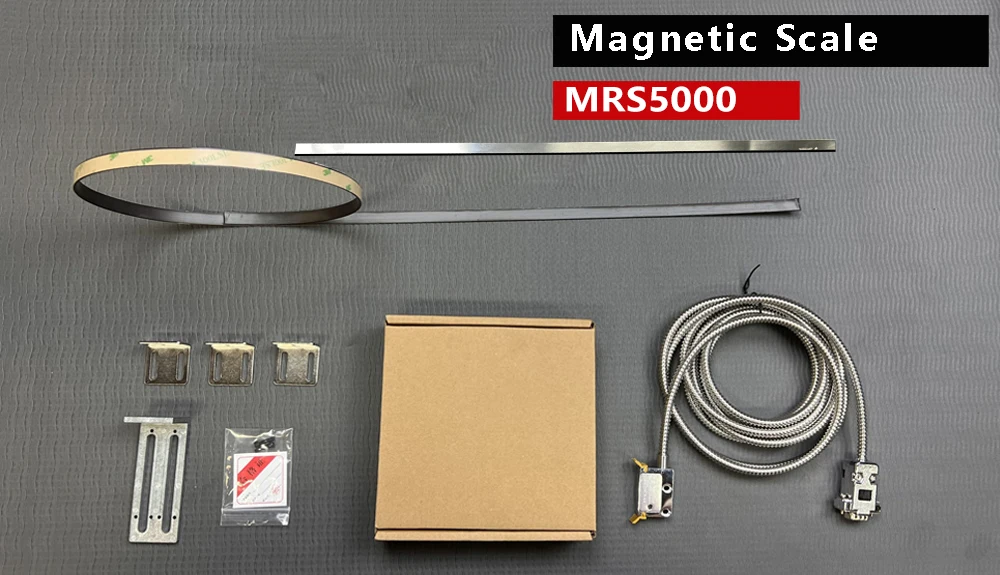

Model: MSR5000

Environment: waterproof/oil-proof/vibration-proof/dust-proof

Input: 5V~30V DC (Advanced Wide Voltage)

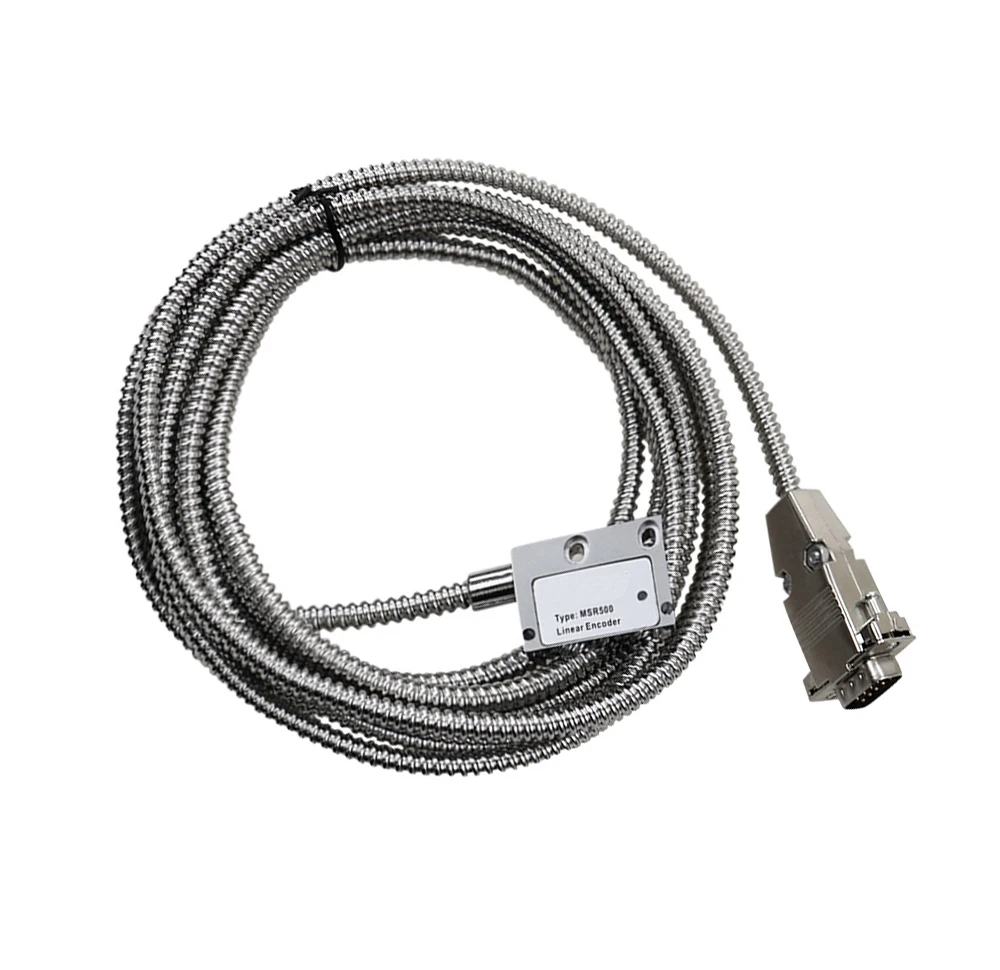

Reader cable length: 3 meters

Installation distance: max. 4mm （2mm recommended）

Output: RS422/TTL

Working speed: Max. 20m/s

Operating temperature: -10~+70℃

Waterproof level: IP67

If works with linear scale for Same one DRO: YES

Suitable DRO: All China  DRO

Technical parameters of ulnar belt：

Ruler band specification ：5+5mm

The precision ：0.02mm/m at 20 degrees

Width ：10mm

Thickness： 1.45MM

Maximum measurement ：length 100m

Expansion coefficient ：10.5*10-6/k

Minimum bending half - channel ：130mm

Operating temperature： -20 degree ~70 degrees

Storage temperature： -40 degree ~90 degrees

Product Brief：

Wood, stone, machine tools, digital display, etc. need to be processed and measured.

Location and measurement in material processing.

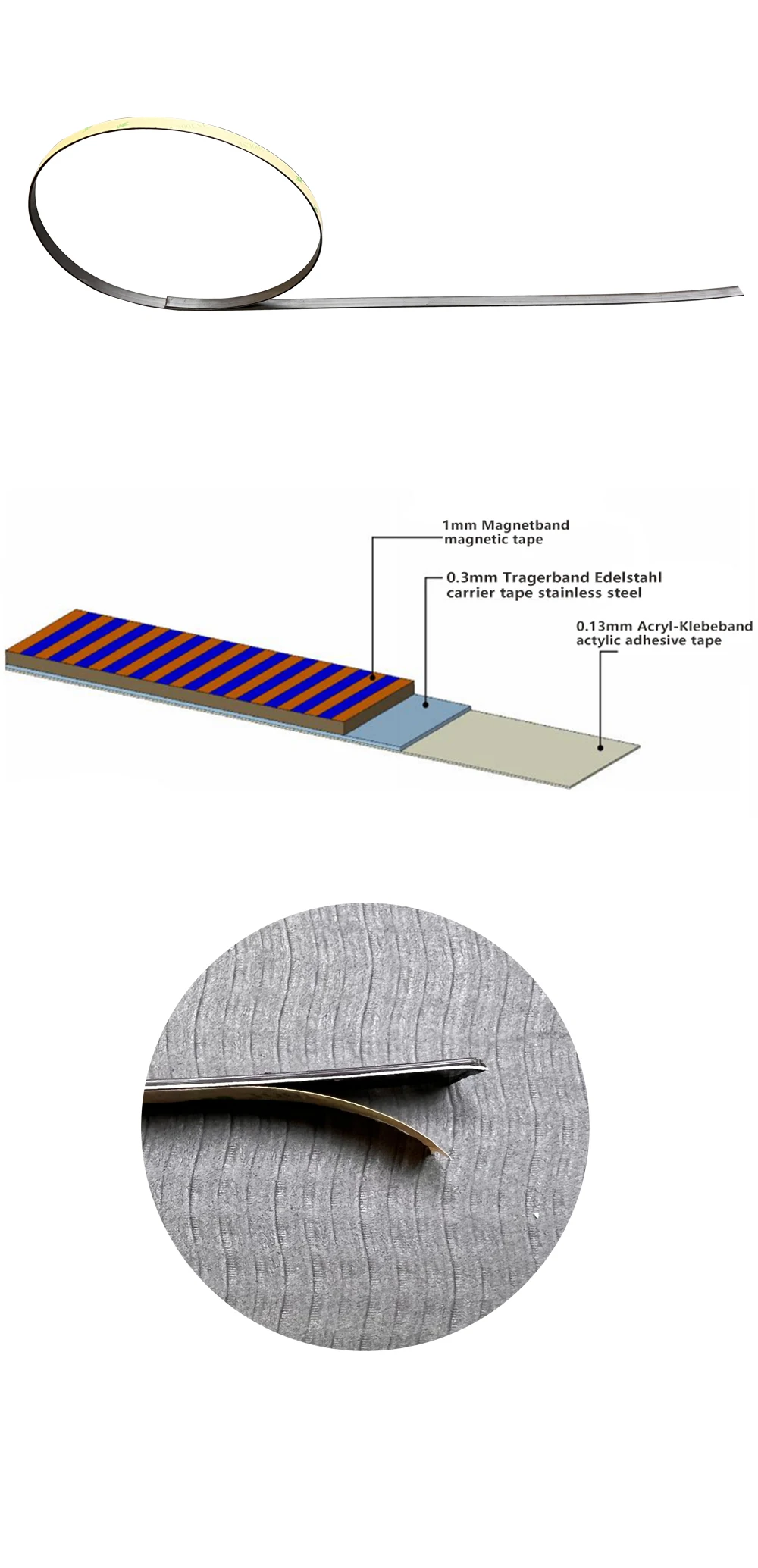

Ulnar band TR50 at 5 + 5mm intervals

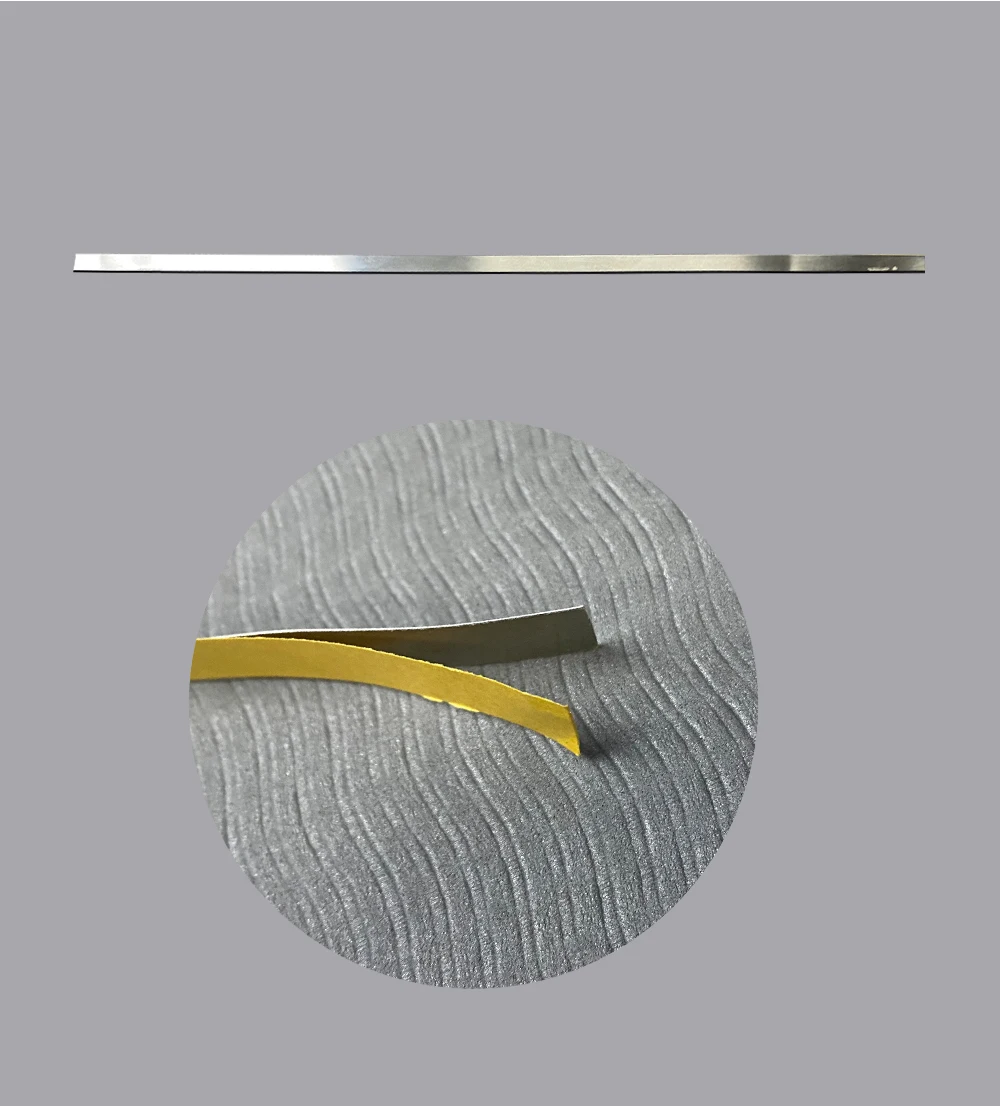

Use stainless steel belt, smooth paste

Special aluminum shell and special protective steel

Adhesive tape makes the tape better anti oil and waterproof.

Dust prevention, improve the service life.

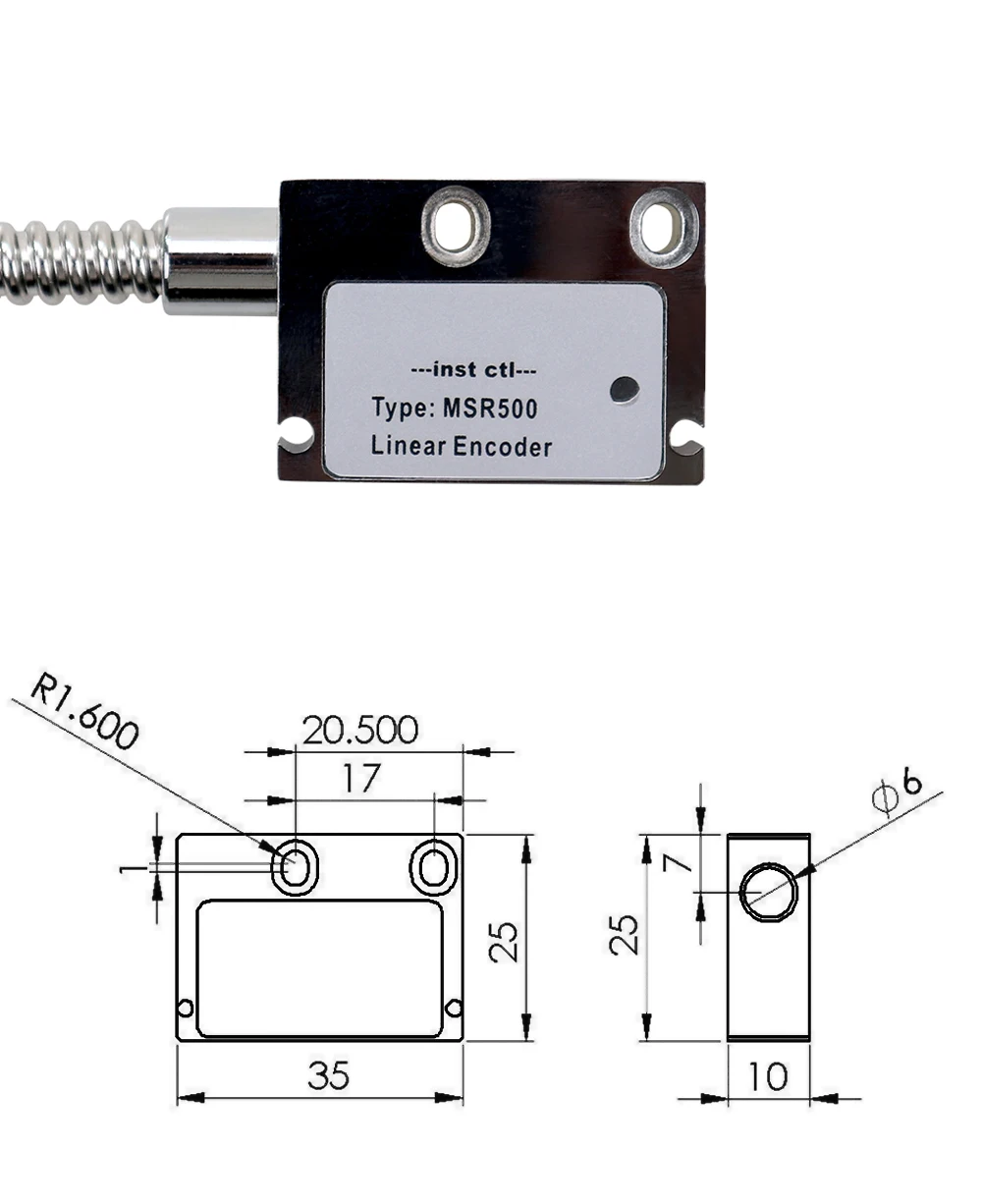

Small volume, reading head, small space, easy to install.

Installation Instruction of magnetic scale：

1. Clean the install table carefully, such as oil contamination, dust, scrap iron, etc.

2. Stick out slowly the adhesive sticker paper of acryl tape and adhere the install table bit by bit as possible.

3. Stick out slowly the adhesive sticker paper of stainless steel foil and adhere the magnetic tape bit by bit as

Magnetic scale protective steel belt (waterproof/oilproof/dustproof) with a service life of more than ten years！

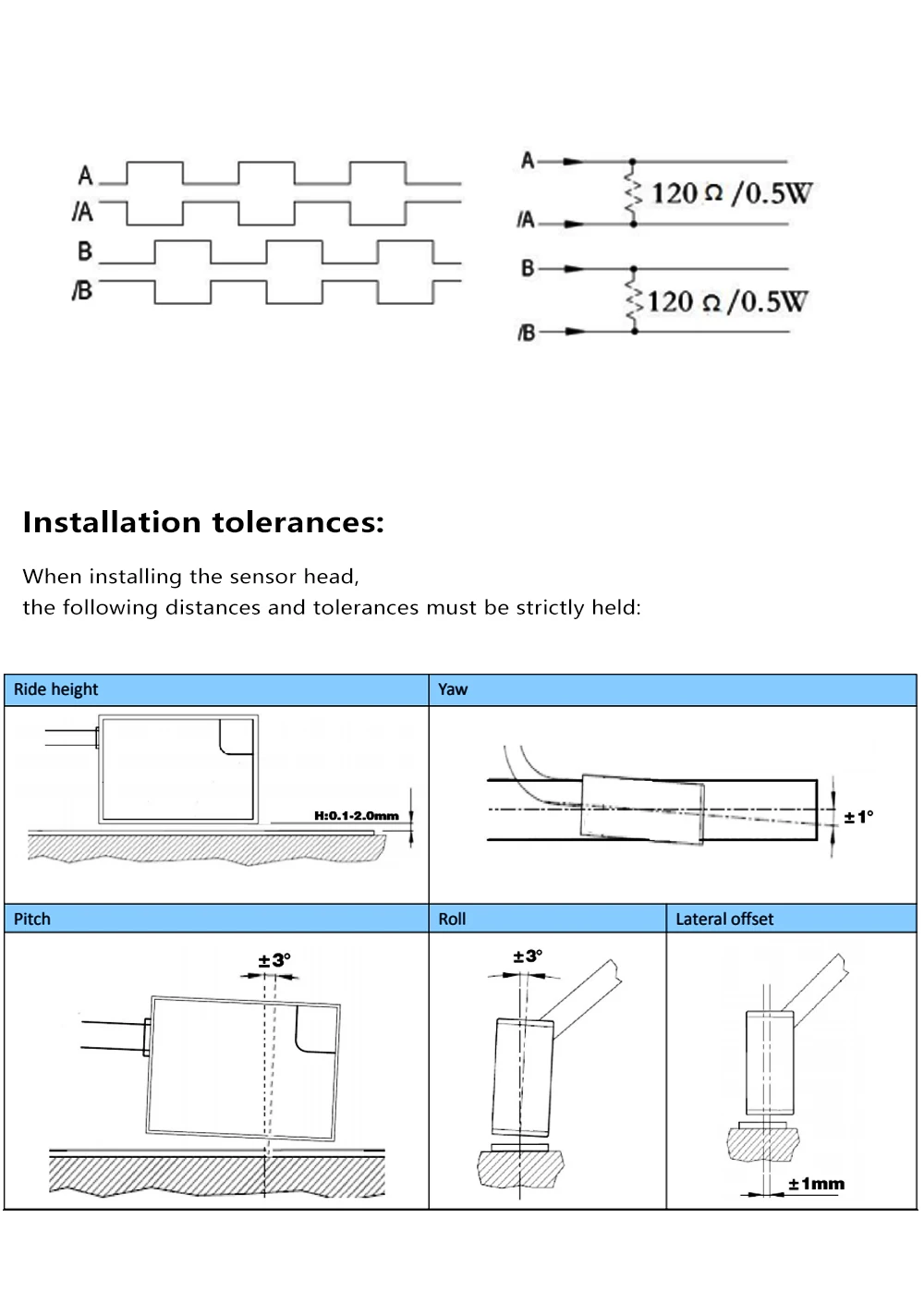

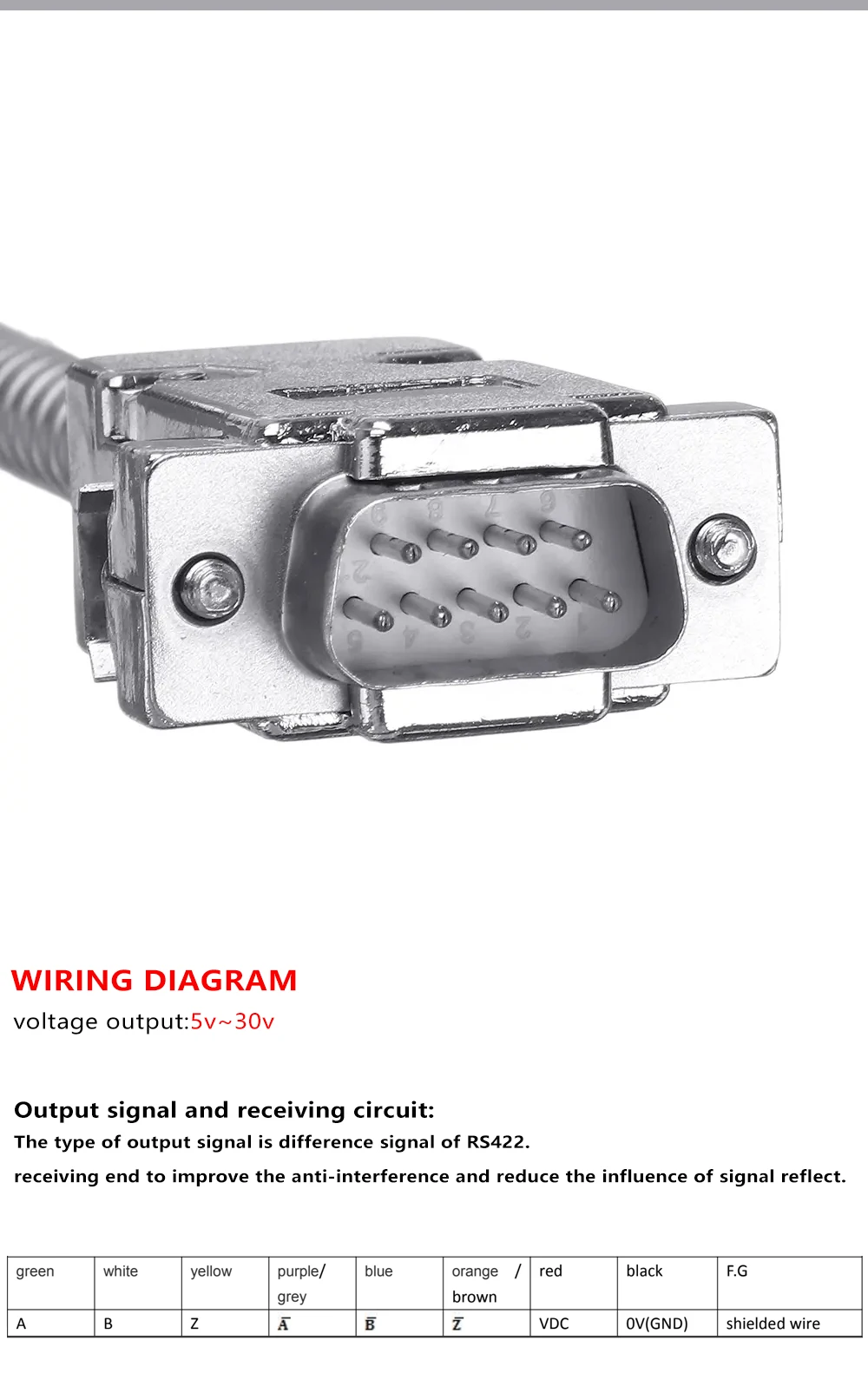

Output signal and receiving circuit:

The type of output signal is difference signal of RS422.

receiving end to improve the anti-interference and reduce the influence of signal reflect.
