JILONG OPM-22 OPM build-in LED With 7 Wavelengths Power Meter, Fiber Optic Power Meter -70~+6dbm with 10mw VFL for OPM-22V



No Lithium-ion battery included, no USB port for charging



PRODUCT DESCRIPTION：



OPM-22/22V optical power meter, high-precision tester; 6 Wavelengths test, measurement error <0.2dB; Accurately measure network line sequence and judge signal transmission; Equipped with a high-brightness LED small flashlight, which is convenient for construction in a dark environment;  With VFL function, strong and stable light source (22V only); User self-calibration function, accurate and efficient measurement; Pocket design, exquisite appearance, easy to carry.



PRODUCT FEATURES:


  • Accurate measurement ±0.2 dB


  • Continuous use 60h (only in optical power meter mode)


  • VFL with 10mW (Only for OPM-22V)


  • Automatic wavelength memory,6 wavelengths 850/1310/1490/1550/1625nm


  • Pocket size


  • Network test, judge signal transmission


  • Universal adaptor for FC/SC/ST


  • With LED lights for dark environment




PRODUCT PARAMETER:



Model

OPM-22

OPM-22V

VFL

— —

10mw

Network test

Interface RJ-4

Wavelength

800 ~ 1700 (nm)

Detector type

InGaAs

Connector

2.5mm Universal connector

Power measurement range

-70 ~ +10 dBm

Uncertainty

≤ ± 0.25 dB

Linearity

≤ ± 0.1 dB

Standard wavelength

850/ 1300/ 1310/ 1490/ 1550/ 1625 (nm)

Display resolution

0.05 dpi

Operating temperature

-10 ~ +60 (℃)

Storage temperature

-25 ~ +70 (℃)

Auto-off time

10 min

Operating hours

Battery power: 20 hours (only the optical power meter works)

Rechargeable: 60 hours (only the optical power meter works)

LED

Support

Power

AAA 1.5V batteries x 2

Dimensions

112 x 57 x 31 mm

Weight

120 g (Including batteries)

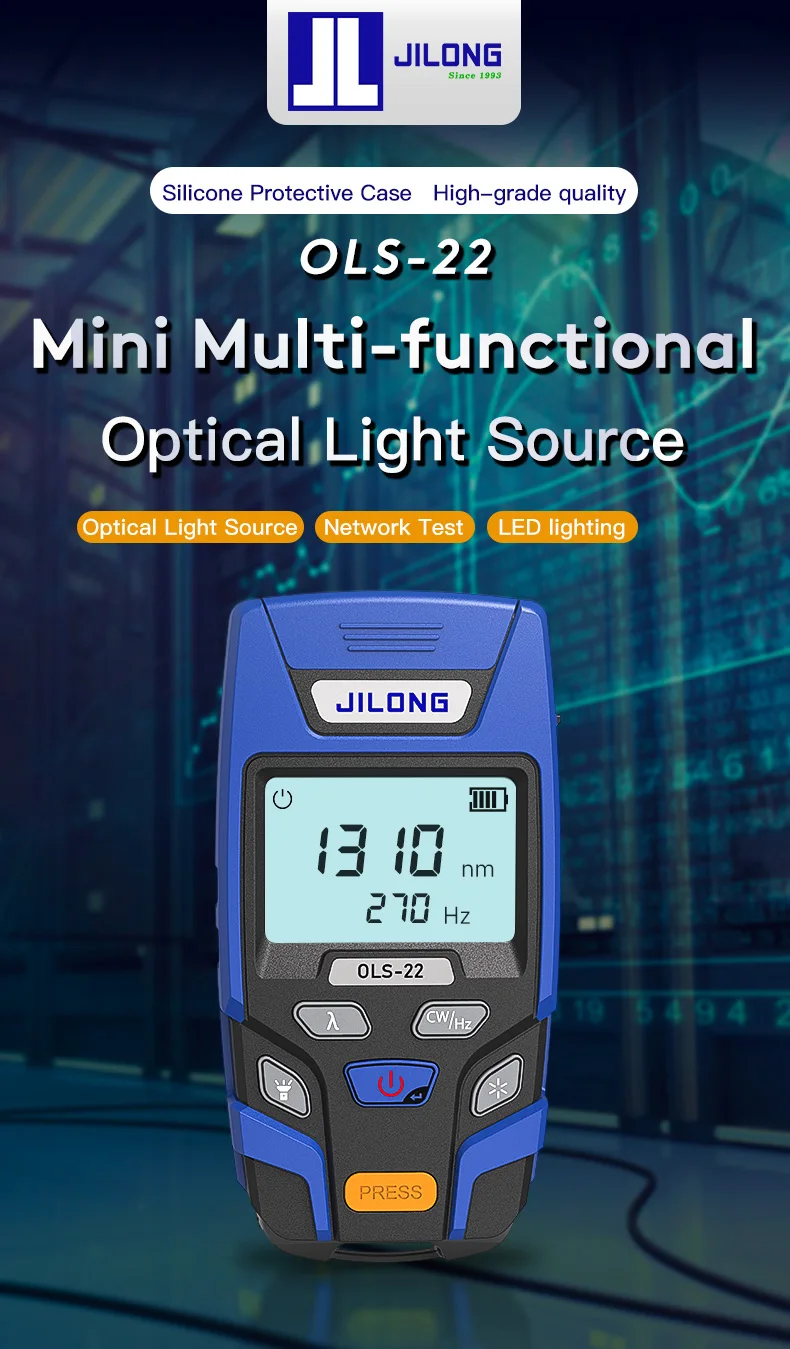

Mini Multi-functional Optical Light Sorce

OLS-22





No Lithium-ion battery included, no USB port for charging






(SM 1310/1550nm)






Product Description:

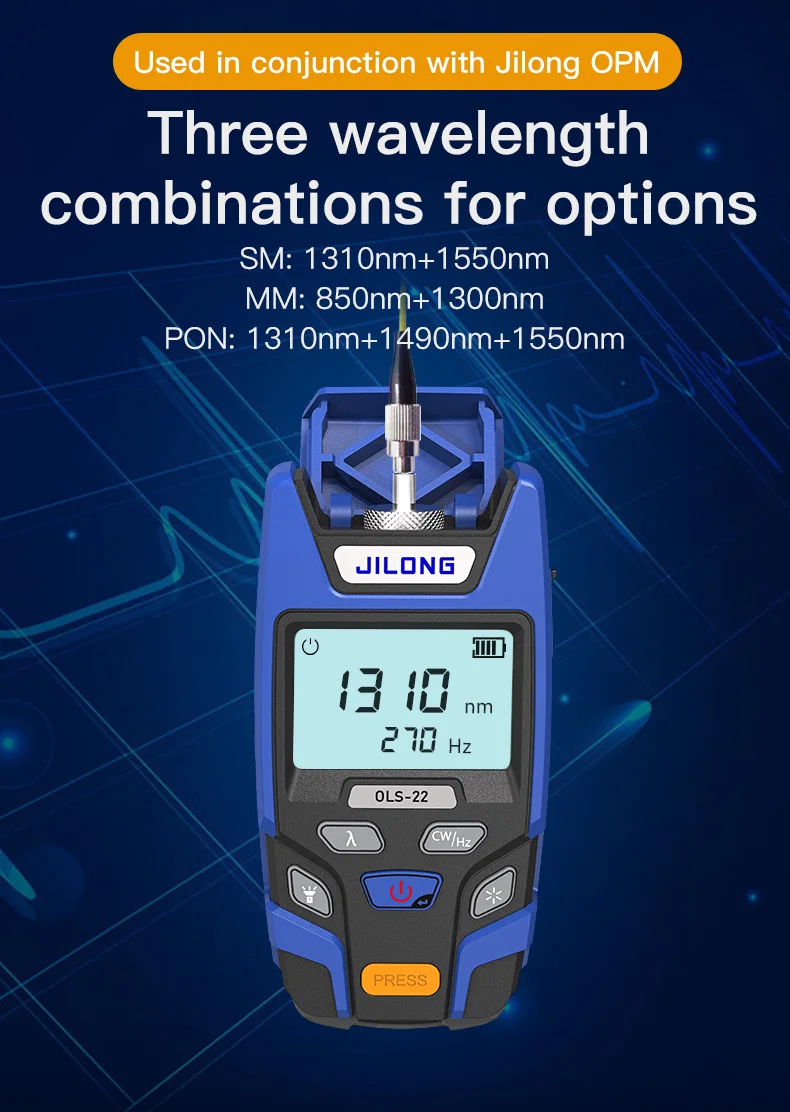

OLS-22 Optical light source, it’s main characteristics are output power、wavelength and spectral width all with the small changed (stable) range. Support SM: 1310nm+1550nm; MM: 850nm+1300nm; PON: 1310nm+1490nm+1550nm three laser output, Mainly used for measuring optical power end-to-end loss in FTTX network and optical fiber testing, in conjunction with OPM, Accurate measurement, judge signal transmission; equipped with LED light, convenient to operate in dark environment; pocket design, mini size, convenient to carry.




Product Feature:



---Typical output powder -5dB

---Wavelength 1310nm+1550nm

---Pocket design, Mini size

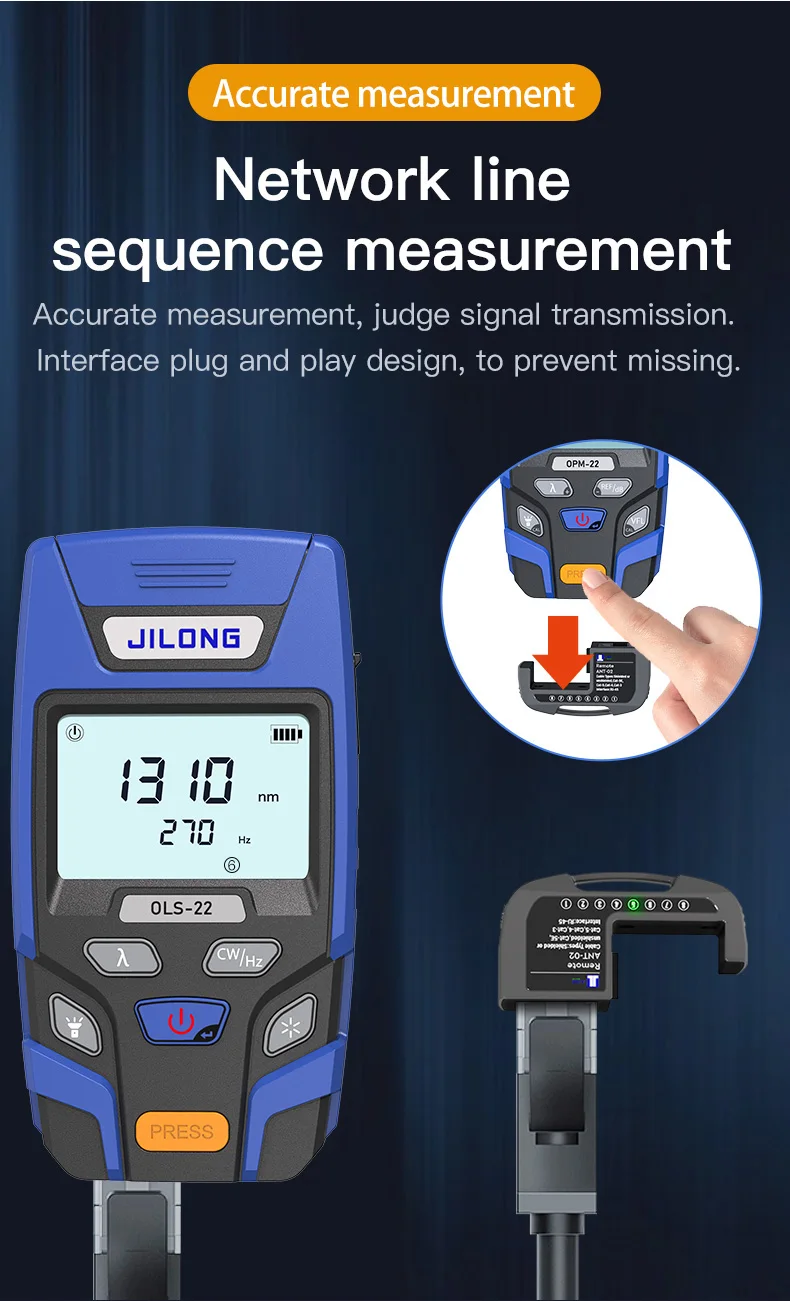

---Accurate measurement, judge signal transmission.

---2.5mm Universal adaptor for SC、ST、FC

---Equipped with LED light, convenient to operate in dark environment
