Type-C QC Decoy Trigger Board PD2.0/3.0 Fast Charge Module 9V 12V 15V 20V Output
Popular
Product Introduction
Product Features:
TYPEC interface integrated molding, strong and durable
Good key touch, suitable height.
Adopt original chip, good workmanship.
Reasonable design, to meet most of the application scenarios
TYPEC interface integrated molding, strong and durable
Good key touch, suitable height.
Adopt original chip, good workmanship.
Reasonable design, to meet most of the application scenarios
Product parameters:
1、Support PD3.0/PD2.0 voltage induced cheat output, mode free switching.
2、Support 5V/9V/12V/15V/20V decoy output (specific range and your power supply related).
3, with key lock function, to prevent misoperation (so as not to set the voltage damage to the load equipment).
4、5V/9V/12V/20V quick setting. LED indication output.
5、Parameter brake to save, re-power to execute the last trick setting.
6, ultra-low power consumption (20V when there is a slight heat), support 100W output.
7, maximum 20V5A output (the actual value according to your power supply).
8, type c male head integrated molding, rugged and durable.
1、Support PD3.0/PD2.0 voltage induced cheat output, mode free switching.
2、Support 5V/9V/12V/15V/20V decoy output (specific range and your power supply related).
3, with key lock function, to prevent misoperation (so as not to set the voltage damage to the load equipment).
4、5V/9V/12V/20V quick setting. LED indication output.
5、Parameter brake to save, re-power to execute the last trick setting.
6, ultra-low power consumption (20V when there is a slight heat), support 100W output.
7, maximum 20V5A output (the actual value according to your power supply).
8, type c male head integrated molding, rugged and durable.
Instructions for use (must use a power supply with PD protocol).
1. Press and hold the S button, then insert the module into the power supply, which is reset to 5V output (">>" indicates power on)
2. Press and hold the S + button, then insert the module into the power supply, this time to switch on whether the power on the key lock and save the state, power down is not lost, if there is open key lock, the power on the lock must be opened to adjust the voltage to prevent misuse.
3. Press and hold S+ after power on and then press S-, when there is a key lock to unlock.
4. Press and hold S- after power on and then press S+ to lock the keys.
Quick start: the board is plugged into the PD power supply, this time the LED lights indicate the existing settings to trick the voltage, are not lit to indicate the default 5V, if you want to adjust the output voltage. The board is locked by default, then you need to unlock it first, by pressing and holding S+ and then pressing S-, when the unlocking is complete, you can release the button. Then click S+ to add voltage or click S- to subtract voltage.
1. Press and hold the S button, then insert the module into the power supply, which is reset to 5V output (">>" indicates power on)
2. Press and hold the S + button, then insert the module into the power supply, this time to switch on whether the power on the key lock and save the state, power down is not lost, if there is open key lock, the power on the lock must be opened to adjust the voltage to prevent misuse.
3. Press and hold S+ after power on and then press S-, when there is a key lock to unlock.
4. Press and hold S- after power on and then press S+ to lock the keys.
Quick start: the board is plugged into the PD power supply, this time the LED lights indicate the existing settings to trick the voltage, are not lit to indicate the default 5V, if you want to adjust the output voltage. The board is locked by default, then you need to unlock it first, by pressing and holding S+ and then pressing S-, when the unlocking is complete, you can release the button. Then click S+ to add voltage or click S- to subtract voltage.

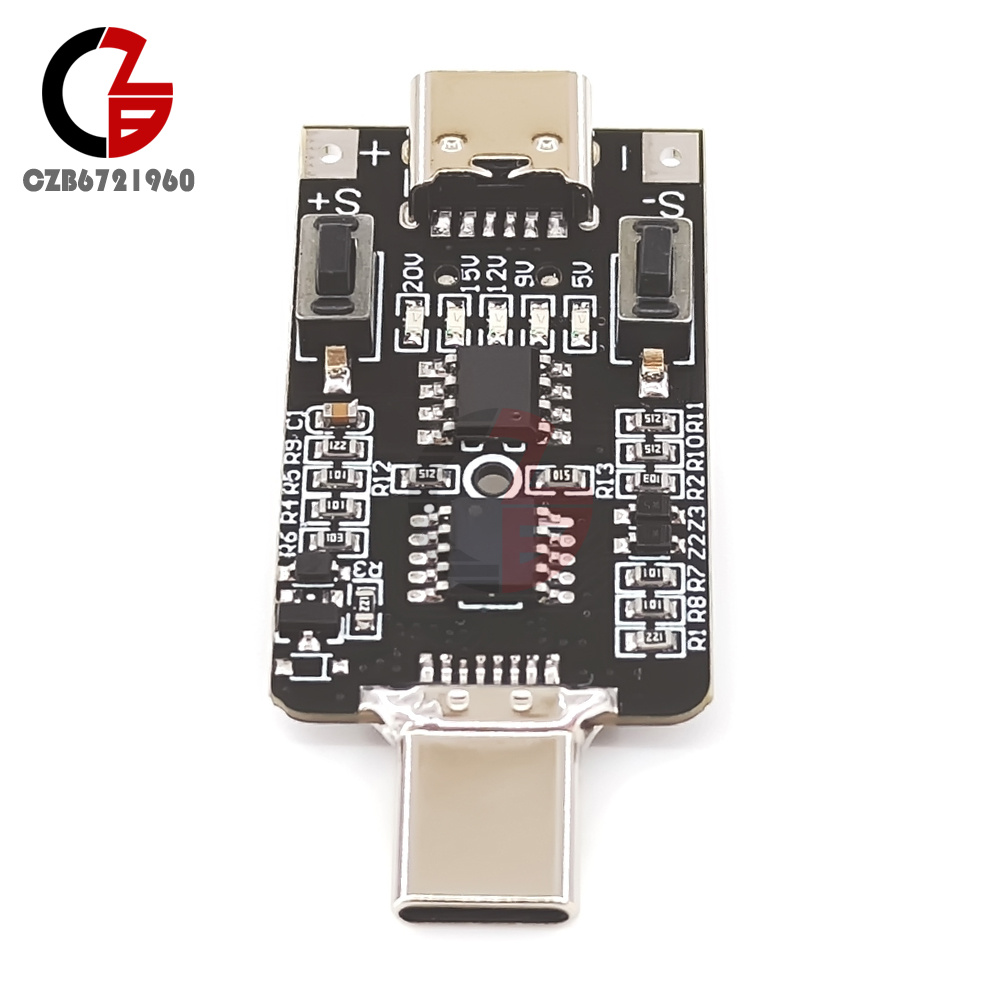

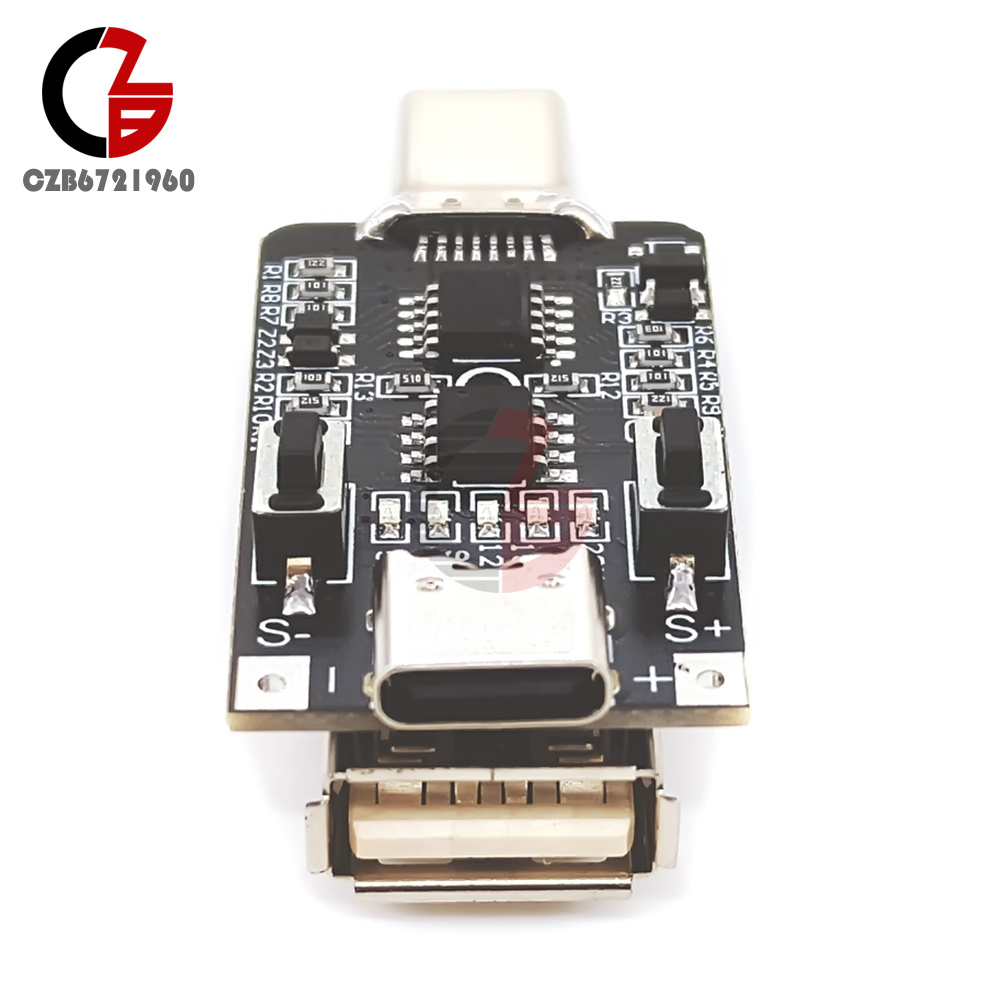

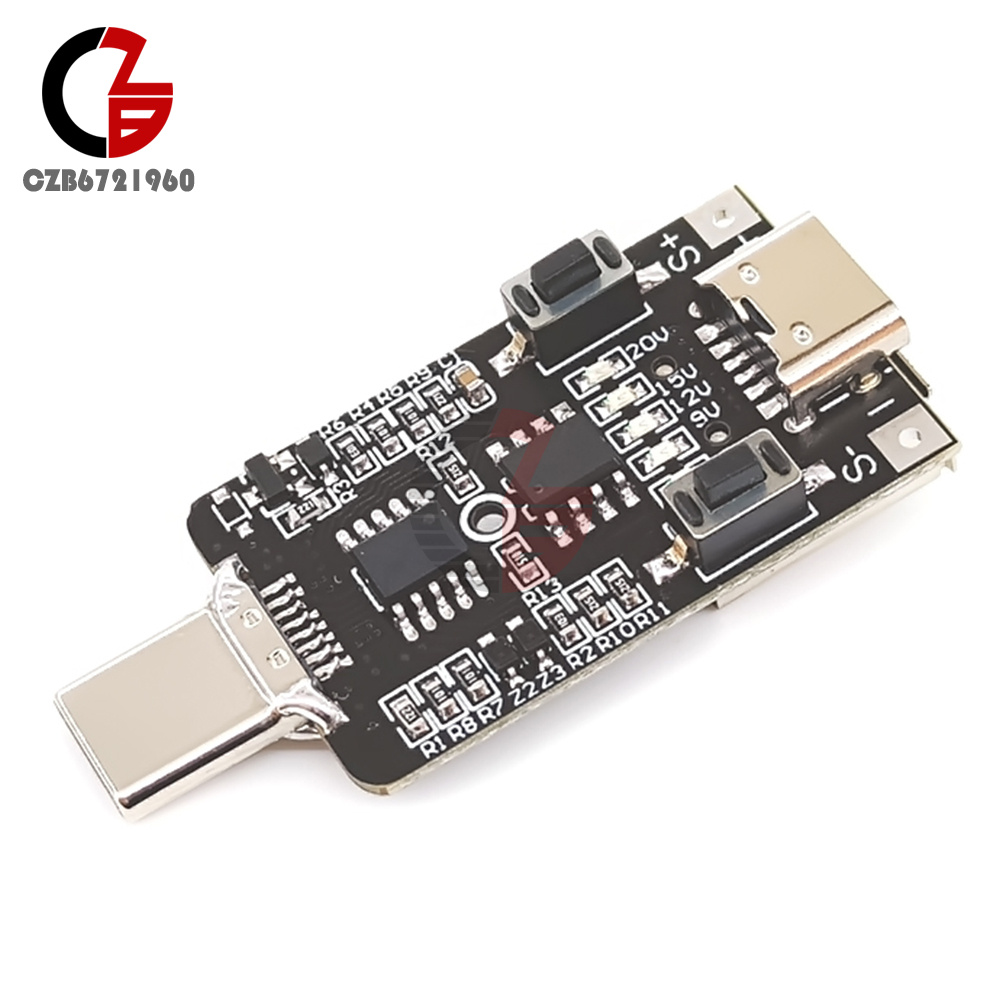

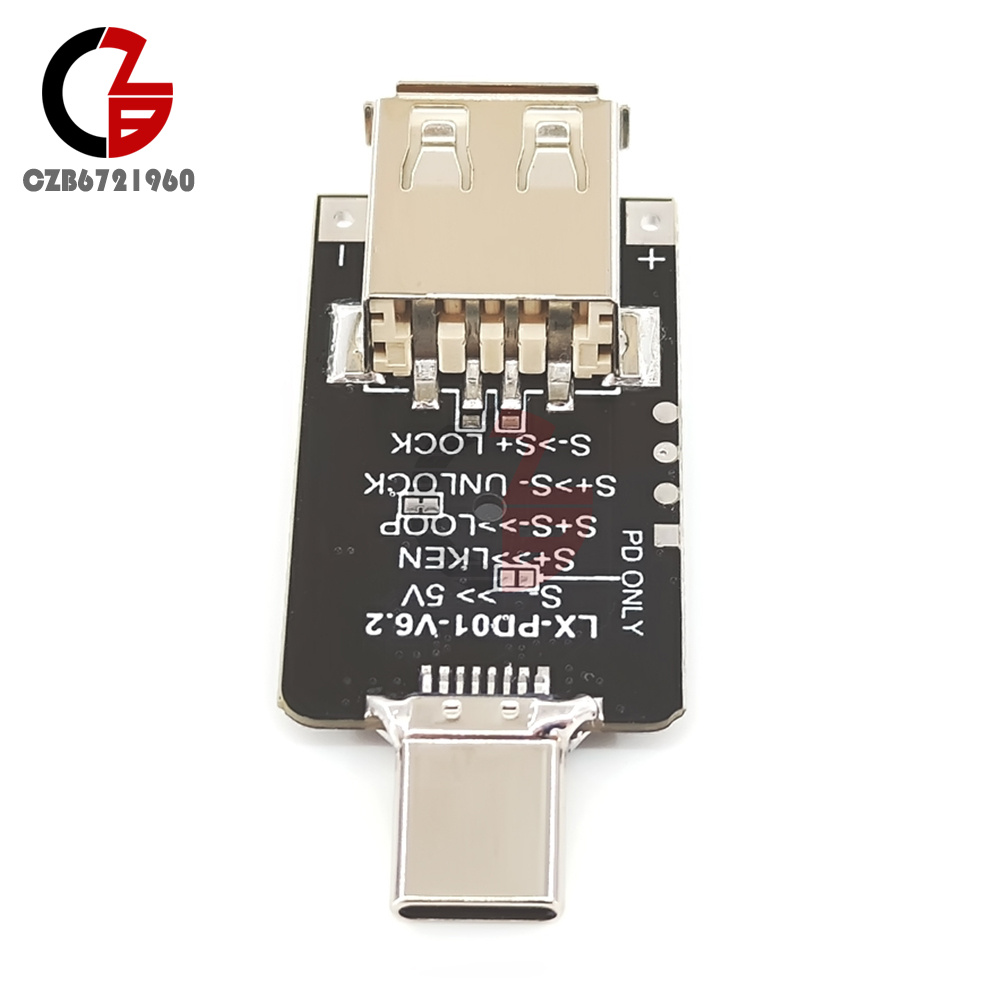

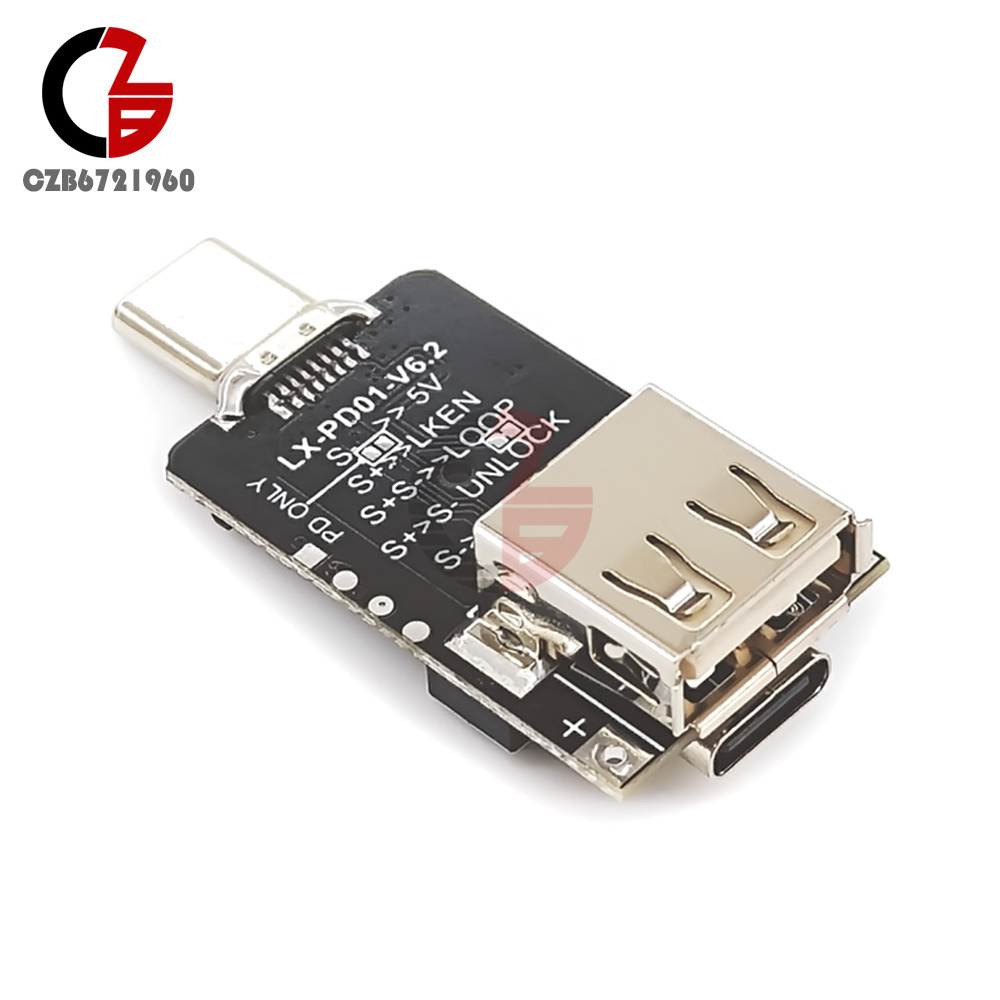

Interface Description.
Type-c male:as input to connect PD power supply, can pass 20V 5A voltage current.
Type-c female: as input to connect PD power supply, also can be used as output interface
(Keep CC line hanging), can pass 20V5A voltage and current.
USB-A female: as the output, can pass 20V3A voltage current.
Positive and negative wiring pads: as the output, can pass 20V5A voltage current.
Type-c male:as input to connect PD power supply, can pass 20V 5A voltage current.
Type-c female: as input to connect PD power supply, also can be used as output interface
(Keep CC line hanging), can pass 20V5A voltage and current.
USB-A female: as the output, can pass 20V3A voltage current.
Positive and negative wiring pads: as the output, can pass 20V5A voltage current.
Caution.
1, the power supply must support PD or QC protocol.
2, the power device can not be cell phones tablets, etc.. The phone is not fast charging, adding this module is also useless, is fast charging does not need this.
3, know whether the power of their load is less than the power of your power supply. Otherwise, overload power protection and decoy is okay.
4, before use to confirm whether the time output voltage to the application of electrical equipment with electricity voltage, to avoid misuse leads to burn equipment, otherwise the consequences are their own.
5, the board without technical confirmation, private changes. The store is not responsible for technical support and after-sales.
6, the board voltage indication only 9V/12V/15V/20V, if the four indicators are not lit, it is 5V output.
7, hand try to take the edge of the board, do not directly touch the chip to avoid human electrostatic damage to the chip.
8, in the case of unknown set trick output voltage how much, first do not connect the load, determine before connecting, to avoid the voltage exceeds the load withstand voltage.
1, the power supply must support PD or QC protocol.
2, the power device can not be cell phones tablets, etc.. The phone is not fast charging, adding this module is also useless, is fast charging does not need this.
3, know whether the power of their load is less than the power of your power supply. Otherwise, overload power protection and decoy is okay.
4, before use to confirm whether the time output voltage to the application of electrical equipment with electricity voltage, to avoid misuse leads to burn equipment, otherwise the consequences are their own.
5, the board without technical confirmation, private changes. The store is not responsible for technical support and after-sales.
6, the board voltage indication only 9V/12V/15V/20V, if the four indicators are not lit, it is 5V output.
7, hand try to take the edge of the board, do not directly touch the chip to avoid human electrostatic damage to the chip.
8, in the case of unknown set trick output voltage how much, first do not connect the load, determine before connecting, to avoid the voltage exceeds the load withstand voltage.
Product List:
1X module
1X module
FAQ.
Question:How much current is induced out
Answer:The board is responsible for inducing voltage, the current size should not exceed the voltage that the USB interface can withstand. type-c male and female output current is 5A, if you use the USB-A port to withstand the current like 3A. So do not exceed this current. There will be no problem. The actual current size. Is determined by your power supply and your load. The board is only responsible for luring out the voltage. (For example: your cell phone charging head is 9V2A/12v1.5A, the current will not exceed 1.5A after using the 12v decoy)
Question:How much current is induced out
Answer:The board is responsible for inducing voltage, the current size should not exceed the voltage that the USB interface can withstand. type-c male and female output current is 5A, if you use the USB-A port to withstand the current like 3A. So do not exceed this current. There will be no problem. The actual current size. Is determined by your power supply and your load. The board is only responsible for luring out the voltage. (For example: your cell phone charging head is 9V2A/12v1.5A, the current will not exceed 1.5A after using the 12v decoy)

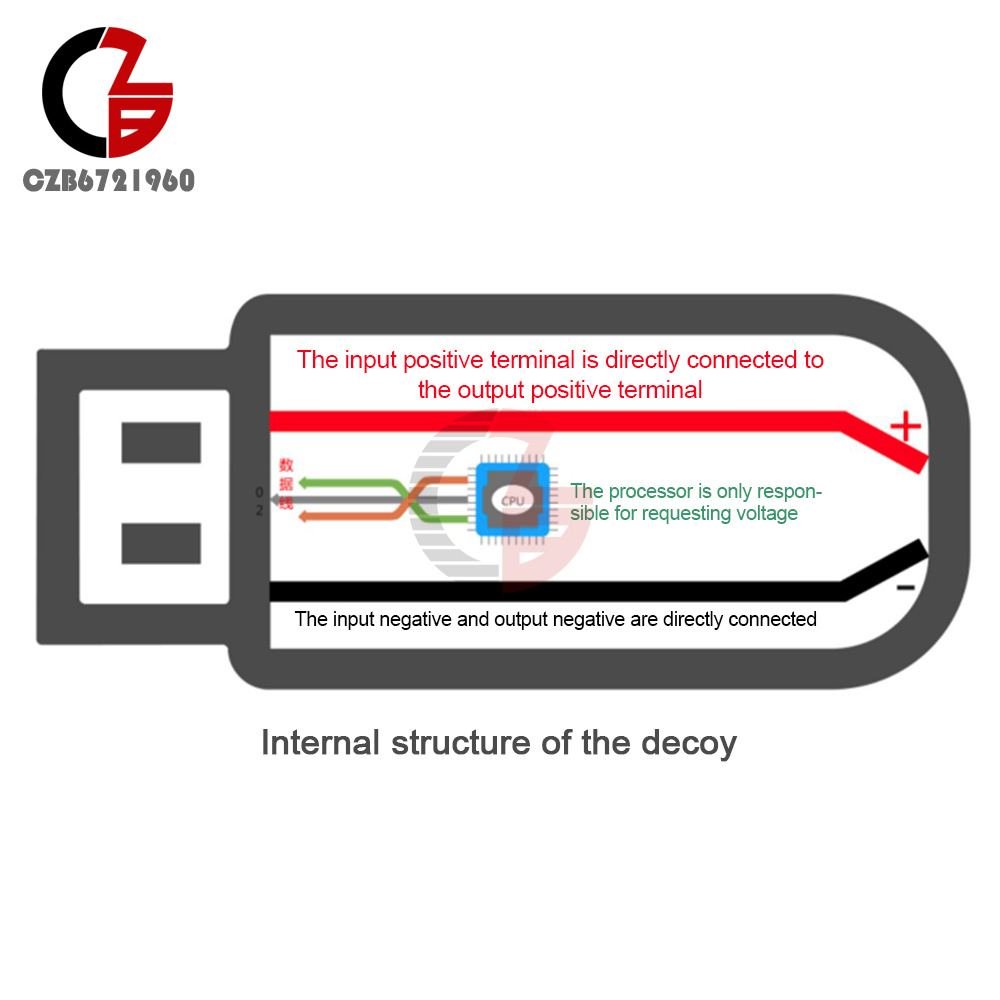

Question: Measuring the voltage of the decoy is not accurate
A: The decoy is only responsible for telling the power supply how high a voltage I need you to output, the module does not determine the actual voltage function, this and the power supply itself voltage accuracy and current factors.
Attention:
Xiaomi's 20V only supports QC3.0 does not support QC2.0 so PD is currently not supported.
Currently support QC2.0 devices are able to out 20V,.
The module with E-mark, without E-mark power can only support up to 60W, E-mark support can make the output more power;.
Module currently supports 5V/12V/15/20V output, need other voltage output, please pay attention to us, later there will be more voltage version module updates.
Xiaomi's 20V only supports QC3.0 does not support QC2.0 so PD is currently not supported.
Currently support QC2.0 devices are able to out 20V,.
The module with E-mark, without E-mark power can only support up to 60W, E-mark support can make the output more power;.
Module currently supports 5V/12V/15/20V output, need other voltage output, please pay attention to us, later there will be more voltage version module updates.
