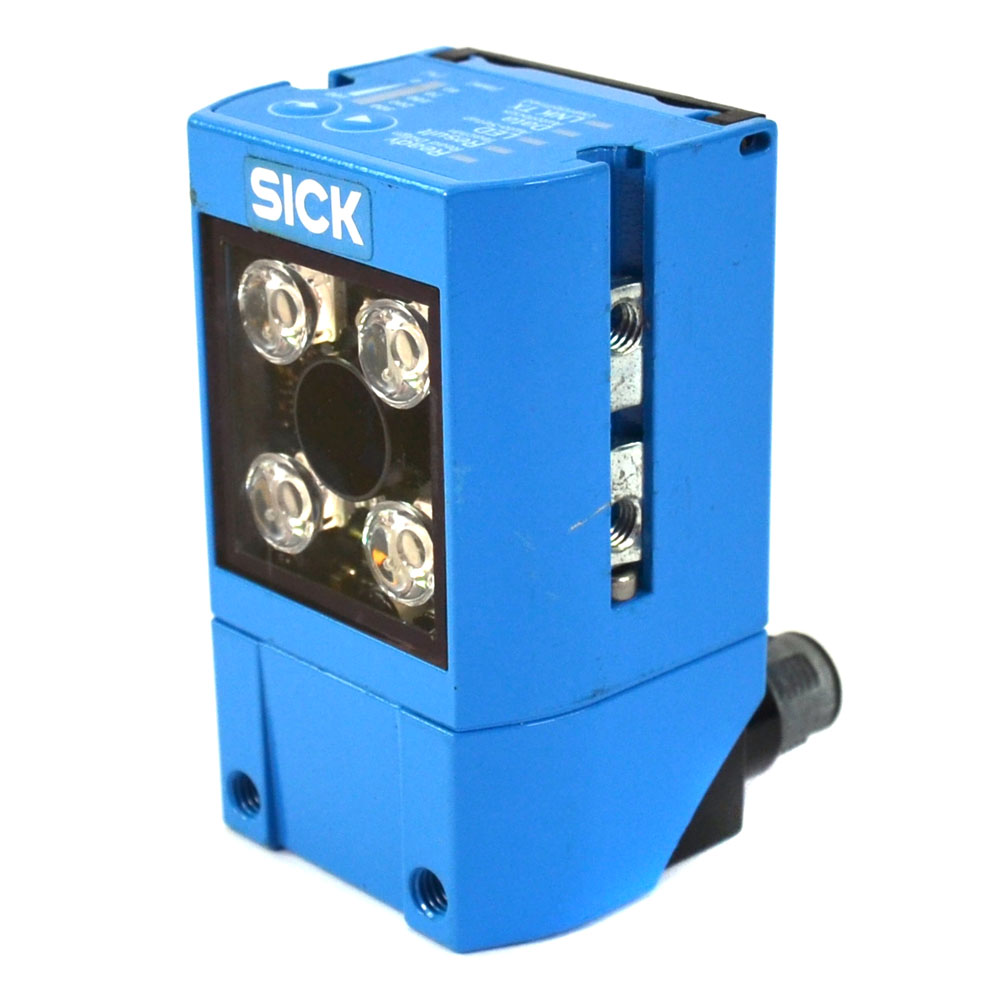

Sick ICR620S-T11503 Lector 620 Image-Based Code Reader + 2063093 Dome Accessory

Manufacturer: Sick

Model: ICR620S-T11503

Condition: Used

Cosmetic appearance may vary slightly from pictured unit(s).

Manufacturer: Sick

Condition: Used. This sensor is in good cosmetic condition with scuffs and scratches from normal use. Comes in non-original packaging.

Notes: This sensor was removed from decommissioned equipment and has not been tested. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

(1) Sick ICR620S-T11503 Lector 620 Image-Based Code Reader + 2063093 Dome Accessory

Specifications:

Manufacturer: Sick
Model: ICR620S-T11503 / 2063093
Part No: 1050589
Description: Lector 620 Image-Based Code Reader w/ 2063093 Dome Accessory
- Code Reader
  - Variant ECO
  - Optical focus Teach autofocus
  - Sensor CMOS matrix sensor, grayscale values
  - Sensor resolution 752 px x 480 px (WVGA)
  - Light source
  - Internal lighting LED, Visible, Red, 617 nm, ± 15 nm
  - Internal lighting LED, Visible, blue, 470 nm, ± 15 nm
  - Feedback spot LED, Visible, green, 525 nm, ± 15 nm
  - Adjustment aid Laser, Visible, Red, 630 nm ... 680 nm
  - LED class 1 (IEC 62471:2006-07, EN 62471:2008-09)
  - Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
  - Scanning frequency 60 Hz, WVGA resolution
  - Code resolution ≥ 0.1 mm 1)
  - Reading distance 30 mm ... 500 mm 1) 2)
  - Lens
  - Focal length 7 mm
  - 1) Valid for Data Matrix, PDF417, and 1D codes with good print quality.
  - 2) For details see the reading field diagram.
  - Connection type
    - 1 x M12, 17-pin male connector
    - 1 x M12, 4-pin Ethernet female connector
  - Supply voltage 10 V DC ... 30 V DC
  - Power consumption Typ. 3 W
  - Output current ≤ 100 mA
  - Housing Aluminum die-cast
  - Housing color Light blue (RAL 5012)
  - Front screen Glass
  - Enclosure rating IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02))
  - Protection class III
  - Electrical safety EN 60950-1 (2006-04) / EN 60950-1/A11 (2009-03)
  - Weight 170 g
  - Dimensions (L x W x H) 71 mm x 43 mm x 35.6 mm 1)
  - MTBF 75,000 h
  - 1) Swivel connector is 17.8 mm longer.
  - Readable code structures 1D codes, Stacked, 2D codes
  - Bar code types GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93
  - 2D code types Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code
  - Code qualification On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 18004
  - No. of codes per reading interval 1 ... 50
  - No. of characters per reading interval 500 (for multiplexer function in CAN operation)
  - Internal image storage 135 MB
  - Transport speed 6 m/s
  - Ethernet ?, TCP/IP
  - Function Host, AUX, OPC DA Server, FTP (image transmission)
  - Data transmission rate 10/100 MBit/s
  - PROFINET?
  - Function PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2)
  - Data transmission rate 10/100 MBit/s
  - EtherNet/IP™?
  - Data transmission rate 10/100 MBit/s
  - EtherCAT®?
  - Type of Fieldbus integration Optional over external Fieldbus module CDF600
  - Serial?, RS-232, RS-422
  - Function Host, AUX
  - Data transmission rate 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
  - CAN?
  - Function SICK CAN sensor network CSN (master/slave, multiplexer/server)
  - Data transmission rate 20 kbit/s ... 1 Mbit/s
  - CANopen ?
  - Data transmission rate 20 kbit/s ... 1 Mbit/s
  - PROFIBUS DP?
  - Type of Fieldbus integration Optional over external Fieldbus module CDF600-2
  - USB?
  - Remark USB 2.0 (for parameterization only)
  - Function AUX
  - Digital inputs 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
  - Digital outputs 4 (“Result 1”, “Result 2”, 2 outputs via CMC and CDB620/CDM420 or “Result 1”, “Result 2”, “Result 3”, “Result 4” when using the 17-wire cable with open cable end)
  - Reading pulse Digital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode
  - Optical indicators 16 LEDs (5 x status display, 10 x LED bar graph, 1 green feedback spot)
  - Acoustic indicators Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
  - Control elements 2 buttons (choose and start/stop functions)
  - Operator interfaces Webserver
  - Configuration software SOPAS ET
  - Memory card Micro SD memory card (flashcard) max. 32 GB, optional
  - Data storage and retrieval Image and data storage via microSD memory card and external FTP
  - Maximum encoder frequency 300 Hz
  - External illumination control Via digital output (max. 24 V trigger)
- Dome Accessory
  - Lector620 dome accessories for glossy and curved surfaces inclusive bracket and mounting material
