Video content creators will appreciate the TRACK E's implementation of timecode support, making it easy to sync sound and video later in the postproduction editing process. If you have an audio recorder with built-in timecode and want to use that as the master, you can feed the timecode to the TRACK E's mic input and jam-sync it. You can use multiple TRACK Es in this manner by jam-syncing each unit. Alternatively, you can jam-sync a single SYNC E (available separately) to external code and sync multiple TRACK E units to it wirelessly via the app.
While the TRACK E doesn't output timecode, it does have a built-in timecode generator that allows you to use the app to synchronize multiple TRACK E units together from the same starting point and create multitrack recordings for music productions. Once running, the units will stay in sync, even if they are out of Bluetooth range with each other and/or your phone; you'll only need Bluetooth control to make setting changes or operate the units. In addition, Start/Stop can be activated manually on the unit itself with the user switch.

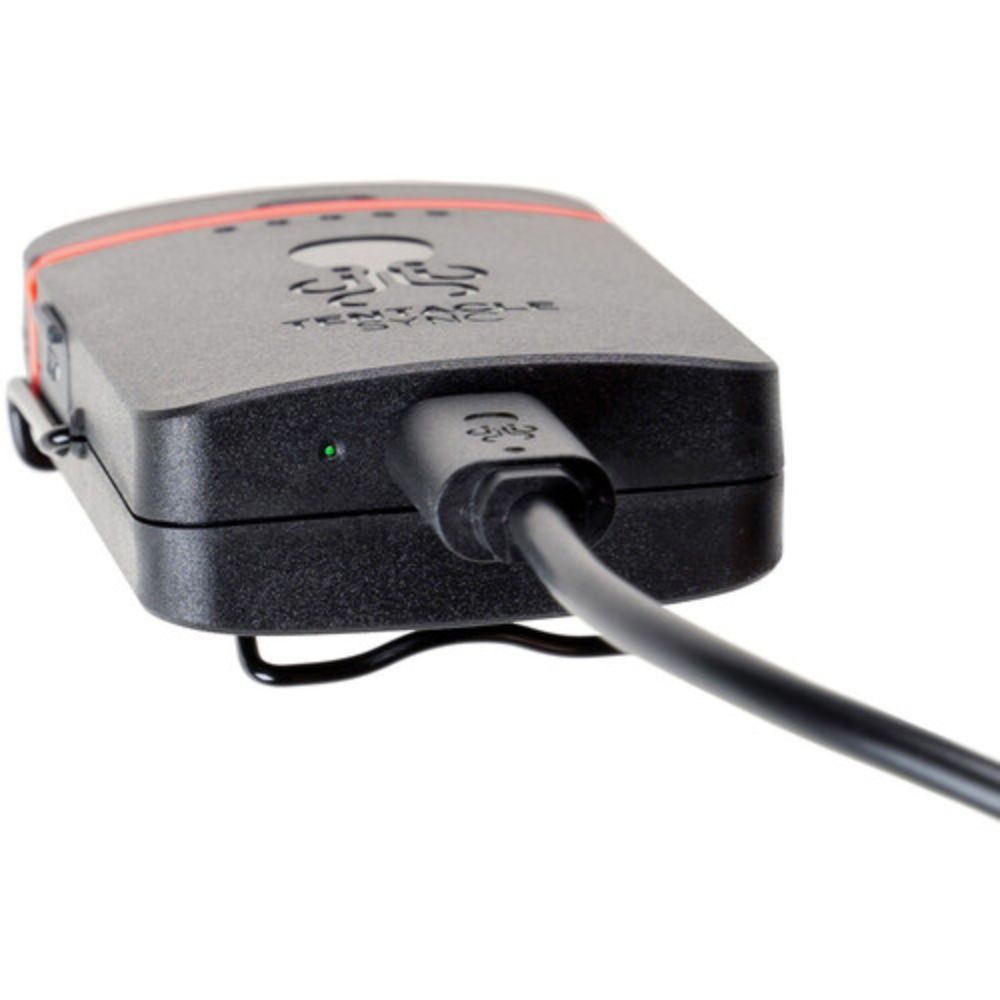

Bluetooth is implemented for sync and control purposes and can also be used for audio monitoring, though with substantial latency. Playback monitoring is also available via a 3.5mm headphone jack. The built-in rechargeable lithium battery supplies up to 10 hours of recording time and is charged via the USB Type-C port in a maximum time of two hours.

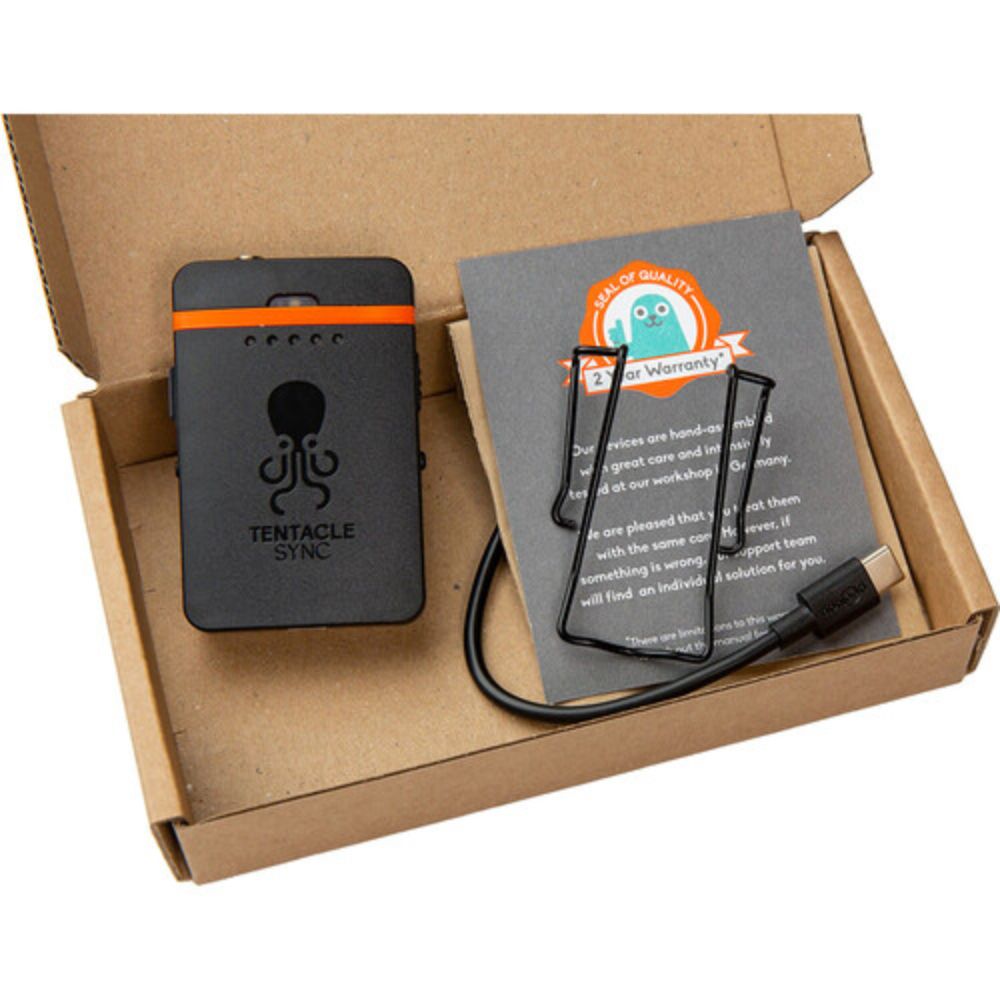

Box Contains
-
Tentacle Sync TRACK E Pocket Audio Recorder with Timecode Support (Recorder Unit Only)
-
Tentacle Sync TRACK E Pocket Audio Recorder with Timecode Support (Recorder Unit Only)
| Brand | Tentacle |
| Model | Tentacle TR1-B-US |
| MPN | TETRACKEBB |
| Type | Digital Recorder |
| Form Factor | Handheld Recorder |
| Primary Use Applications | Audio-for-Video |
| Number of Tracks | WAV: 1 |
| Number of Input Channels | 2 |
| Maximum Sampling Rate | 48 kHz / 24-Bit 48 kHz / 32-Bit |
| Microphone | None |
| Number of Microphone Preamps | None |
| Built-In Speaker | No |
| Display | None |
| Memory Card Support | microSD (Up to 32 GB) |
| Internal Storage | None |
| Special Features | None |
| Audio File Formats | Recording: BWF, WAV |
| Sample Rates | 48 kHz (Record) |
| Bit Depth | 24 / 32-Bit |
| Signal Processing & FX | Limiter, Low-Cut Filter |
| Timecode Support | Yes |
| Frame Rates Supported | 23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 |
| Recording Time | WAV 48 kHz/24-Bit: 30 Hrs WAV 48 kHz/32-Bit: 23 Hrs |
| Included Software | None |

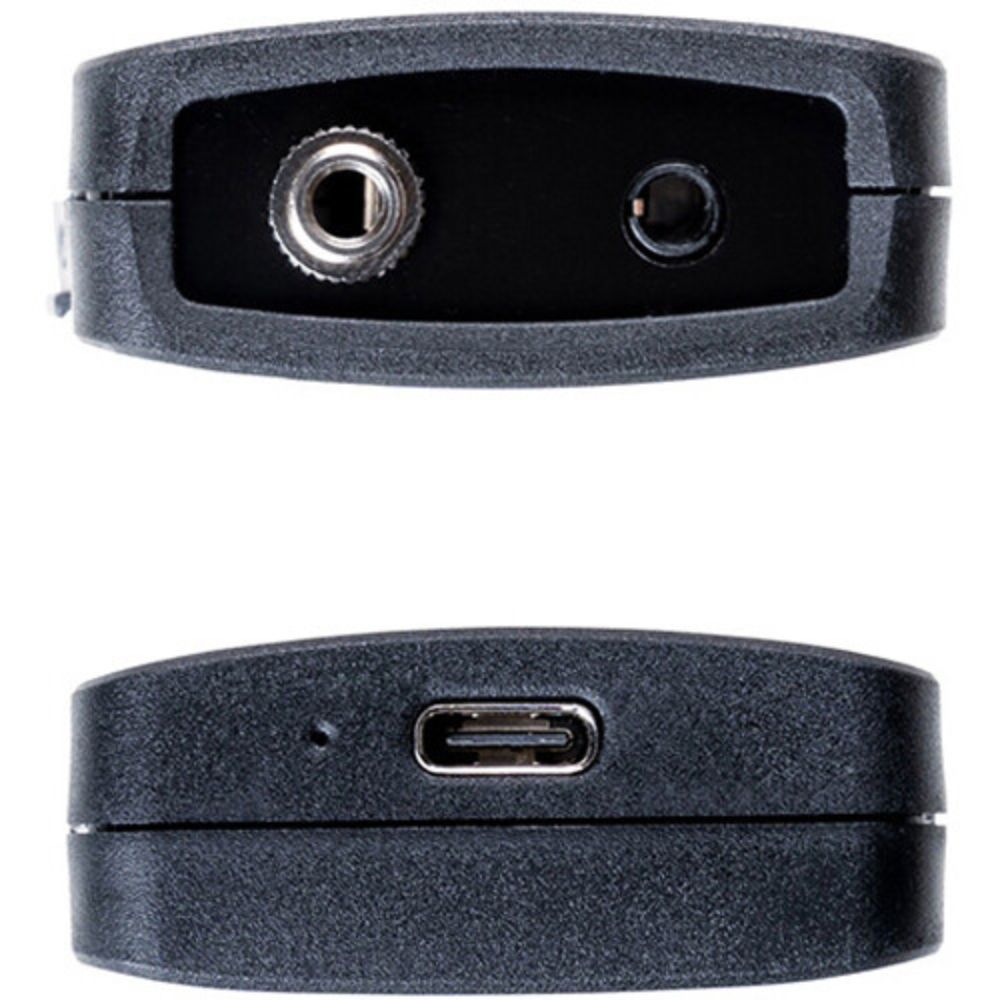

| Analog I/O | 1 x 1/8 / 3.5 mm TRS Female Input (Lockable) |
| Digital I/O | None |
| Phantom Power | None |
| Plug-In Power | Yes, 5 V |
| Host Connection | None |
| Audio Interface Capability | None |
| Bluetooth | Bluetooth 5.0 |
| Frequency Response | 20 Hz to 20 kHz |
| Gain/Trim Range | +6 dB to +46 dB |
| Dynamic Range | 110 dB |
| THD+N | ≤-85 dB (0.05%) |
| Power Options | Battery |
| Battery Type | 1 x Internal Rechargeable (Included) |
| Approximate Battery Life | 10 Hours (Internal Rechargeable Lithium-Ion) |
| AC/DC Power Adapter | 5 VDC (Not Included) |
| Included Accessories | None |
| Mounting Options | None |
