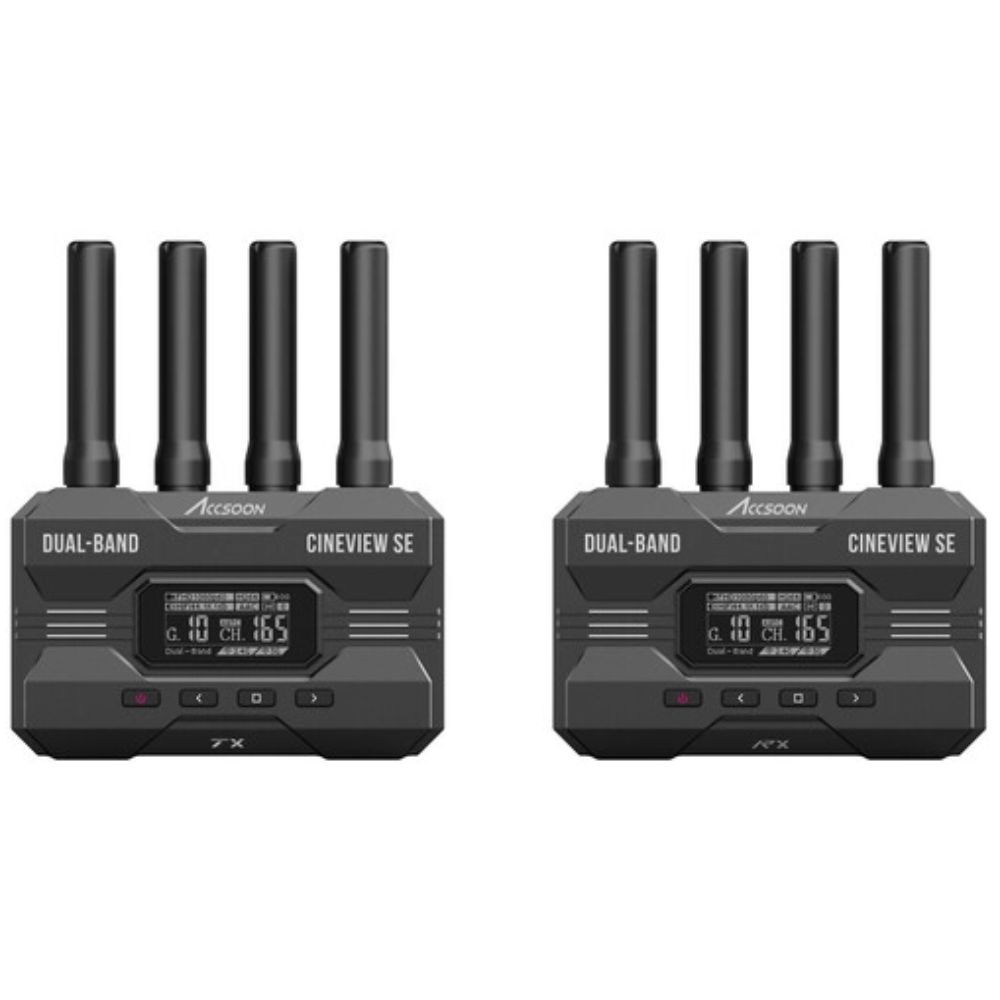

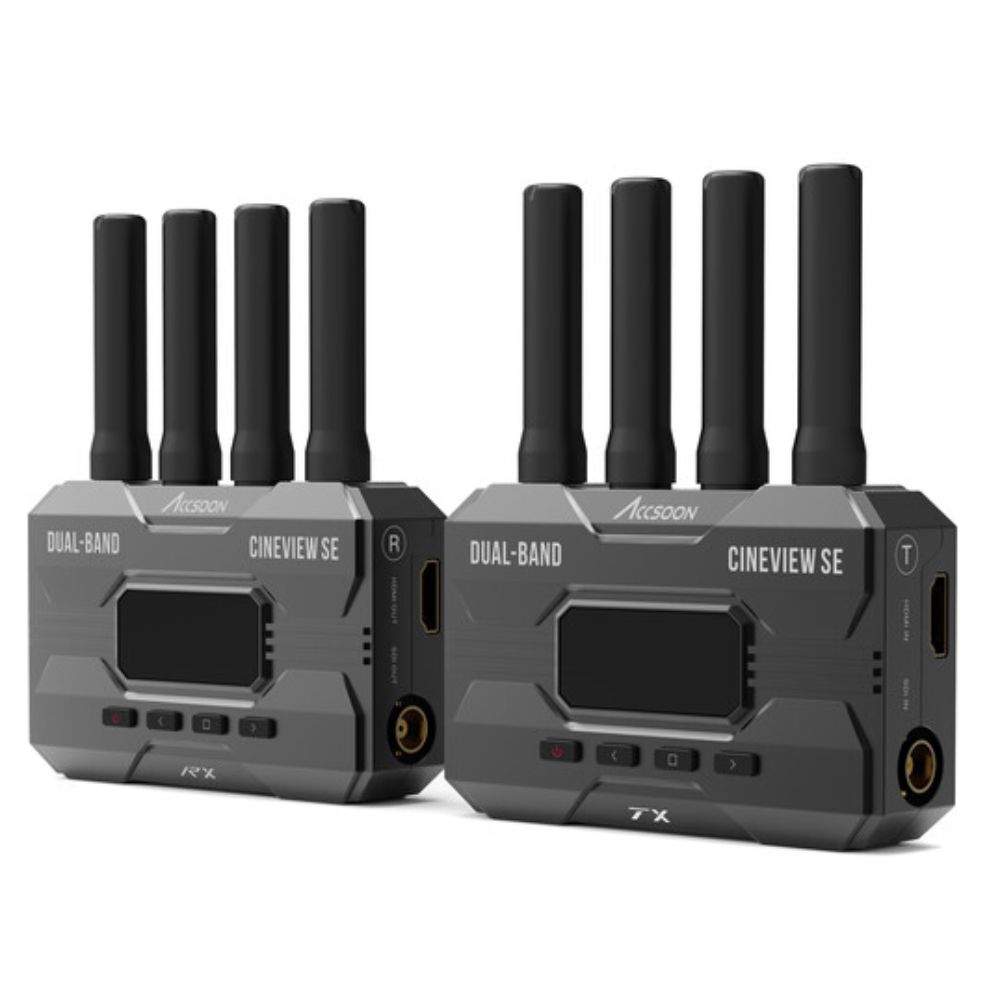

Accsoon CineView SE Multi-Spectrum Wireless Video Transmission System
The CineView SE Multi-Spectrum Wireless Video Transmission System from Accsoon has been updated from previous models with an even smaller and lighter form factor. With the SE, you can now send signal to a total of four devices simultaneously over distances up to 1200' with only a 50ms delay, and you can still transmit to any mix of receivers and iOS/Android smartphones and tablets.
Like other models, the CineView SE allows you to send a 1080p60 camera signal to the included receiver plus up to three mobile devices. This versatile wireless video transmission system provides a cost-effective way of allowing four people on set to monitor an HDMI or SDI camera signal. Its Quad technology allows you to transmit exact copies of your transmission over 2.4 and 5 GHz signals for redundant, high-quality images.
The included dedicated receiver is easy to set up and pair, and it features an HDMI and SDI output. The free-to-download companion app installs on a tablet or smartphone and it features image tools such as peaking, zebras, false color for exposure, and .cube 3D LUT overlay, and new features include Smart Sharpening and Onion Skin overlay. The transmitter and receiver feature DC power inputs, USB Type-C power inputs, and they also support an optional L-series battery that can power the set for up to 12 hours.
Wireless Transmission

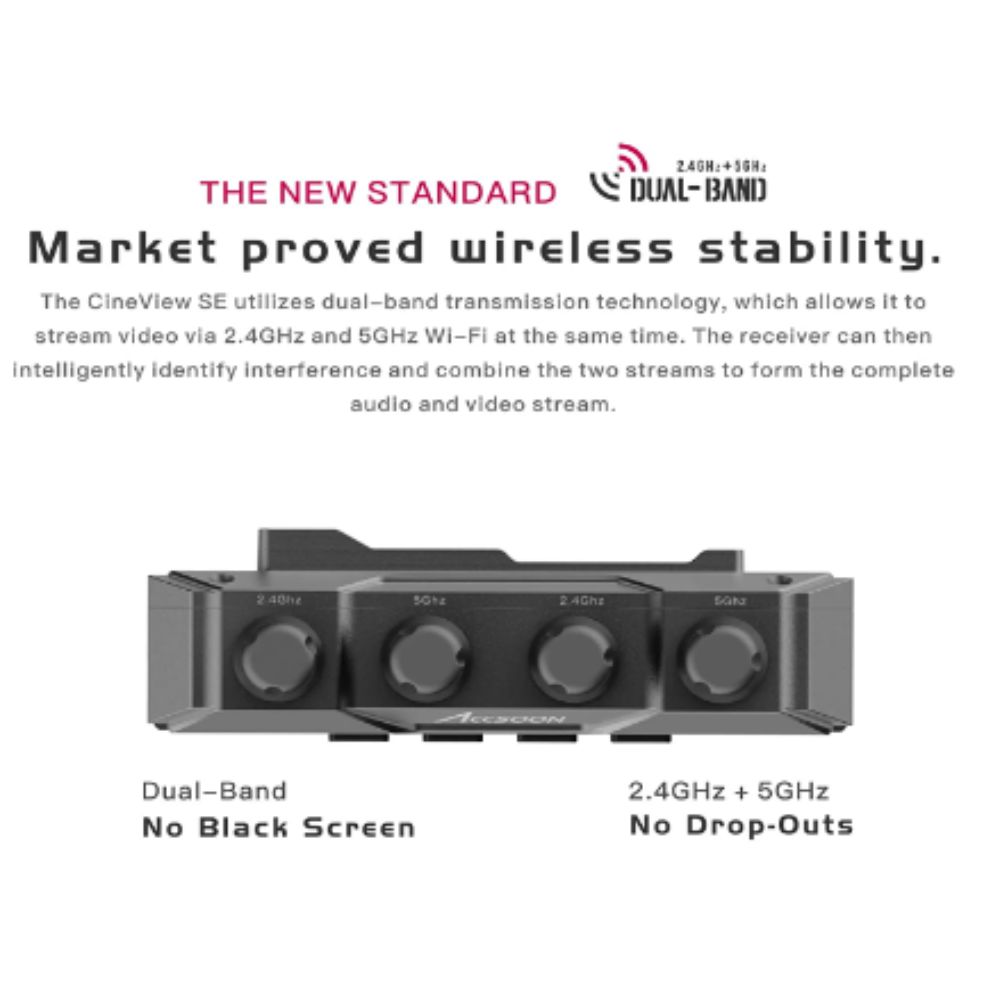

The system transmits two identical copies of your camera's video output on both 2.4 and 5 GHz frequencies at the same time. When these signals arrive at the receiver unit, they are instantly combined as needed to create the final high-quality video feed
Video Input/Output
Like other models, the CineView SE allows you to send a 1080p60 camera signal to the included receiver plus up to three mobile devices. This versatile wireless video transmission system provides a cost-effective way of allowing four people on set to monitor an HDMI or SDI camera signal. Its Quad technology allows you to transmit exact copies of your transmission over 2.4 and 5 GHz signals for redundant, high-quality images.
The included dedicated receiver is easy to set up and pair, and it features an HDMI and SDI output. The free-to-download companion app installs on a tablet or smartphone and it features image tools such as peaking, zebras, false color for exposure, and .cube 3D LUT overlay, and new features include Smart Sharpening and Onion Skin overlay. The transmitter and receiver feature DC power inputs, USB Type-C power inputs, and they also support an optional L-series battery that can power the set for up to 12 hours.
Wireless Transmission
- Twin dual-band wireless technology transmits the same image on both 2.4 and 5 GHz frequencies at the same time

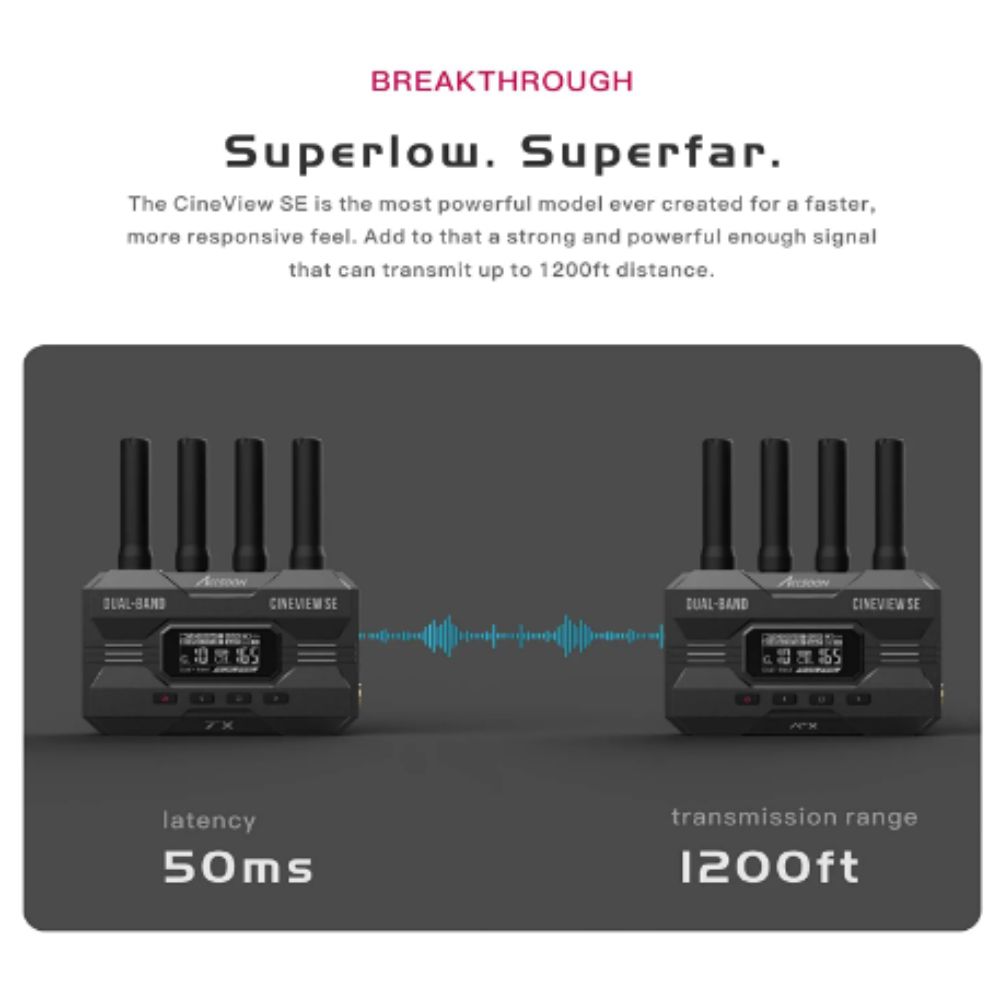

- Latency less than 50ms
- Long-distance transmission range of 1200'
- One transmitter can simultaneously connect up to four devices such as receivers, smartphones, or tablets
- Wireless remote monitoring via Accsoon Go App
- Smart Sharpening tool for more accurate focusing
- Onion Skin Overlay tool for precise repetition of shots and improved LUT loading and recording
- Ability to multitask with the Go App on Split View when using a suitable iPad
- High-end features like focus peaking, histogram, and false color
The system transmits two identical copies of your camera's video output on both 2.4 and 5 GHz frequencies at the same time. When these signals arrive at the receiver unit, they are instantly combined as needed to create the final high-quality video feed
Video Input/Output

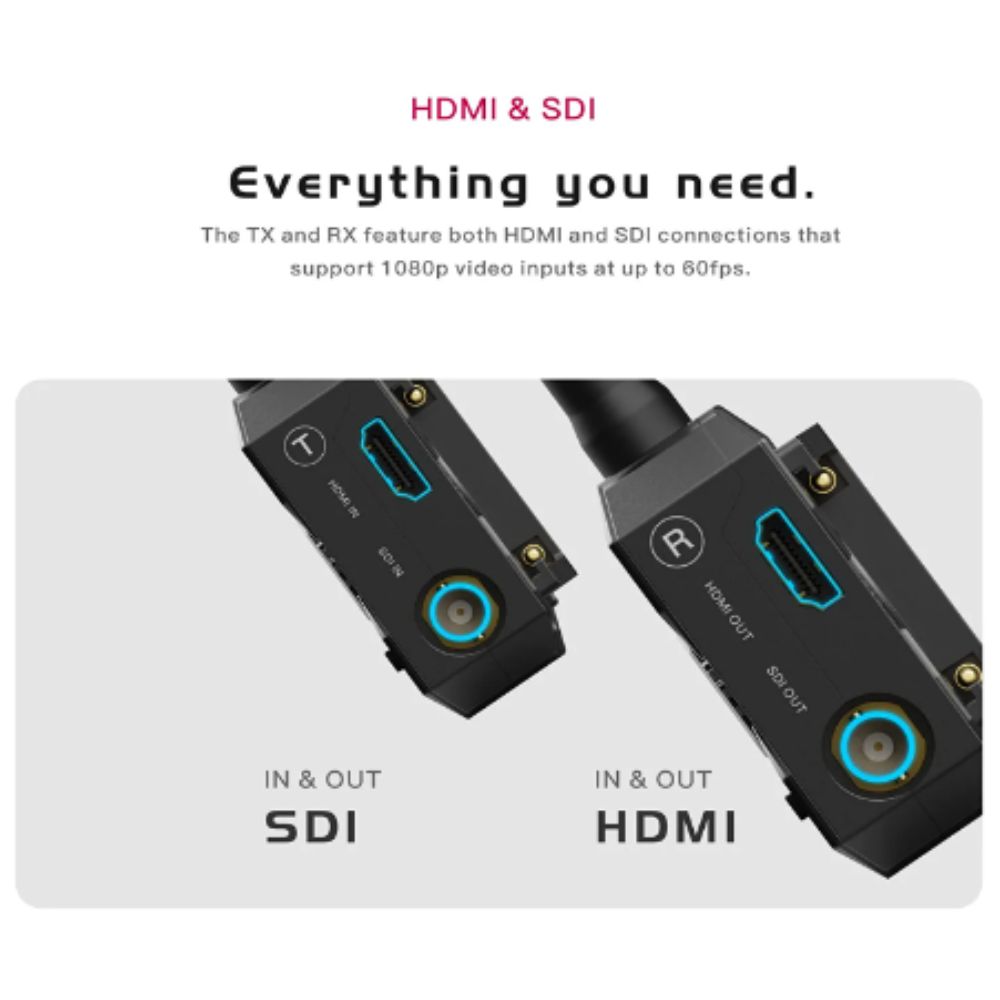

- HDMI and SDI inputs on the transmitter
- HDMI and SDI outputs on the receiver
- Up to Full HD 1080p60 video and high-quality audio transmission

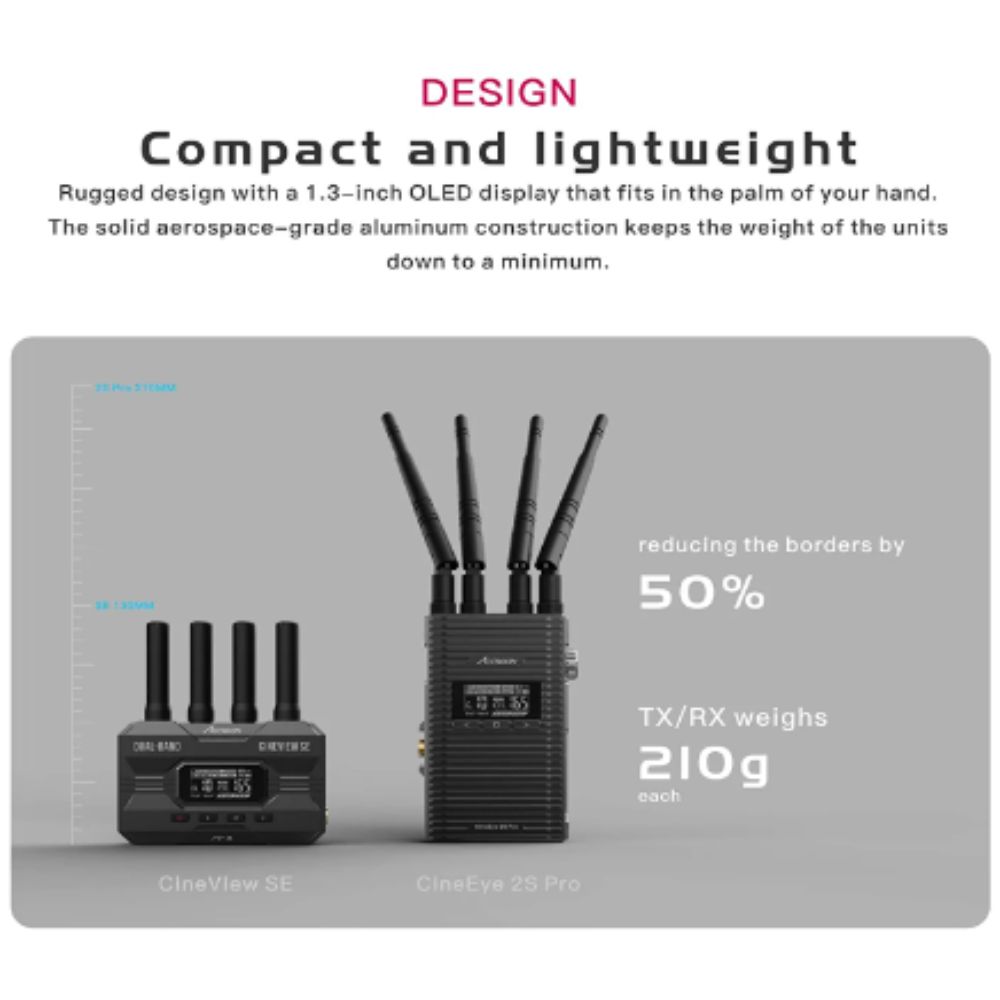

- The CineView SE system is even smaller and lighter than ever, with both transmitter and receiver weighing in at just 7.4 each
- Fanless design for silent operation
- Power by L-series/NP-F type battery, USB Type-C input, or DC input
- Bright OLED screen
- Durable aluminum construction
-
Accsoon CineView SE Multi-Spectrum Wireless Video Transmission System
- CineView Quad Transmitter
- CineView Quad Receiver
- Shoe Mount
Box Contains
-
Accsoon CineView SE Multi-Spectrum Wireless Video Transmission System
- CineView Quad Transmitter
- CineView Quad Receiver
- Shoe Mount
| Brand | Accsoon |
| Model | Accsoon CVSE |
| MPN | ACCVSE |
| Type | Wireless Transmission Systems |
| Antenna Ports | Transmitter/Receiver: 4 x RP-SMA |
| Video I/O | Transmitter: 1 x HDMI Input Transmitter: 1 x BNC (3G-SDI) Input Receiver: 1 x HDMI Output Receiver: |
| Embedded Audio | HDMI/SDI |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x Barrel 2.1 mm (16.8 VDC) Input Transmitter/Receiver: 1 x USB-C (5 VDC) Inp |
| Encryption | None |
| Wireless Range | 1200' / 365.8 m |
| # of Channels | 20 |
| Frequency Range | 2412 to 2472 MHz 5180 to 5580 MHz 5660 to 5825 MHz |
| Latency | < 50 ms |
| RF Power | 17 dBm |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Video Format | HDMI/SDI/Wireless 1080p: 60/59.94/50/30/29.97/25/24/23.98 |
| Audio Format | 2-Channel 24-Bit 48 kHz PCM Audio |
| Timecode Support | No |
| DC Input Power | 7.4 to 16.8 VDC |
| Battery Type | Transmitter/Receiver: 1 x L-Series |
| Power Consumption | Transmitter: 4.5 W (Typical) Receiver: 3.5 W (Typical) |
| Mounting | 1 x 1/4-20 Female |
| IP Rating | None |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Material of Construction | Aluminum |
| Dimensions | Transmitter/Receiver: 4.1 x 2.6 x 1.3 / 10.5 x 6.6 x 3.2 cm |
| Weight | Transmitter/Receiver: 7.4 oz / 210 g, Including Antenna |
